Mocal heat changer in red ultima who are you?

[Dr Peter]

Someone send me some details of there mocal heat exchanger that was in there red GTR.
I was planing to go and get one tomorrow, but I can't find your email saying what size yours was, can anyone help me, out.

They look like -10 feeds for the oil.

[ezakimak]

I think that might be "ultimacz", see the gallery you might spot the car.

[peterpsg]

I used one of these (13 plate with 1 1/2 inch in/outlets), expensive and I had to source it from the states but it works very well, and I was able to mount it vertically simply by moving the swirl pot up a bit (and the expansion tank to balance the pressure), and I didn't even have to add any more twists and turns in the water pipes...

www.crracing.com/custom_built/external_heat.shtml

[Graham-P]

Try this thread I think this is what you are looking for.

Graham

[ultimacz]

Yes, that was me. You have all information in the thread.
And yes, it should be Dash 10 for the oil lines.
Peter

[ezakimak]

yep that was the one i was thinking of, luv that car with the carbon in the engine bay

[peterpsg]

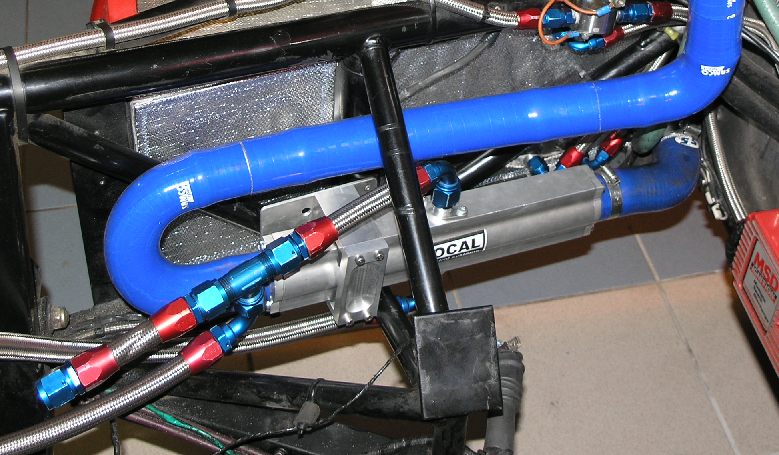

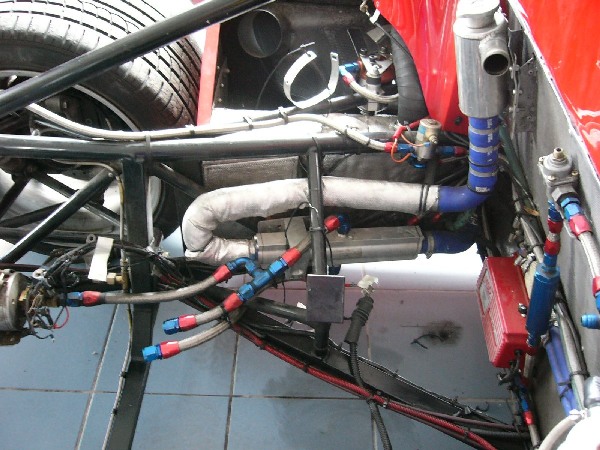

Ok, for my install with the CRRacing unit, if you look at the picture and see where the water pipe comes out of the chassis on the left hand side of the car, I just turned the right angle water pipe join upwards, made a bracket to wrap the exchanger, and moved the pot up a bit, easy as...
