"we've done something bad" - tvrolet expires
Discussion
Despite more than enough traumas in the early days, I stuck with the small block chevy with ultimately everything bar the block itself being new and uprated – dart heads, roller cam, shaft mount rockers, forged crank and I-beam rods etc. And for the last year or so it’s put in loads of track miles. But on the cooling down lap at Oulton it let go again

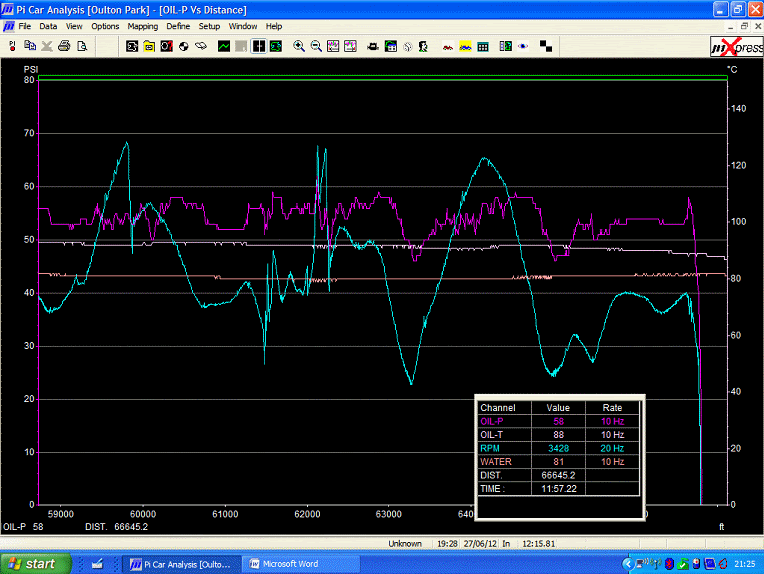

Logs in the lead-up showed good oil pressure and steady oil and water temperatures – and modest revs so not sure what the catalyst was.
In any case, the video of the blow-up is here. I had David? [sorry, I’m rotten with names] from Surface & Design as a passenger at the time. I think my initial assessment of ‘we’ve done something bad’ was pretty accurate, and the comment ‘bugger’ was surprisingly reserved in the circumstances.
http://youtu.be/lpHAUTiMmhM

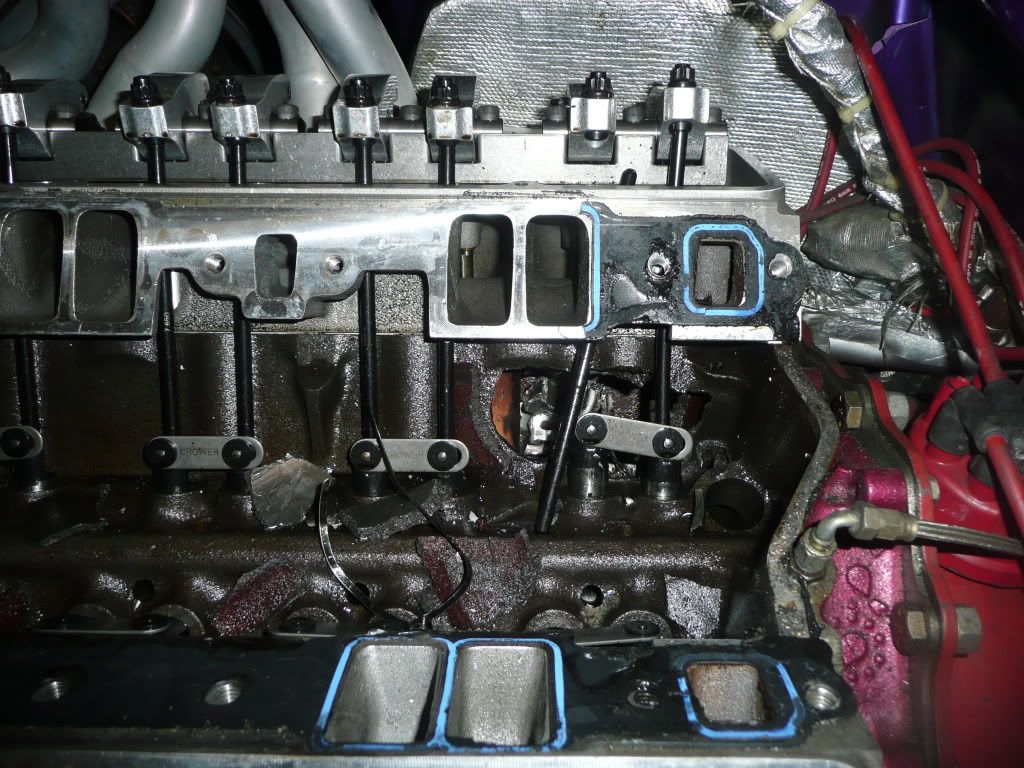

So, I took the lid off the motor tonight to see some absolute carnage. There’s a hole in the block on number 8 cylinder that you can put your first in, and a decided lack of liner, piston, rod etc. It’s pretty much blown the liner and a chunk of block out into the ‘V’. Oops. I’ve absolutely no idea what the cause would be, especially as the motor had been running fairly hard earlier in the day, but was driving-miss-daisy ready to pull-off when it lunched itself.
Ah well. Decision made. I’m going ‘LS’. Still not sure if it’ll be an LS7 (expensive) or a worked-on LS3. Just got to track one down now. That’ll be me out of track action for the rest of the summer I guess as I’m sure there will be more to do than just drop in the LS
On a brighter note I'll stick some of the in-car footage from earlier in the day on the Oulton thread. It had been running pretty strongly up until then...
Logs in the lead-up showed good oil pressure and steady oil and water temperatures – and modest revs so not sure what the catalyst was.
In any case, the video of the blow-up is here. I had David? [sorry, I’m rotten with names] from Surface & Design as a passenger at the time. I think my initial assessment of ‘we’ve done something bad’ was pretty accurate, and the comment ‘bugger’ was surprisingly reserved in the circumstances.
http://youtu.be/lpHAUTiMmhM
So, I took the lid off the motor tonight to see some absolute carnage. There’s a hole in the block on number 8 cylinder that you can put your first in, and a decided lack of liner, piston, rod etc. It’s pretty much blown the liner and a chunk of block out into the ‘V’. Oops. I’ve absolutely no idea what the cause would be, especially as the motor had been running fairly hard earlier in the day, but was driving-miss-daisy ready to pull-off when it lunched itself.
Ah well. Decision made. I’m going ‘LS’. Still not sure if it’ll be an LS7 (expensive) or a worked-on LS3. Just got to track one down now. That’ll be me out of track action for the rest of the summer I guess as I’m sure there will be more to do than just drop in the LS
On a brighter note I'll stick some of the in-car footage from earlier in the day on the Oulton thread. It had been running pretty strongly up until then...
Worked on LS3 is supposed to be stronger than the LS7, thicker liners.
Craig at Dyno Torque is currently converting a wide body Sag with a max effort LS3 on Jenvey throttle bodies, Dry Sump, and all the bells.
I also know where there is possibly a SBC on a workshop floor in Banbury, took out of a 1950's Jag! They have put a 4.2 straight six Jag motor back in.
PM me if you want me to inquire as i am in that area today.
Odd how it let go like it did????
Craig at Dyno Torque is currently converting a wide body Sag with a max effort LS3 on Jenvey throttle bodies, Dry Sump, and all the bells.
I also know where there is possibly a SBC on a workshop floor in Banbury, took out of a 1950's Jag! They have put a 4.2 straight six Jag motor back in.
PM me if you want me to inquire as i am in that area today.
Odd how it let go like it did????
Crap - sorry to see this Willie - you've had absolutely no luck with these engines.
Give me a shout any time if you want to have a chat about LS engines. I'm firmly in the 'why spend all that money on an LS7 when you can build a very nice LS3 and have a stronger motor for less money' camp - but then I already had an exzpensive dry sump system I could just bolt onto it
If it makes you feel any better, we had the input shaft on our Holinger geabox fail 20 seconds into a 3 hour race on Saturday - also at Oulton Park. Hugely disappointing. Not as costly as yours - although when you also take into account all the costs of being there for the weekend, its probably not far off.
Give me a shout any time if you want to have a chat about LS engines. I'm firmly in the 'why spend all that money on an LS7 when you can build a very nice LS3 and have a stronger motor for less money' camp - but then I already had an exzpensive dry sump system I could just bolt onto it
If it makes you feel any better, we had the input shaft on our Holinger geabox fail 20 seconds into a 3 hour race on Saturday - also at Oulton Park. Hugely disappointing. Not as costly as yours - although when you also take into account all the costs of being there for the weekend, its probably not far off.
teamHOLDENracing said:
Give me a shout any time if you want to have a chat about LS engines. I'm firmly in the 'why spend all that money on an LS7 when you can build a very nice LS3 and have a stronger motor for less money' camp - but then I already had an exzpensive dry sump system I could just bolt onto it.
Thanks - and commiserations on the gearbox fail. At least mine happened on the coming-in lap of what was probably the last session of the day, and I'm driving for fun not points!Anyway, I'm just trying to suss out the 'most economical' way forward - I avoided saying cheapest! I was reviewing an old post on the subject and noted your comments then re an LS3. I'm thinking therefore unless an LS7 came up at a decent price then it'll be an LS3. If it was 'just' the engine, but there's also all the electronics, flywheel, bellhousing, fuel pump etc. plus make up new exhausts and mounts...and then hope it all fits! Coming from a small block on a carb, coil and distributer there's quite a lot of other stuff I need which in fairness was why I put the swap off until now.
The small block made an honest 500hp on the dyno and so that's the minimum I'd be shooting for again. But I wouldn't want go over 550 as - touch-wood - the clutch, gearbox, diff and drive shafts all seemed to hang together at 500 and I don't want to have to start replacing anything else in the drive train.
So any pointers for an 'economical' and robust LS much appreciated, and of course advice on what not to do and where not to go also appreciated.
Unless I can get something reaonably priced in the UK I might see what the options are to get something in from the US. I'm wondering what the VAT and duty implications are if I buy a used motor 'face-to-face' and then personally ship it home?
Hmmm... I get a 3 x 32Kg bag allowance
Heads in one bag, crank and rods in another, and a further bag of parts. I wonder if an engine block is hand-luggage as the personal item?
Brummmie said:
Just beat me to it but I was thinking if you want to stick to a carburettor but go LS3 then how about this?http://shop.partsworldperformance.com/ls376-515-v8...
