Pop up headlight issues

[mk1fan]

Great solution.

[mrzigazaga]

Looks like a feesible upgrade, agree that the old design is simple enough and just needs 6 monthly - 12 months maintenance like everything else no matter how much it is used...
Is it possible to post up a video of them operating?


Thanks

[ianstaffordshire]

Finished the install today very happy with the outcome will take a video tomorrow and post the link to the switch and brackets I used.

[mrzigazaga]

ianstaffordshire said:

Finished the install today very happy with the outcome will take a video tomorrow and post the link to the switch and brackets I used.

Cheers

[ianstaffordshire]

Short video of them working
https://youtube.com/shorts/Iv2cZn9J8Hw?si=4edulYFT...

[ianstaffordshire]

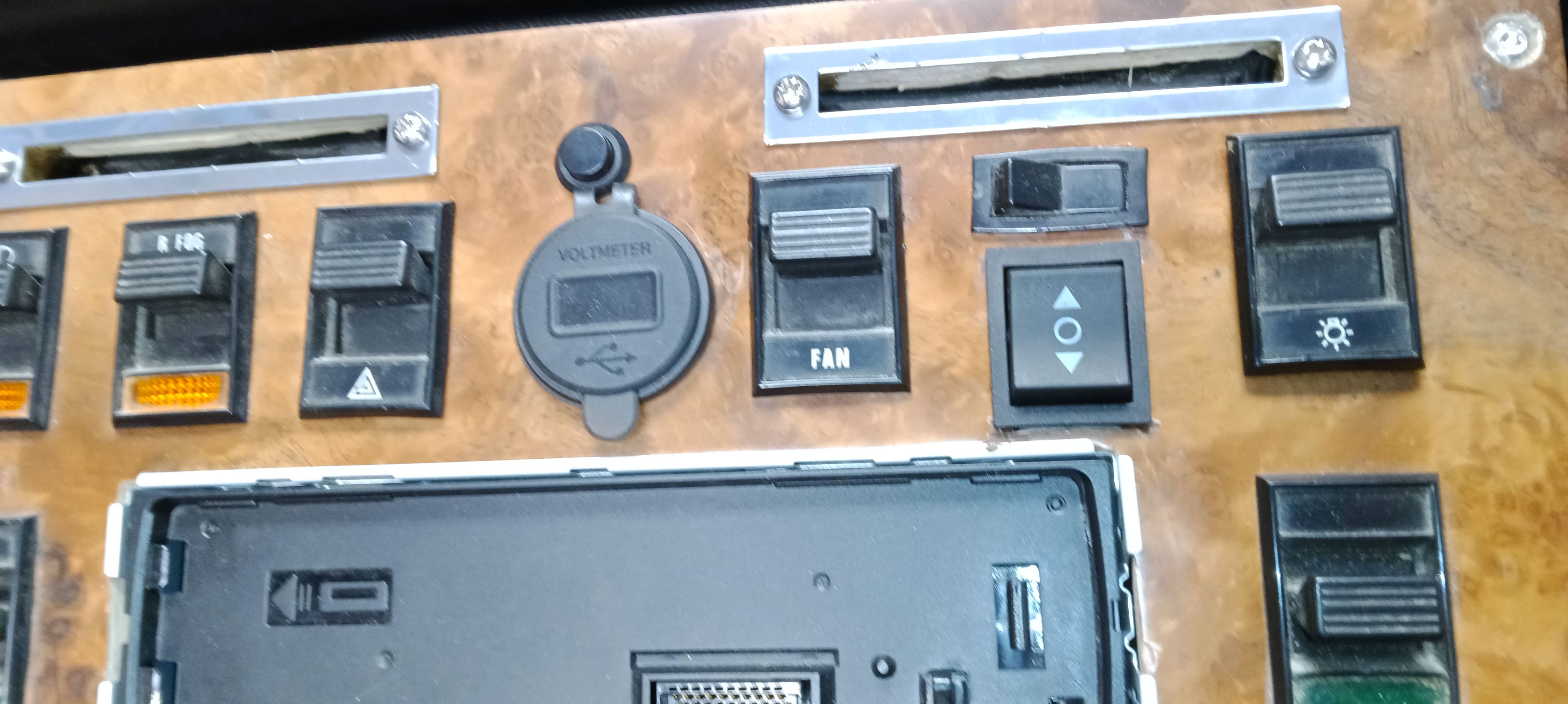

I have put the switch where the original electric mirror switch was.

[ianstaffordshire]

[mk1fan]

Great solution. Will shamelessly copy.

[ianstaffordshire]

That's why I put it up hop it goes well.

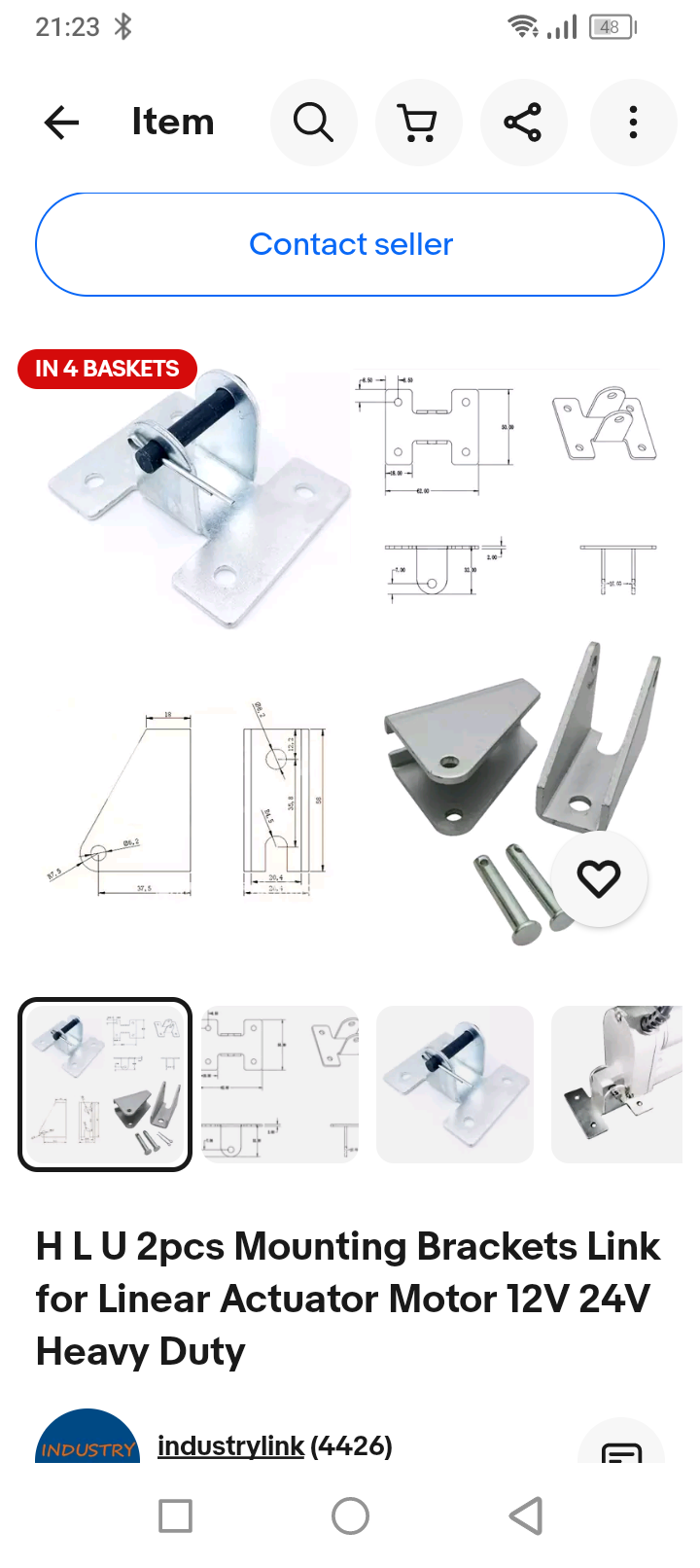

It's the H brackets you will need and the actuator with a stroke of 80 to 100mm 80mm better but hard to find.

[BlueWedgy]

Hi, that looks good, well done.

One of the first pictures showed a longer slotted bracket, was that used in the end?
I am not at this point of replacement yet, but probably not far off as I think the passenger one is struggling and has been an MOT problem a couple of times in the recent past.

Do you have any pictures of the the final mounting points.

Thanks for the great info so far.

[ianstaffordshire]

The original mounting point isn't far off so I went either side of it.
The stand off brackets are from a suspended conduit system I sourced locally.
