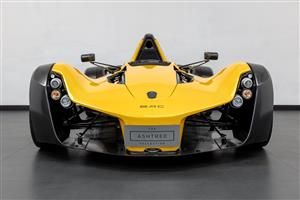

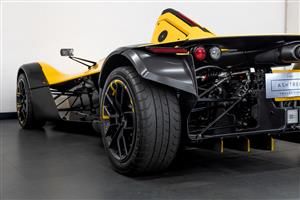

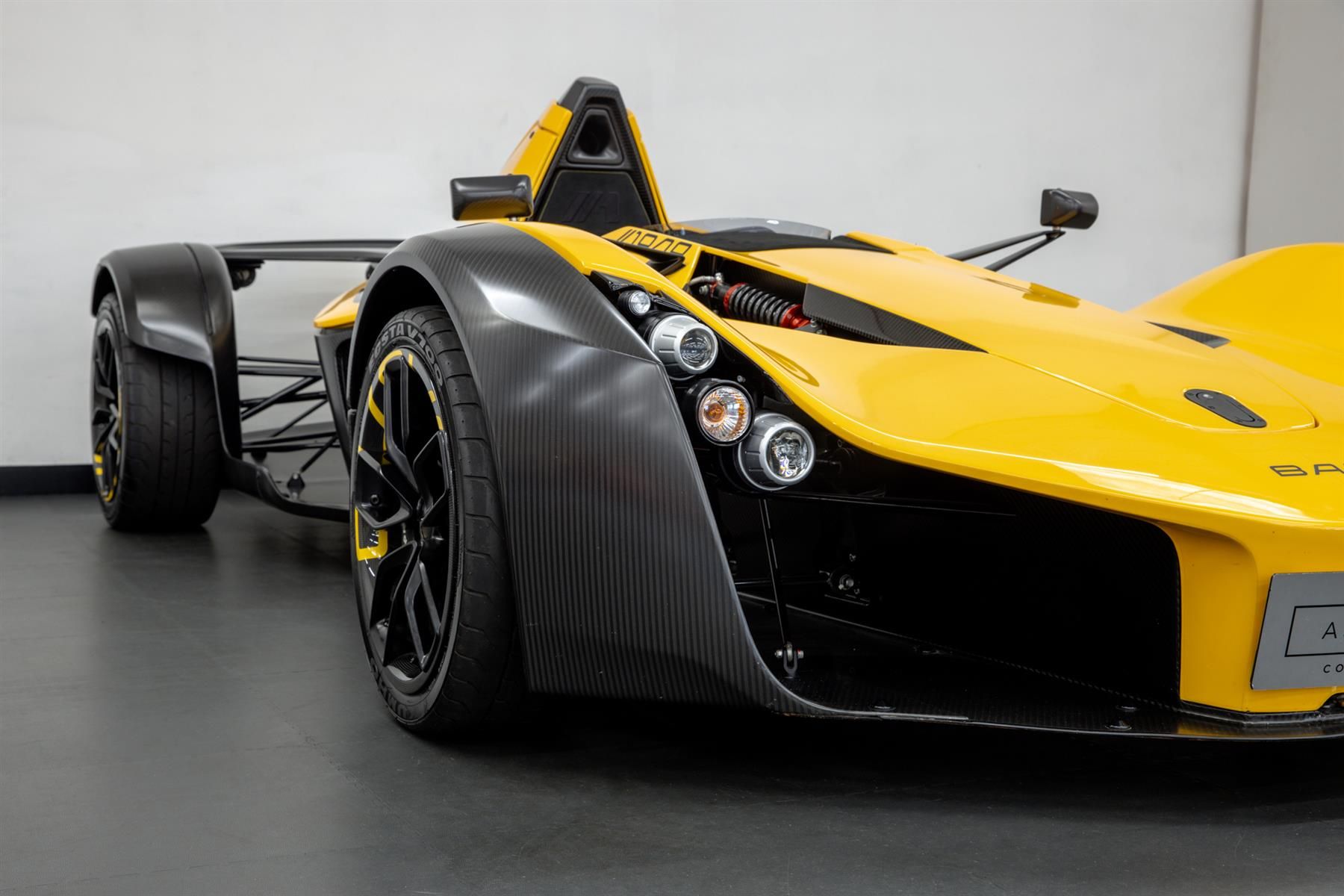

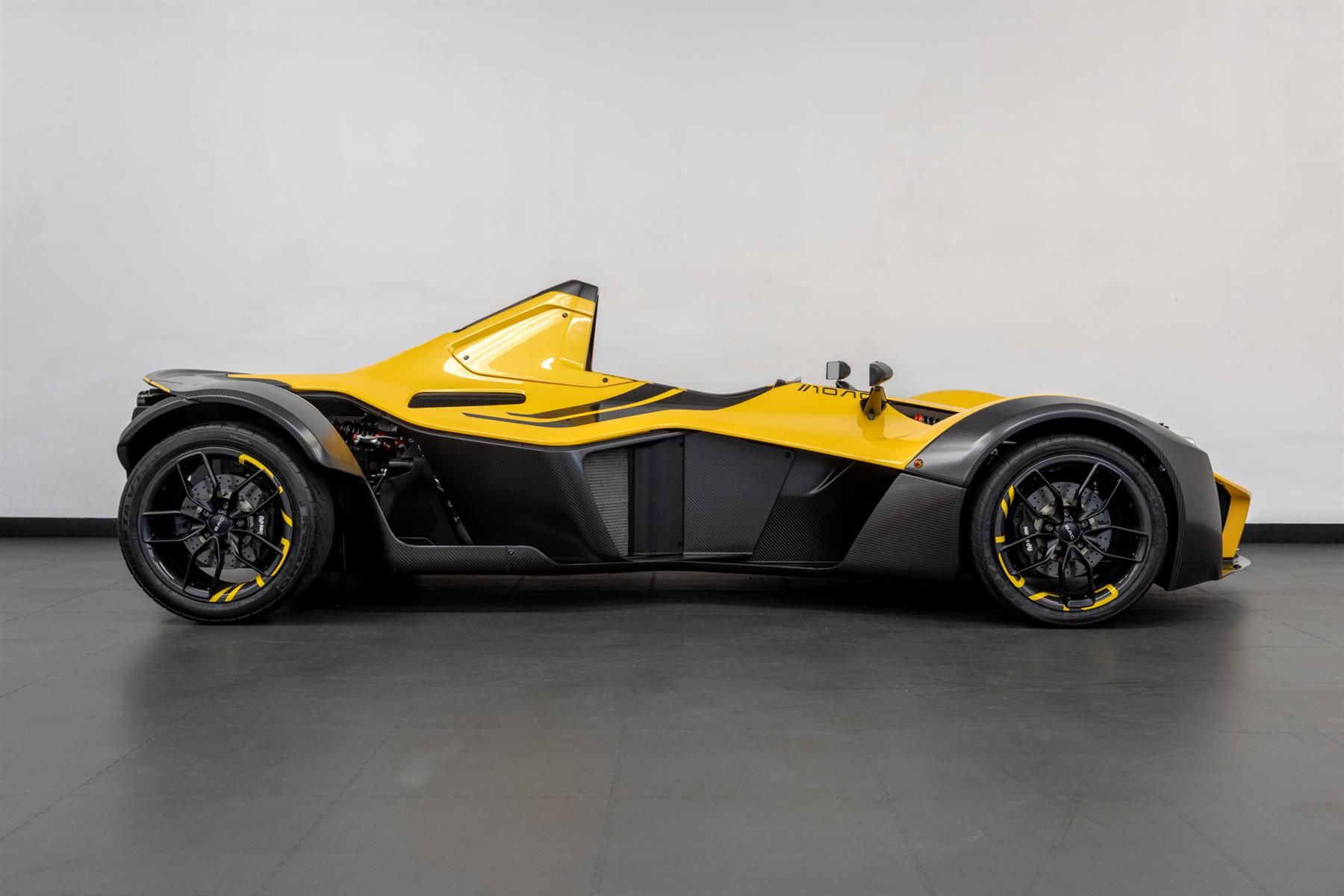

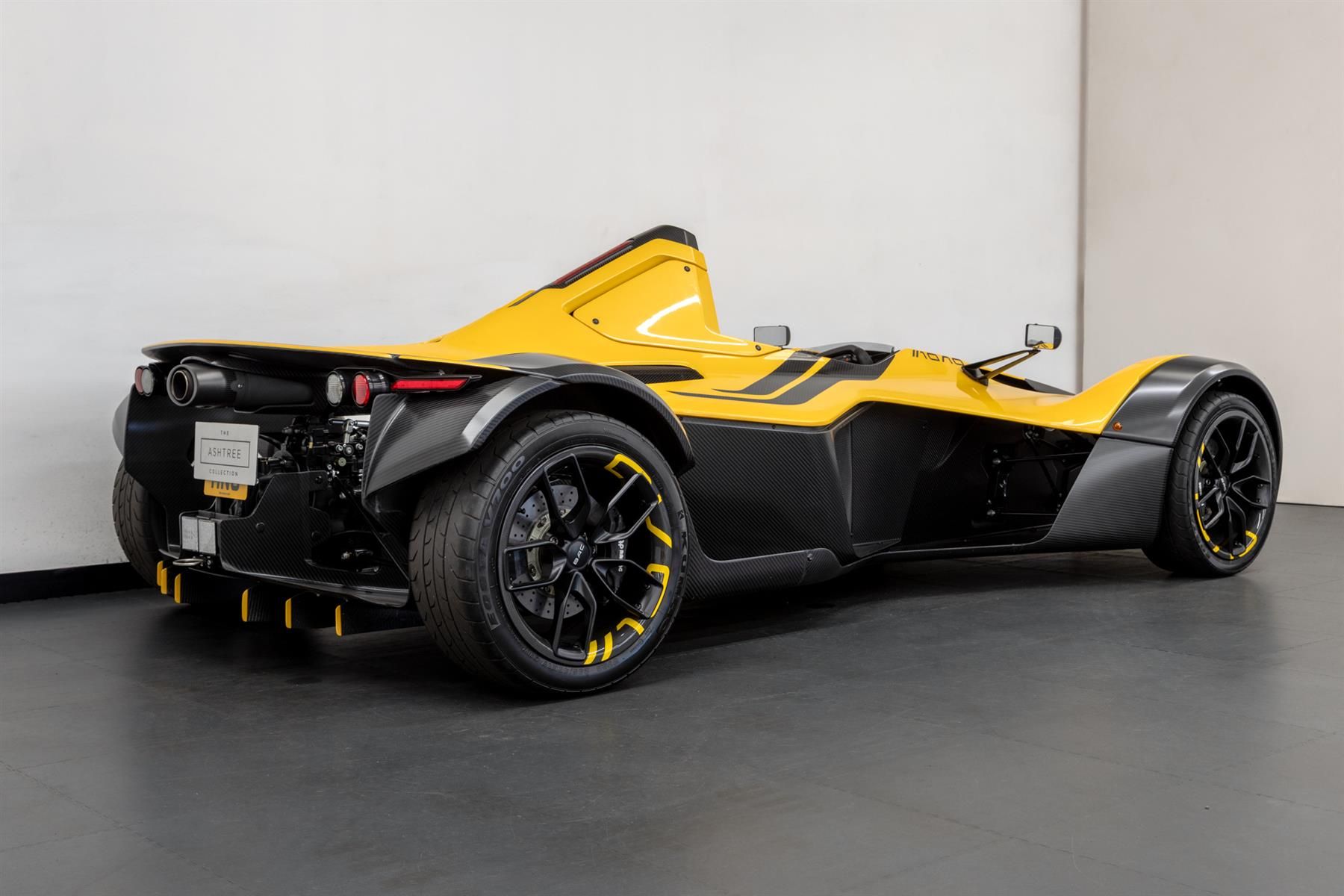

BAC MONO 2.5 W BODY ( 2ND GENERATION) 2020/20 -3300 MILES -BIG SPECIFICATION

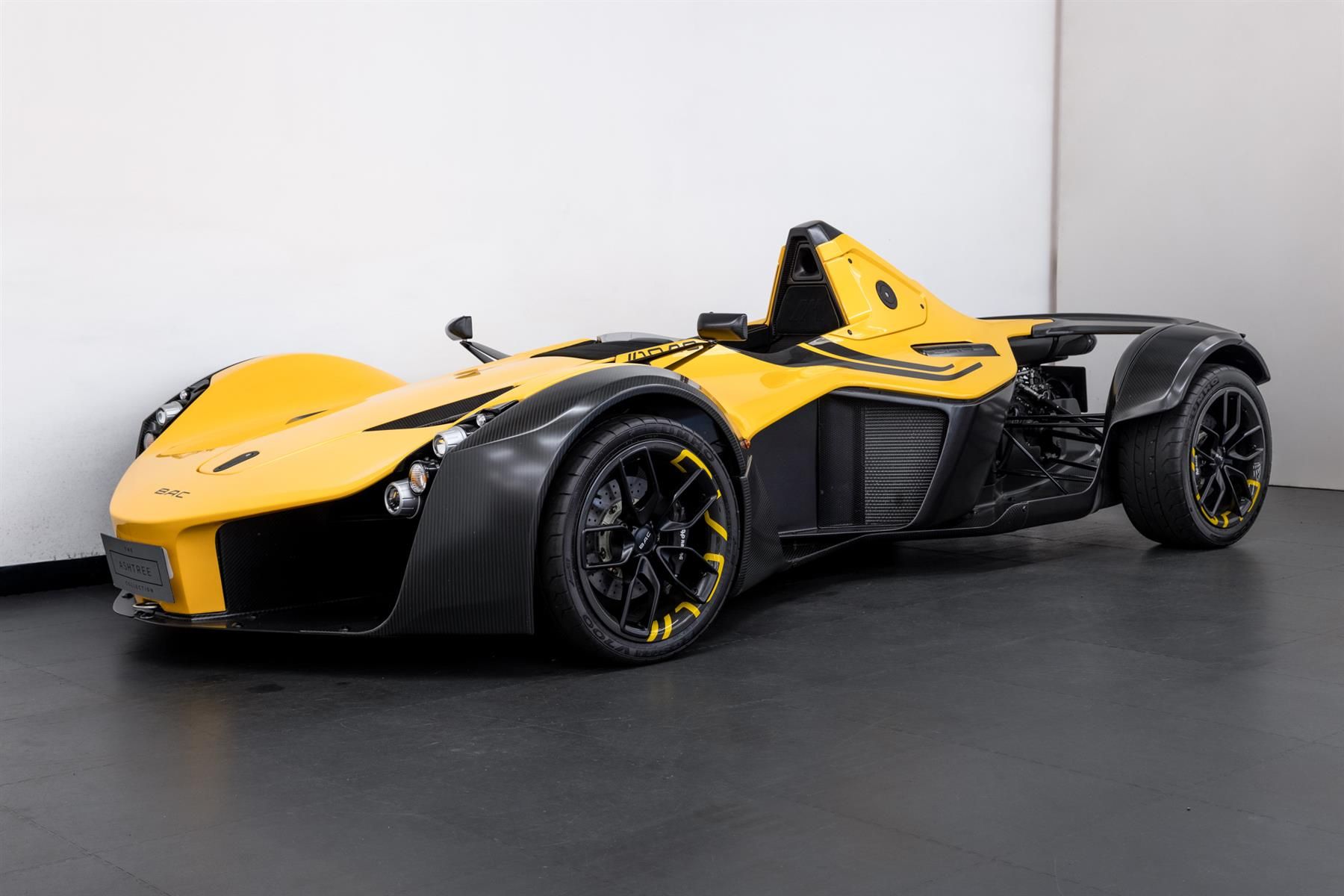

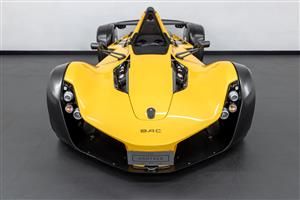

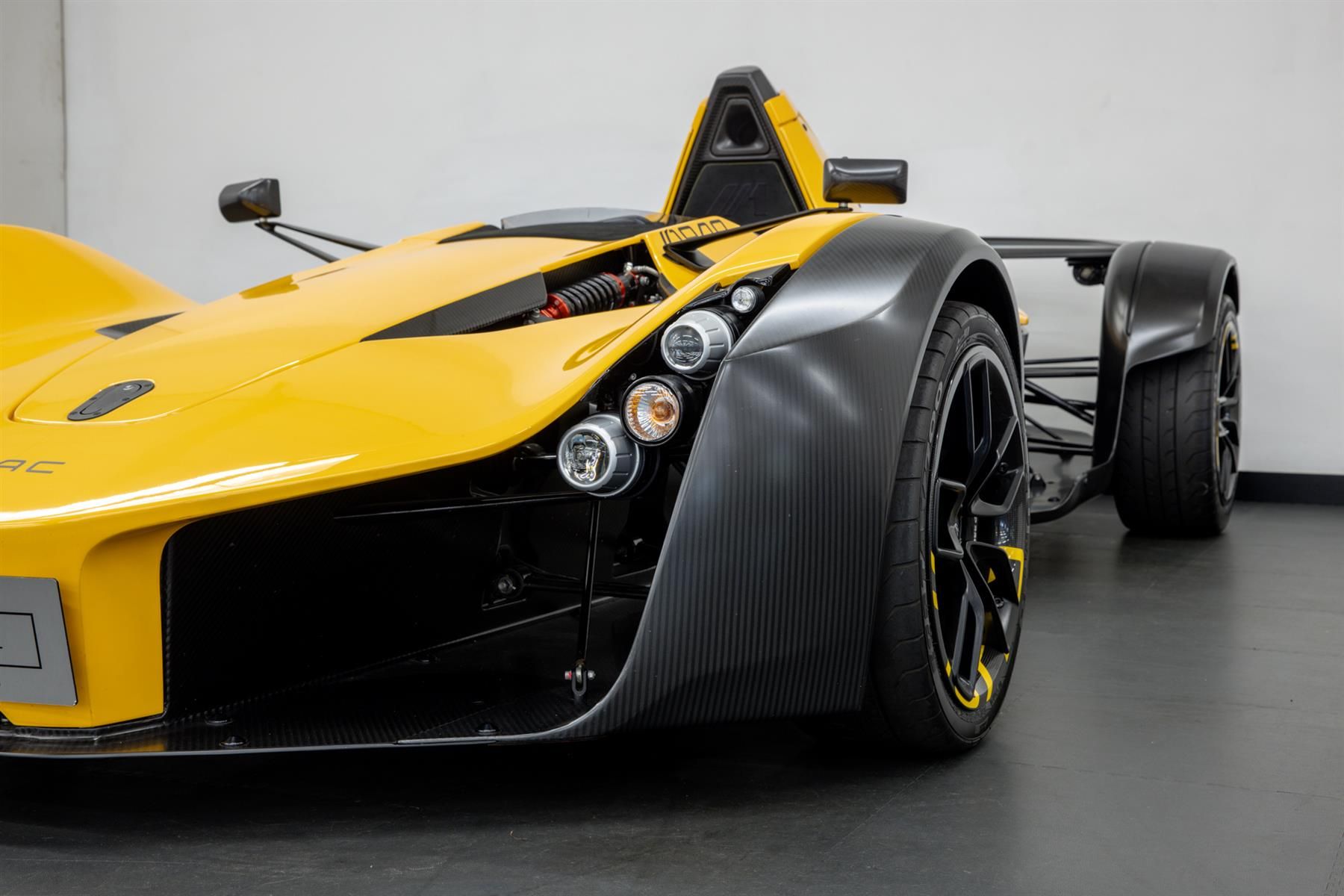

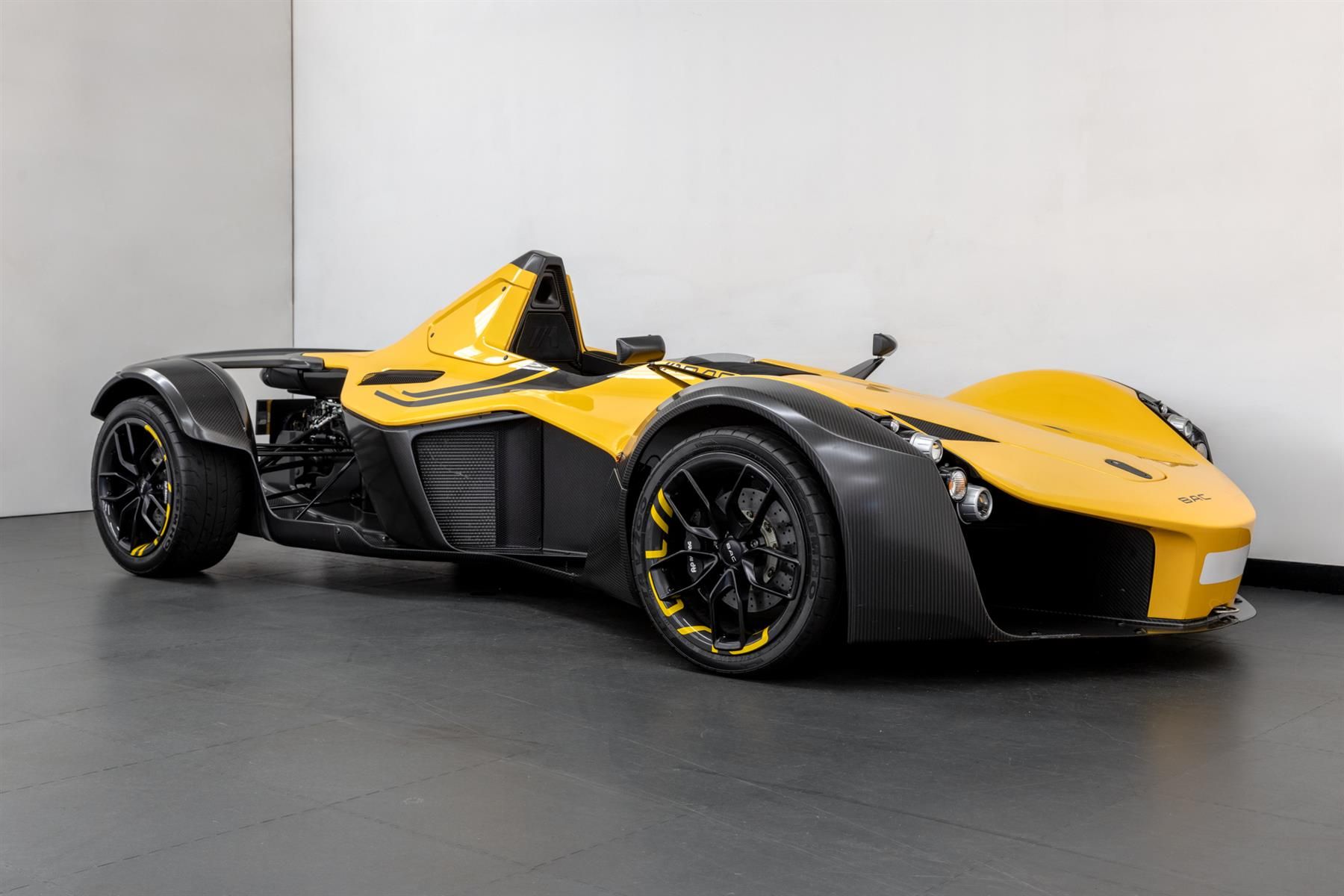

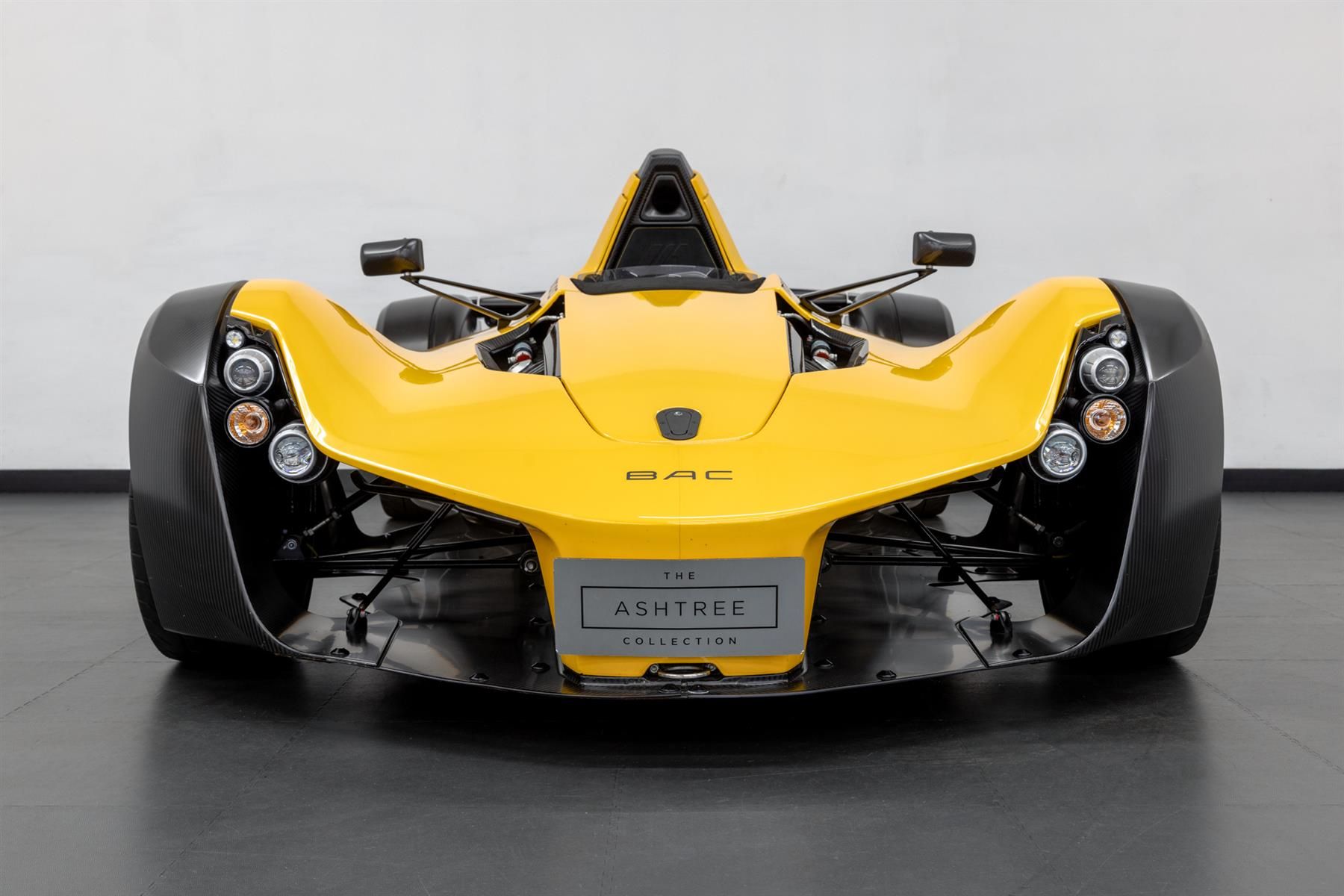

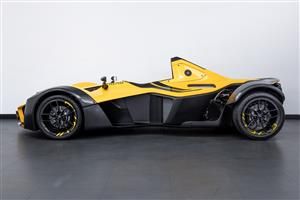

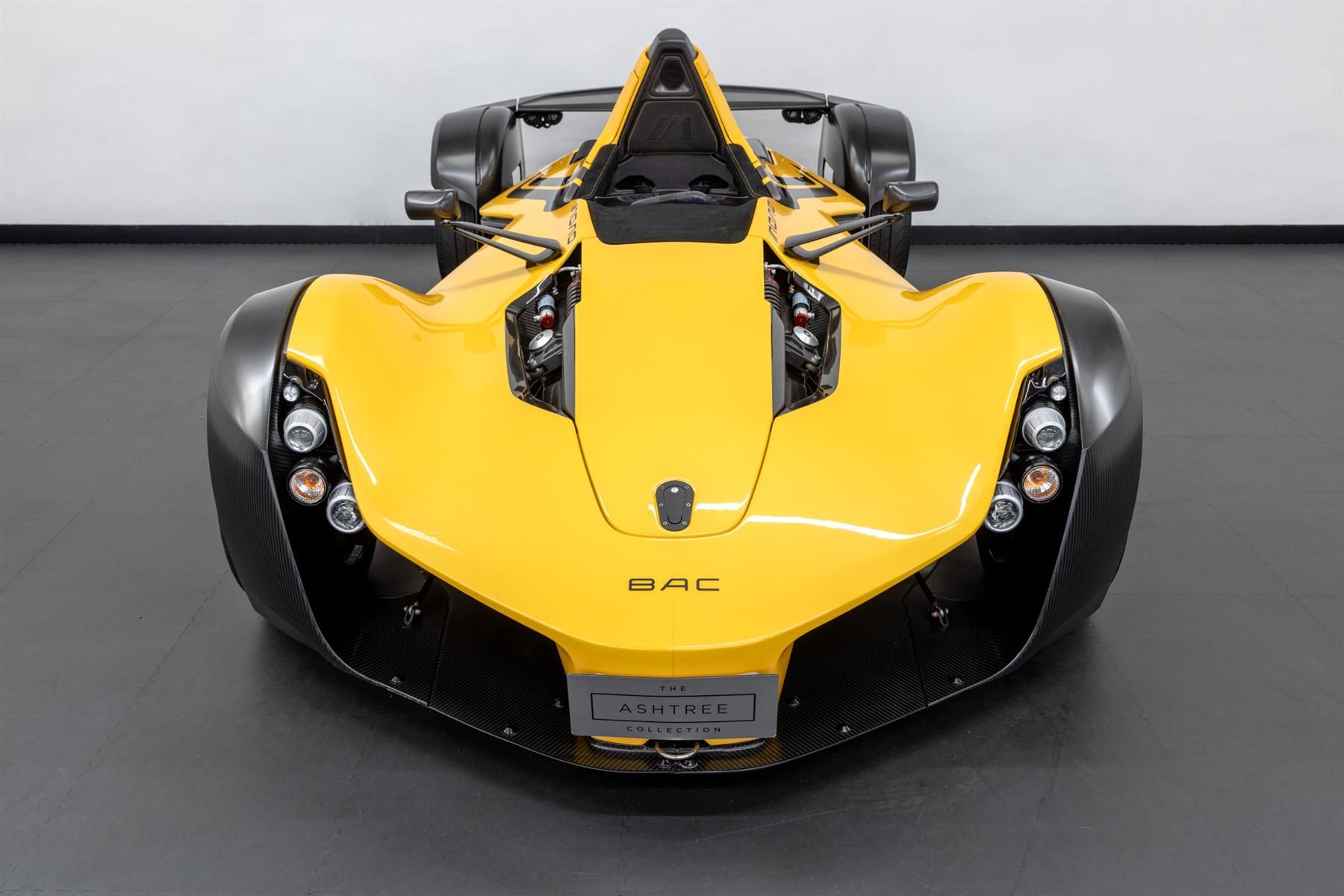

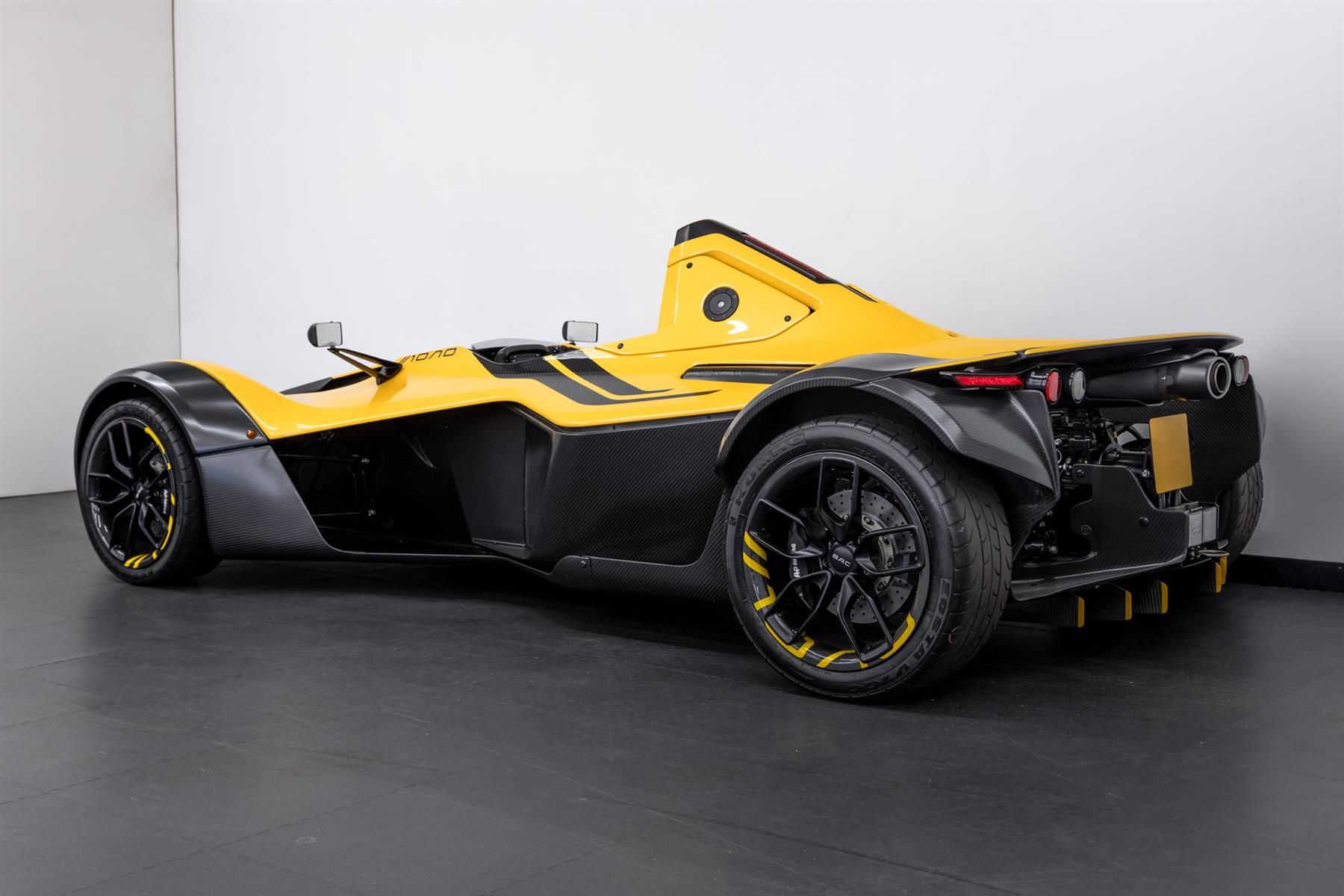

We proudly present this striking BAC Mono 2nd generation W (Widebody) Chassis, finished in stunning Ferrari Giallo Pearl metallic paintwork, with a brand new light Powder Blue interior trim and headrest.

This car is supplied with two interior seat choices, the original grey seat that it fits a driver around 5ft 7" and the new Light Powder Blue trim suitable for driver around 6ft.

Supplied with a fantastic list of optional extra specification which includes :-

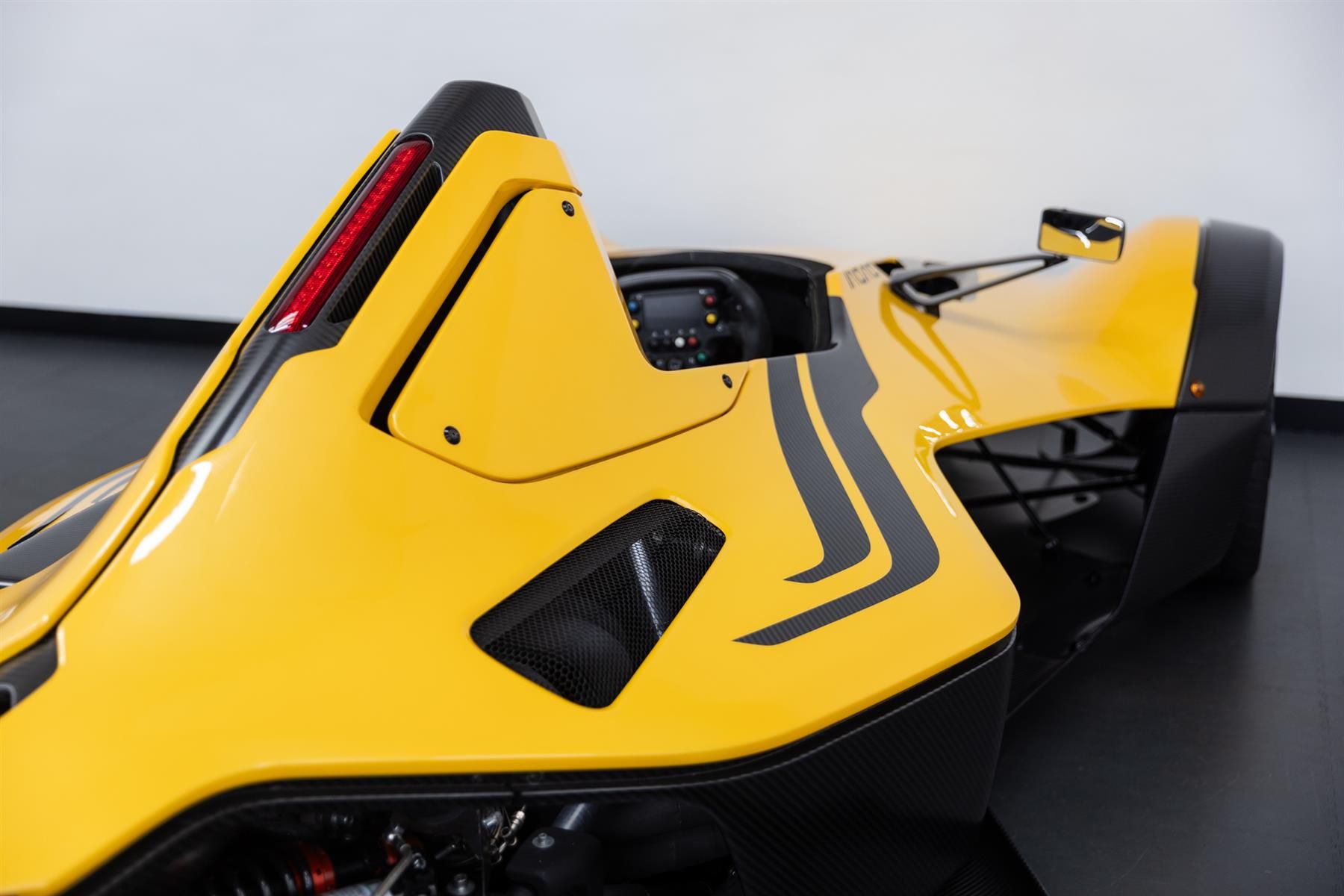

Upper body finished in Giallo Pearl Metallic

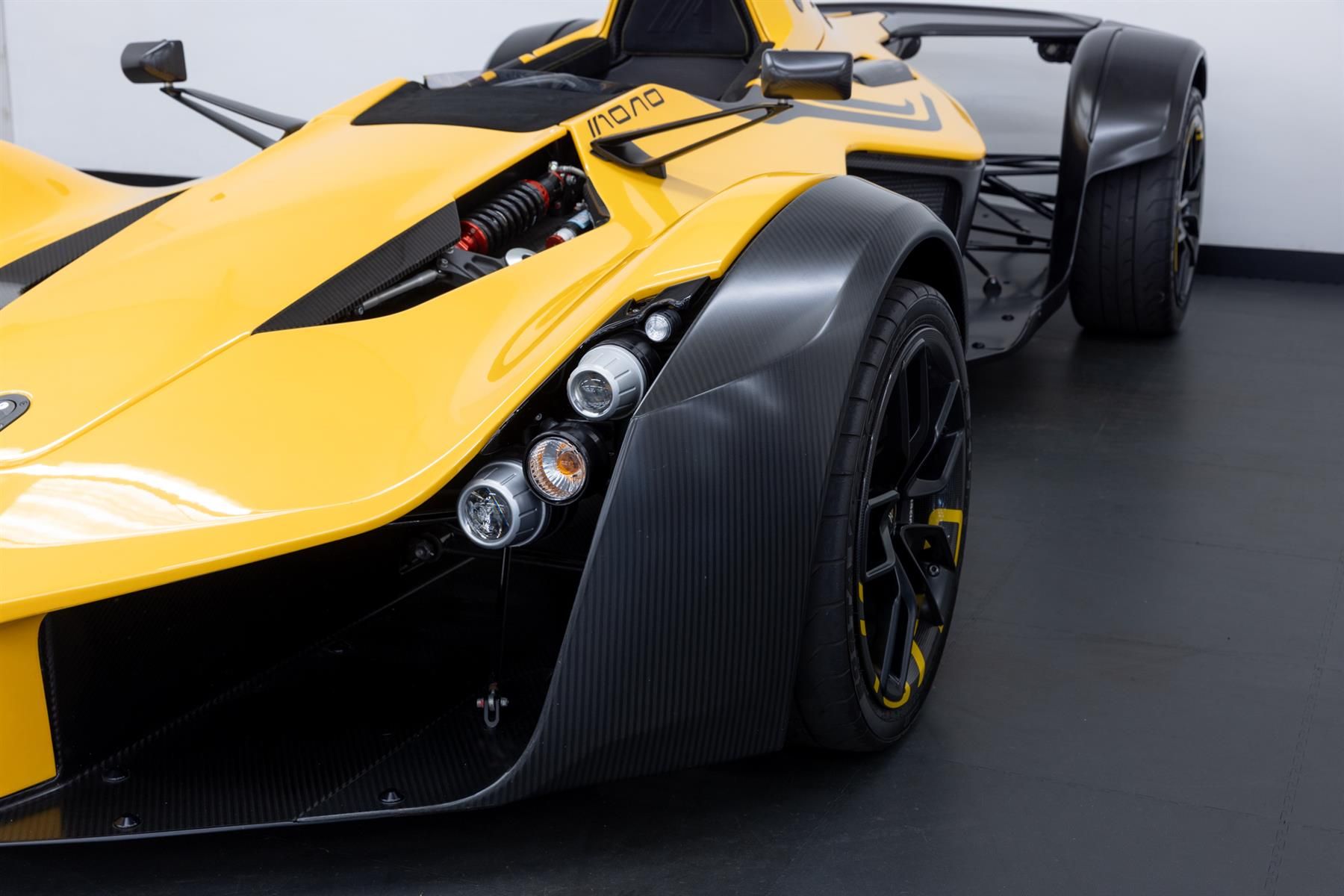

Lower body finished in satin visible carbon fibre

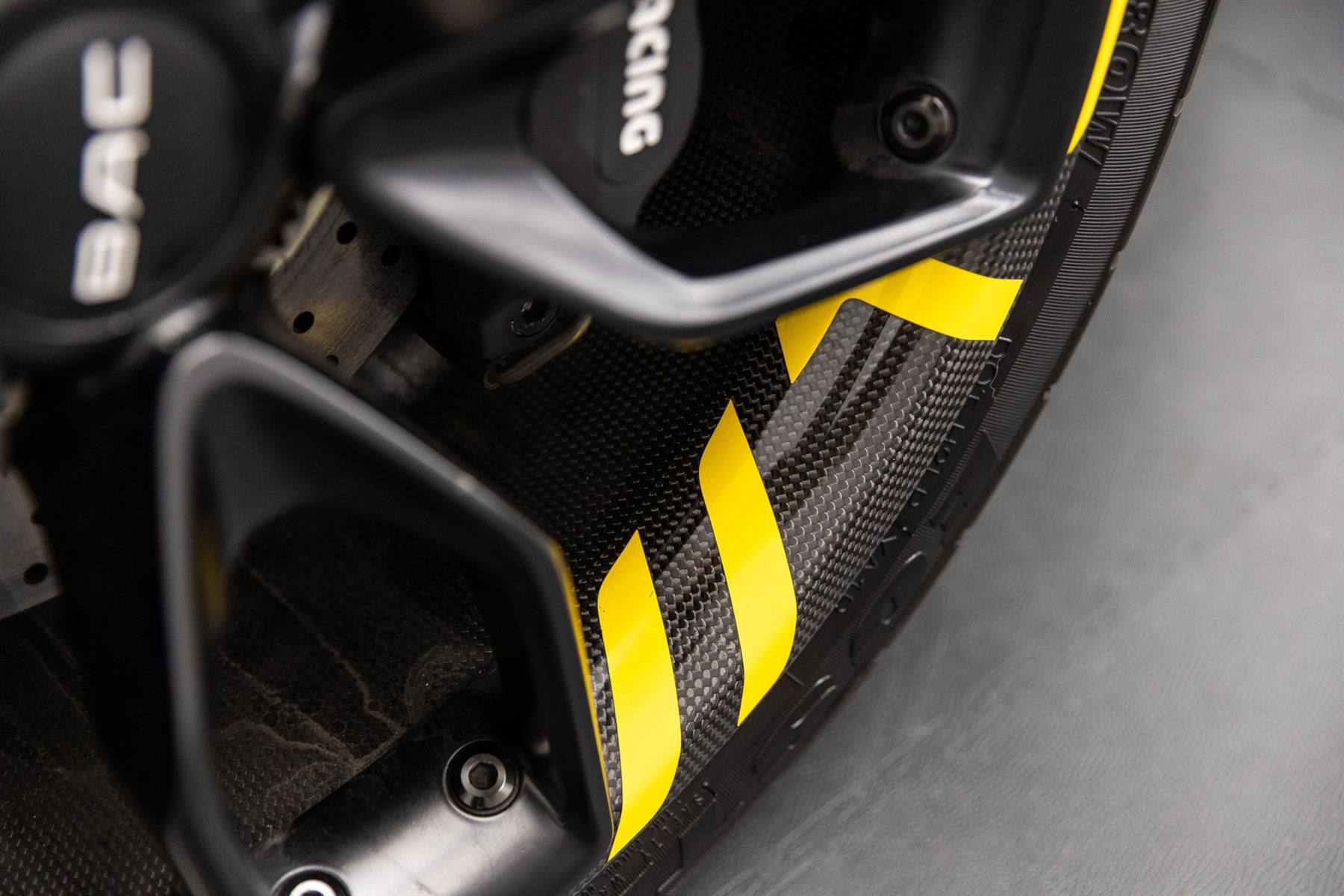

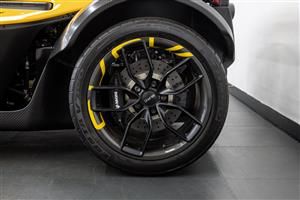

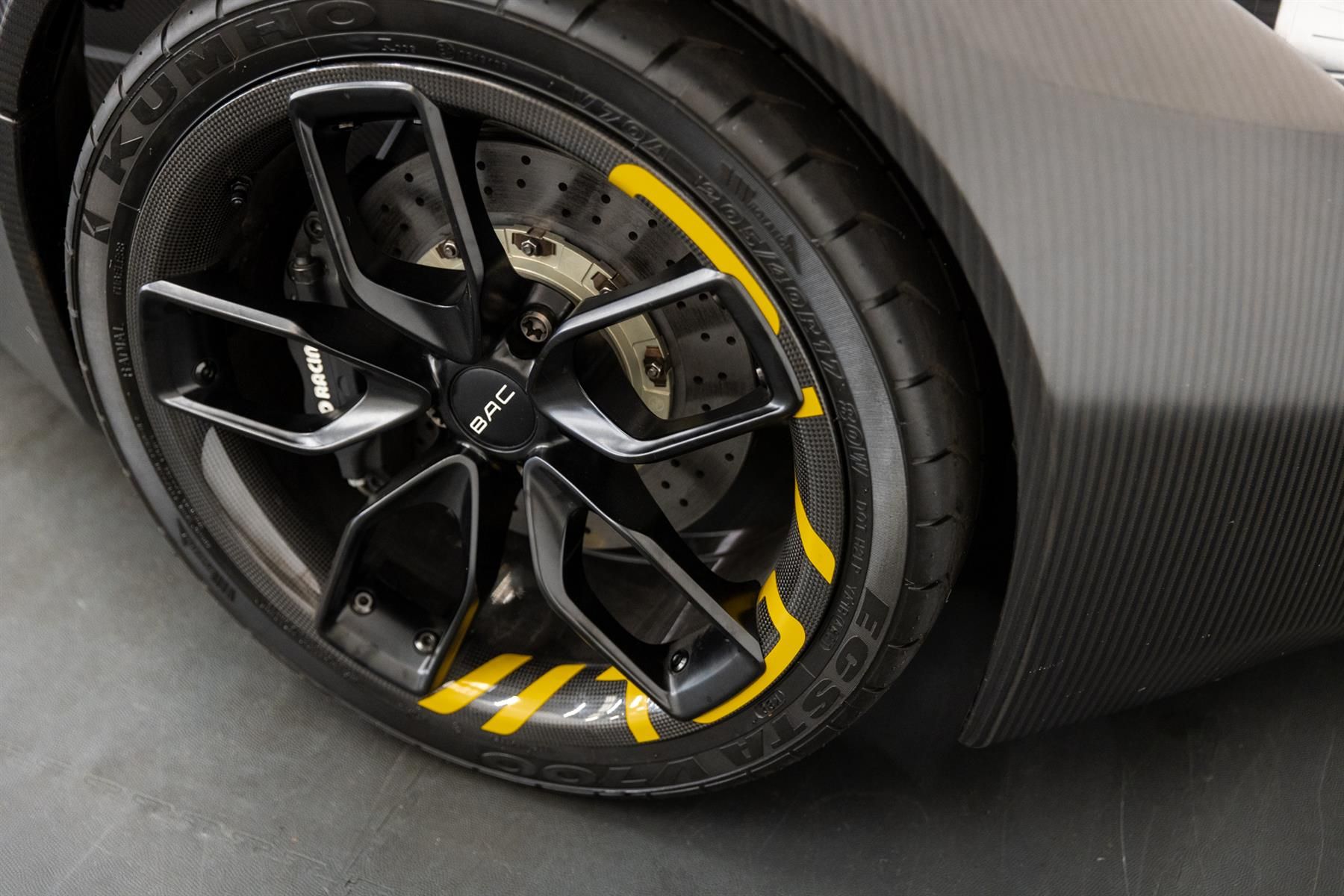

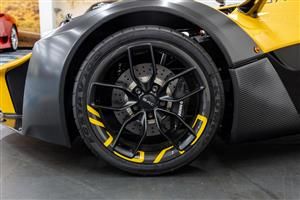

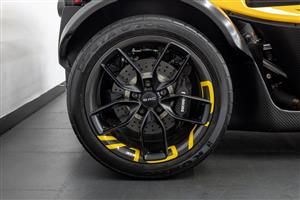

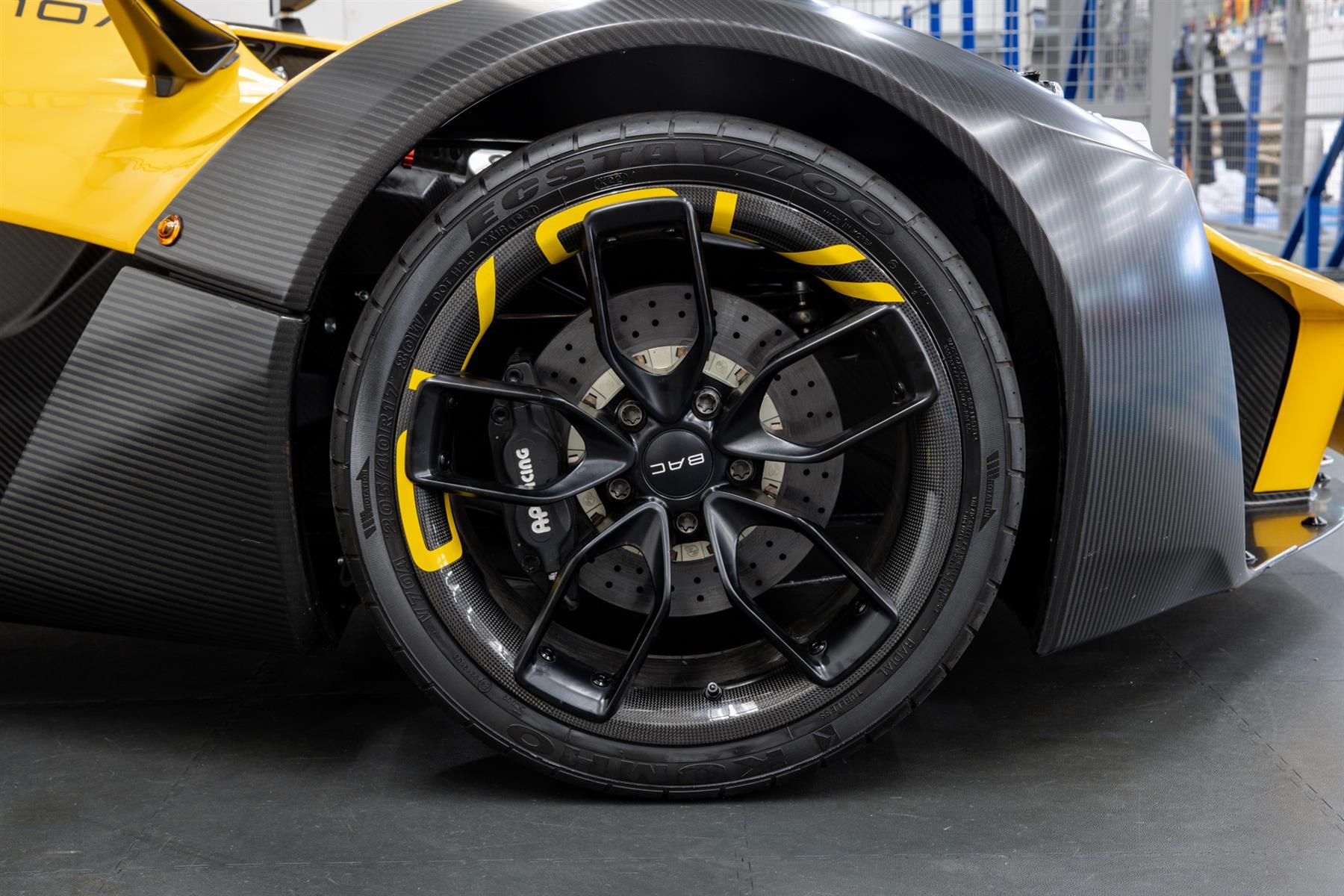

Carbon hybrid wheels

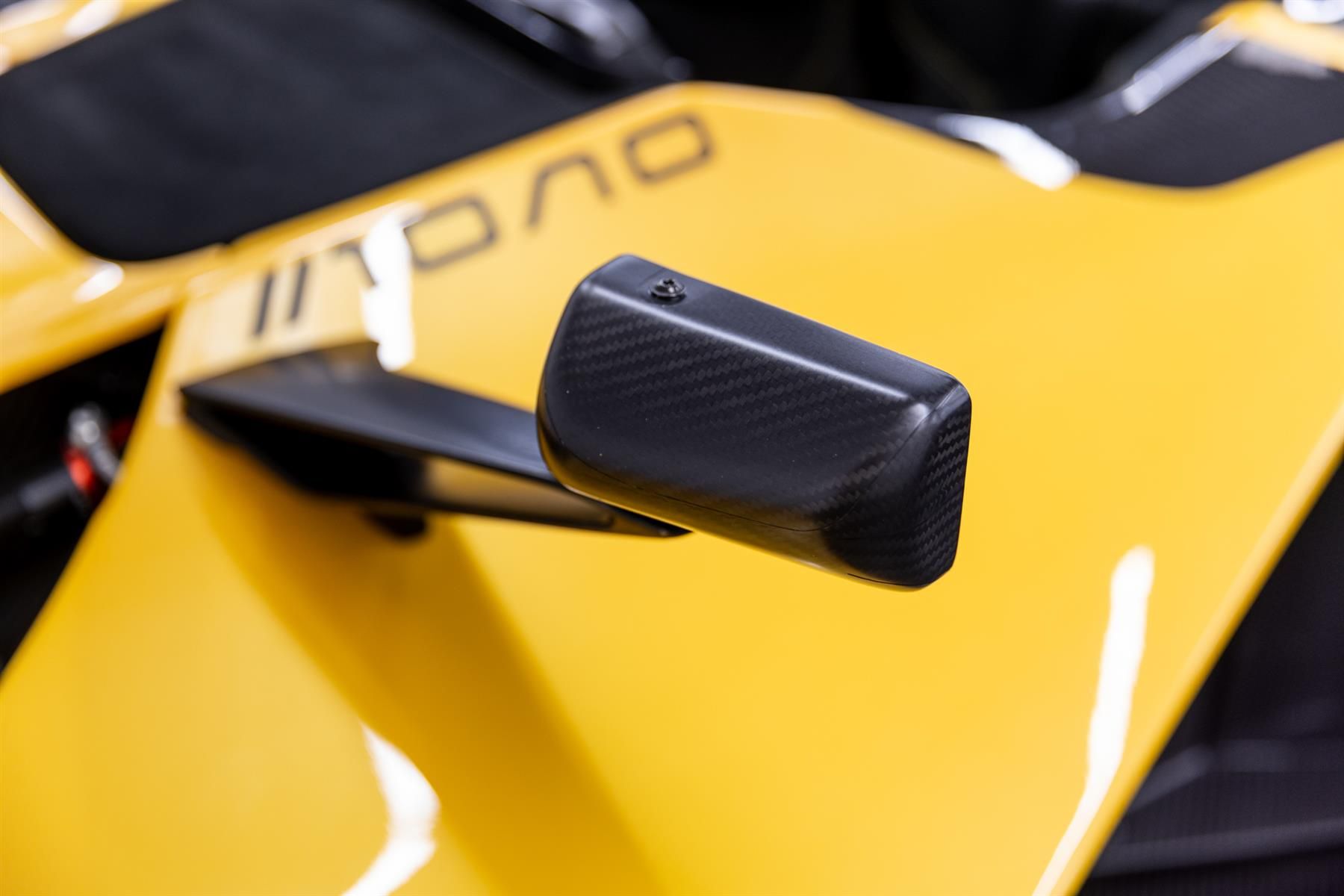

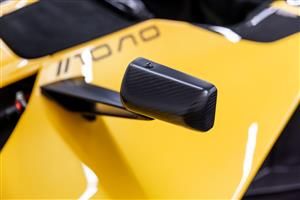

Upgraded mirror arms

Made-to-measure seat

Carbon fibre steering wheel

Carbon Ceramic braking system

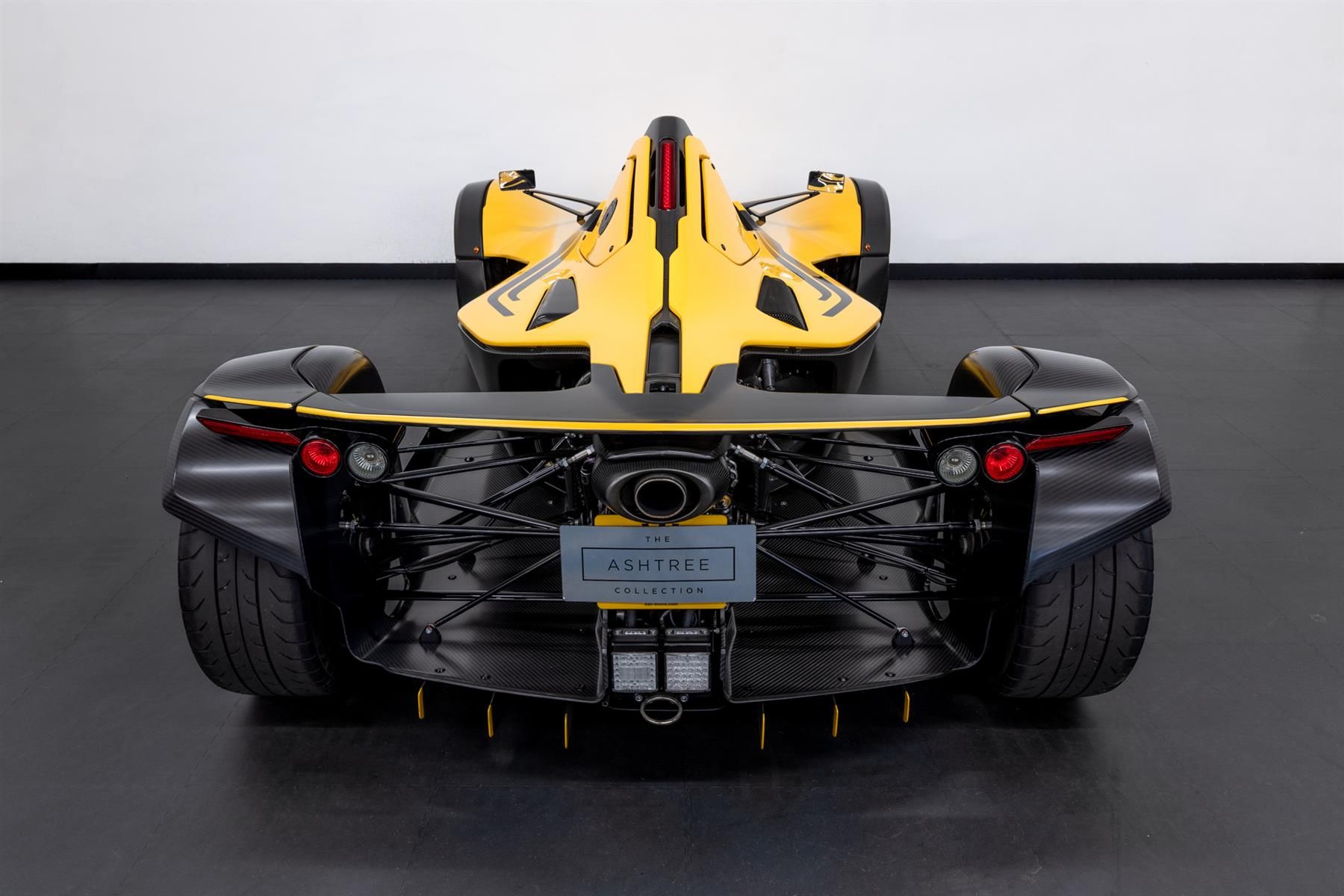

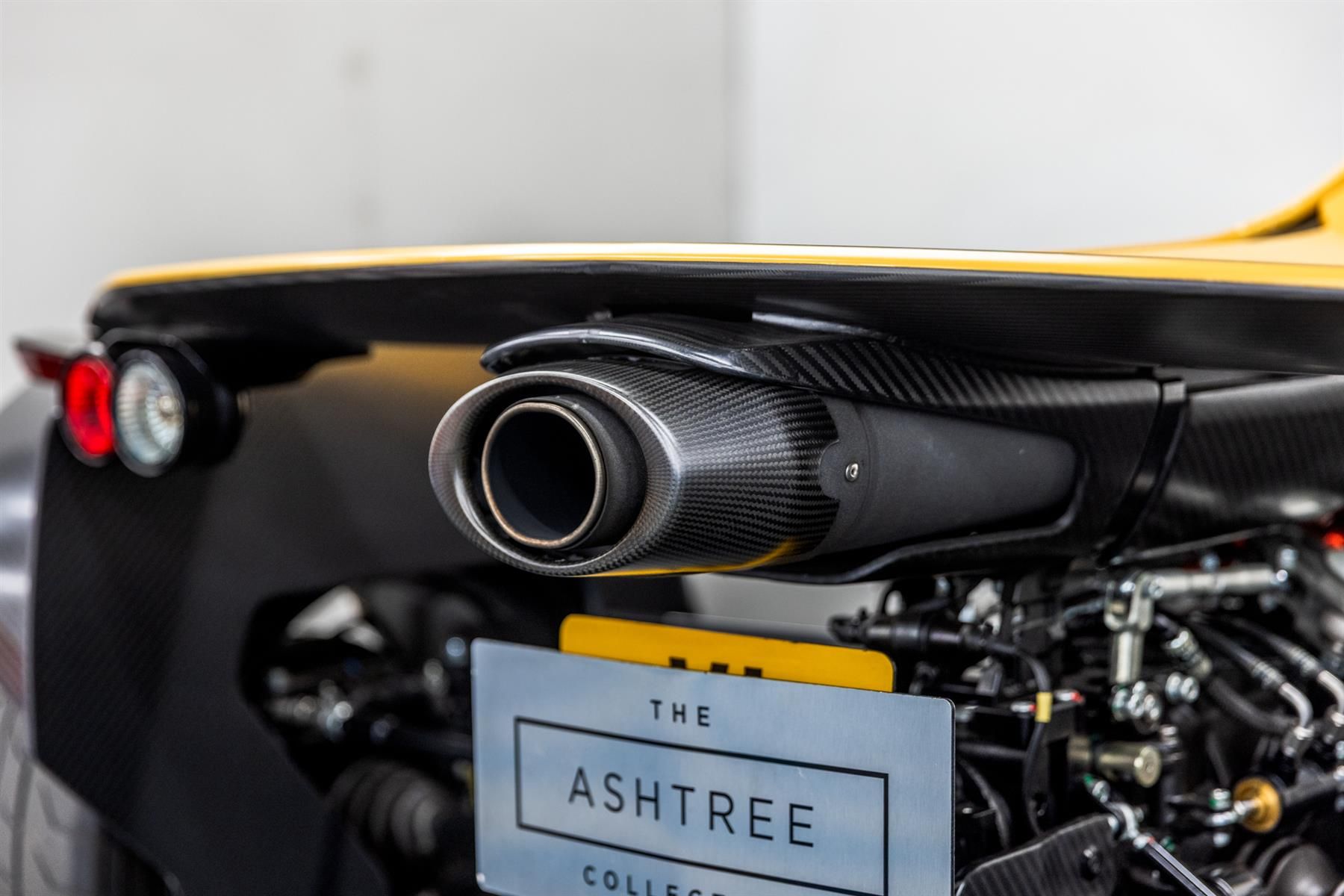

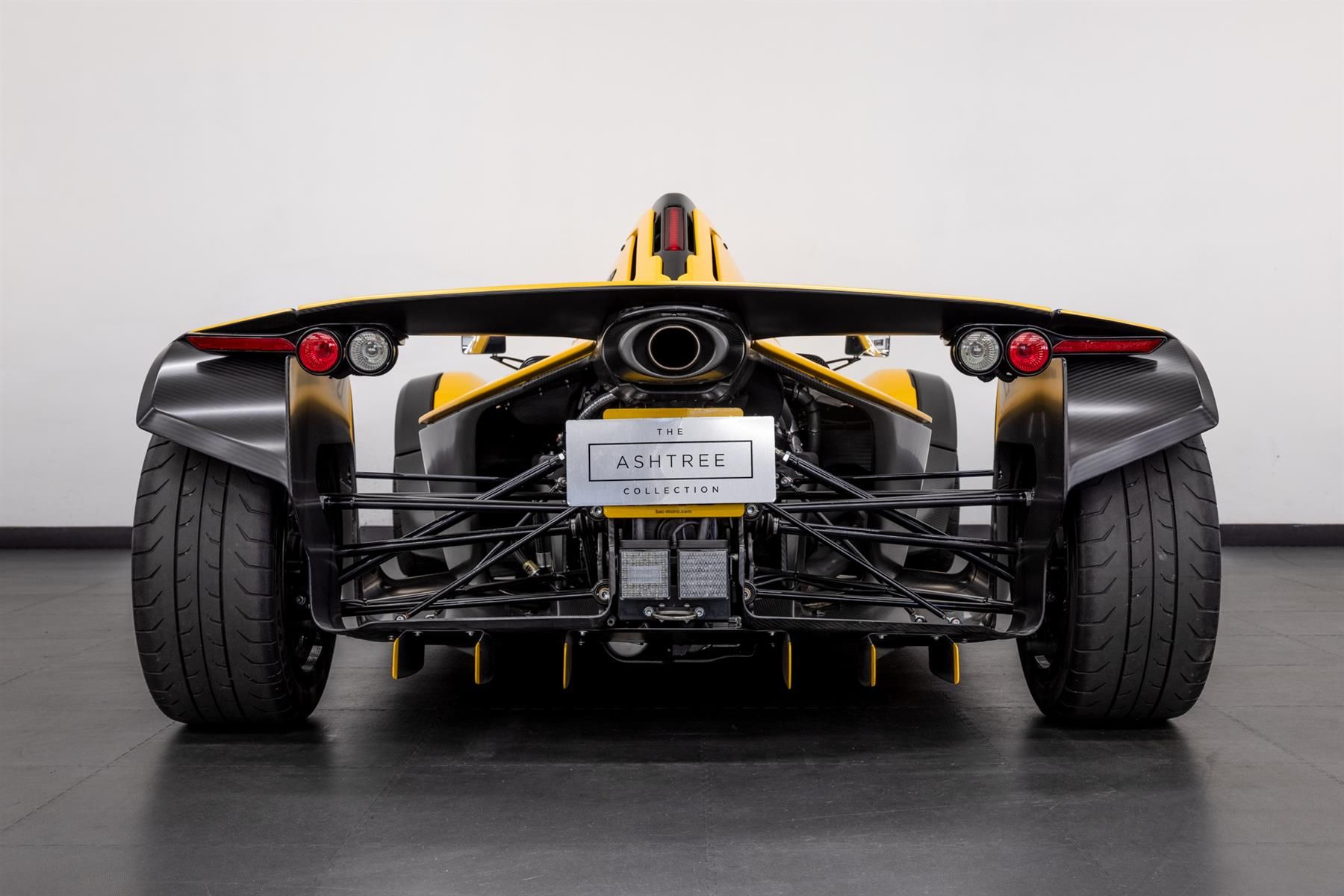

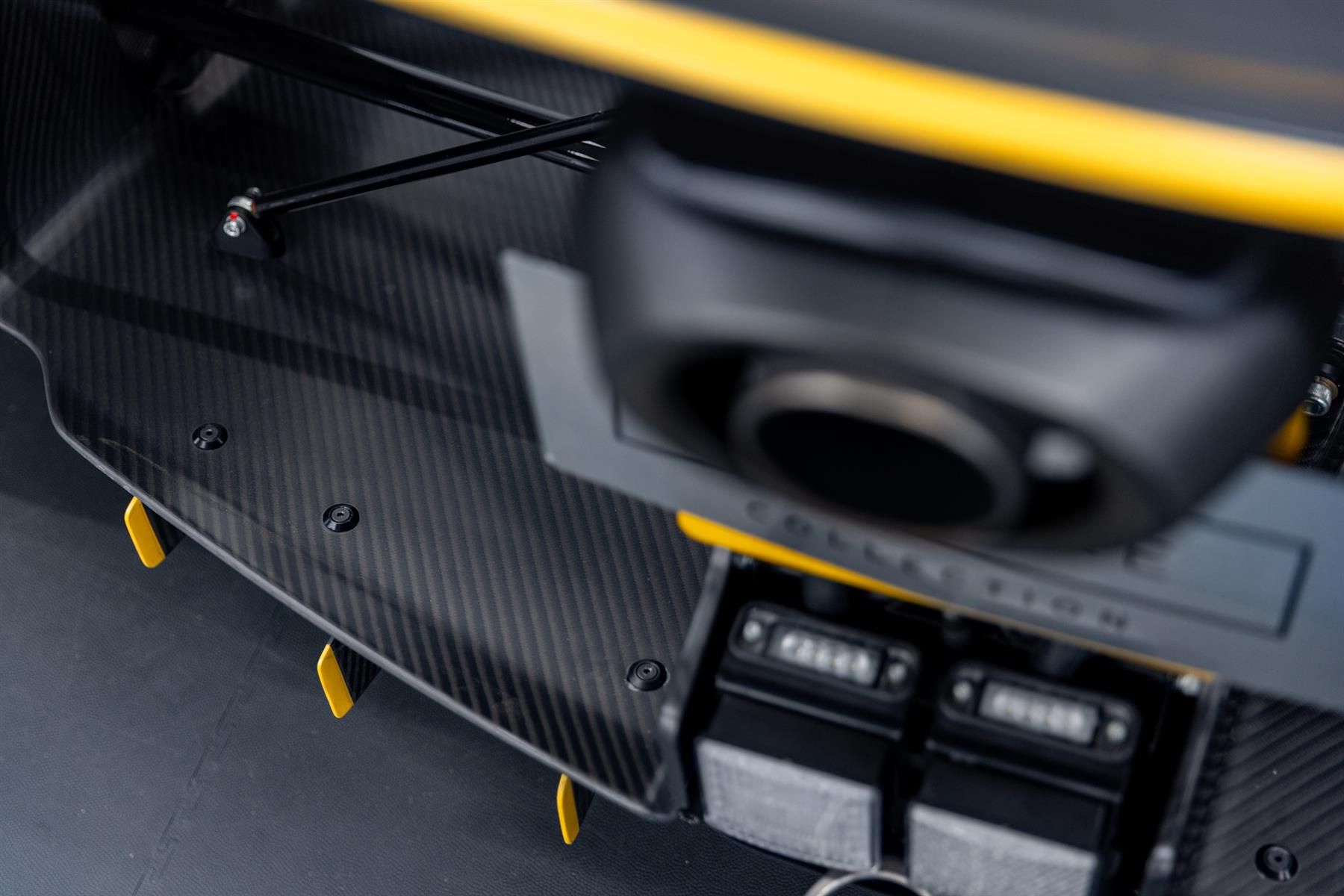

Fitted with a Lightweight full Inconel exhaust system which cost £16,000 (the only UK car with this option and 1 of only 3 world wide. Its fully track legal)

Paint Protection Film (newly fitted in 2022)

Lightweight alloy wheels

Tracker

Indoor car cover

The W (widebody) Mono's were built from chassis number 65 to 128, this car is chassis number 103 which makes it one of the last few W cars built. Upgrades of a W car included Electronic handbrake, Traction control, Auto up gearshift, Launch Control and improved gearbox software (which is not retrofittable to earlier cars.) and of course the wider body for a more spacious cockpit.

Fully maintained by the BAC Factory and supplied with a spare set of wheels with slick tyres. Fully road and track legal.

Standard Equipment includes :-

Twin sports adjustable suspension

Six position traction control

Second generation switch gear

Second generation removable steering wheel

Electronic handbrake

Auto up-shift

Launch control

Adjustable brake bias

Life-line remote fire extinguisher system

Aero front wind shield

New suspension geometry

Ultra-lightweight lithium battery

High-lift jack

Remote battery charge socket

Later anti dive and squat settings

Performance is electrifying, the 2.5 litre Mountune Engine produces 305BHP and the car weighs only 580Kg, producing 540bhp per tonne.

0 to 60mph in just 2.7 seconds.

ADDITIONAL SPECIFICATION INCLUDES :-

Dimensions and Weight

Overall Width: 1836 mm

Overall Length: 3952 mm

Height: 1110 mm

Wheelbase: 2565 mm

Ground Clearance: 100 mm (f) 110 mm (r)

Weight: 580 kg

Power to Weight: 525 bhp per tonne

Weight Distribution: 48% (f) / 52% (r)

Engine

2.5 Litre Mountune Normally Aspirated, 4 cylinder, in-line, semi-structurally mounted

Displacement: 2500 cc

Configuration: In-line, cylinders

Number of Valves: VVT

Bore x Stroke: 89 mm x 100 mm

Maximum Power 305 bhp

Maximum Torque 308 Nm

Construction: Forged connecting rods and forged pistons

Lubrication System: Dry sump with internal scavenge pump

Camshafts: Performance inlet and exhaust camshafts and uprated valve springs

Induction System: Gas flowed cylinder head with individual butterfly port throttles

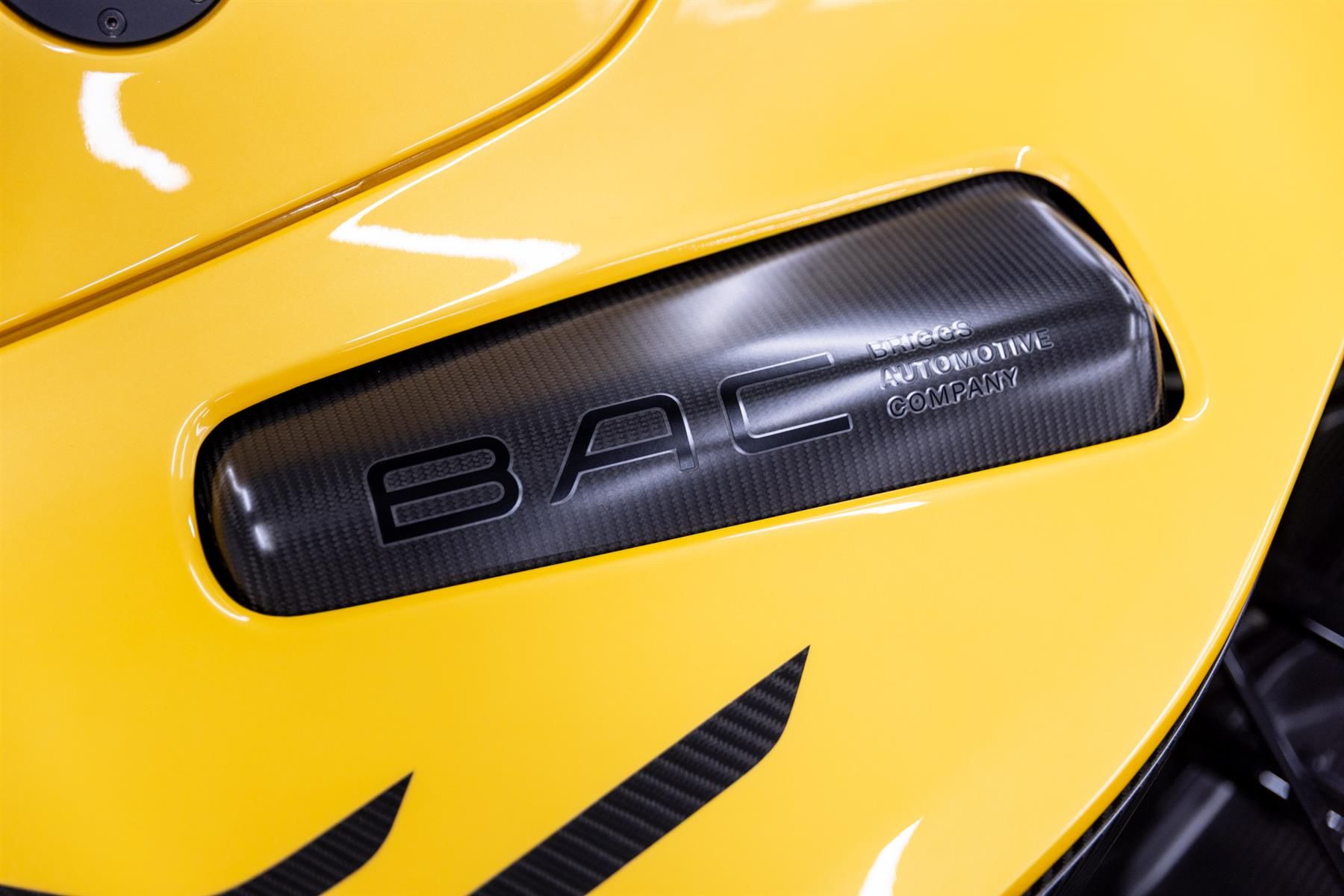

Intake System: BAC / ITG aero optimized carbon inlet, remote filtration system and

carbon airbox

Engine Management: Specialised Control Systems Delta 880

Safety: Master Kill Switch

Traction control

FIA compliant plumbed-in Fire Extinguisher System

Clutch: AP Racing

Intelligent launch control

Fuel System

Construction: Custom alloy fabrication with internal baffles and collector system

Capacity: 35 litres

Fuel Pump: ATL in tank high pressure fuel pump, with two stage filtration

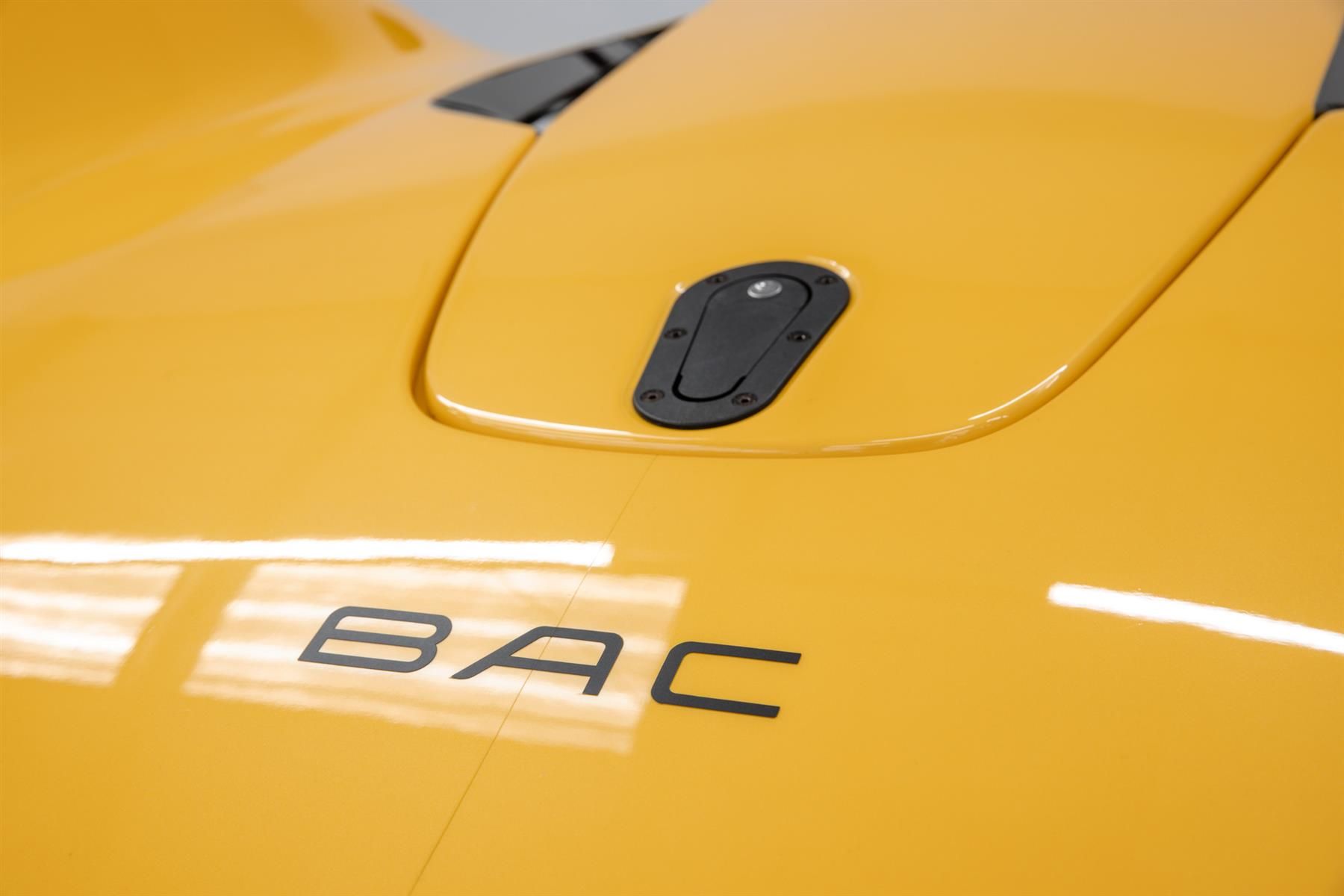

Filler: Lockable billet aluminium filler cap

Gearbox & Driveline

Model: Hewland FTR, fully stressed with integral engine oil tank

Type: 6 speed sequential

Differential: Powerflow LSD

Lubrication: Splash

Gear Selection: Pneumatic semi-automatic closed loop system operated via steering wheel

mounted paddles

Shiftec valve block

Switchable auto upshift

Driveshafts: GKN / BAC developed, low friction

Steering & Suspension

Steering: BAC/Titan developed high ratio rack, 1.7 turns lock-to-lock

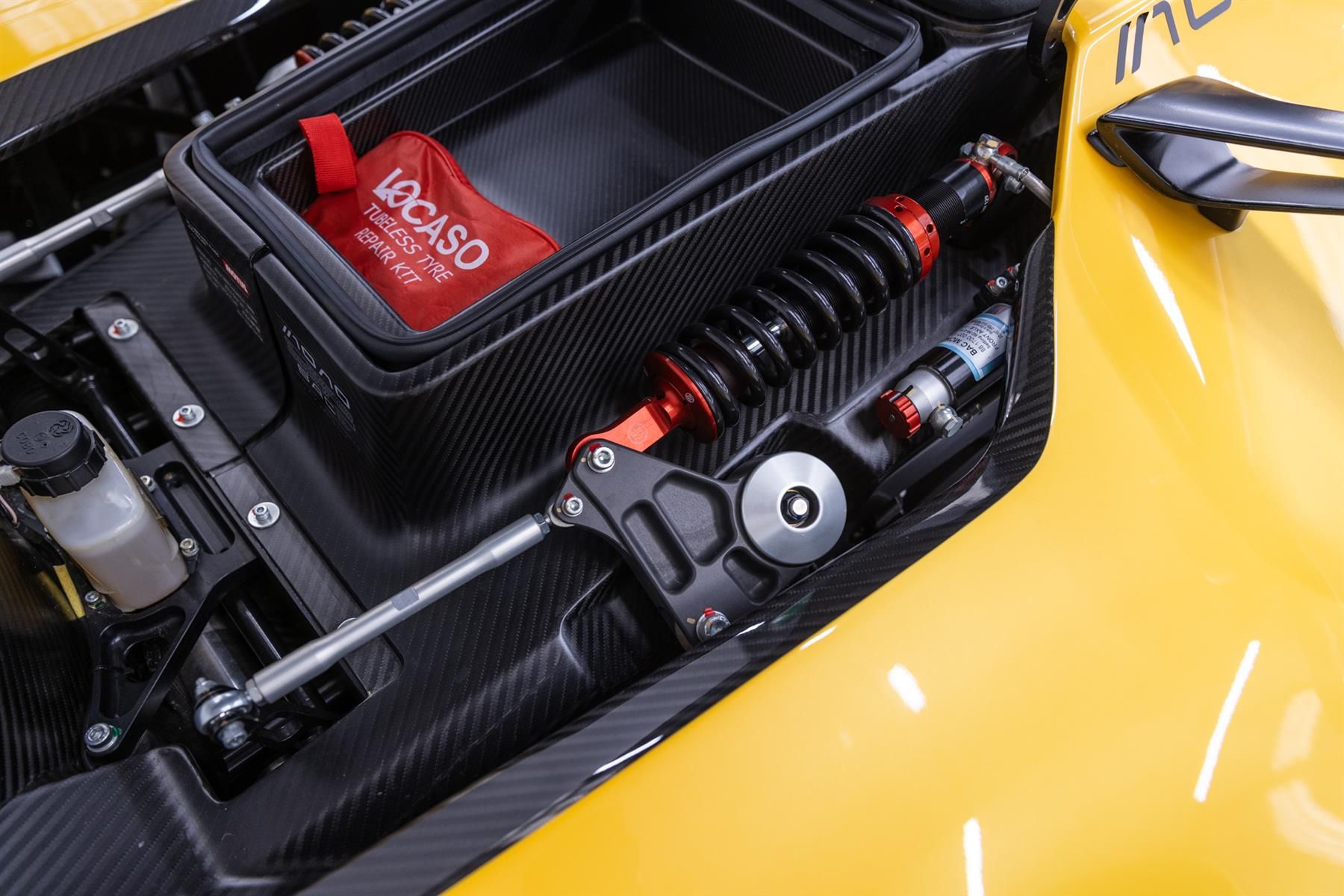

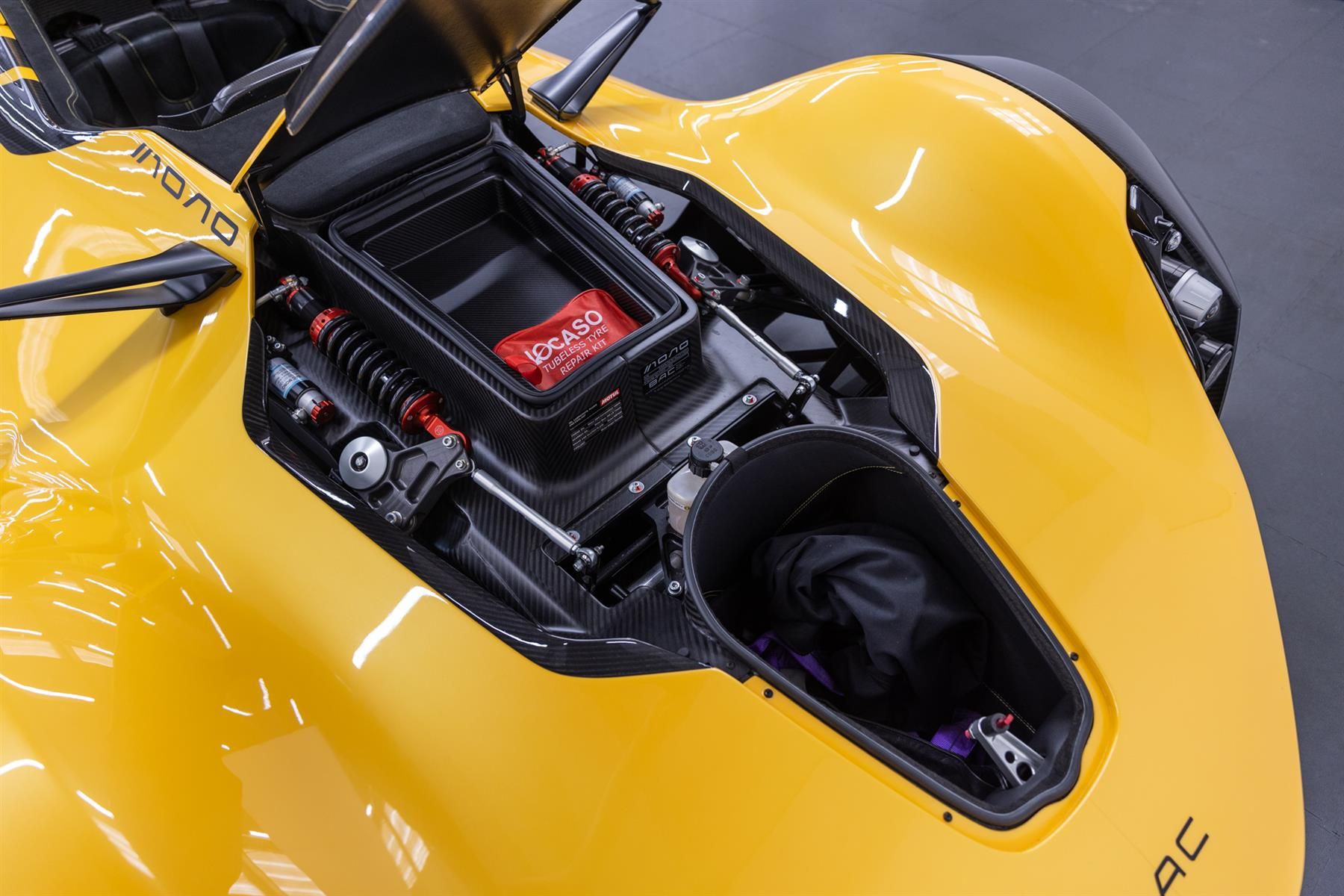

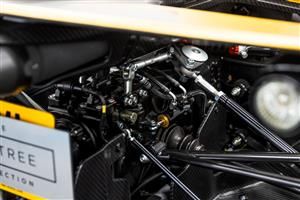

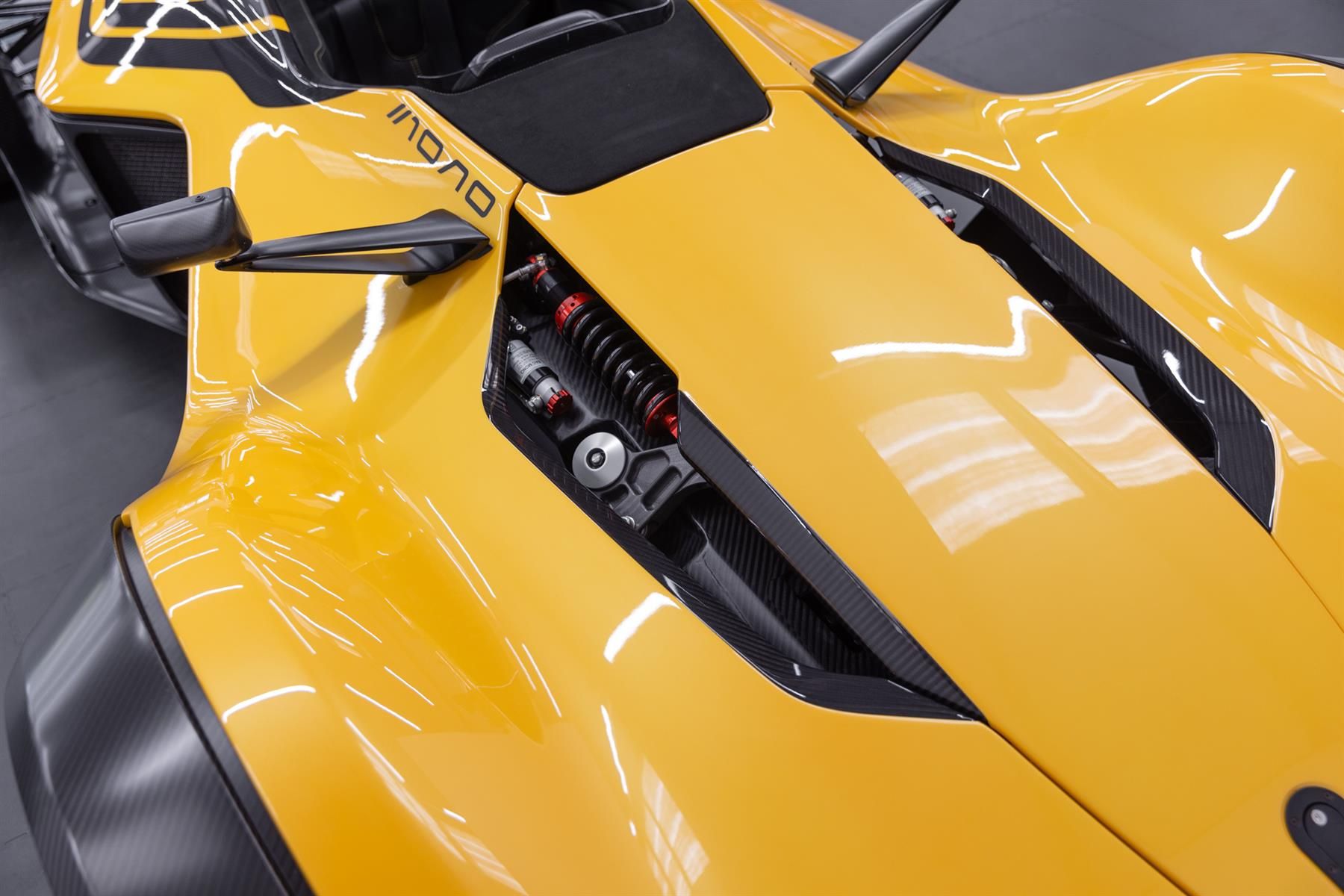

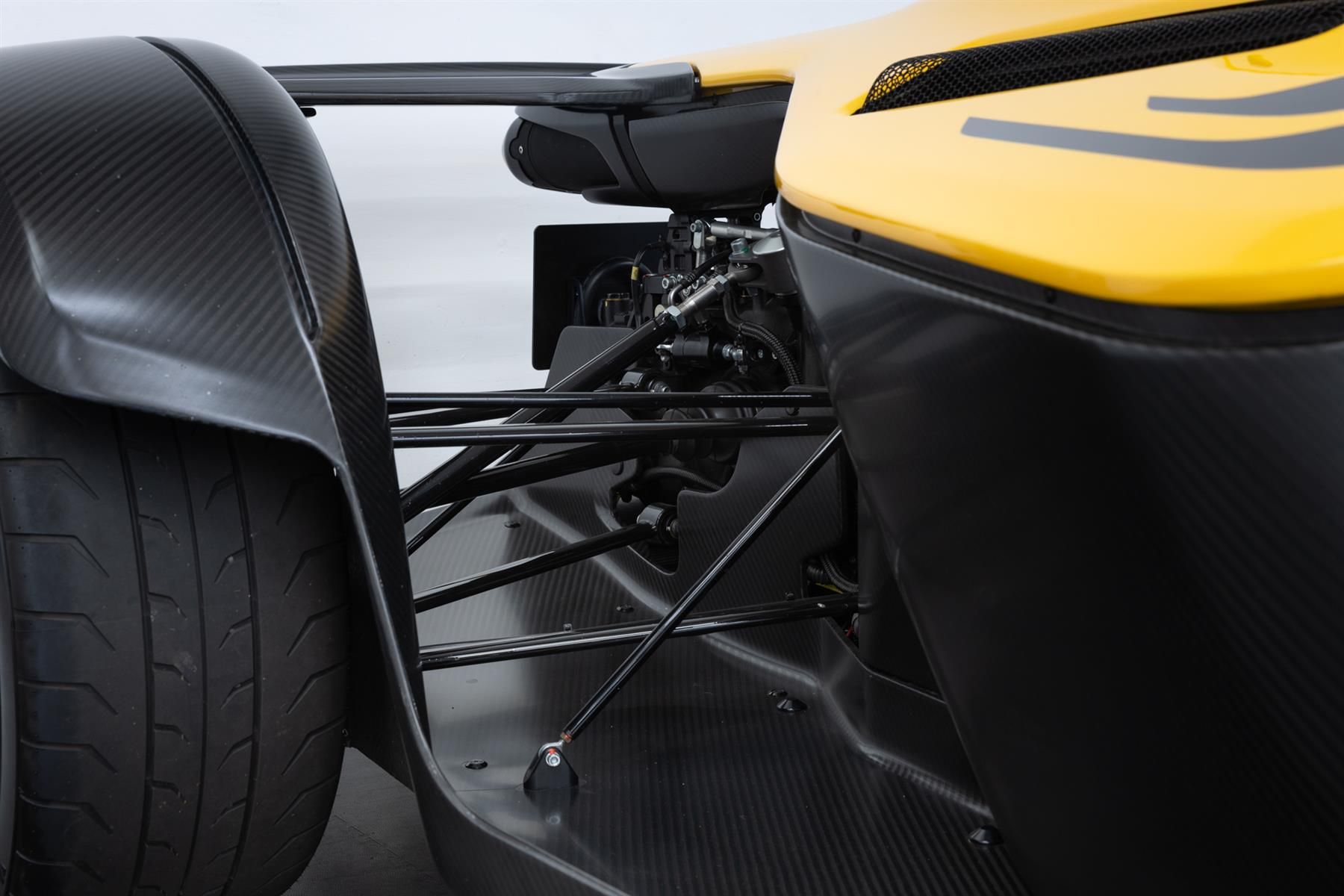

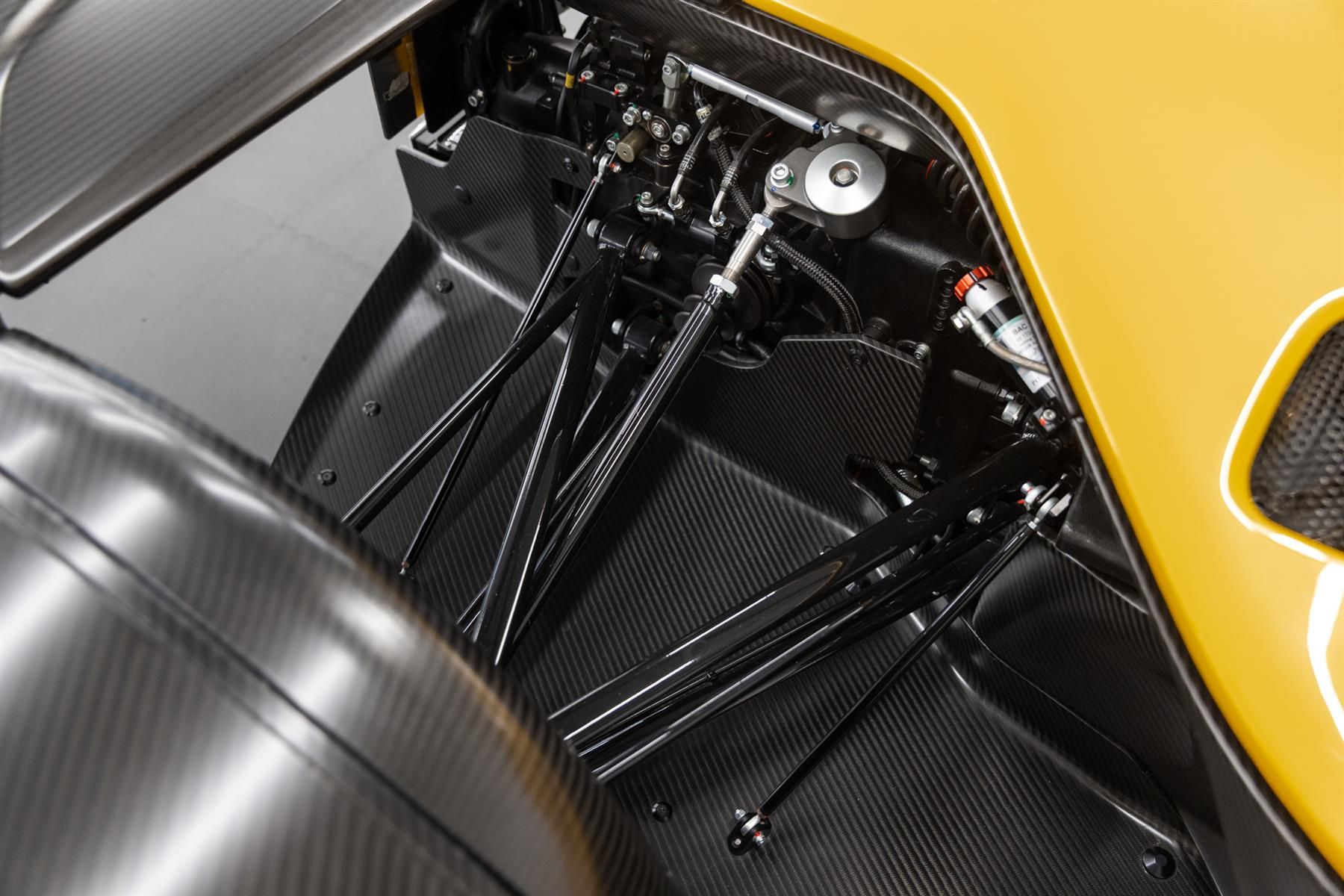

Type Front: Adjustable pushrod activated twin wishbone system with needle roller

bearing mounted bell cranks, rising rate, optimized camber change and roll

centre position, full Ackermann geometry, shim adjustable camber

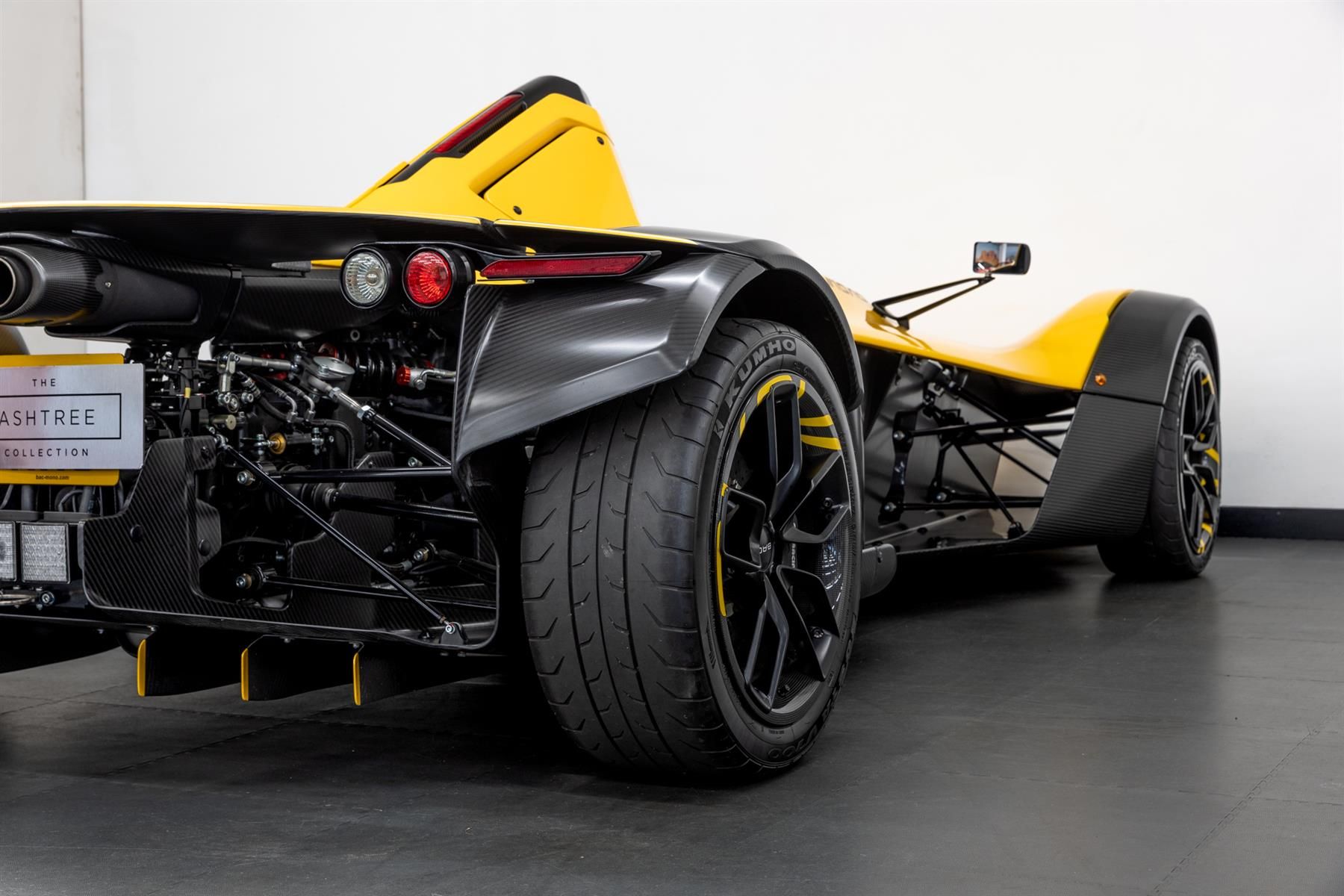

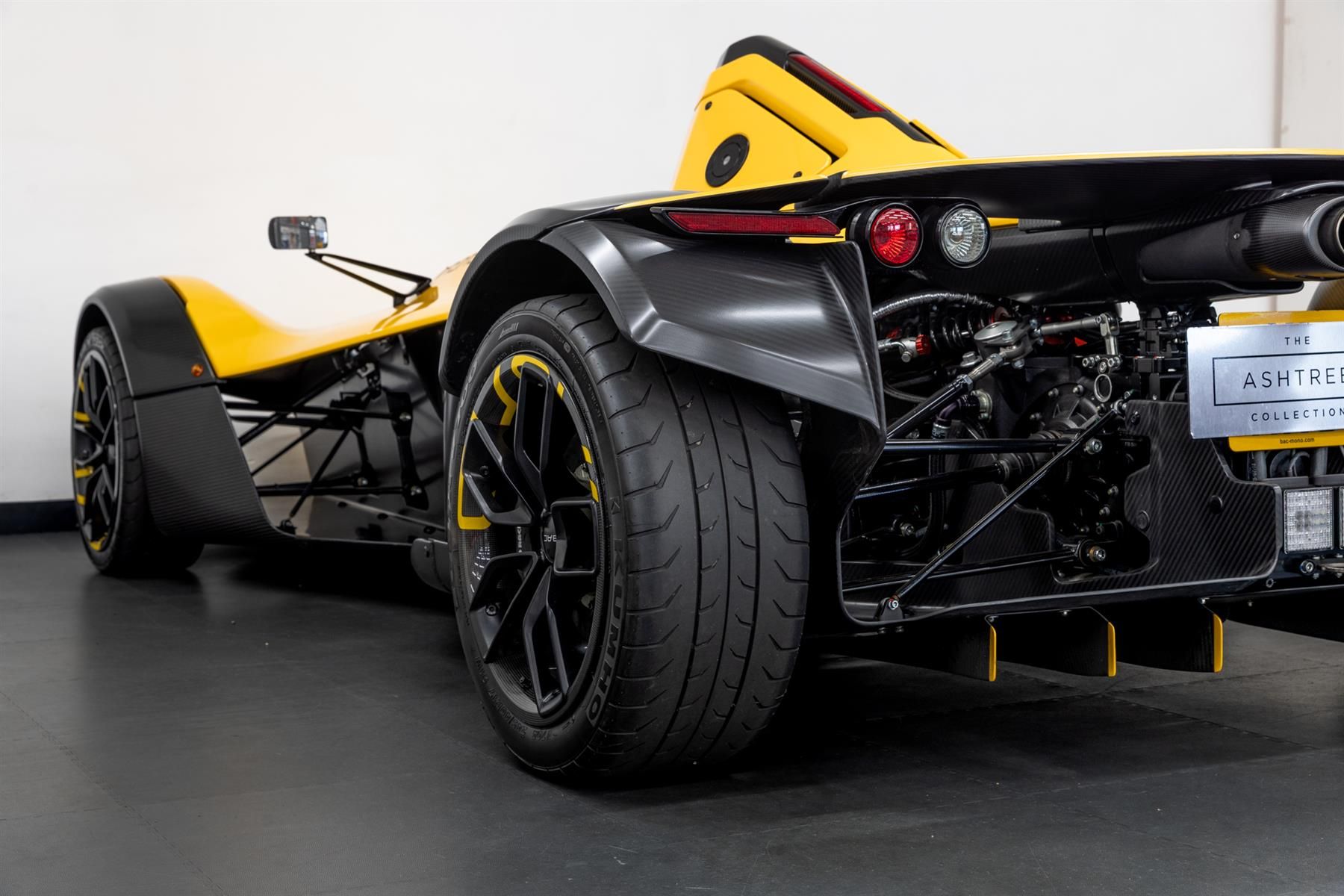

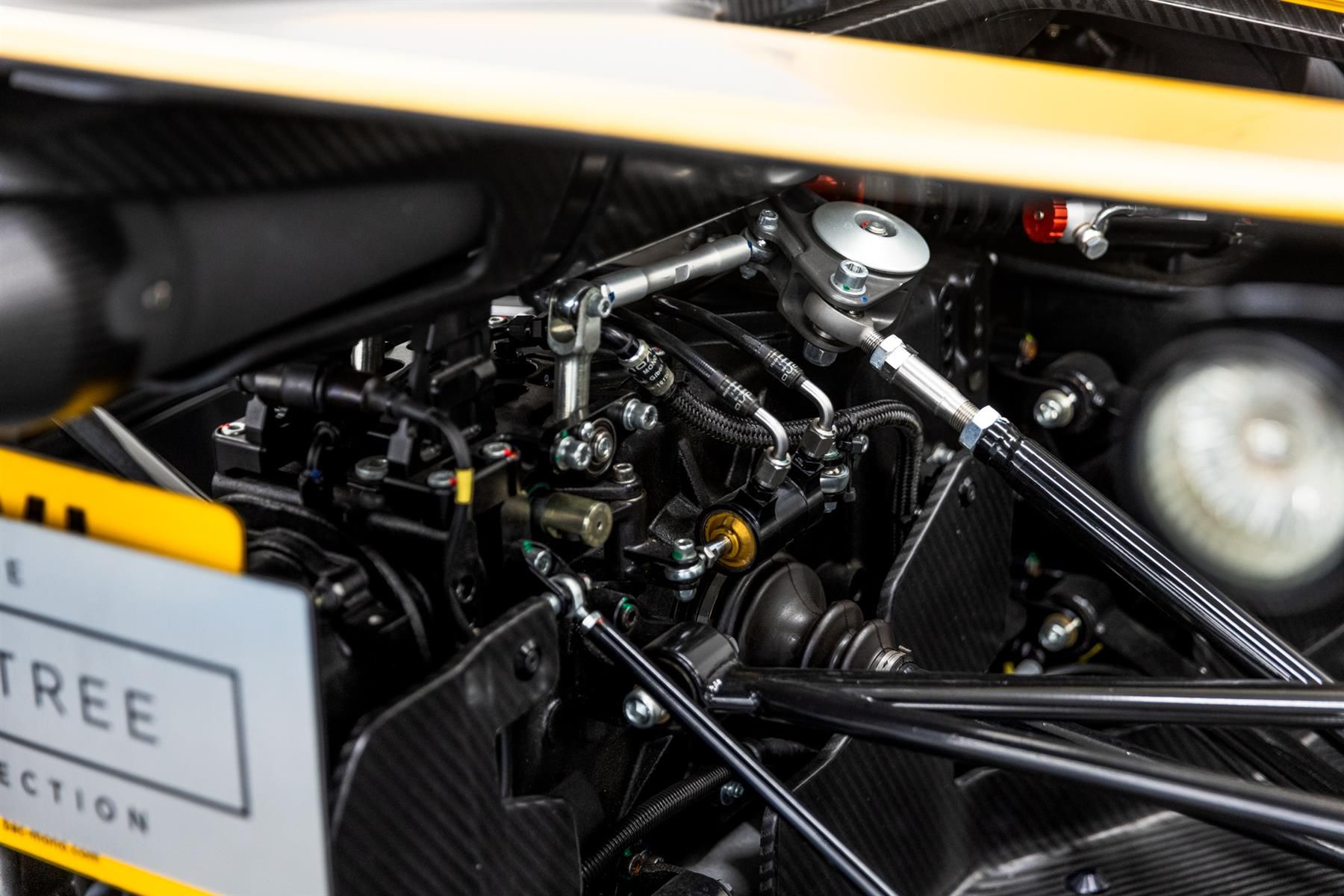

Type Rear: Gearbox mounted, Adjustable pushrod activated twin wishbone system

with needle roller bearing mounted bell cranks, rising rate, optimized

camber change and roll centre position, shim adjustable camber

Wishbones: TIG welded Seamless CFS3 steel aero tube twin wishbone

Uprights: Ultra light, billet aluminium uprights front and rear

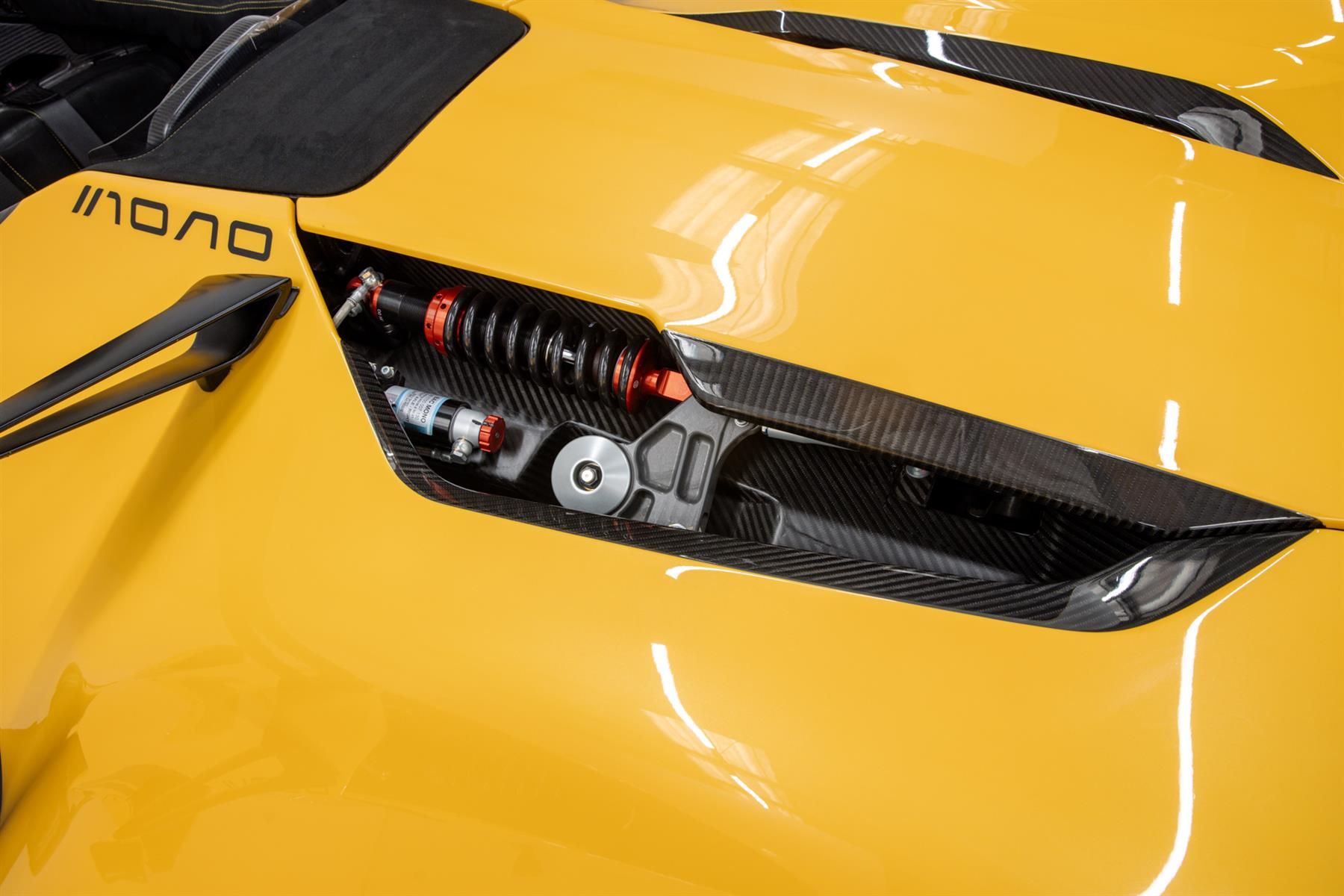

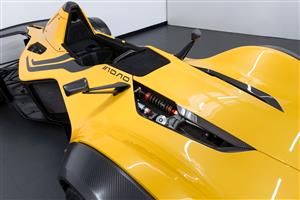

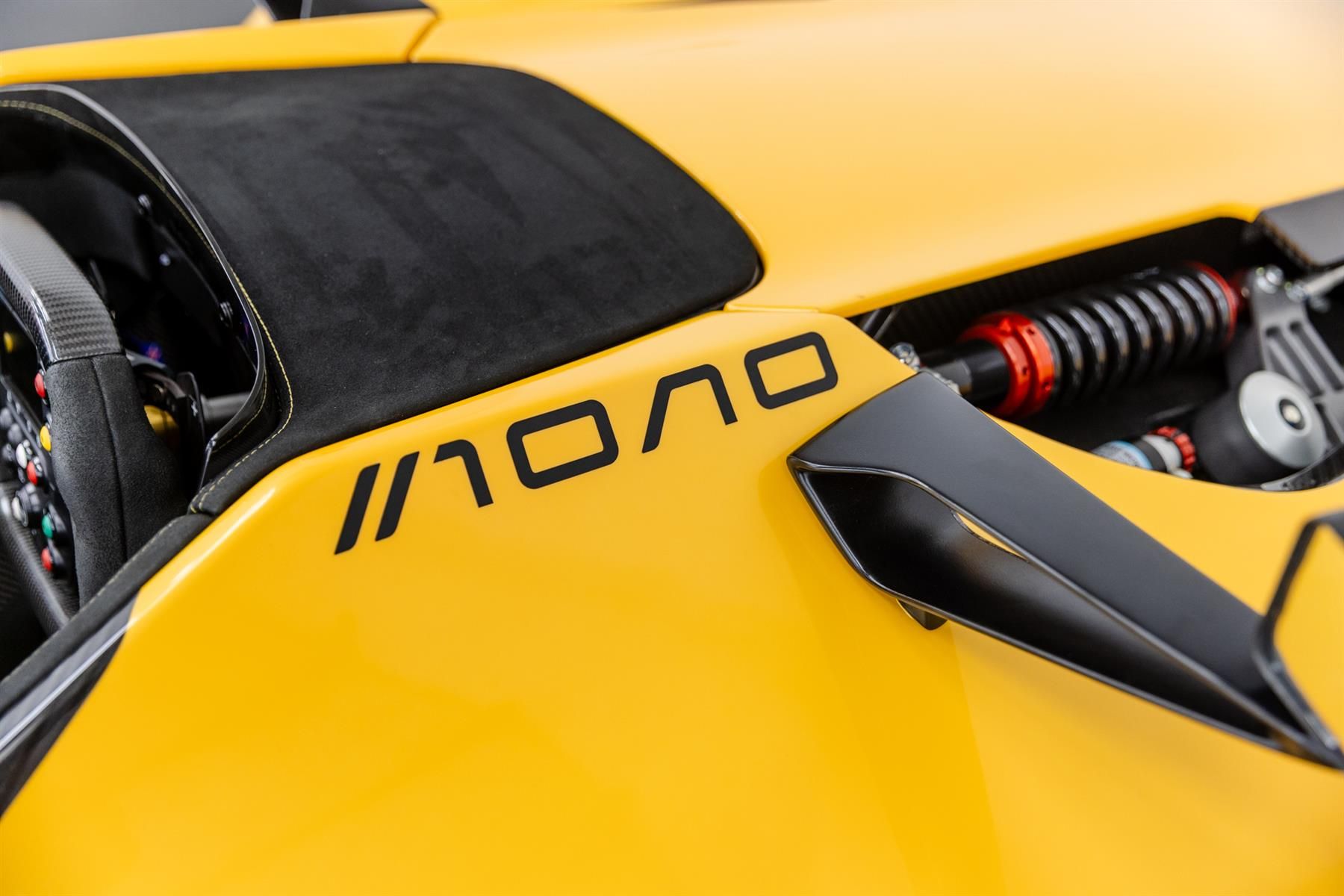

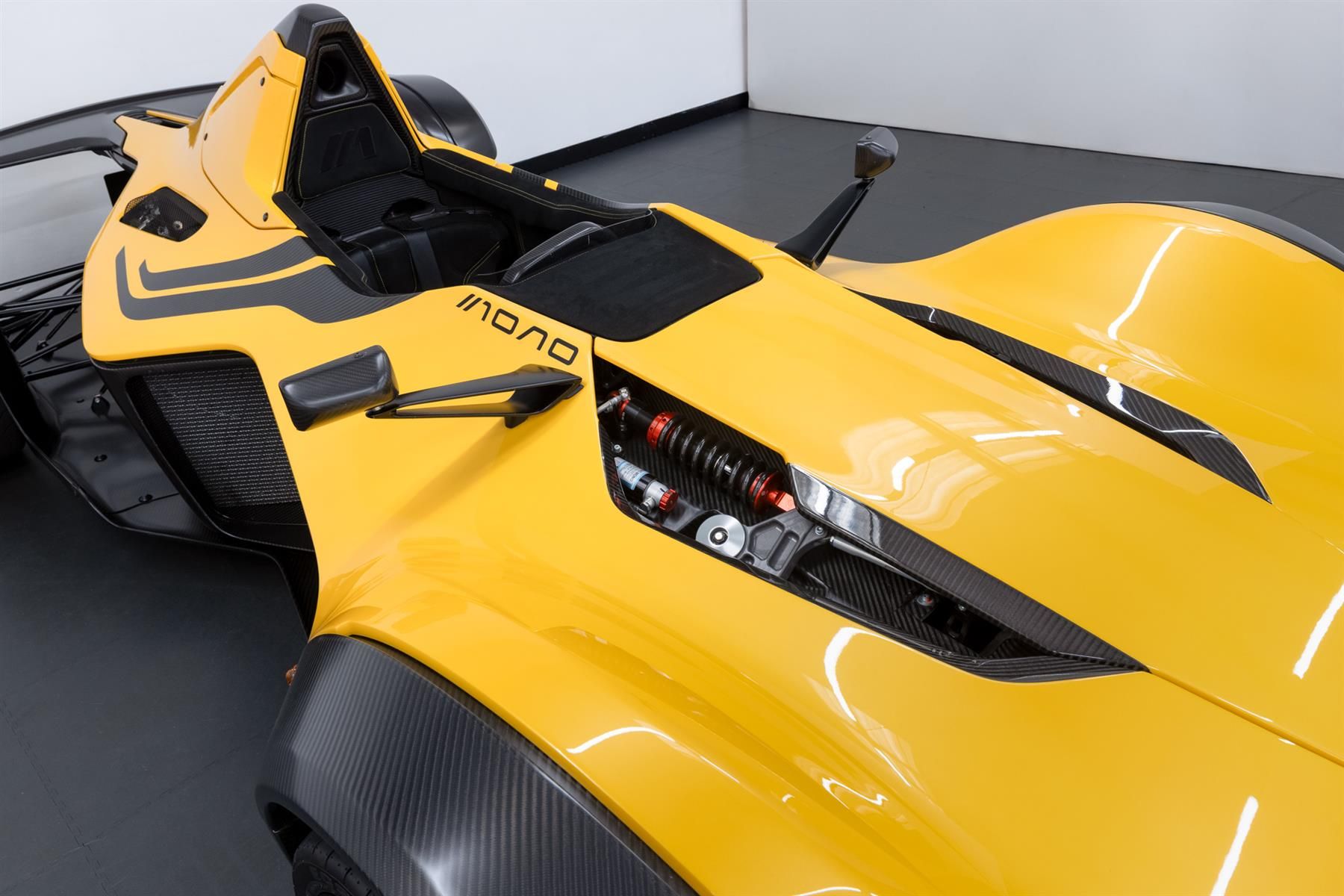

Dampers: Two way adjustable Sachs racing RDS - 36 Formula system

Springs: Race spec Eibach 280lb front and 325lb rear

Rising rate jounce rubbers

Anti-Roll Bars: Front and rear torsion bars

Vehicle Construction

Body Type: Ultra - lightweight carbon fibre / foam sandwich

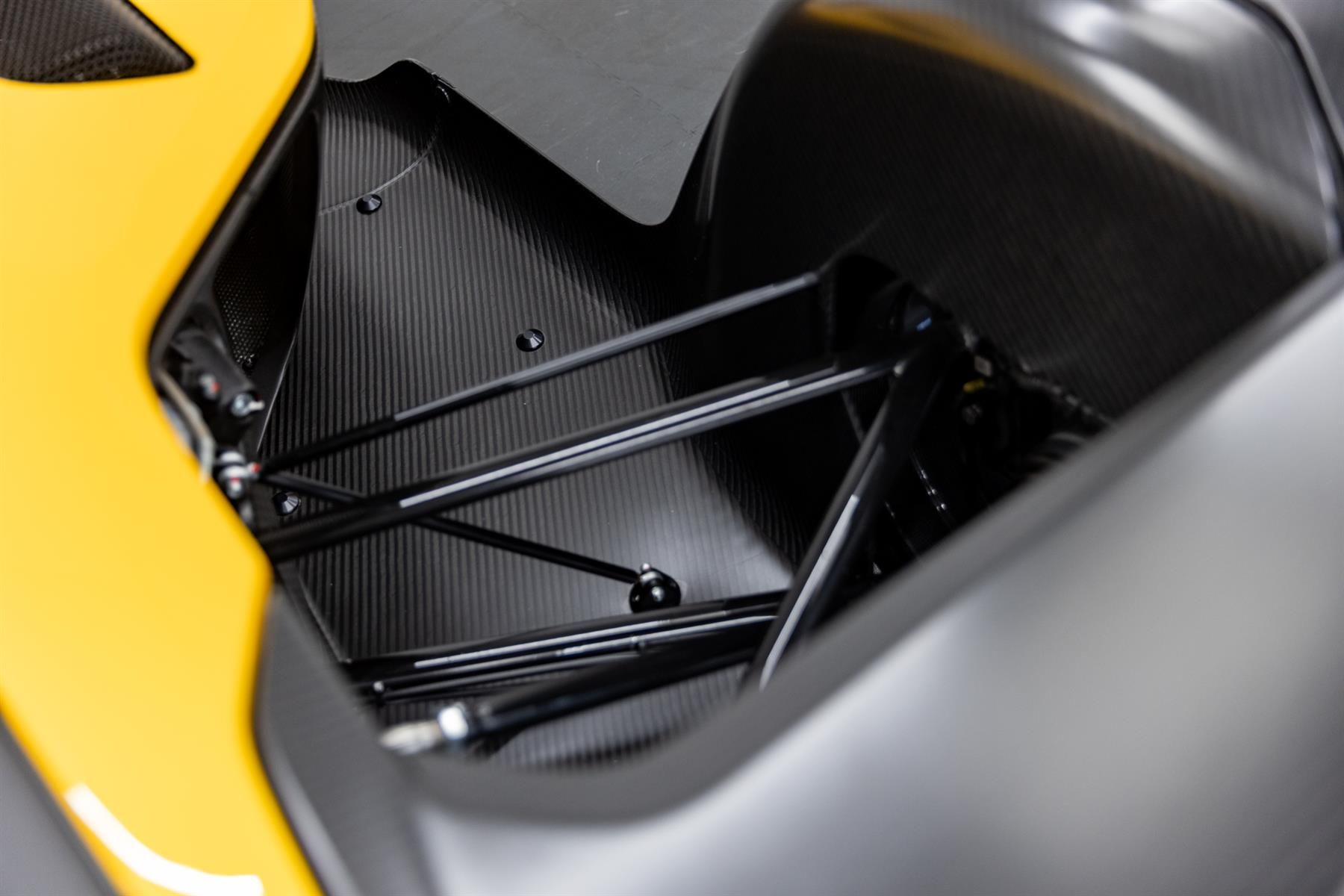

Safety Cell: 2nd generation 'optimised' chassis for increased interior space**

TIG welded cold drawn seamless tube

RACMSA & FIA compliant ROPS

Carbon fibre Crash Box

Side impact structure

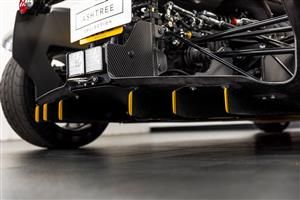

Aero: BAC / FKFS – developed & tested low drag aero package

BAC developed cockpit aero screen

Brakes

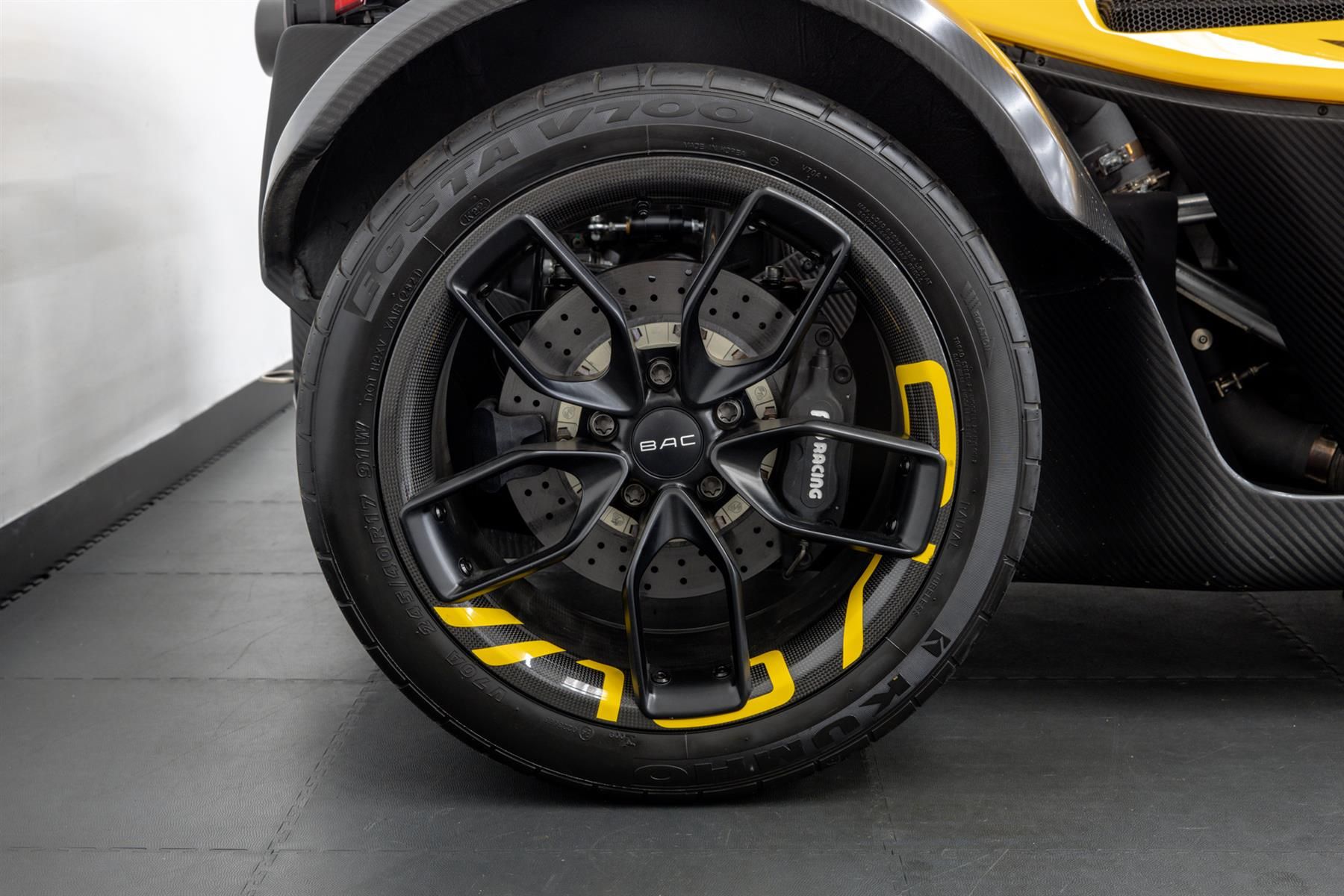

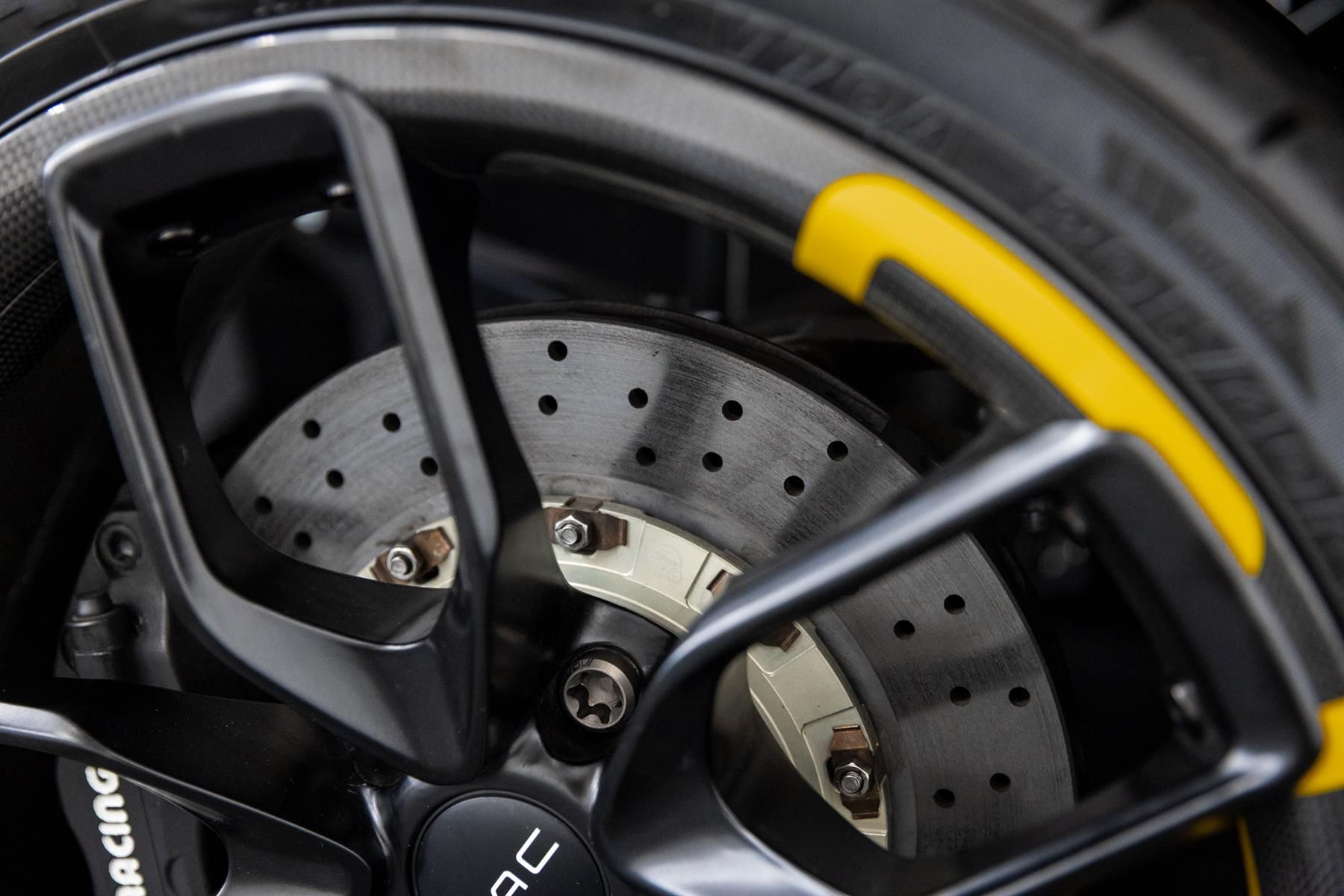

Calipers: AP Racing, Formula Car Caliper - Radial 4 Piston (F & R)

Discs: AP Racing, 295 mm ventilated discs, crossed drilled, Billet Machined

mounting bells (F & R)

Master Cylinders: AP Racing pedal box mounted, differential bore, dual circuit

Parking Brake: Electronic parking brake

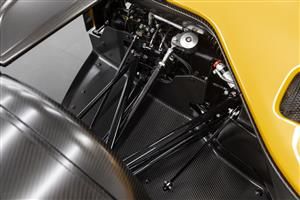

Pedal Box: BAC designed and developed, adjustable, billet, floor mounted pedal box

with ball bearing mounted billet pedals

Brake Bias AP Racing cockpit adjustable brake bias

Interior

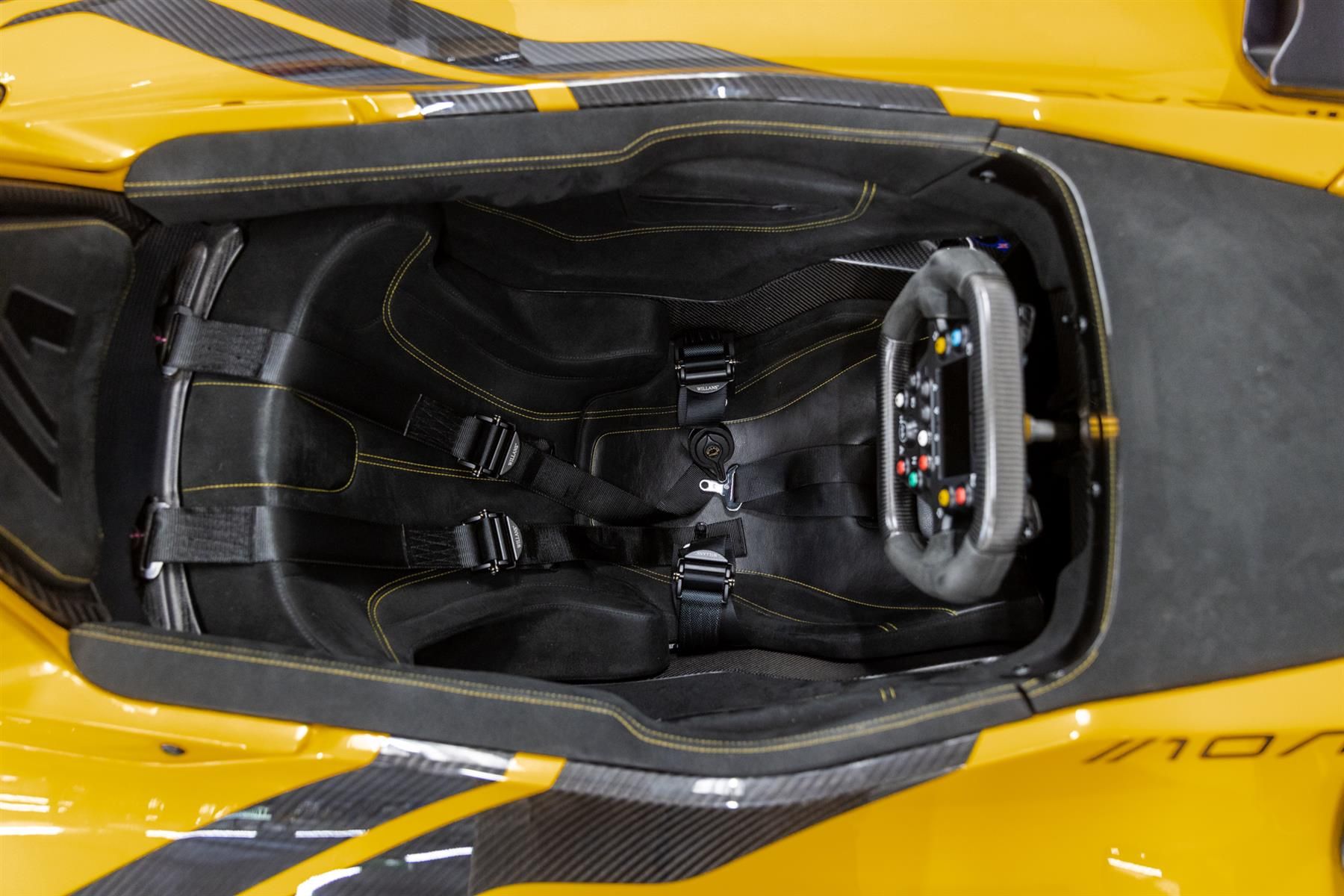

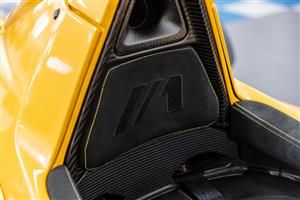

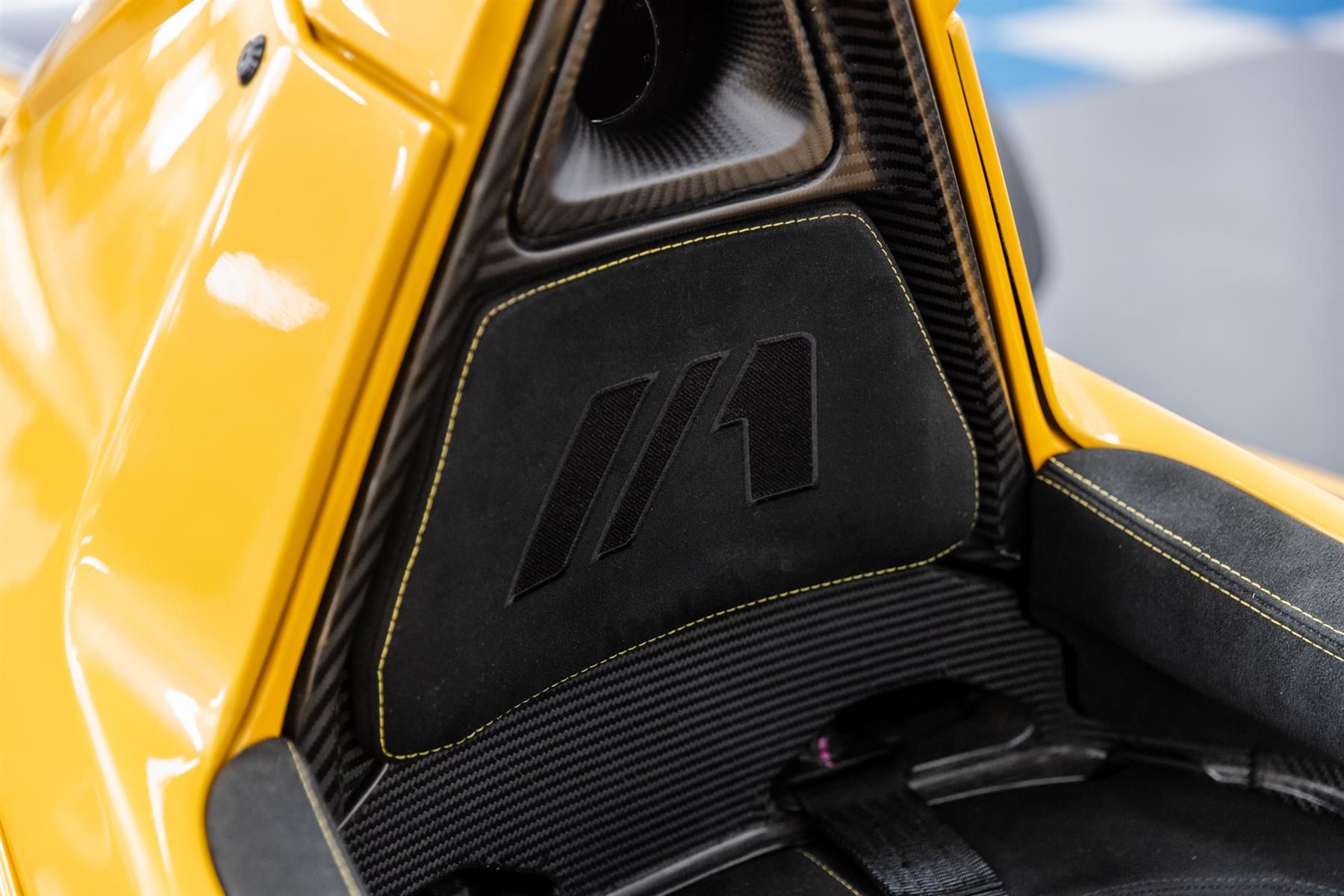

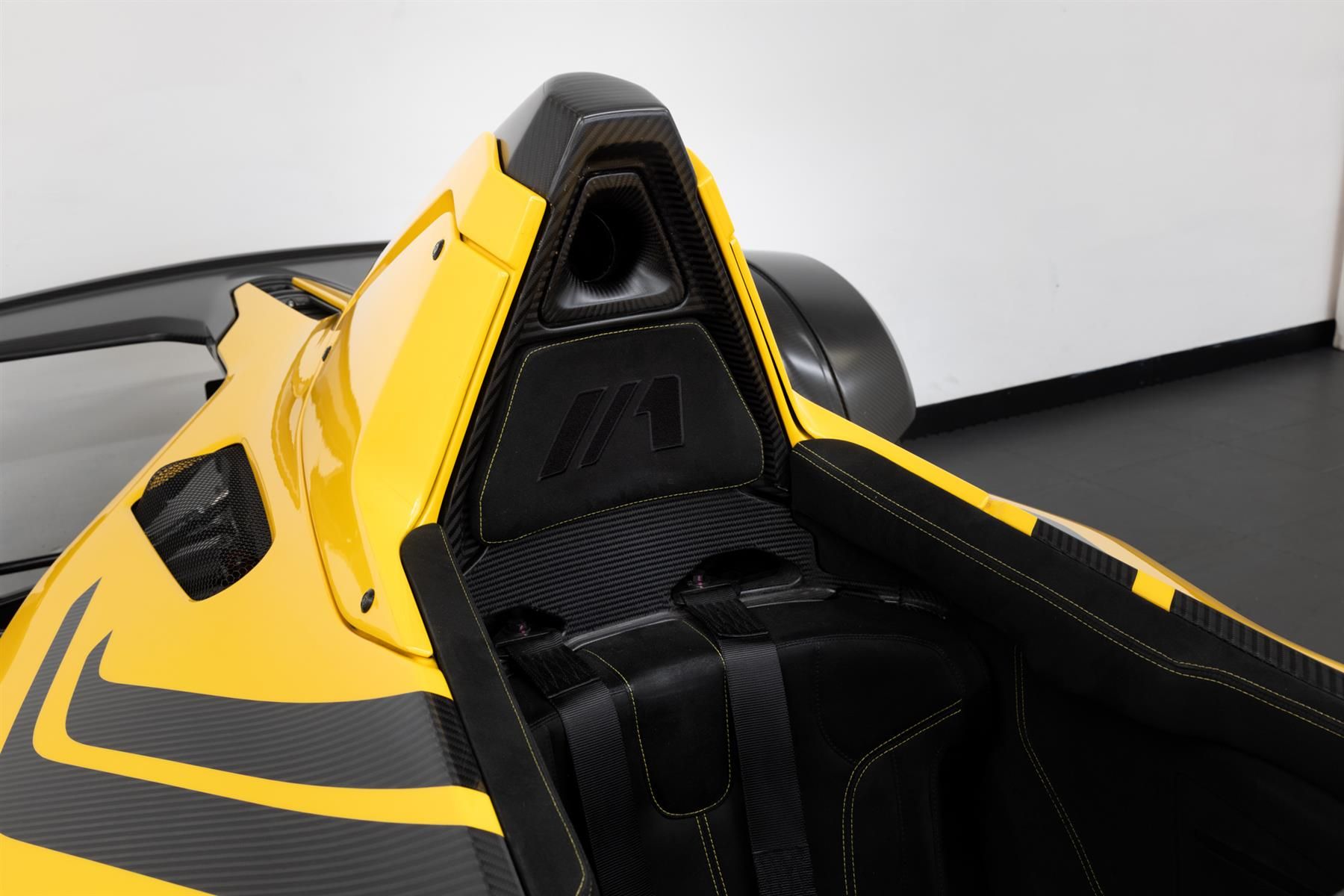

Seat: Tillett / BAC developed fixed position carbon fibre

Trim: “Extreme” waterproof leather, Microcare MC waterproof “suede”

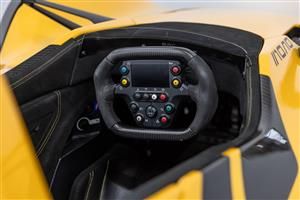

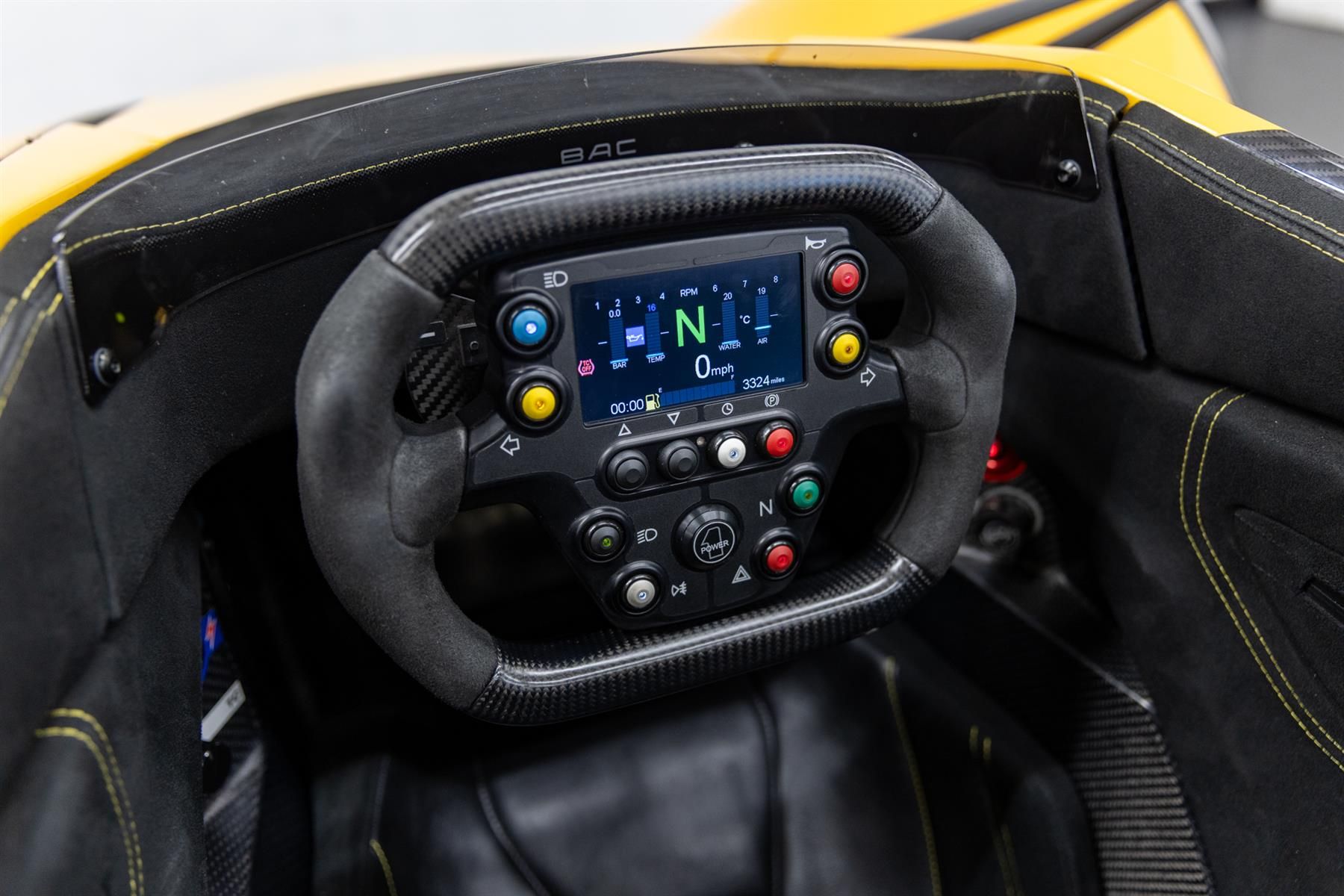

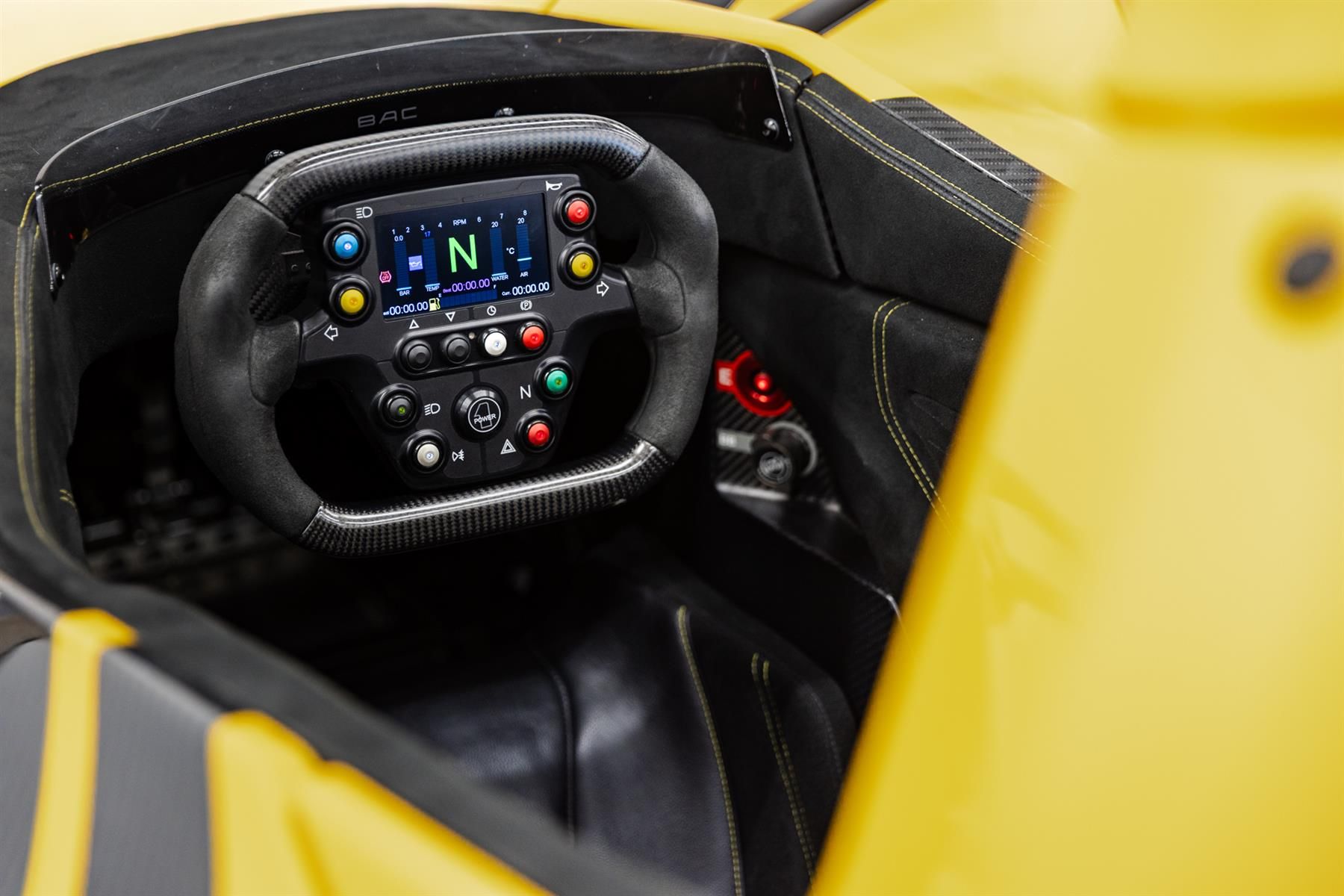

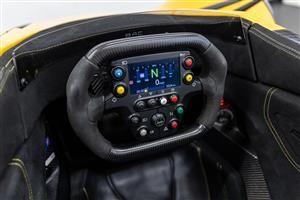

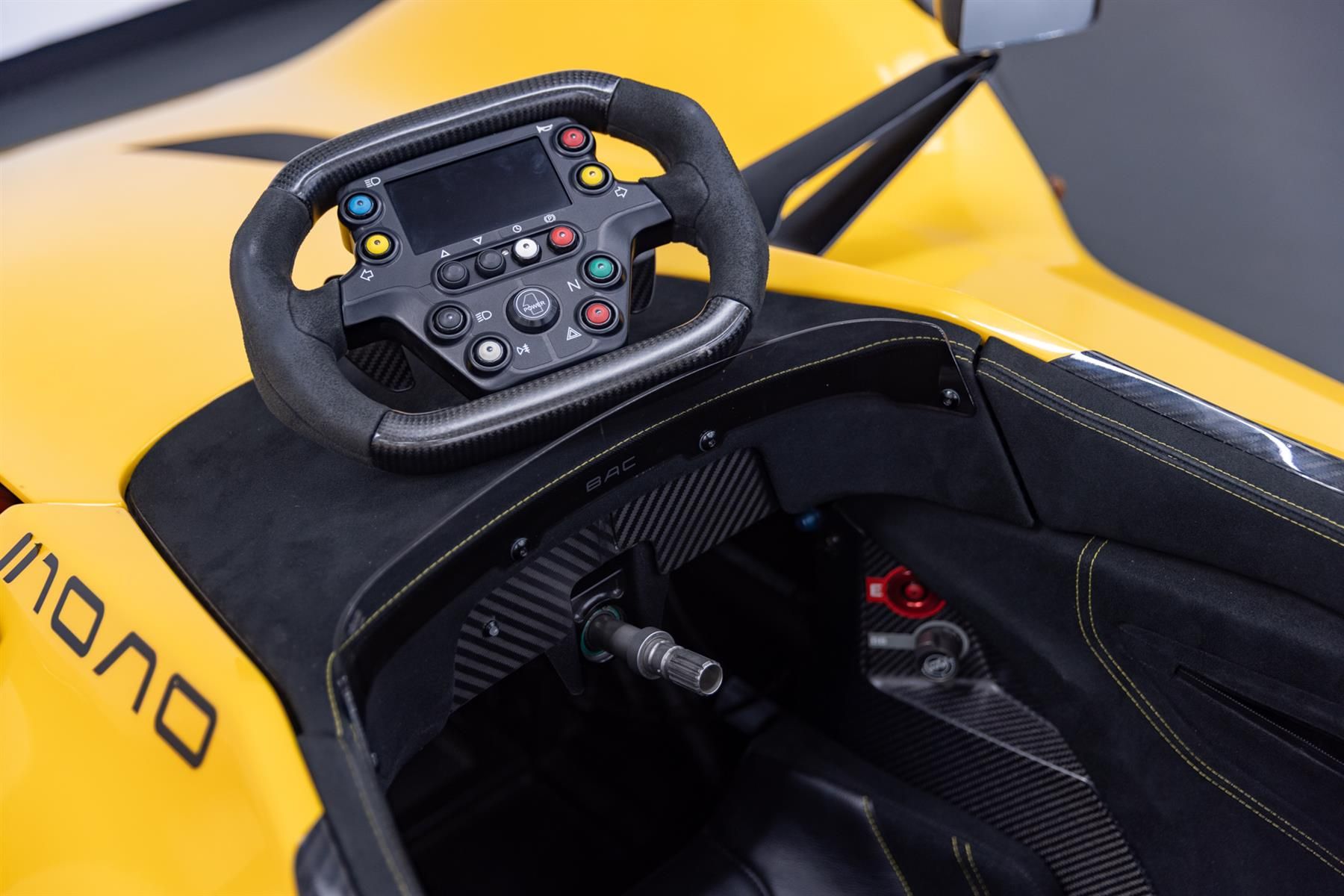

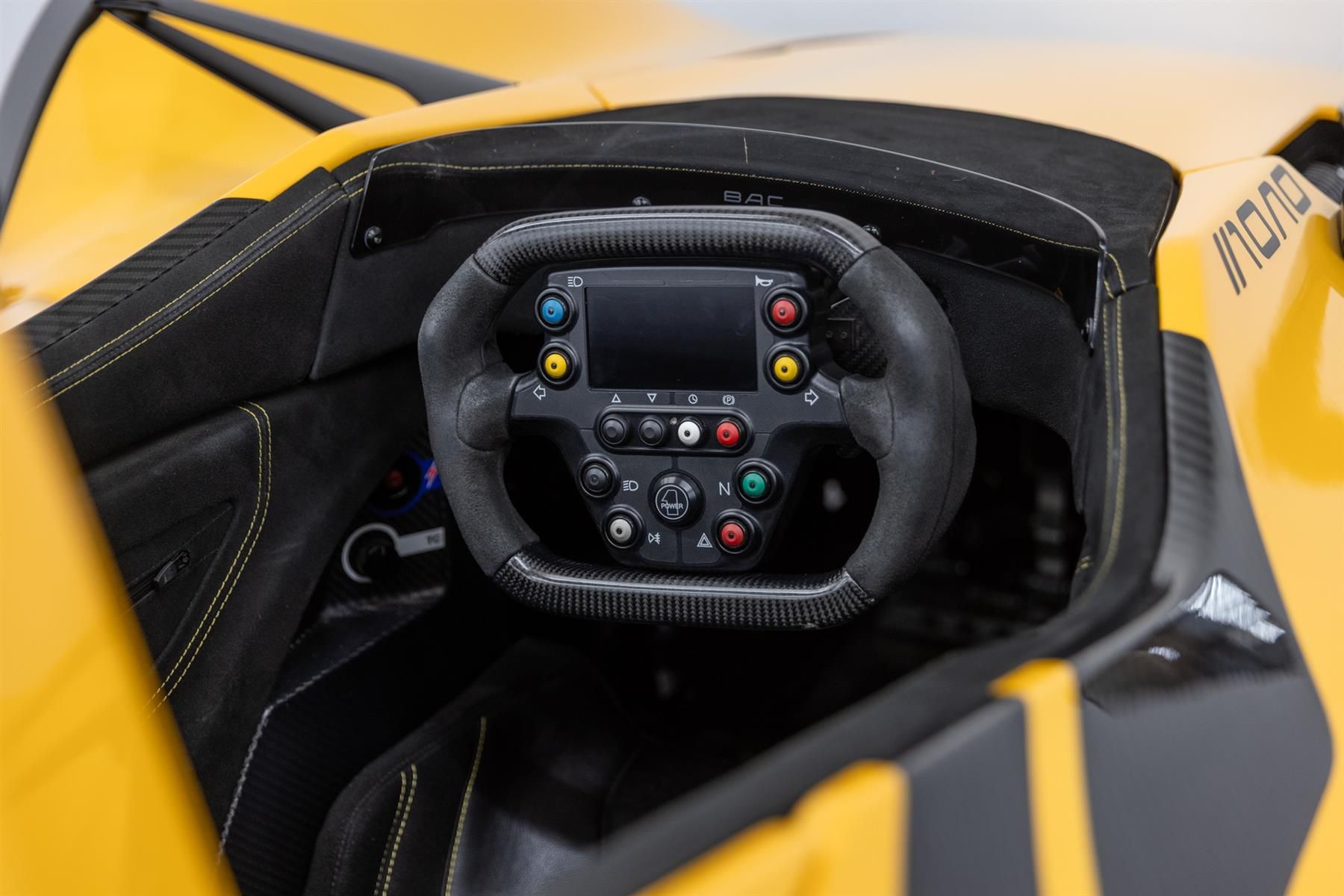

Steering Wheel: BAC developed 290mm diameter billet aluminium housing

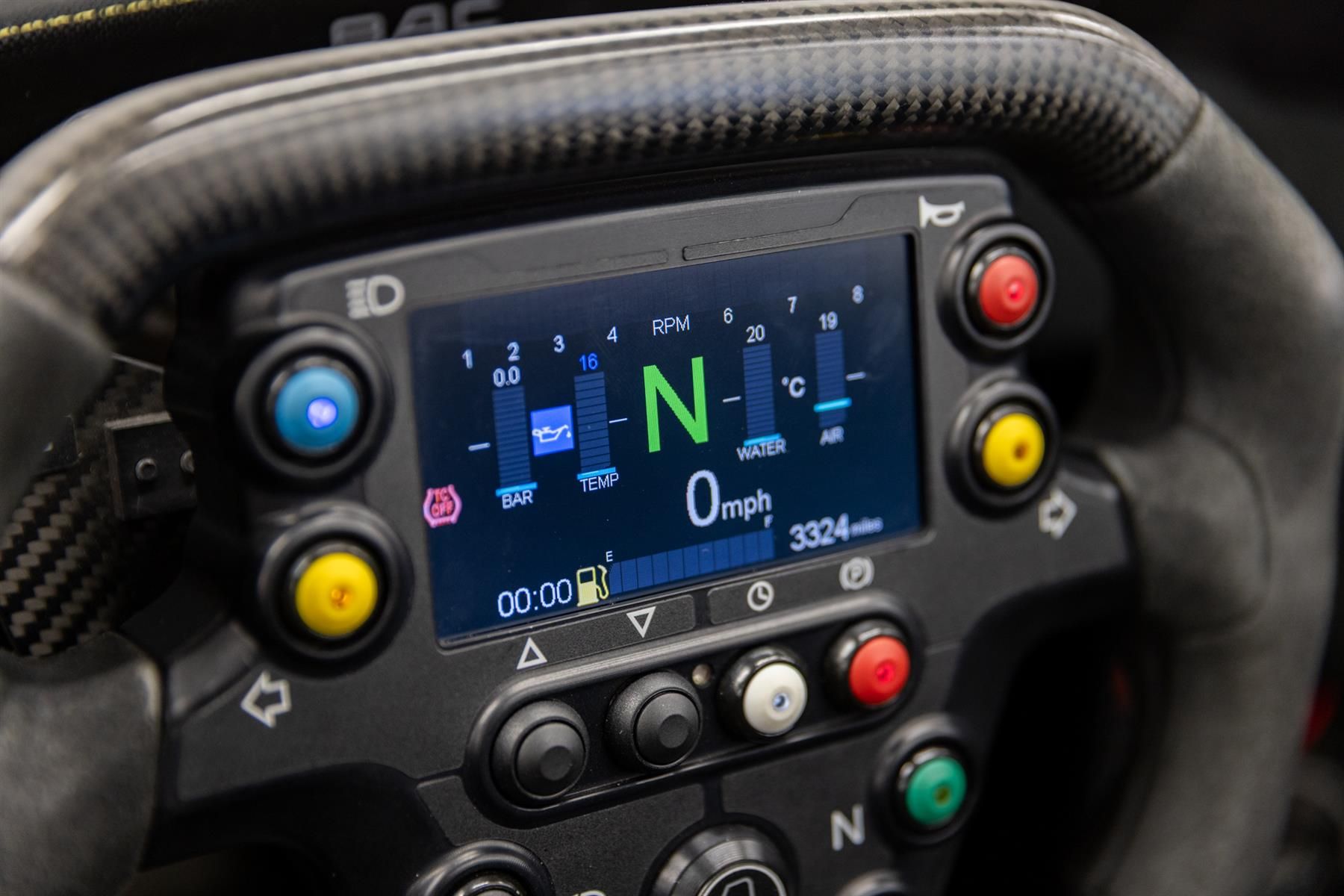

GEMS LDS4 colour display system

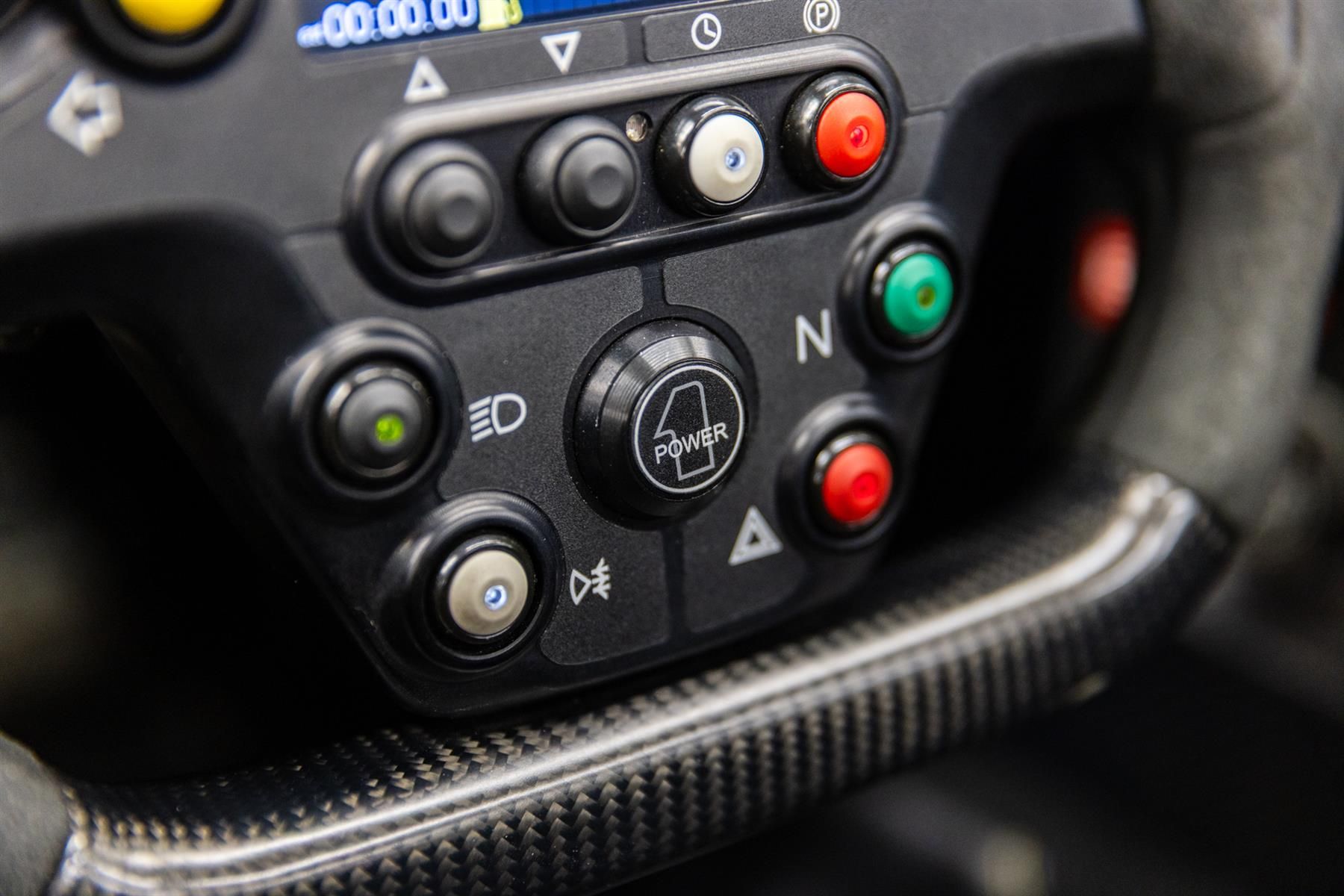

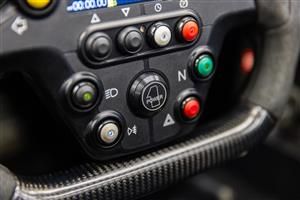

Illuminated switchgear

6 pin quick release steering boss

Touch sensitive starter button

Seat Belts: Willans 5/6 Point Harness, FIA compliant

Ready to enjoyed, either on the road or on the track !

Please call for more information of this stunning car.
