1965 FORD

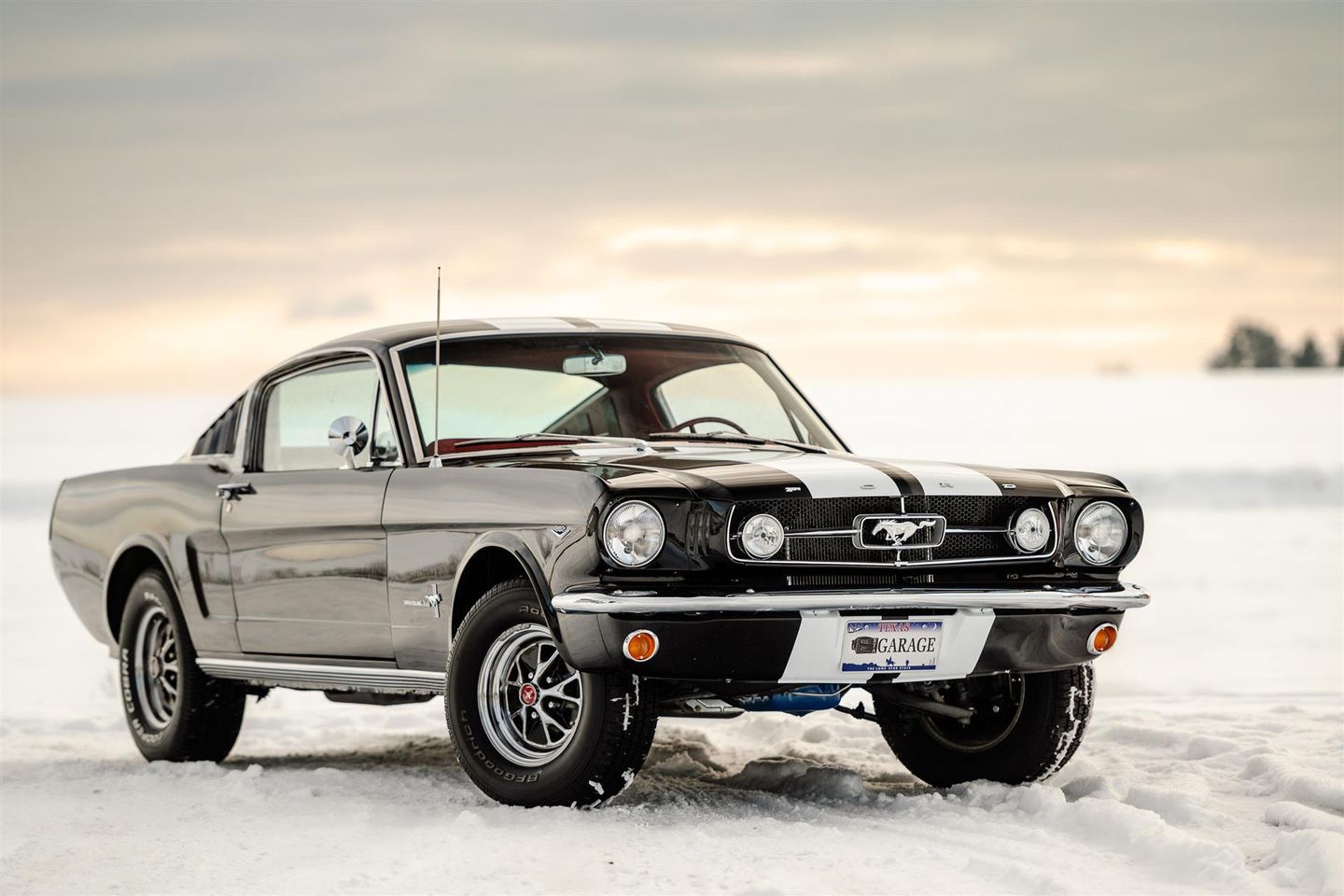

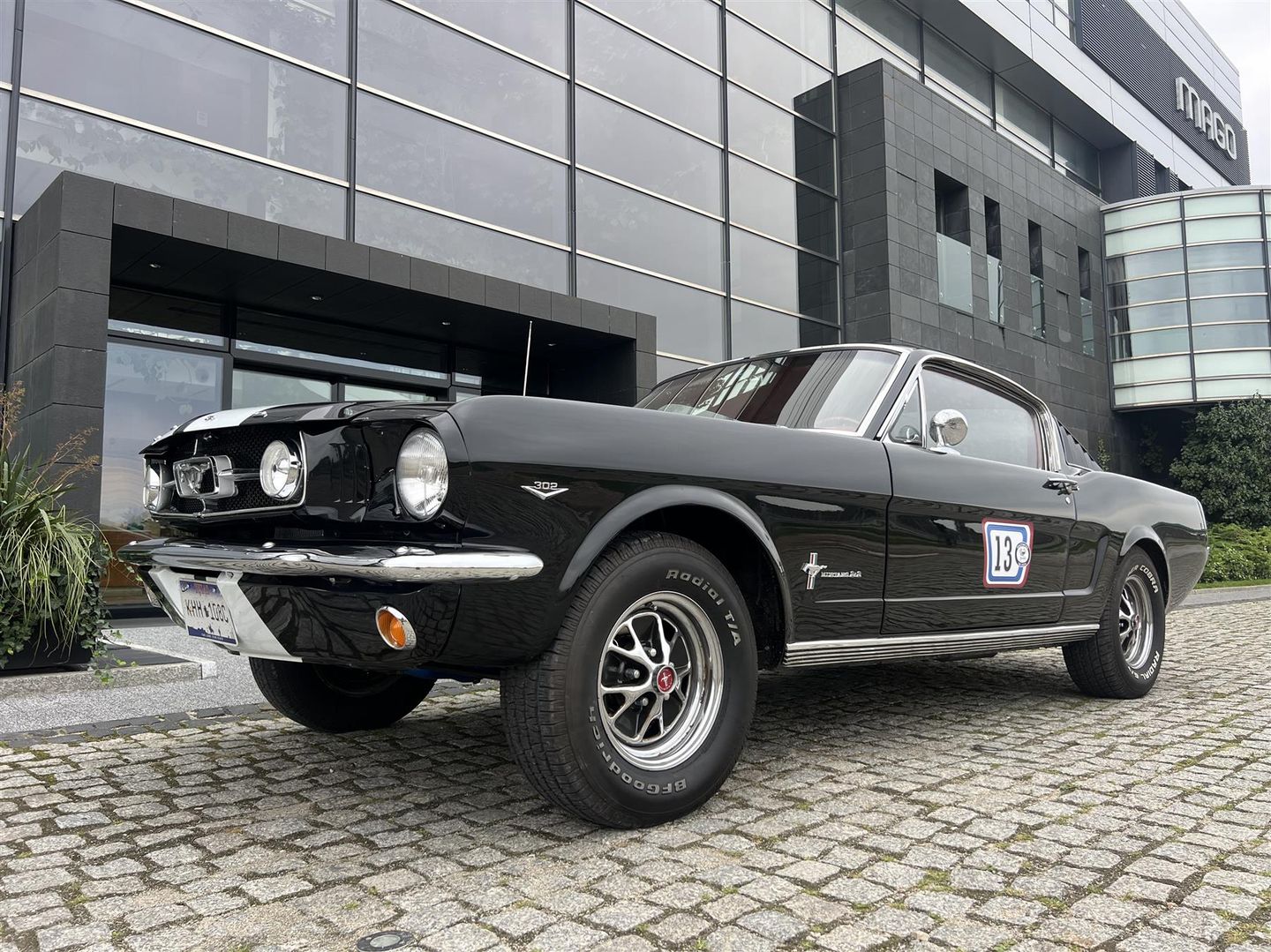

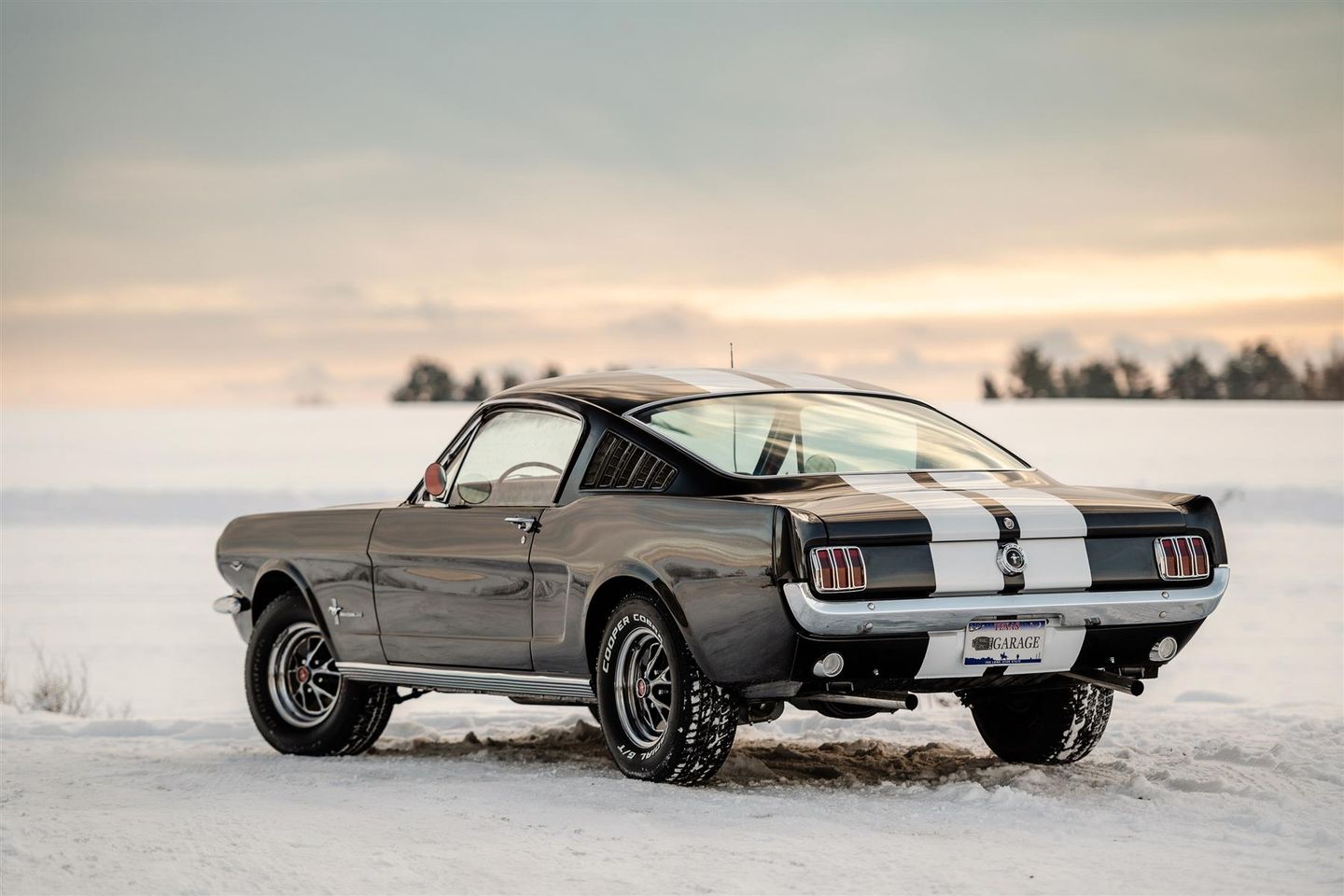

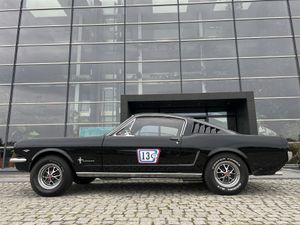

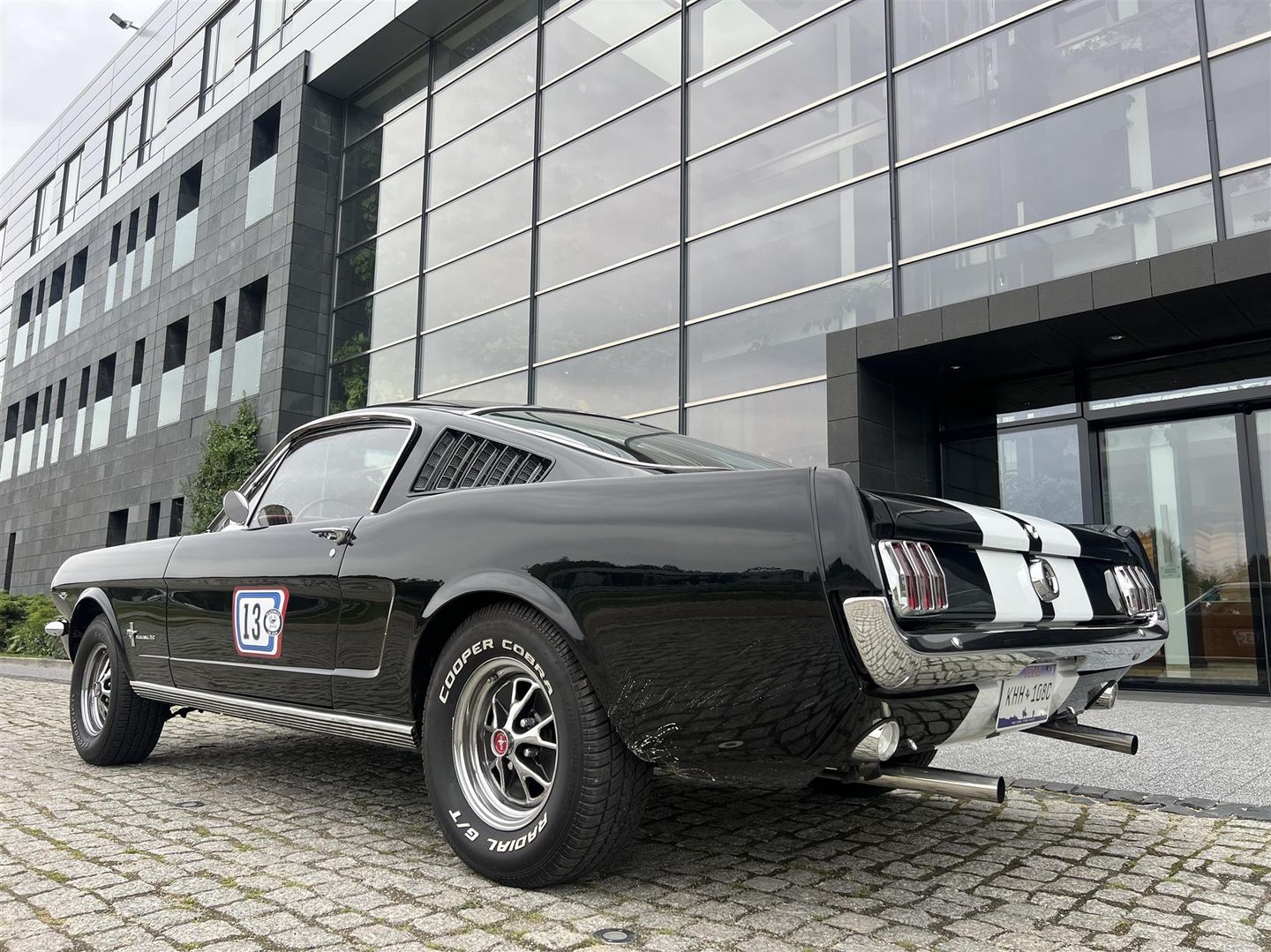

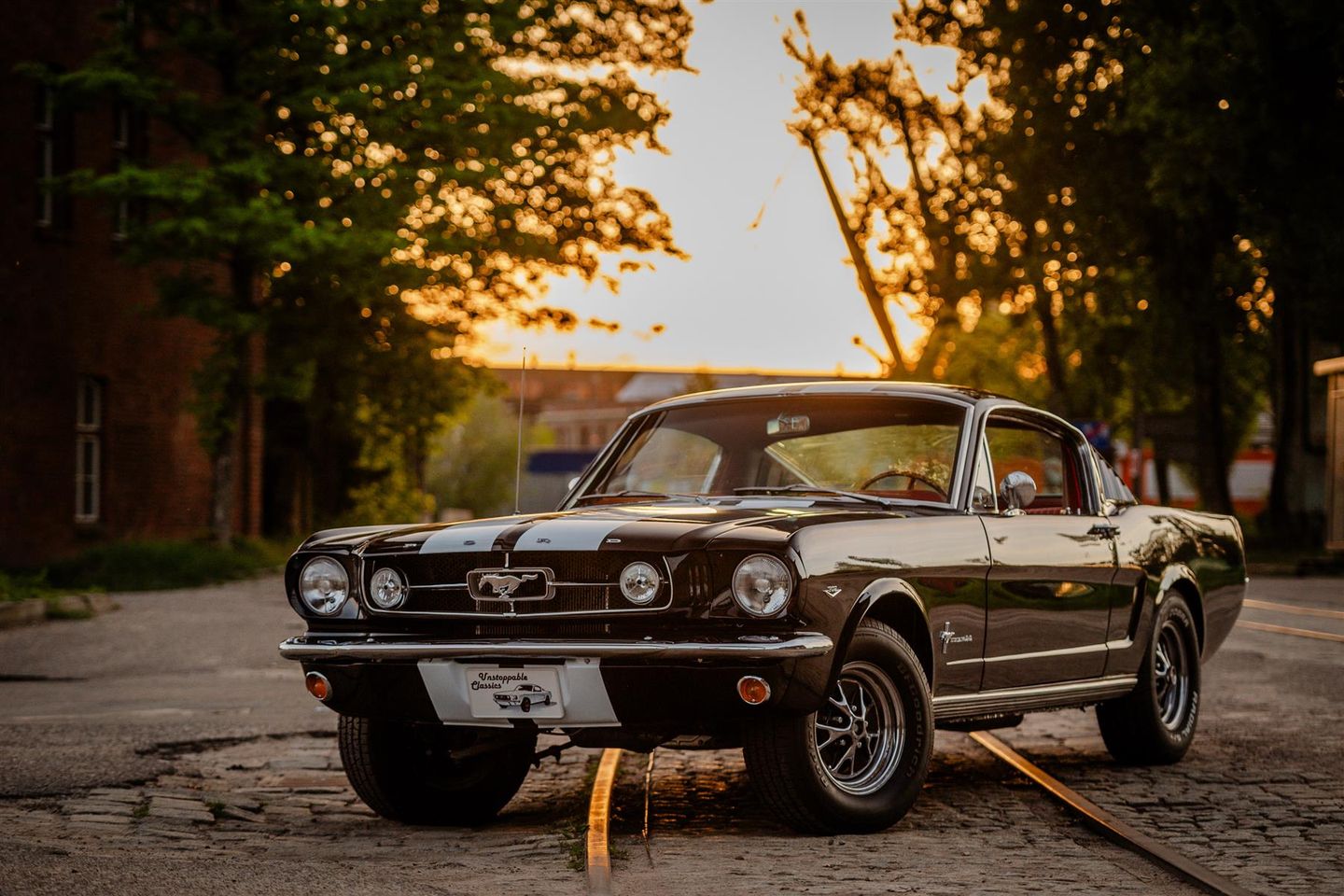

1965 Ford Mustang Fastback

Engine: 302 (5.0L) – Automatic Transmission

⸻

Restoration Overview

This Mustang underwent a complete, two-year restoration project, with full documentation of every stage (invoices, receipts, and photos available).

All parts not listed below did not require replacement and were refreshed.

As the car is now in true “show car” condition—arguably even better than when it originally left the factory—the list of new parts installed is extensive and impressive.

⸻

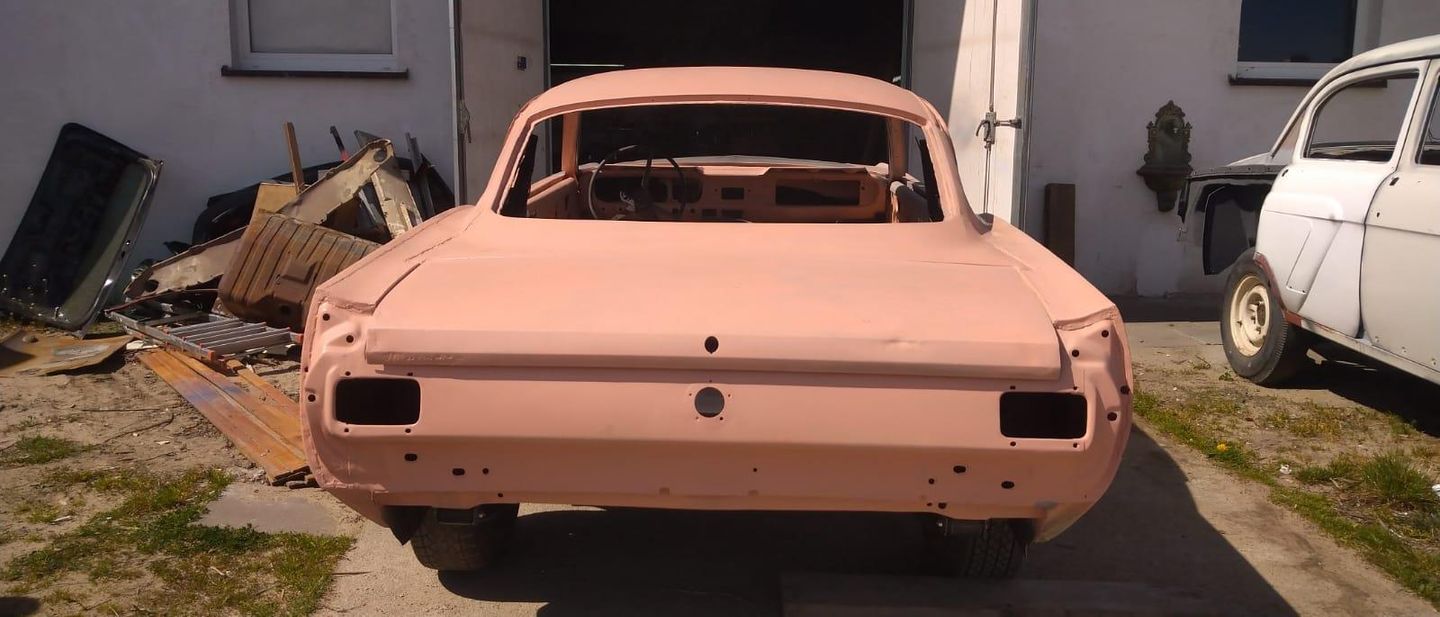

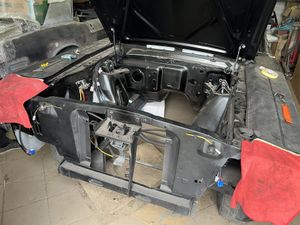

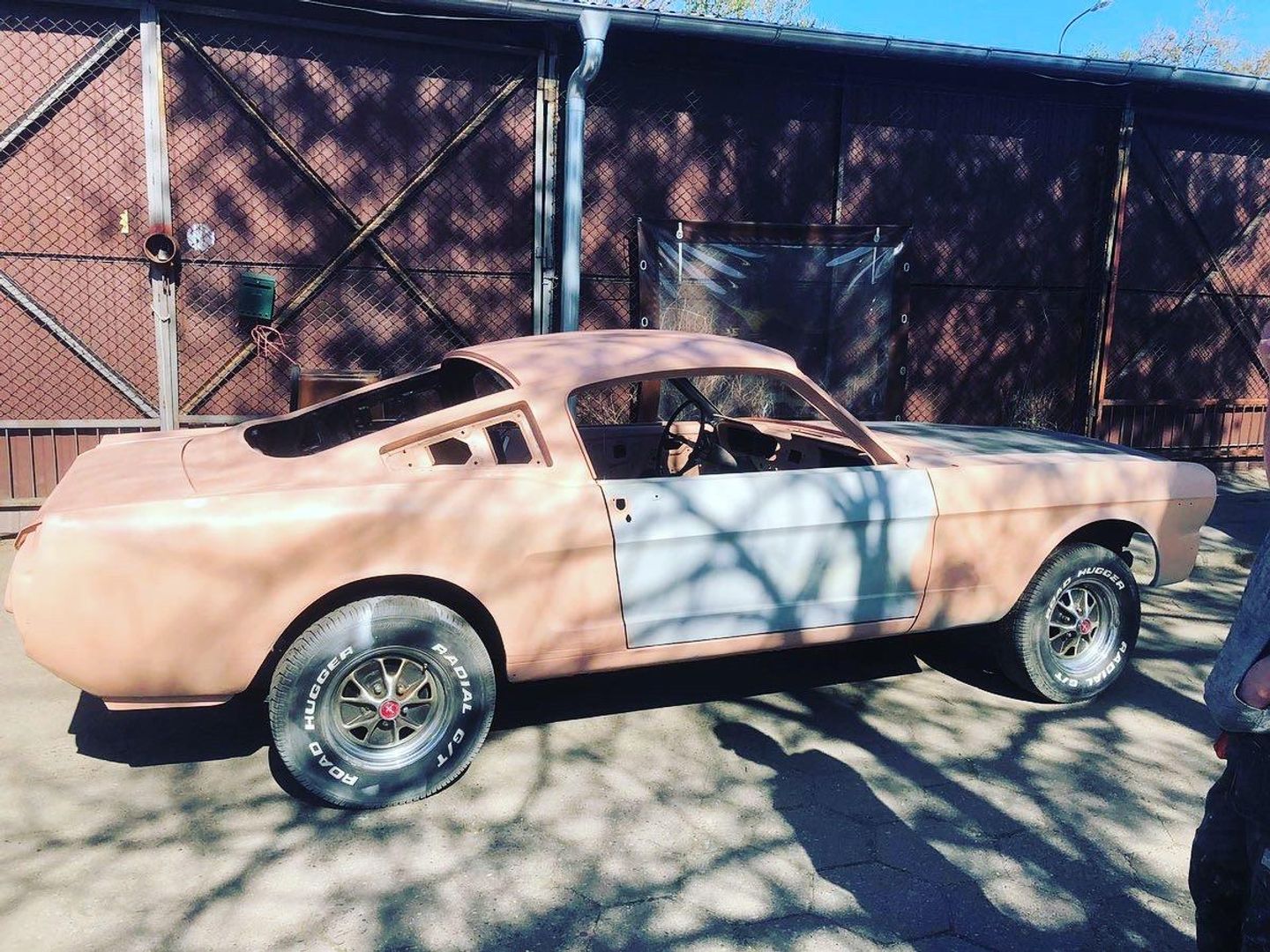

Bodywork

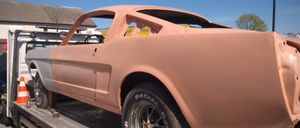

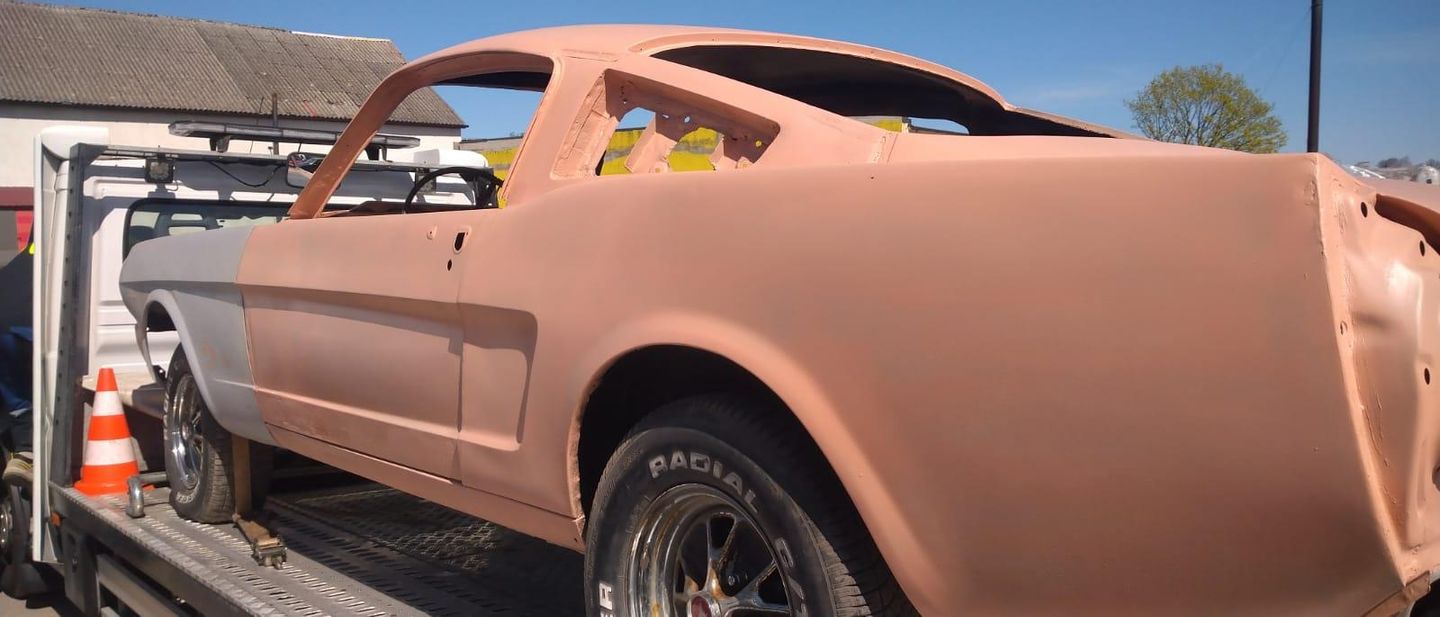

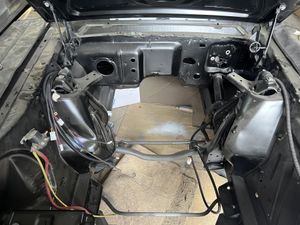

The car was fully stripped down and sandblasted.

All sheet metal components that showed any concern were replaced with new ones:

• Rear panel under the tail lights

• Lower front and rear valances

• Lower sections of rear quarter panels

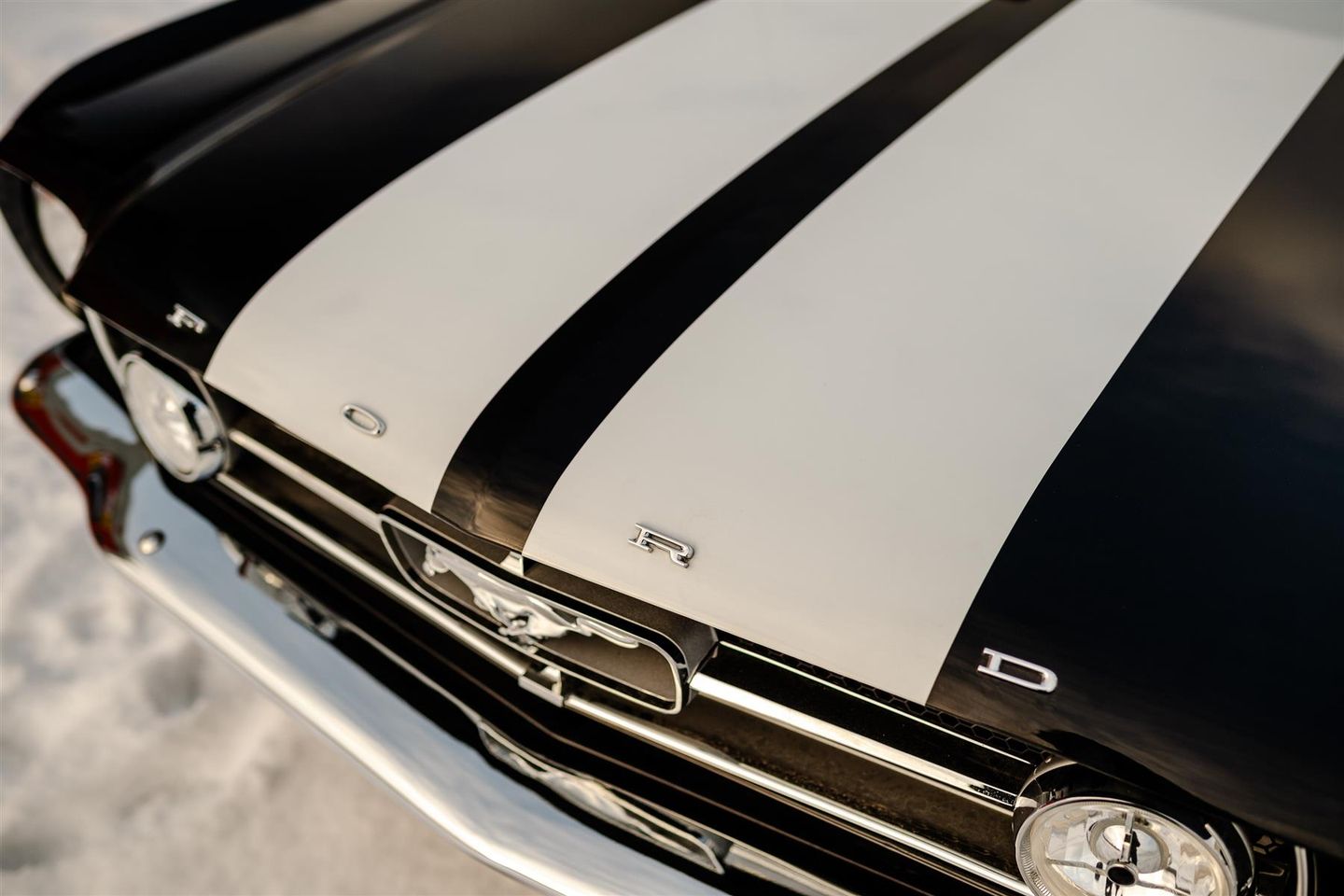

• New hood

• Hood hinges

⸻

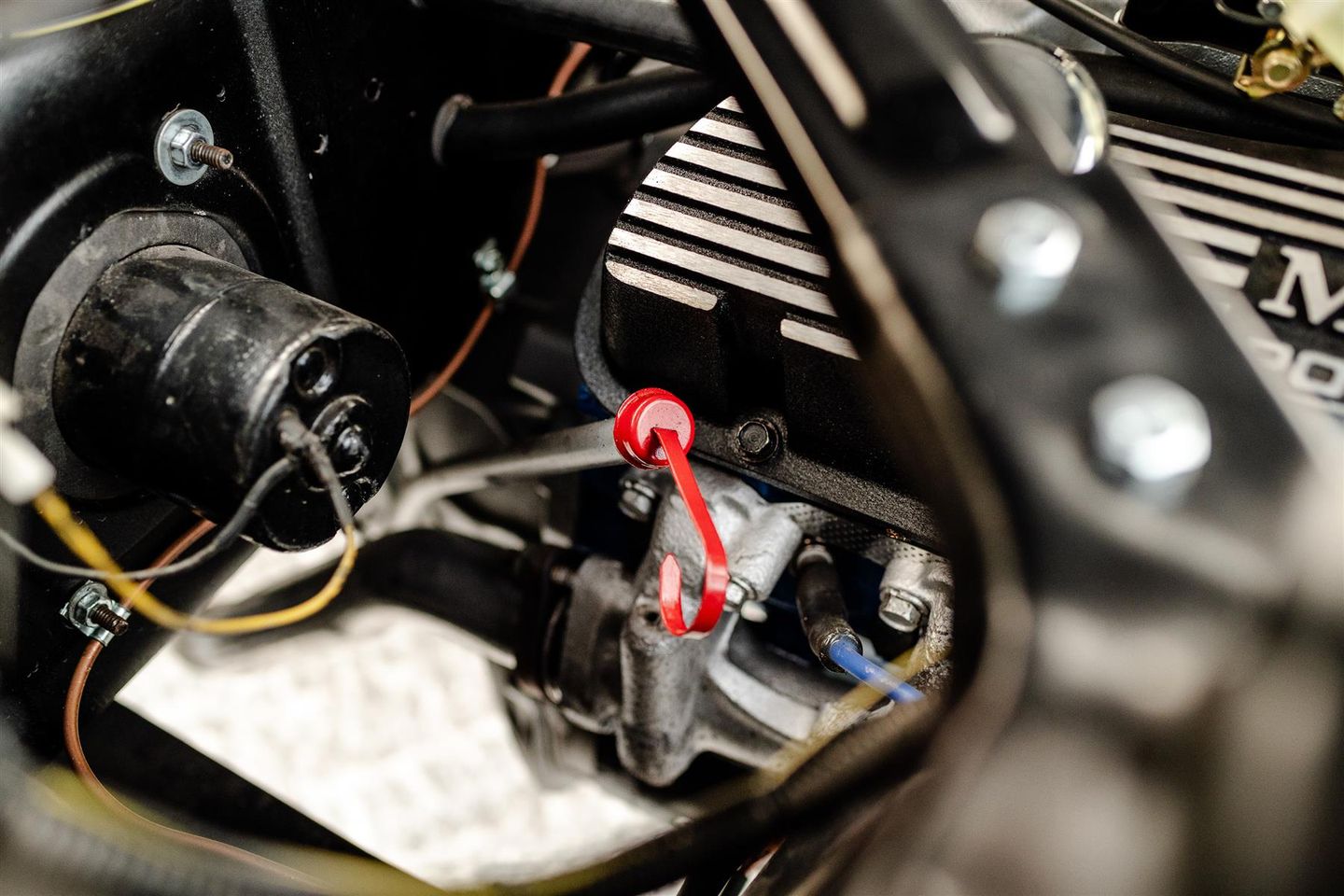

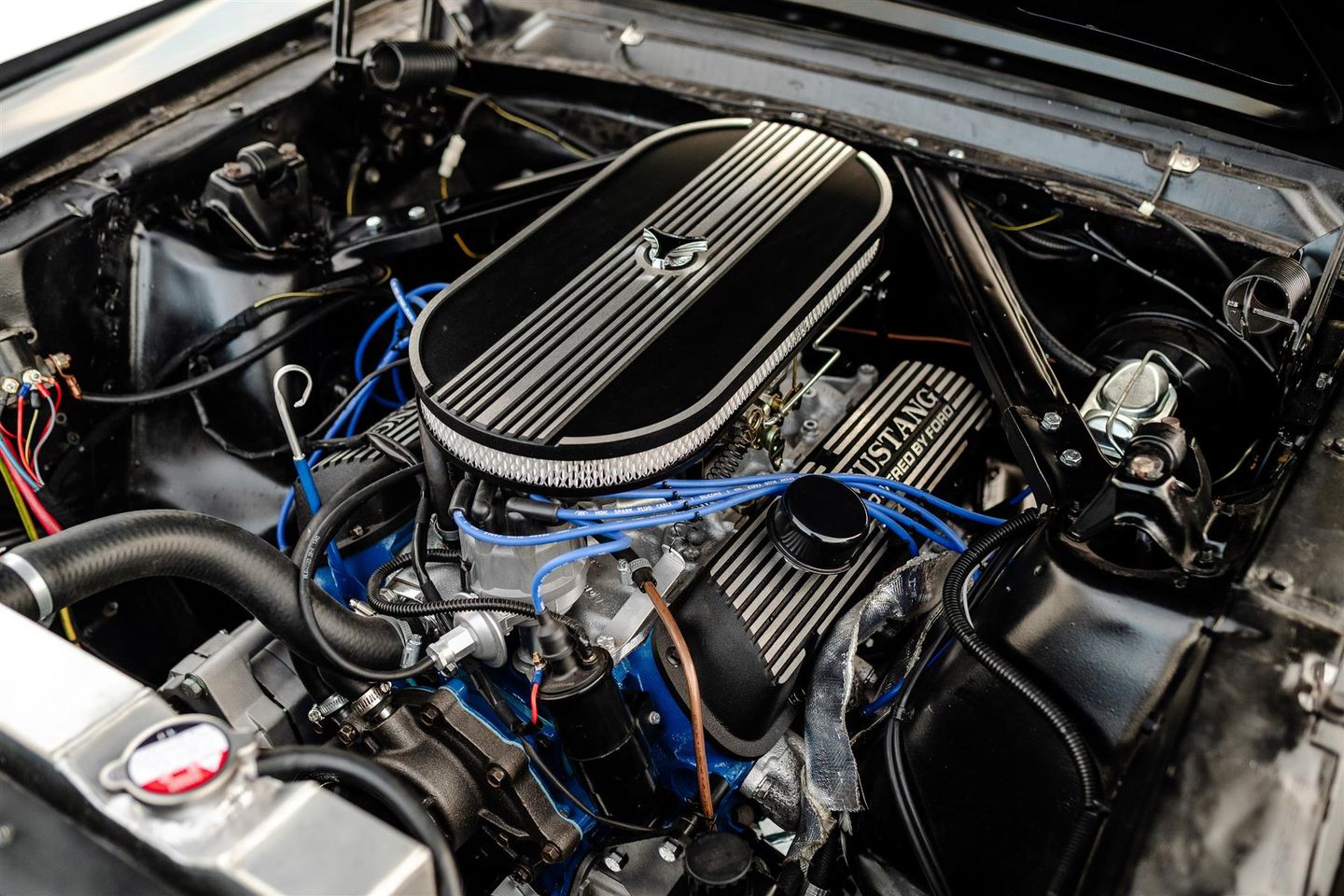

Engine & Transmission

The engine and transmission were both sent to a specialist workshop in the U.S. for a complete rebuild.

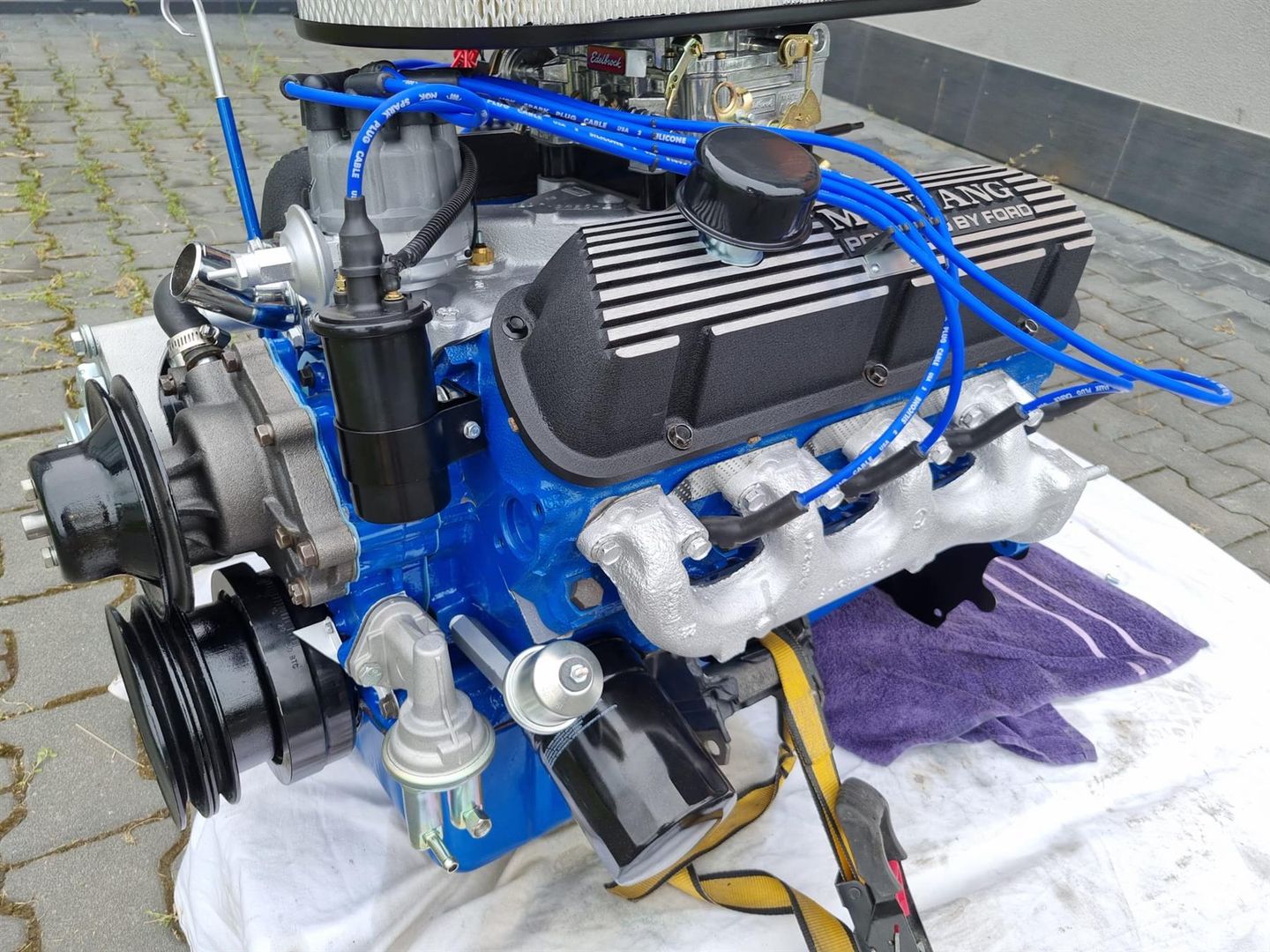

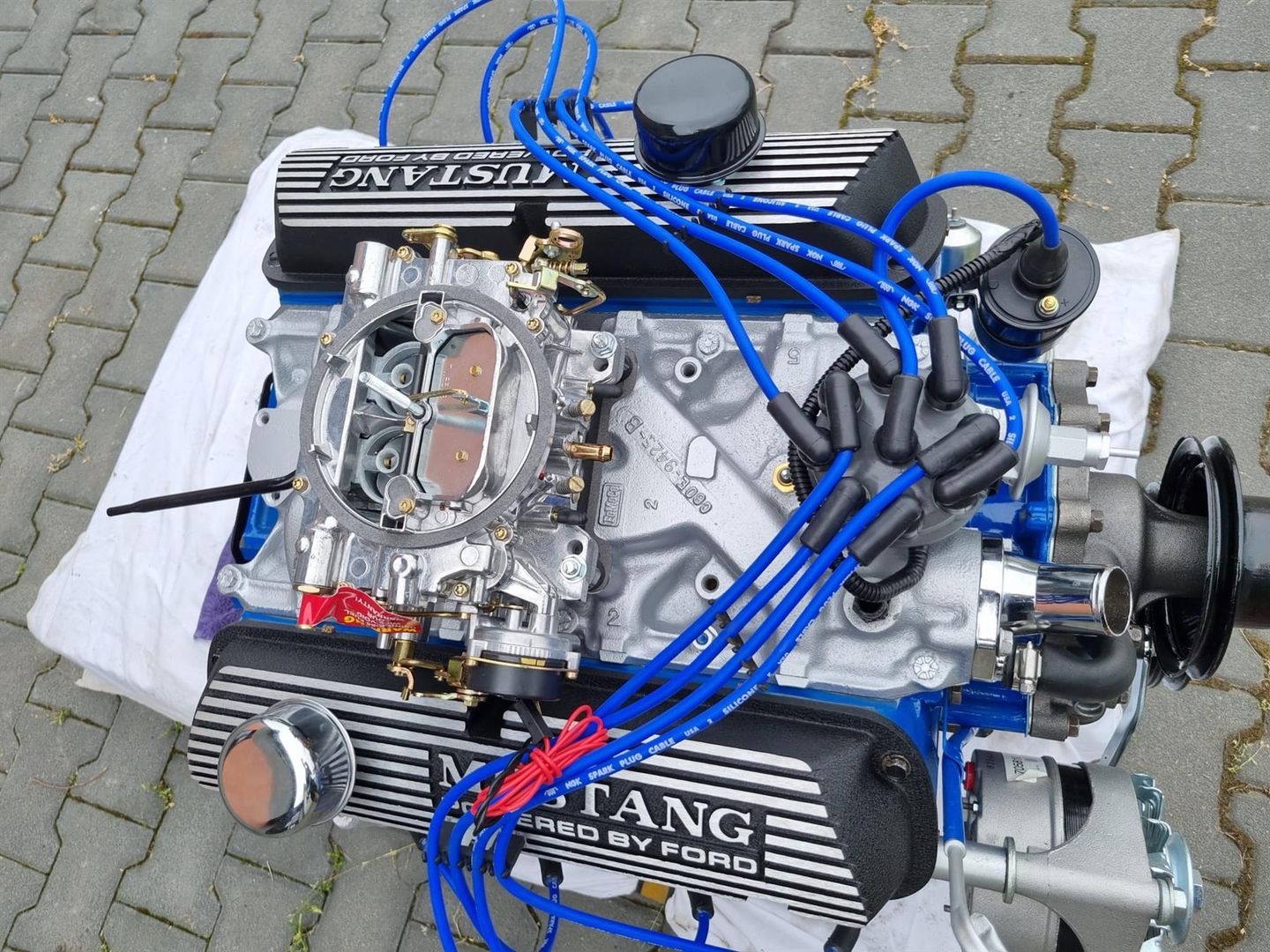

Engine rebuild included:

• Pistons with pins (8 pcs)

• Oil pump

• Complete timing set

• Full gasket set

• Main bearings

• Rod bearings

• Piston rings

• 2x cylinder head rebuilds

• Cylinder honing

• Crankshaft grinding

• Double-groove crank pulley

• 2x engine mounts

• Transmission mount

• 4-barrel intake manifold

• 2x oil filler caps

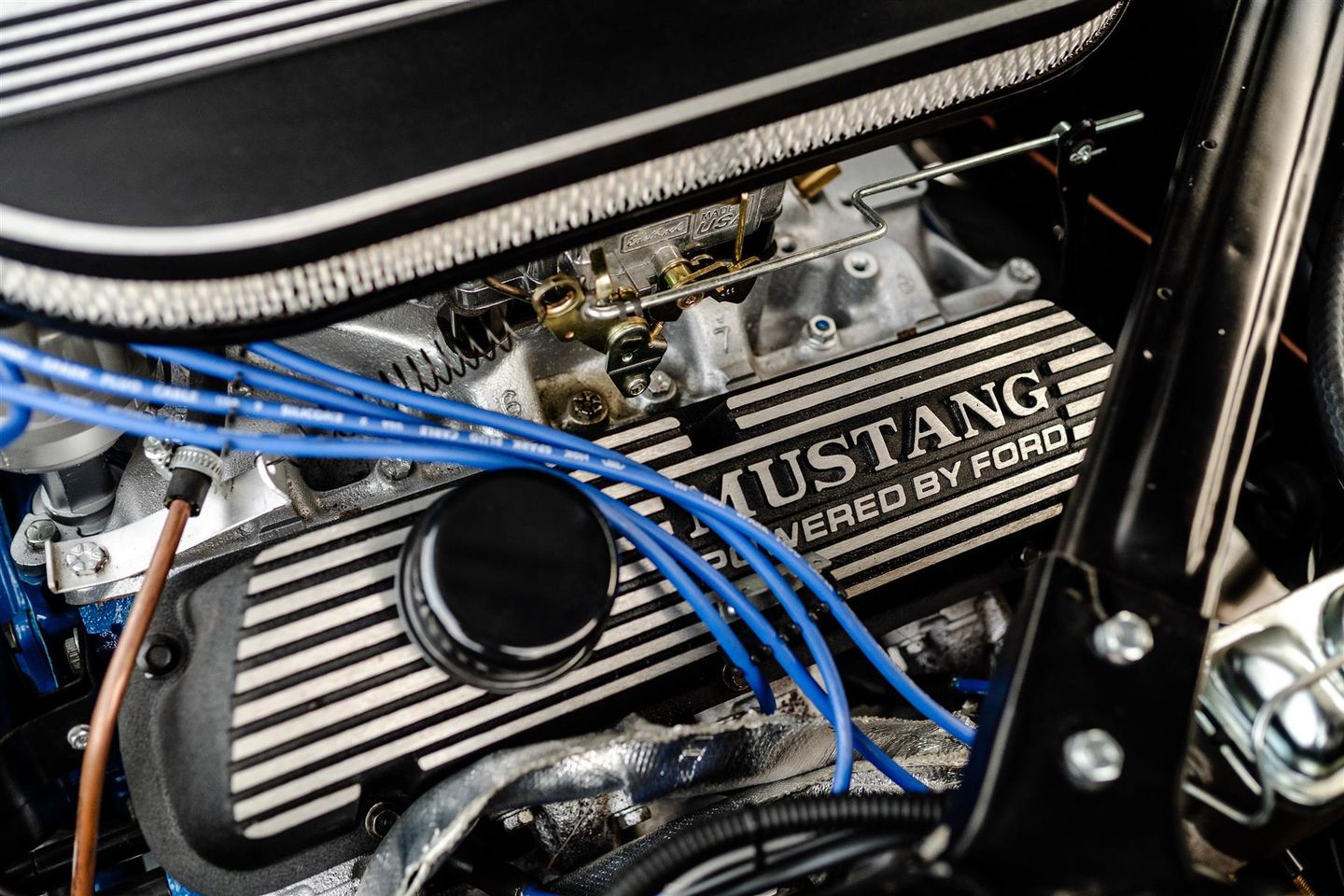

• Aluminum valve covers

• Harmonic balancer

Cost: £8,000

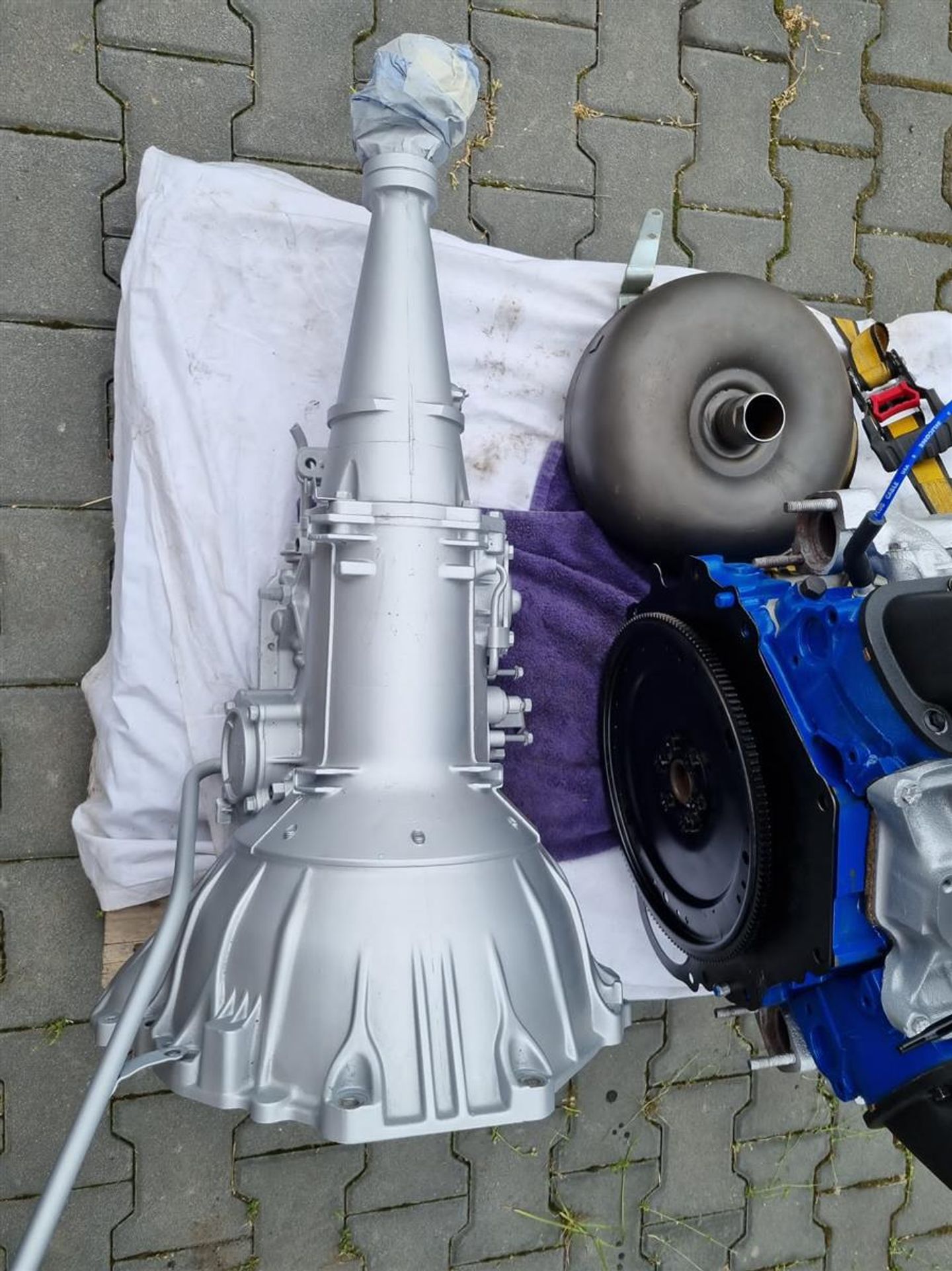

Transmission rebuild (including clutch):

• Full overhaul + new kickdown

Cost: £1,500

⸻

Cooling System (all new):

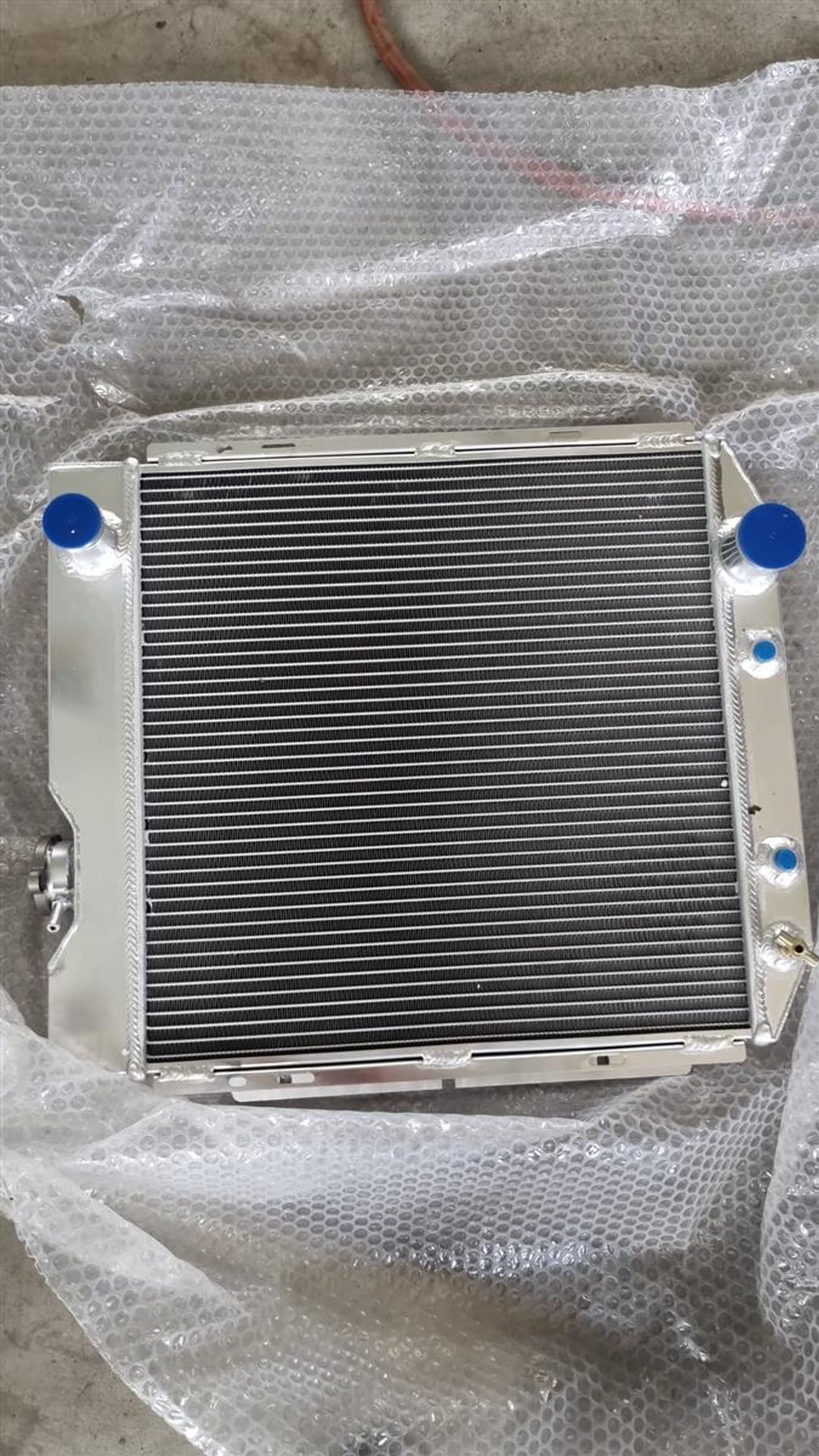

• Aluminum radiator

• Water hoses

• Thermostat

• Chrome thermostat housing

• Complete water pump

• Coolant temperature sensor

• Fan mounting

• Fan (sandblasted & painted)

• Radiator cap

⸻

Fuel System (all new):

• Edelbrock carburetor + gaskets

• Fuel pump

• Fuel lines

• Standard fuel filter + additional fuel filter

• Fuel tank

• Fuel level sender

• Fuel filler neck + rubber grommet

• Fuel hoses

• Fuel cap + filler assembly

• Air filter & housing

(Entire fuel system is brand new)

⸻

Steering (all new):

• Complete power steering system

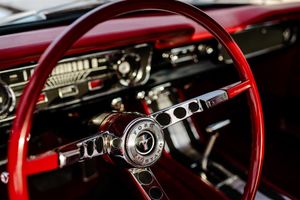

• Steering wheel

• Tie rods & ends

• Steering gear supports

⸻

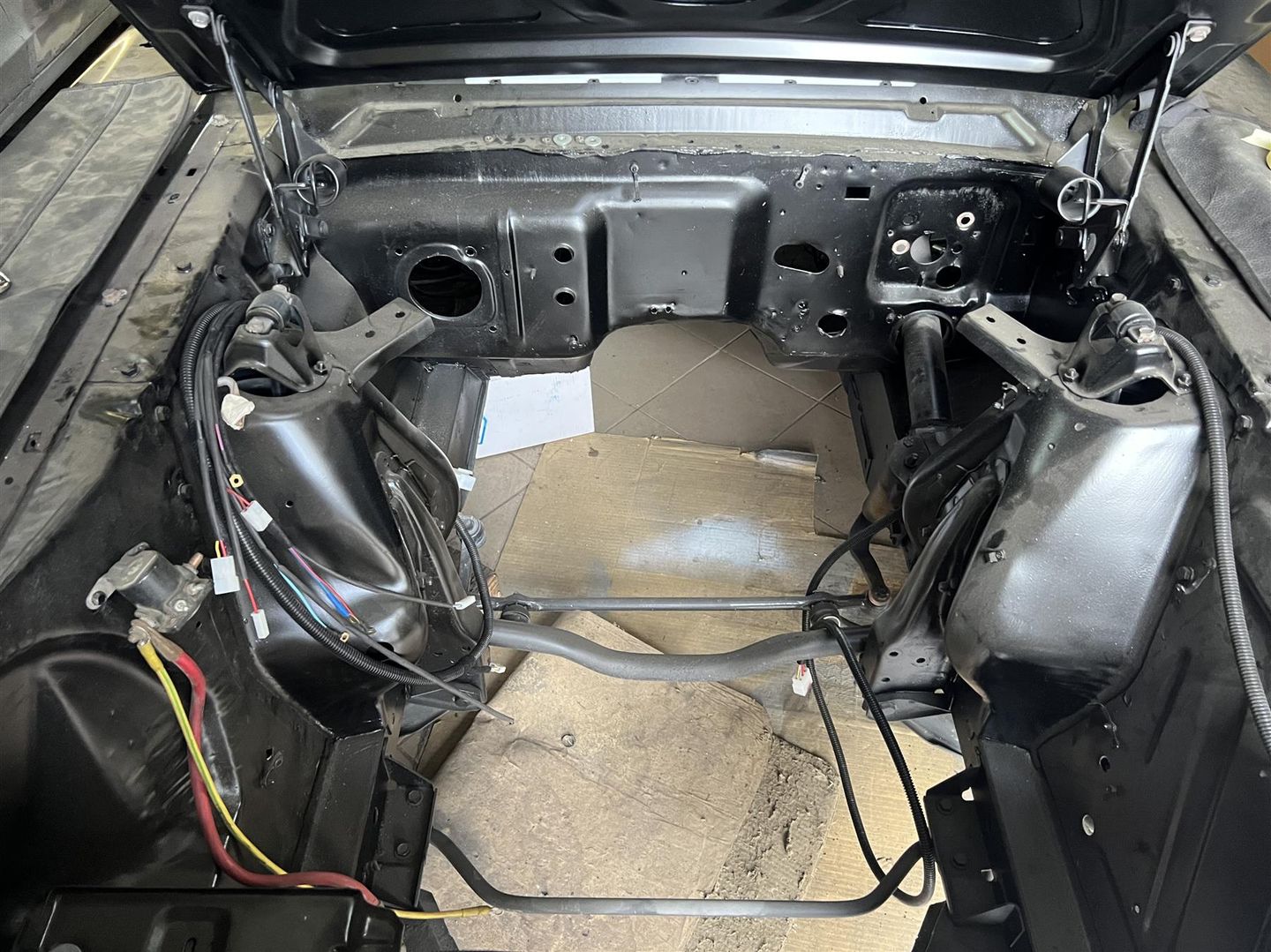

Electrical (all new):

• Complete wiring harness

• Starter motor

• Ignition coil

• Spark plug wires & plugs

• Distributor cap & rotor

• All lights (front/rear, halogen)

• Battery

• Alternator with integrated voltage regulator

• Chrome alternator bracket

• Front lamps upgraded for H4 bulbs

⸻

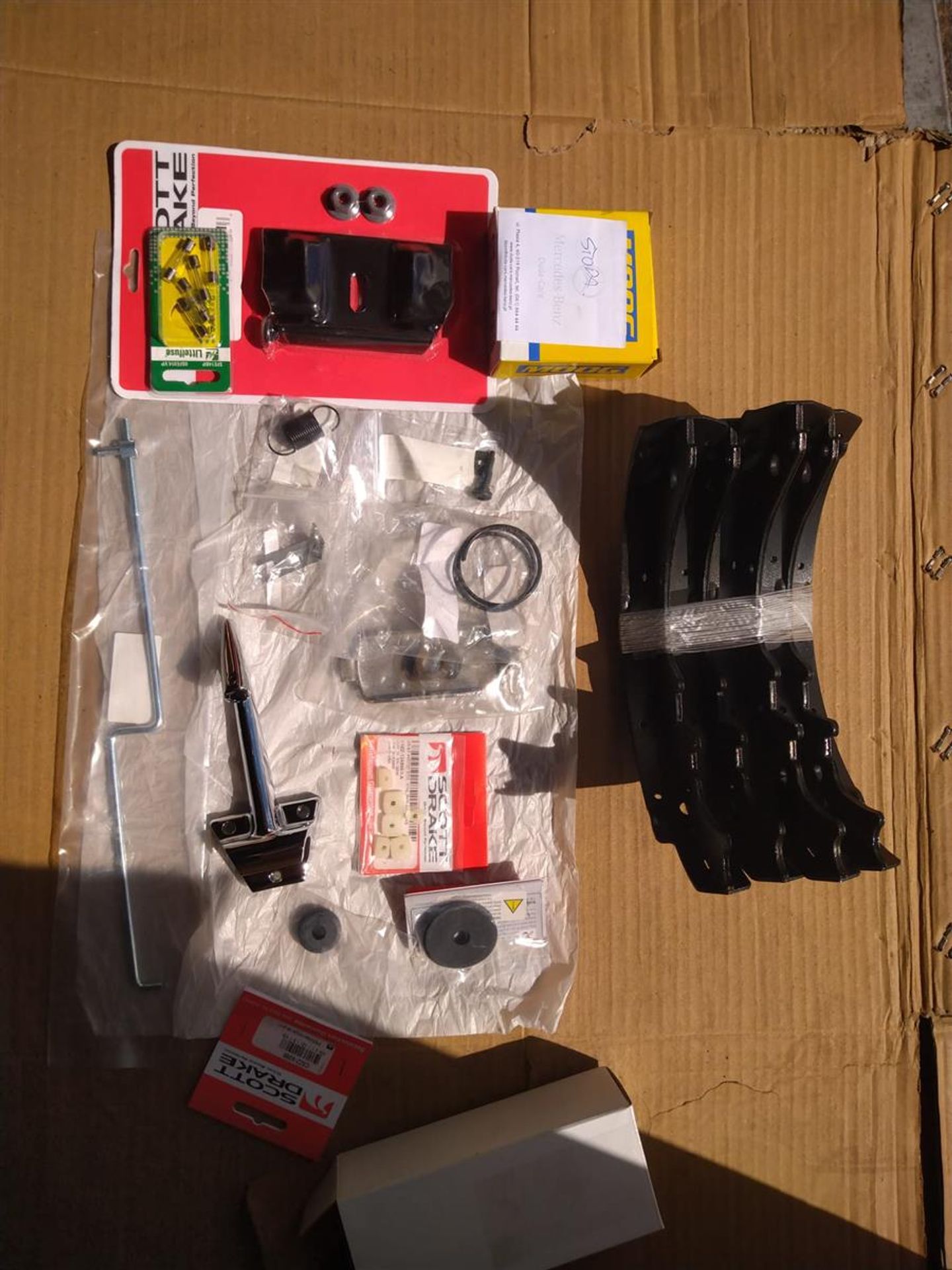

Brakes (all new):

• Brake master cylinder

• Brake booster

• Brake pedal cover

• Front disc brake kit

• Rear drum brake kit (linings, cylinders, springs, etc.)

• Copper and rubber brake lines

• Rear drum bearings

• Complete handbrake assembly (cables, lever, etc.)

⸻

Suspension (all new or restored):

• Front & rear shocks

• Front springs

• Front bushings, joints, bump stops, rubbers

• Rebuilt control arms with new bushings

• Rear leaf spring rubbers

• Sandblasted & painted leaf springs

• Sway bar rubbers & end links

• Lower control arm ball joints

• Reaction rod bushings

⸻

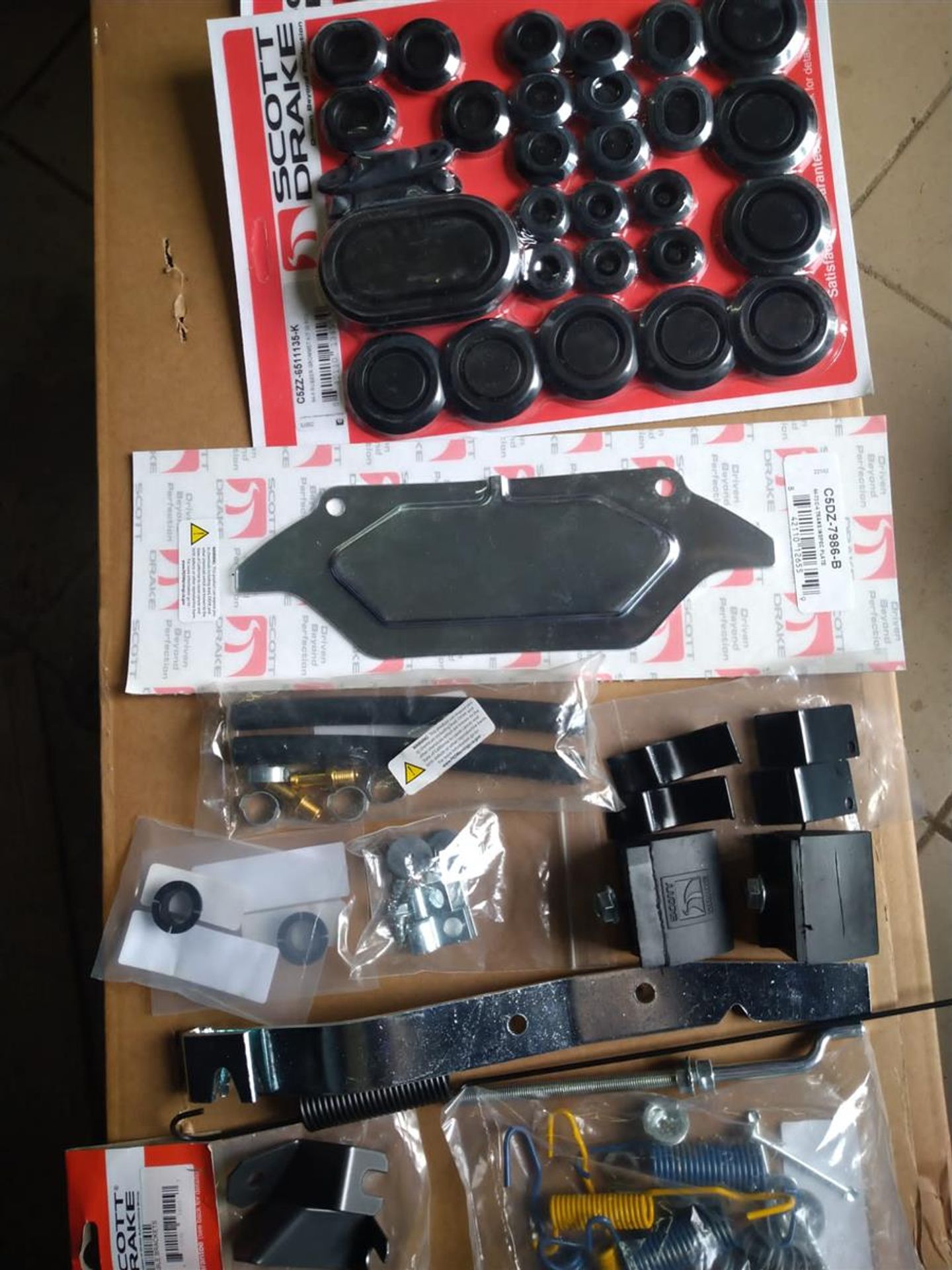

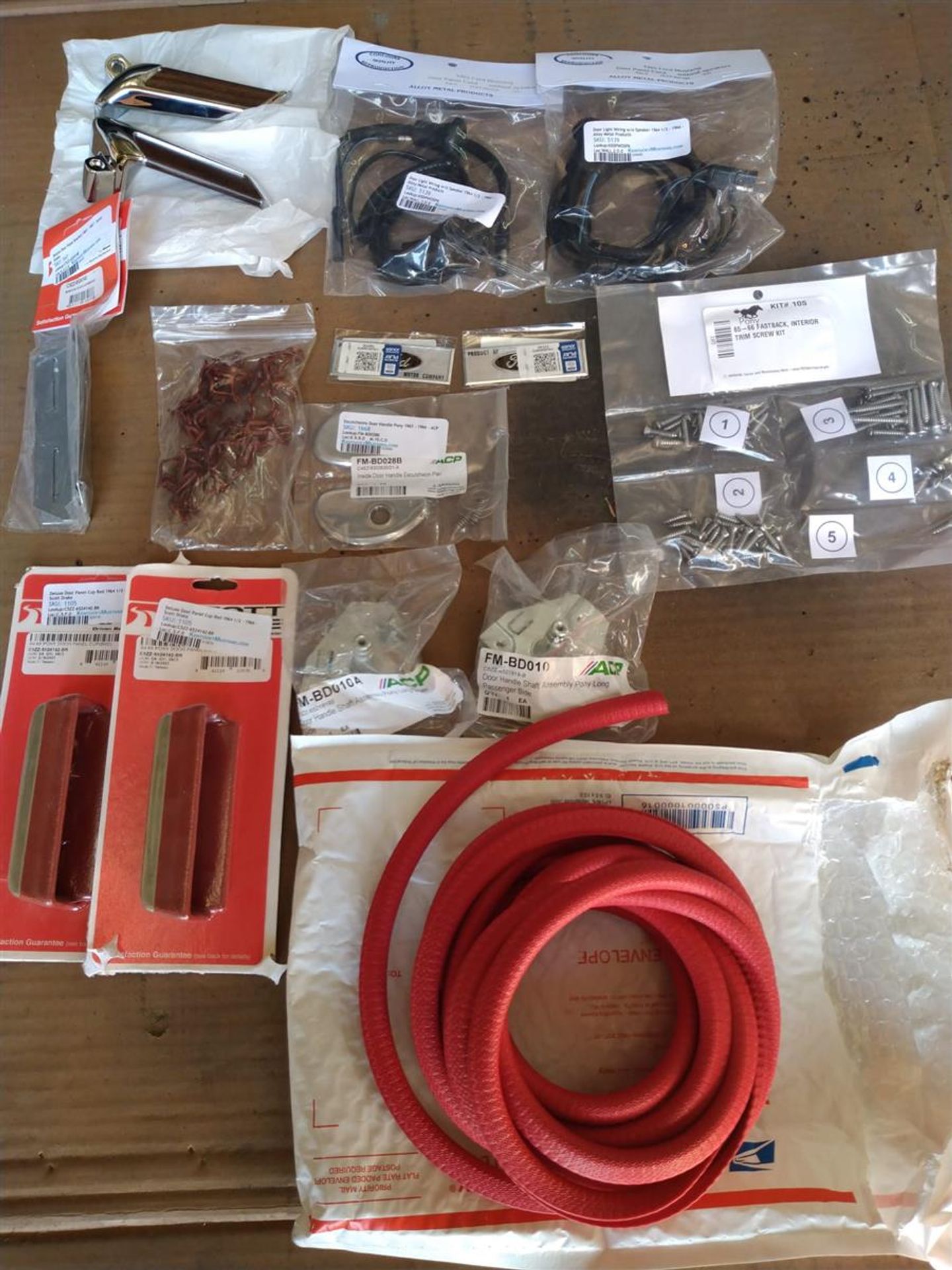

Seals & Rubber (all new):

Complete set of seals and gaskets throughout the car, including:

engine bay, hood, windows, doors, cowl, trunk, trunk well, quarter windows, tail light surrounds, fender ends, hood stops, grommets, plugs, and water drains.

⸻

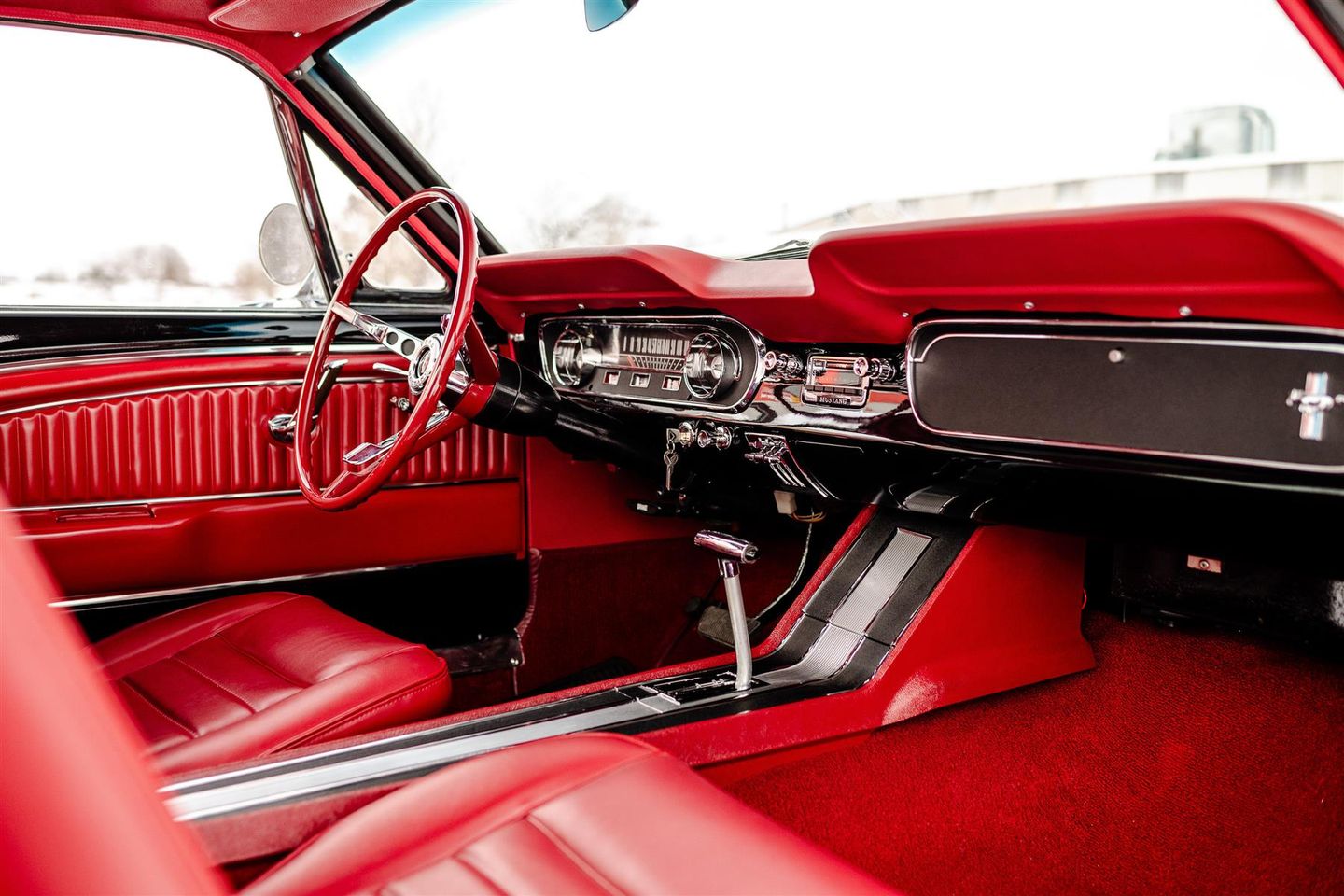

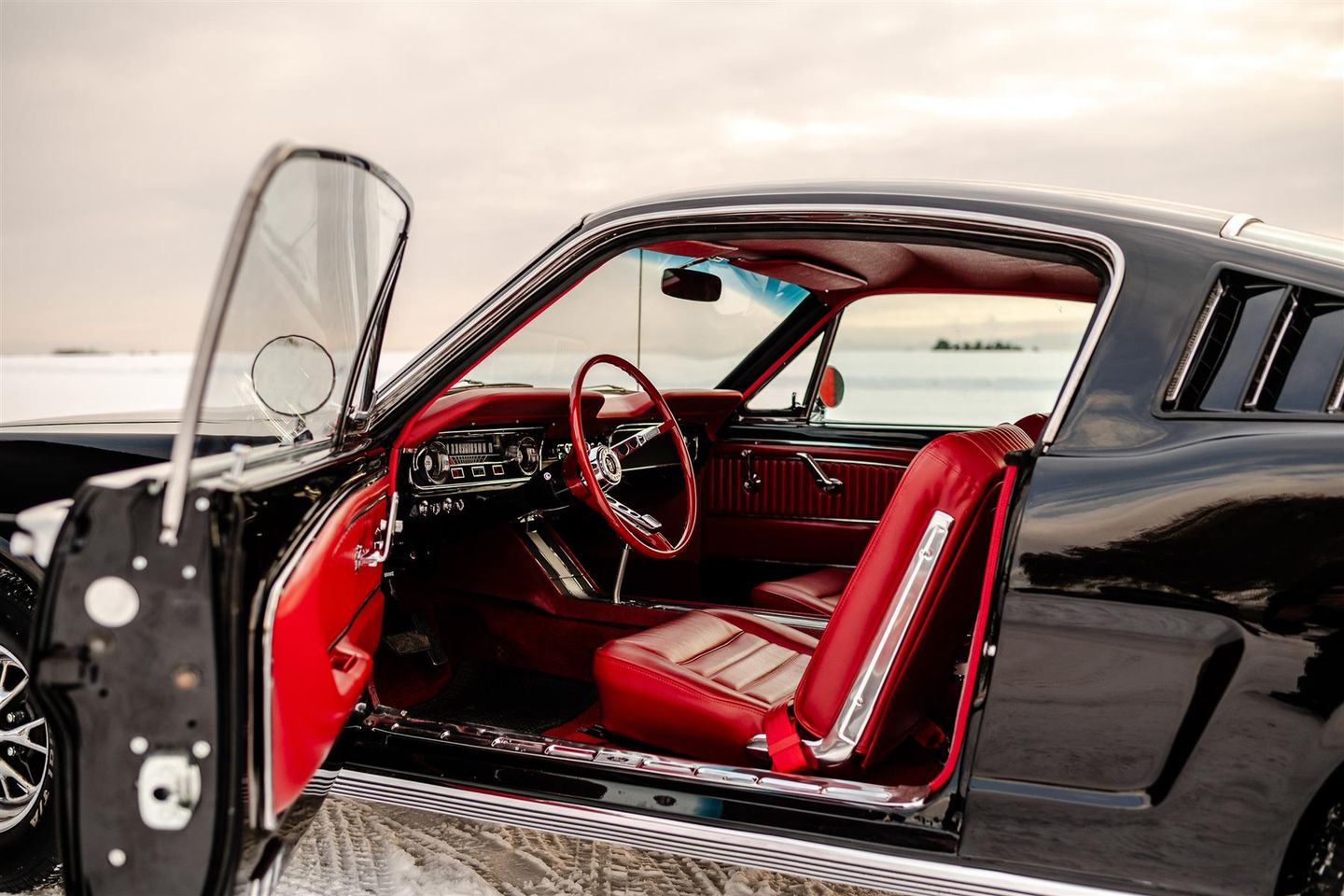

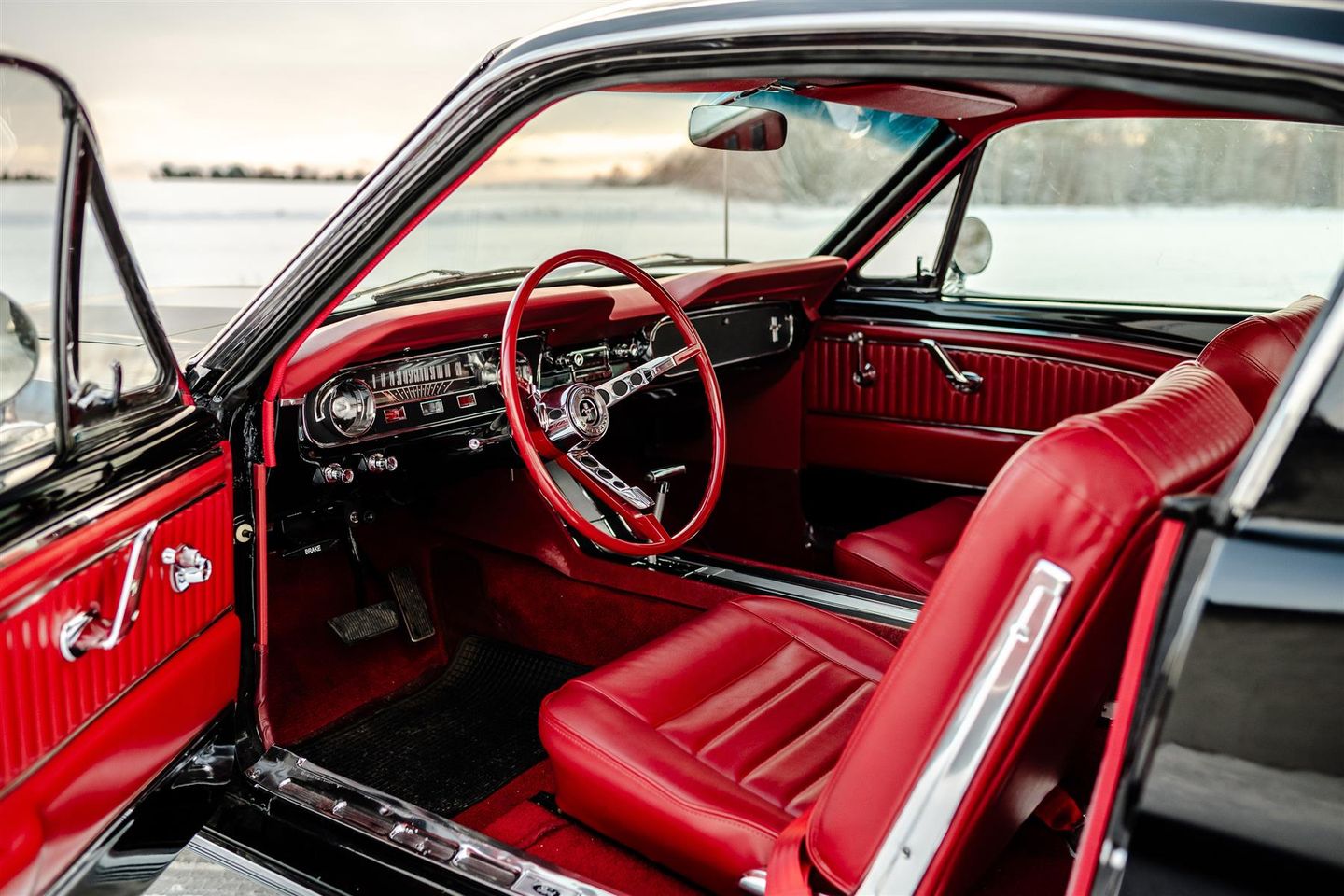

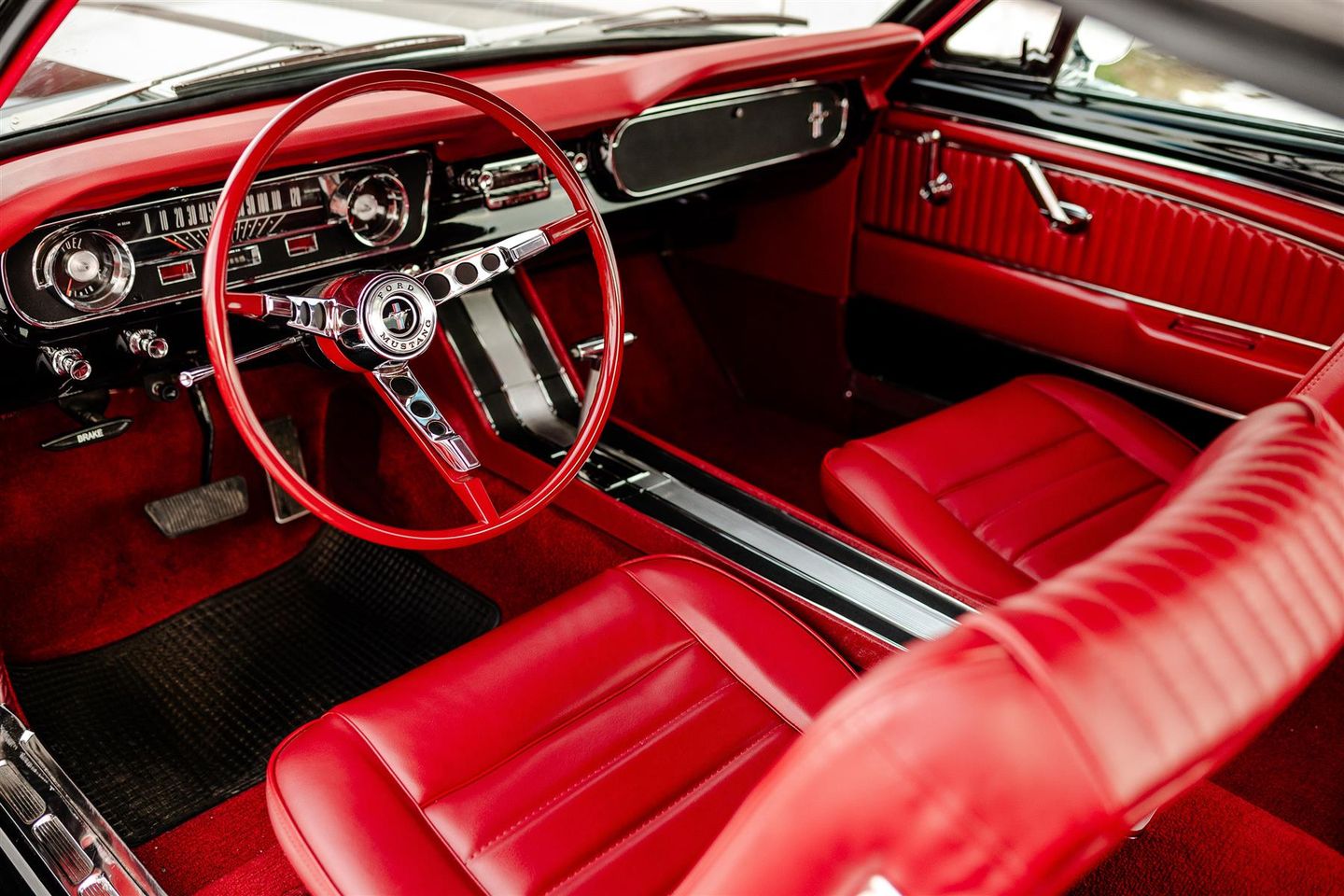

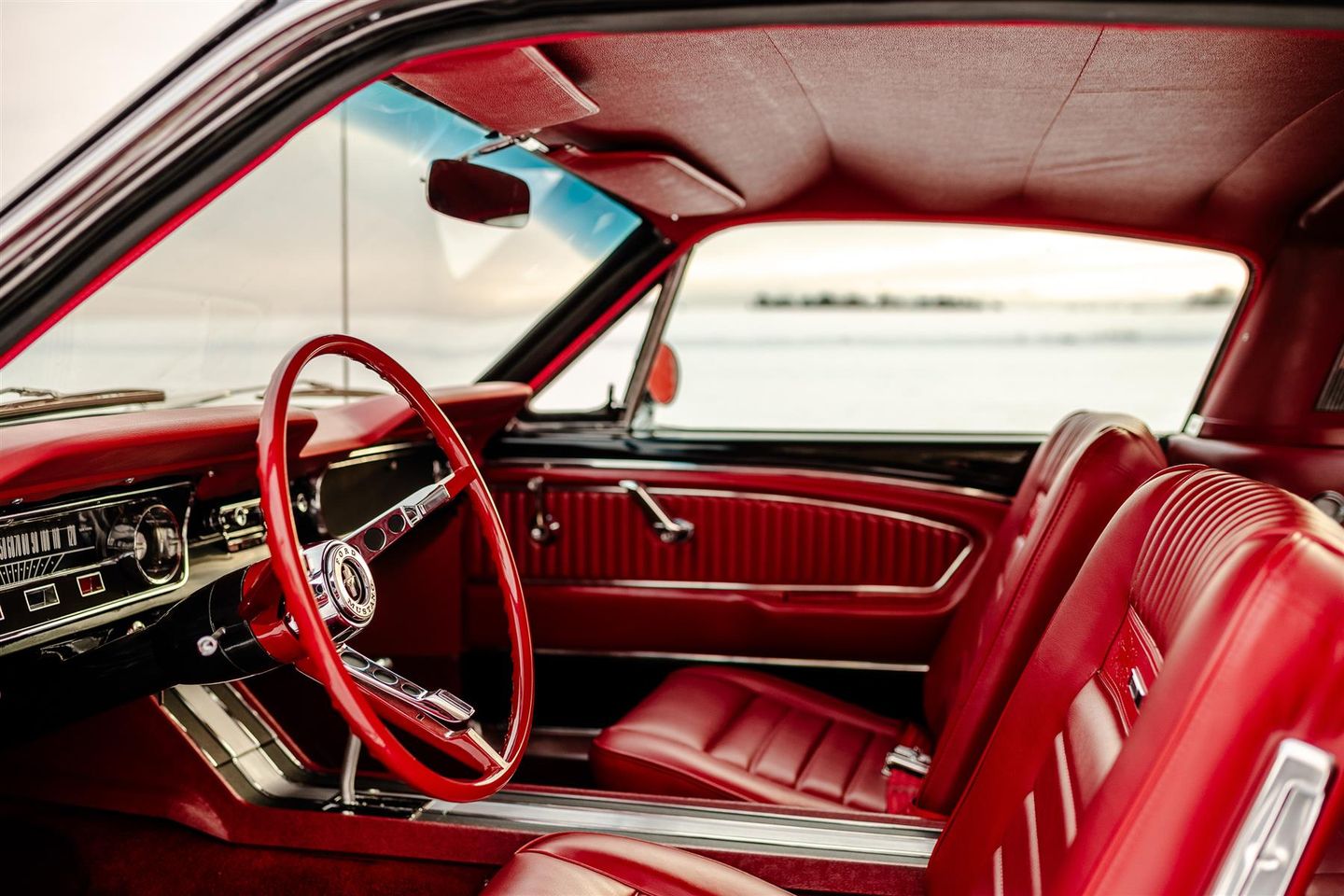

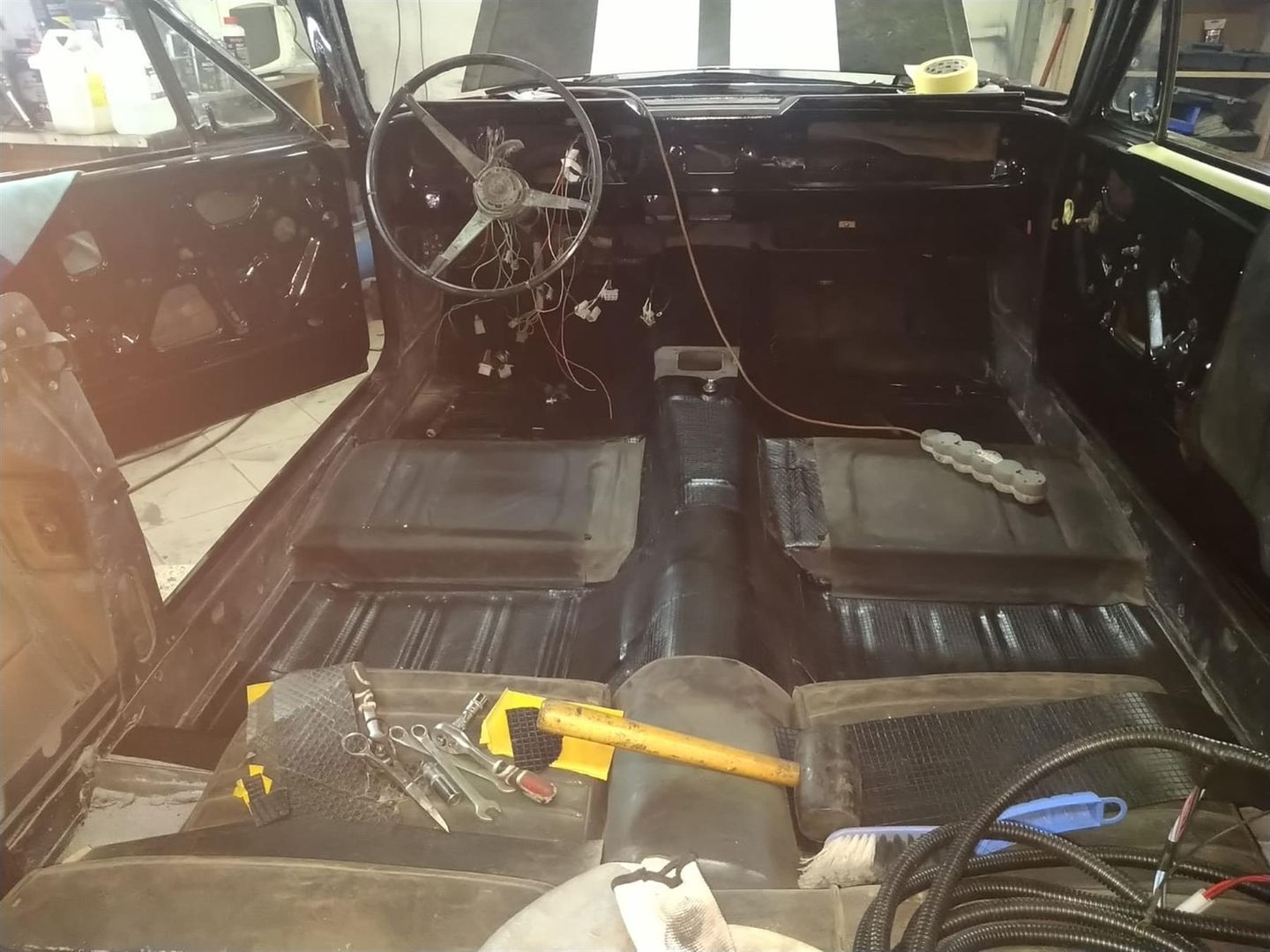

Interior (all new):

• Headliner

• Dash pad

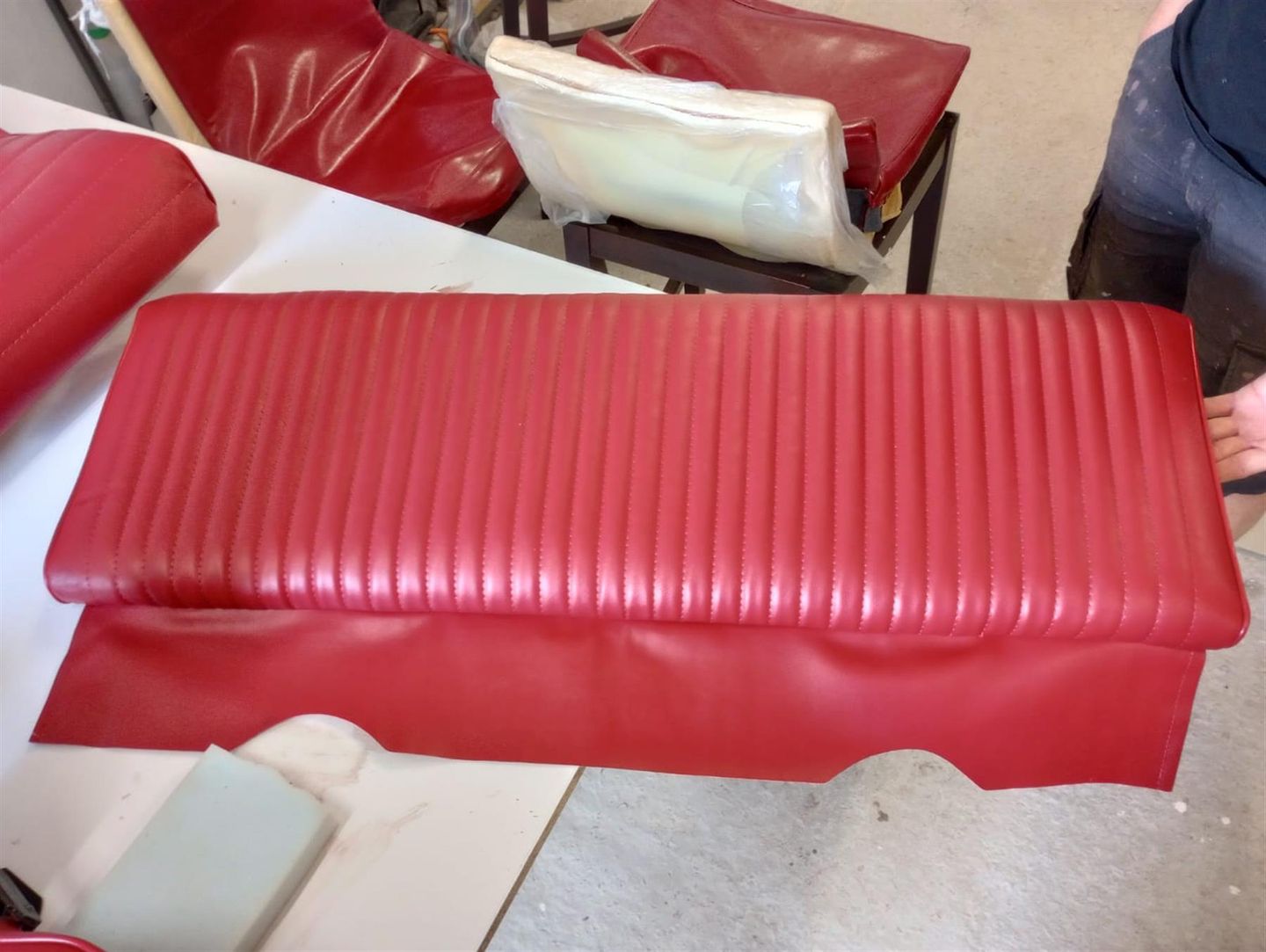

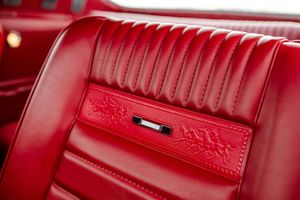

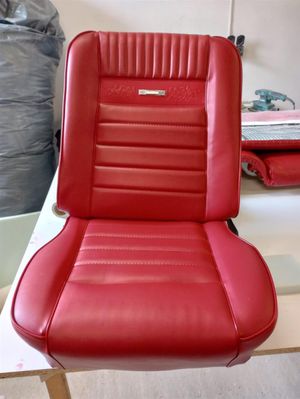

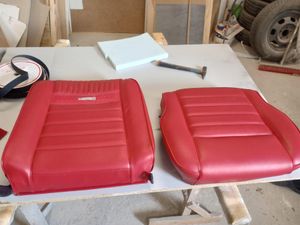

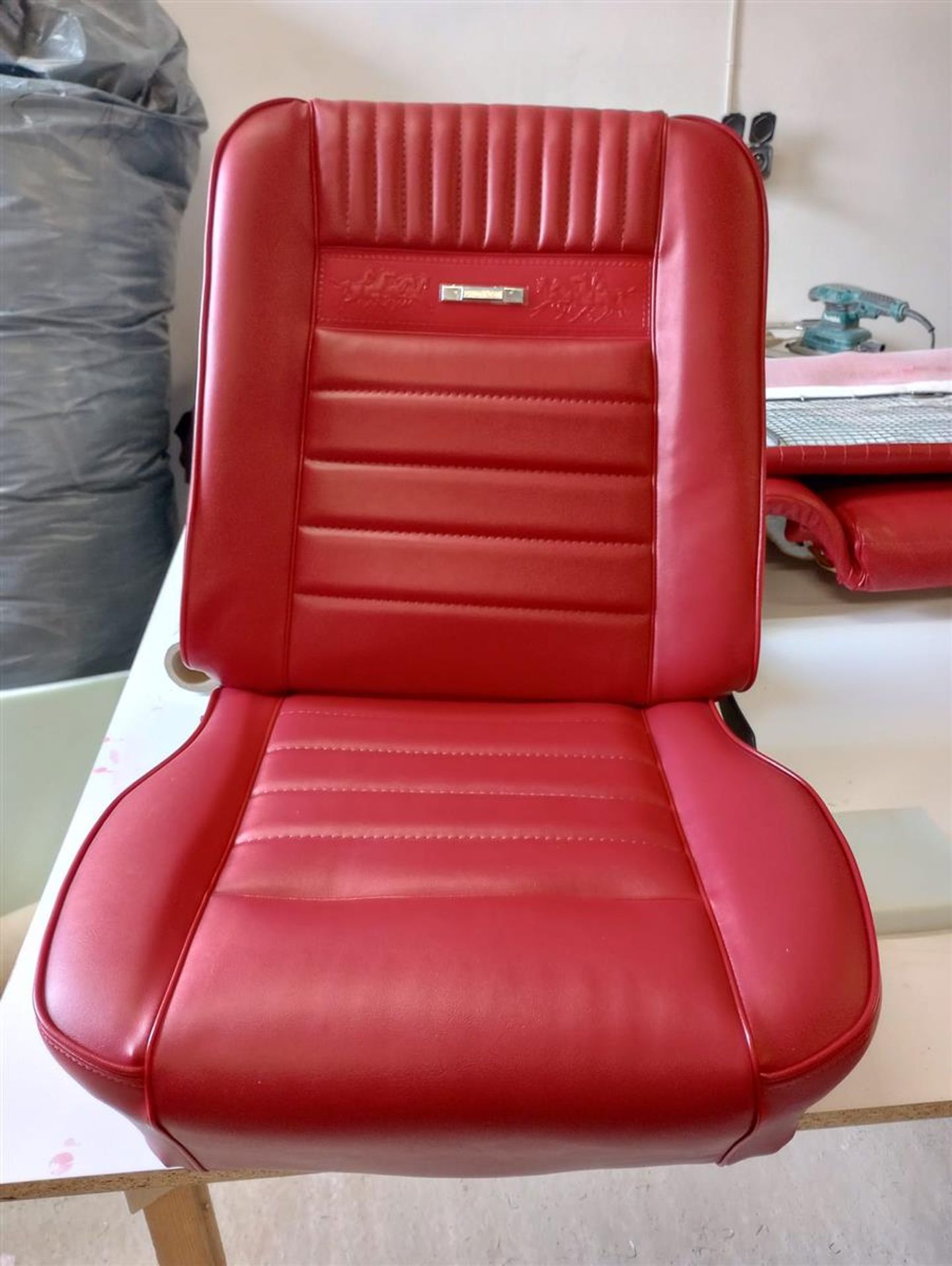

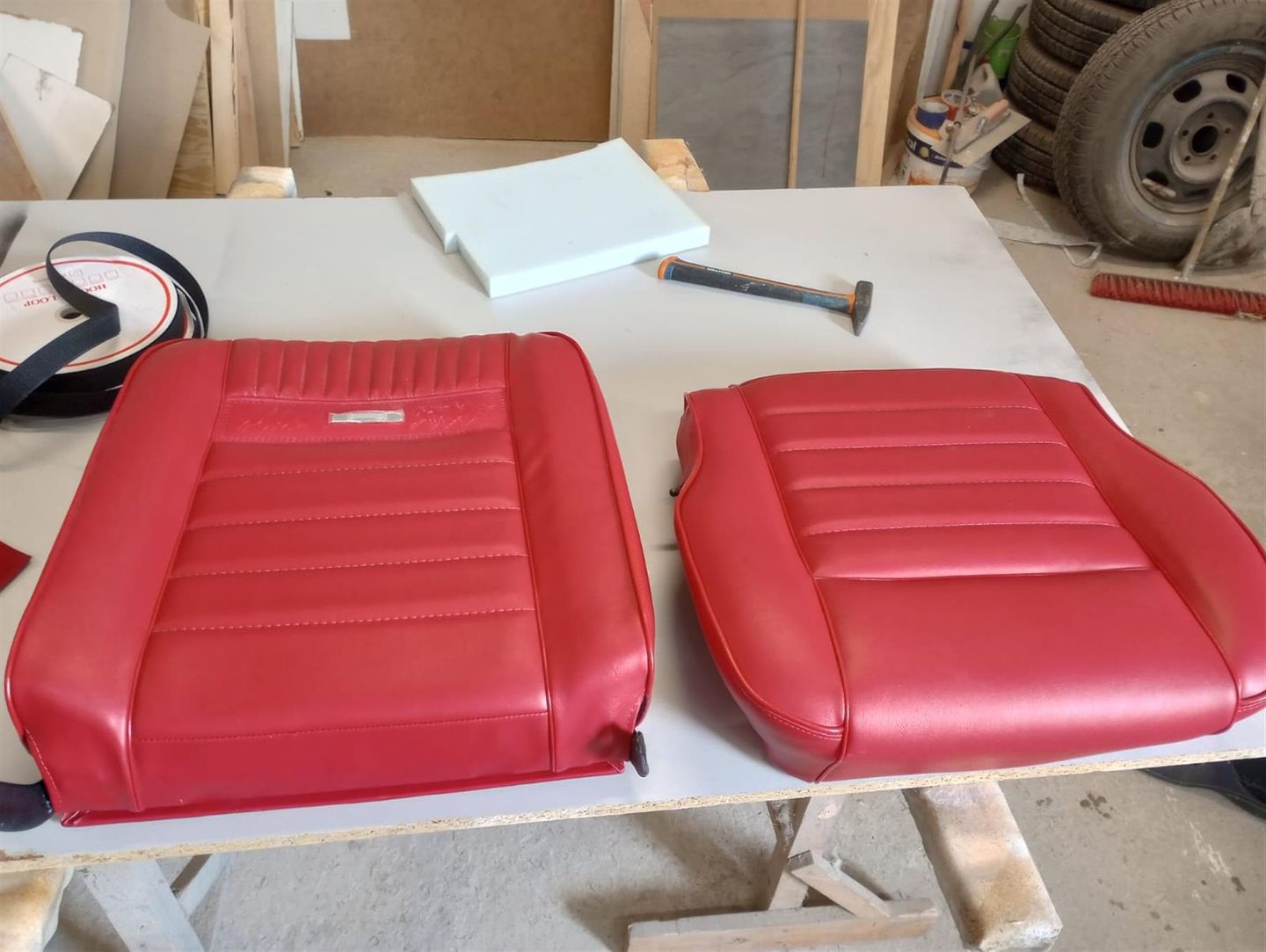

• Seat foams & upholstery (front & rear)

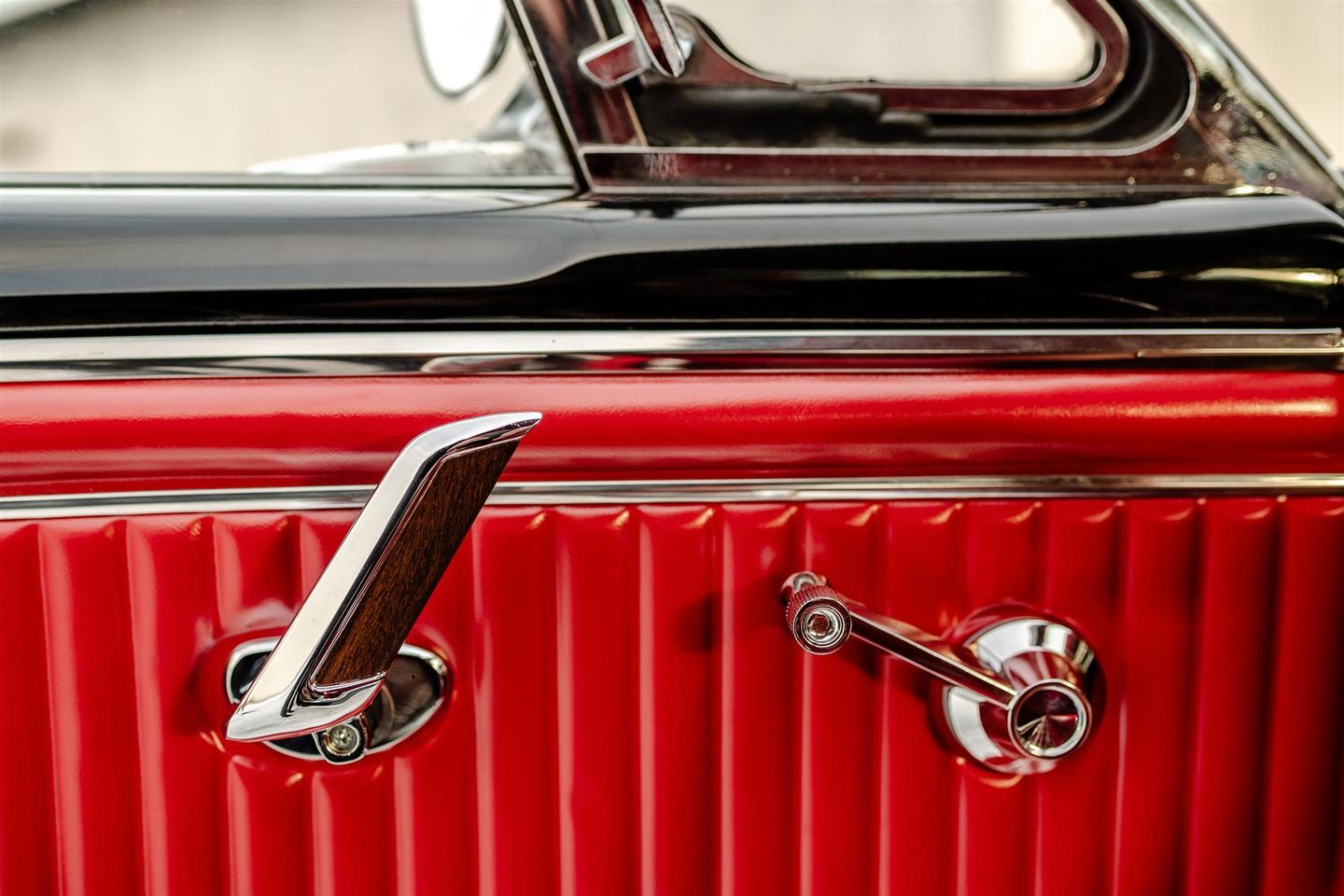

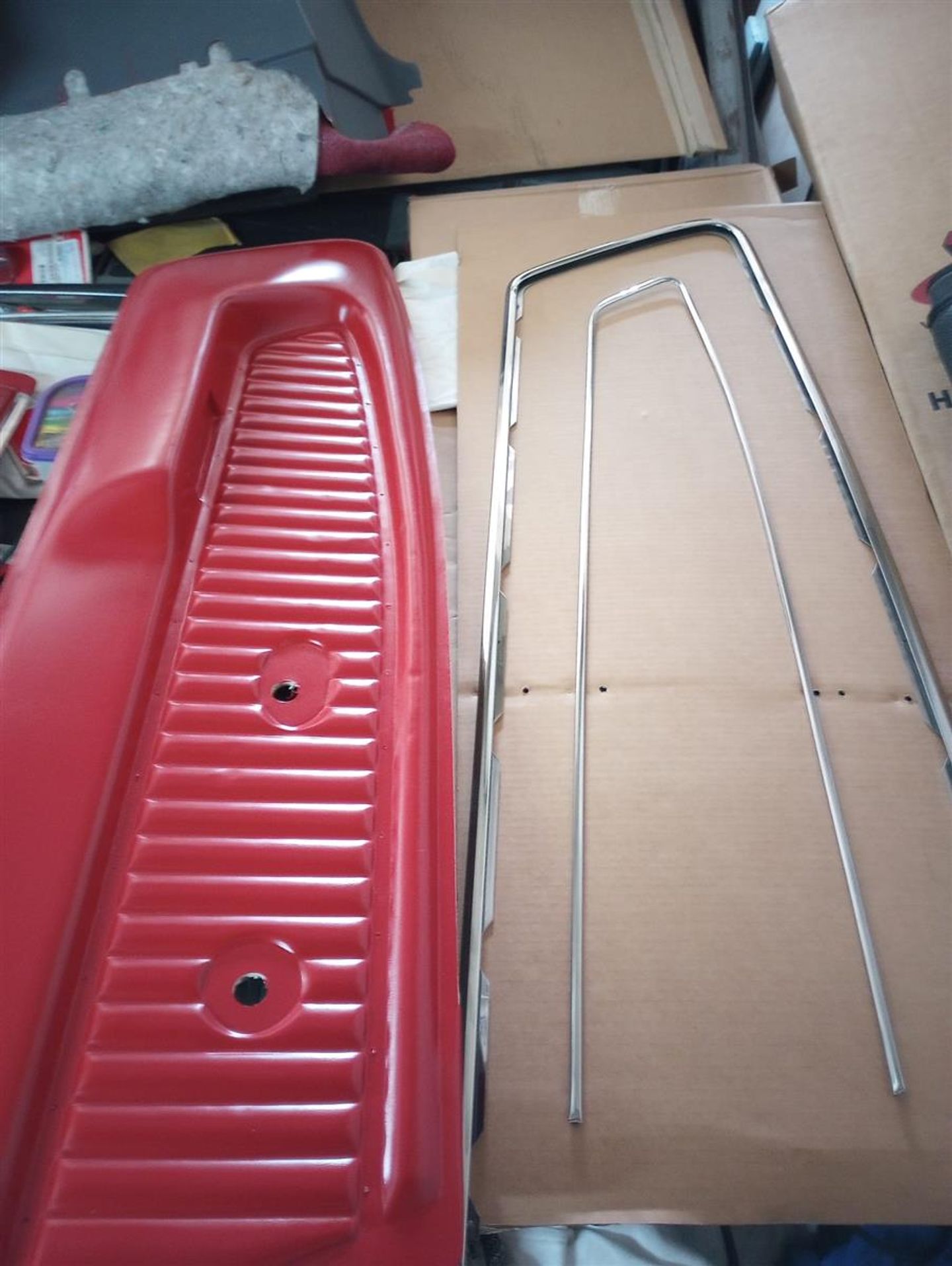

• Deluxe door panels + chrome trim, handles, locks

• Sandblasted & painted seat rails

• Front seat chrome trims

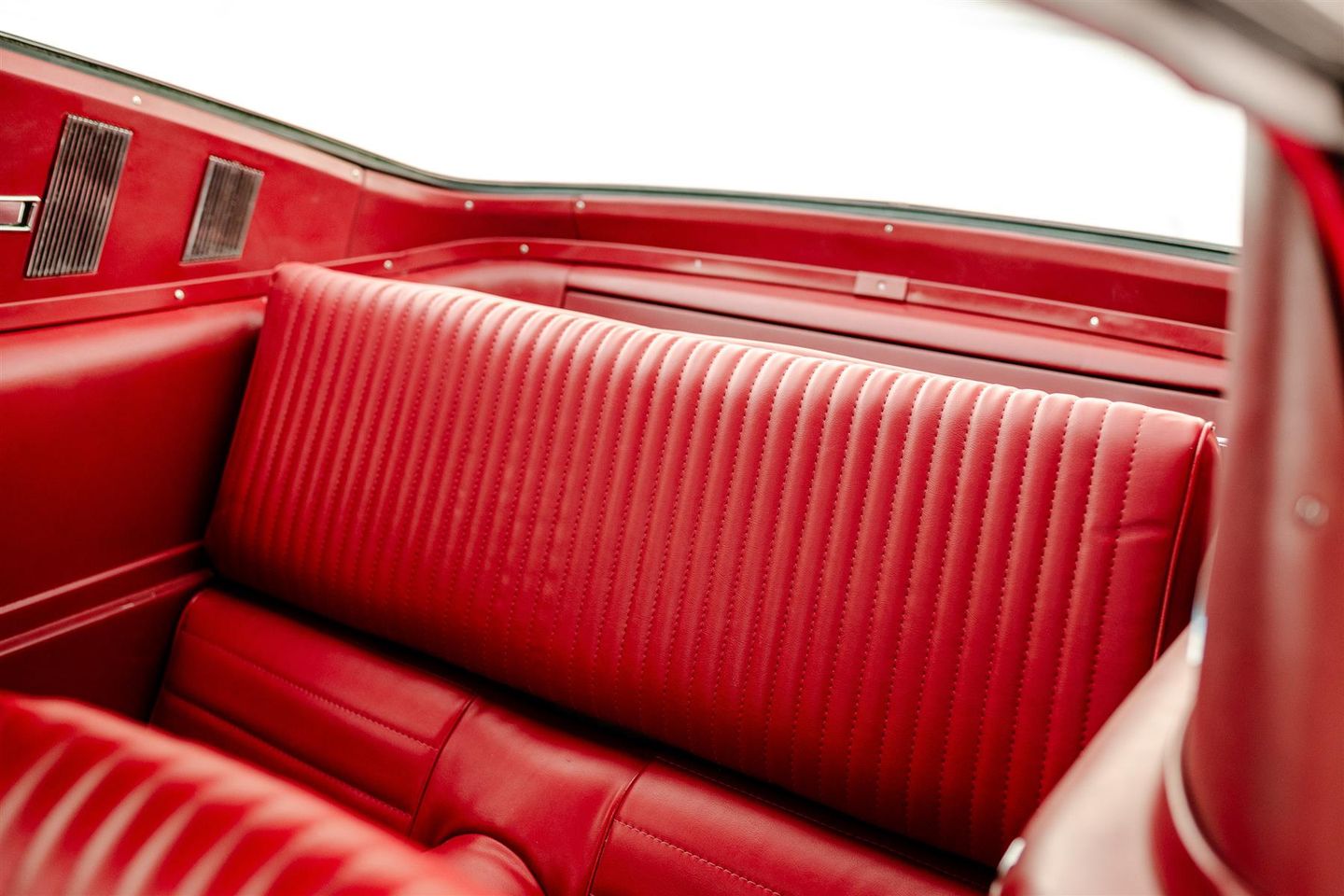

• Rear fold-down seat assembly + new aluminum trims

• Front kick panels (new), rear panels restored

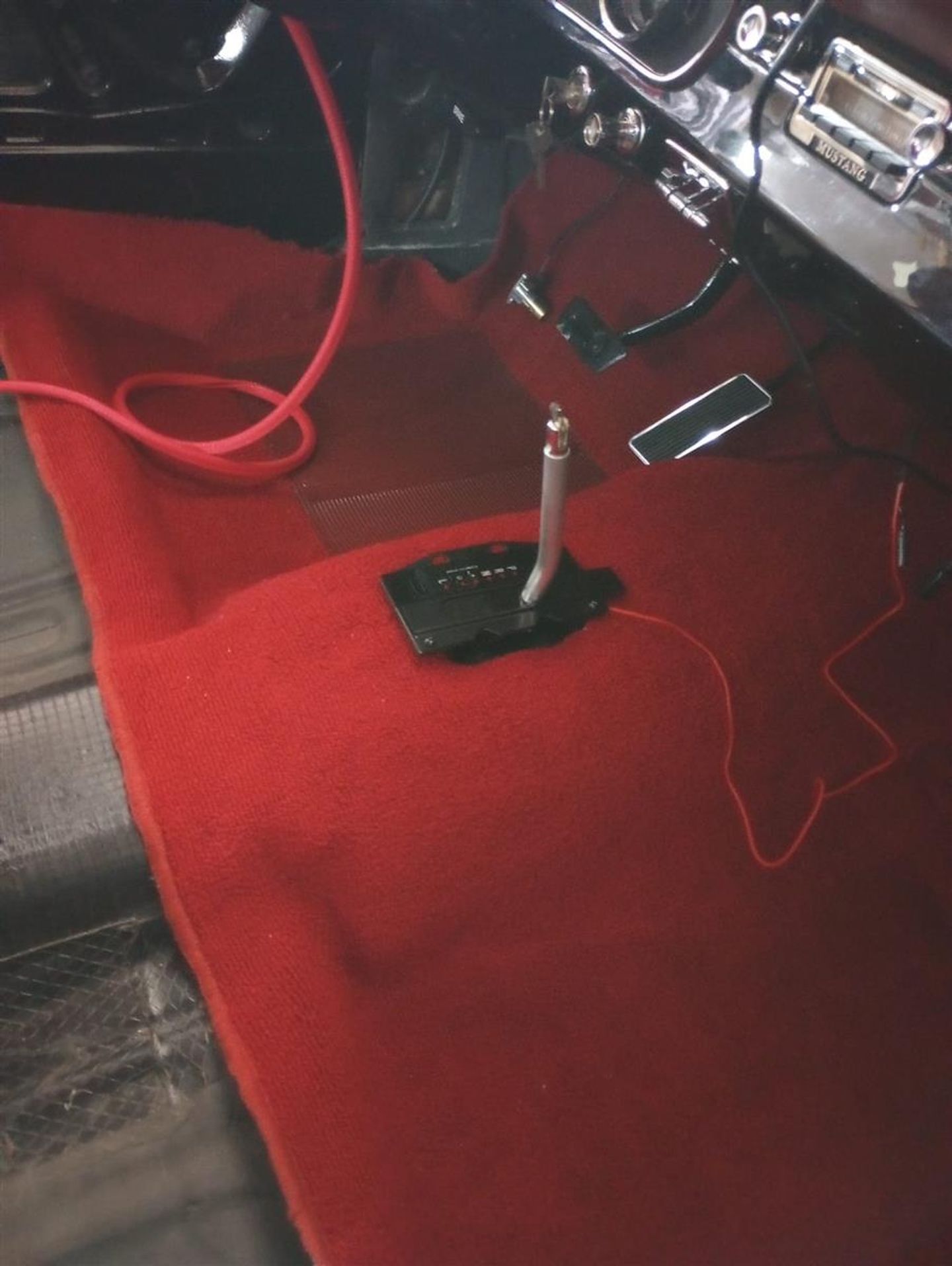

• Full carpet set (front, rear, under rear seat)

• Trunk mat (new)

• All chrome trims replaced

• New trunk spring

• New locks

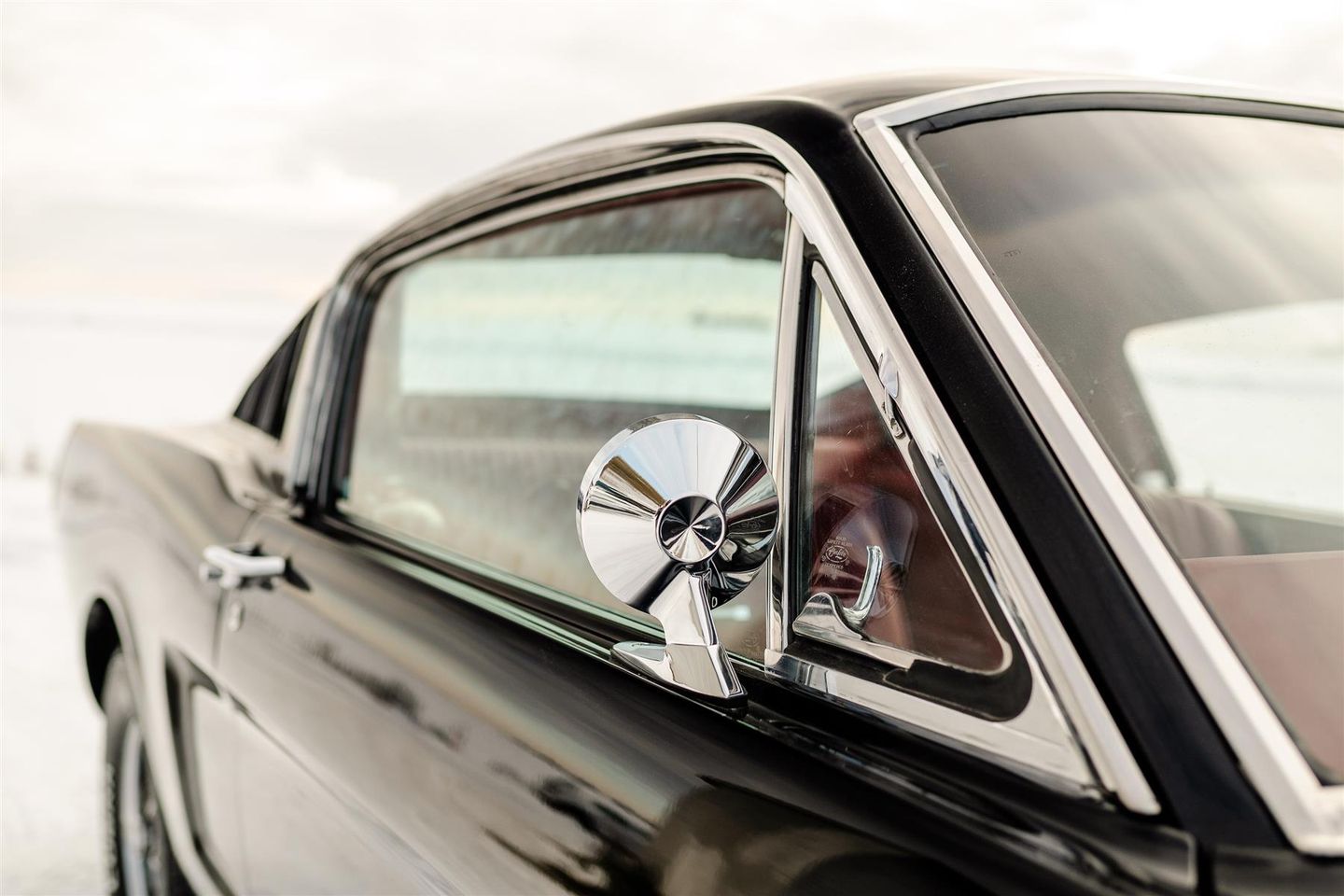

• Passenger side mirror

• All emblems & badges

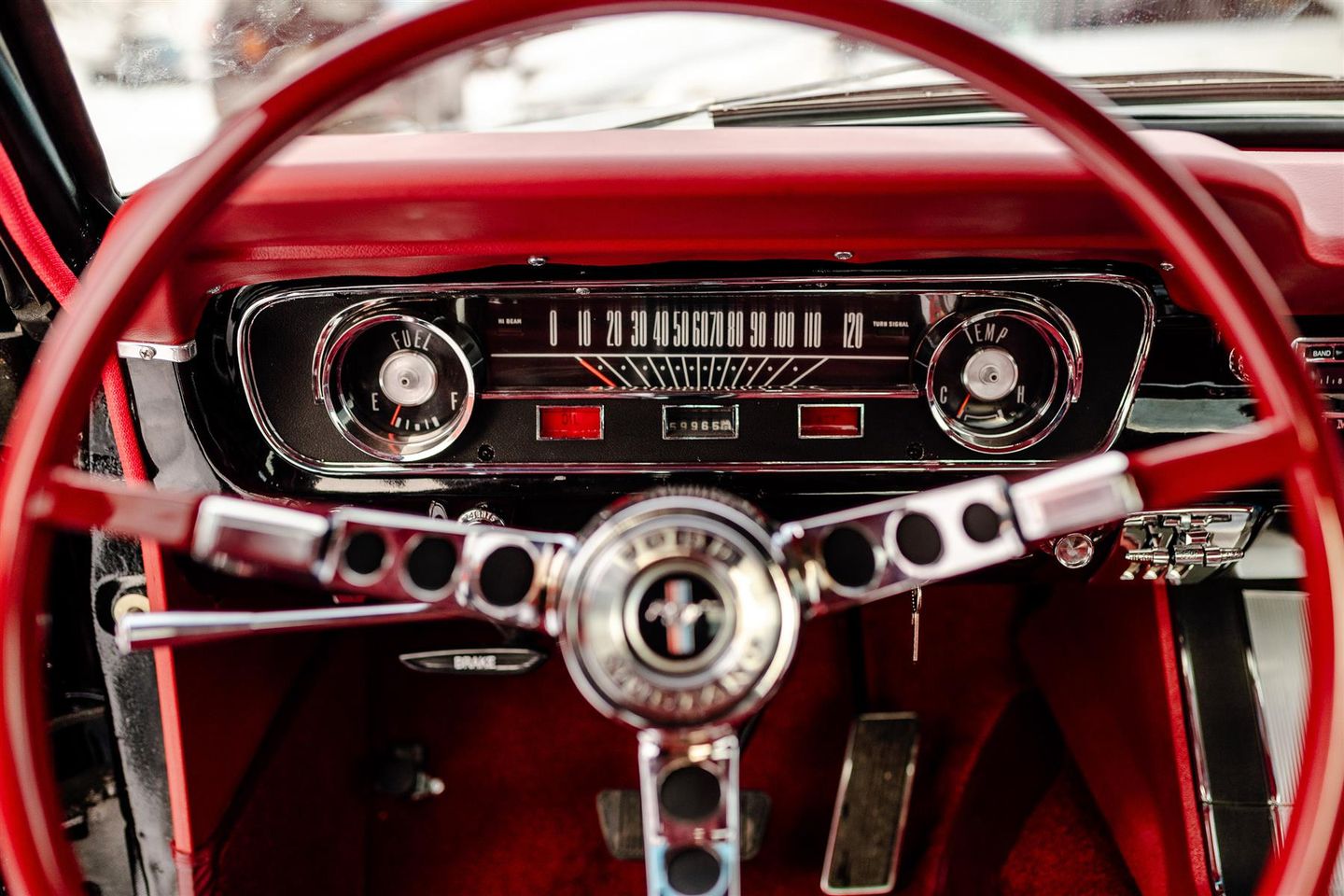

• Steering wheel with emblem

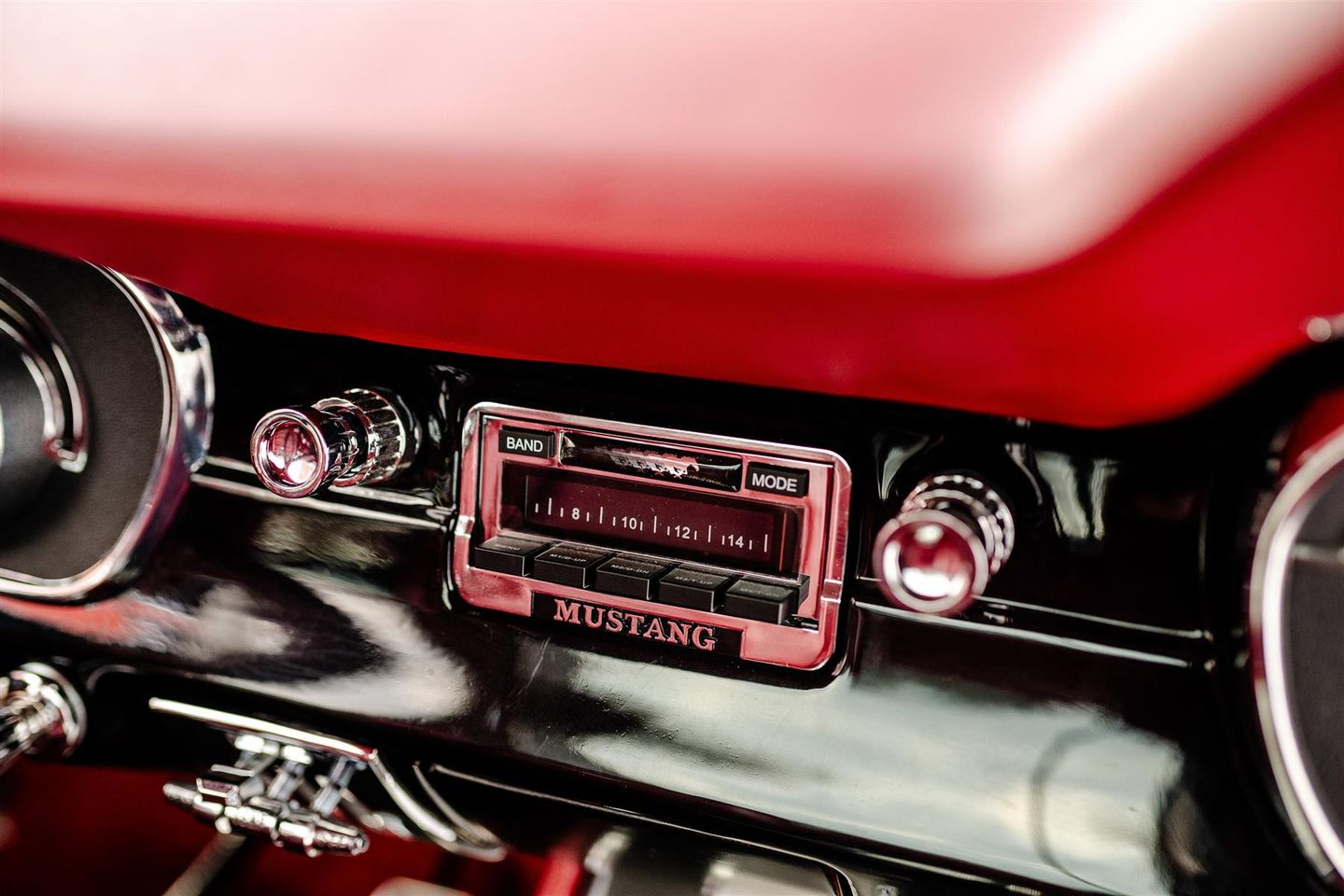

• Mustang radio with USB + speakers + complete stereo wiring

• All switches, knobs, levers (chrome)

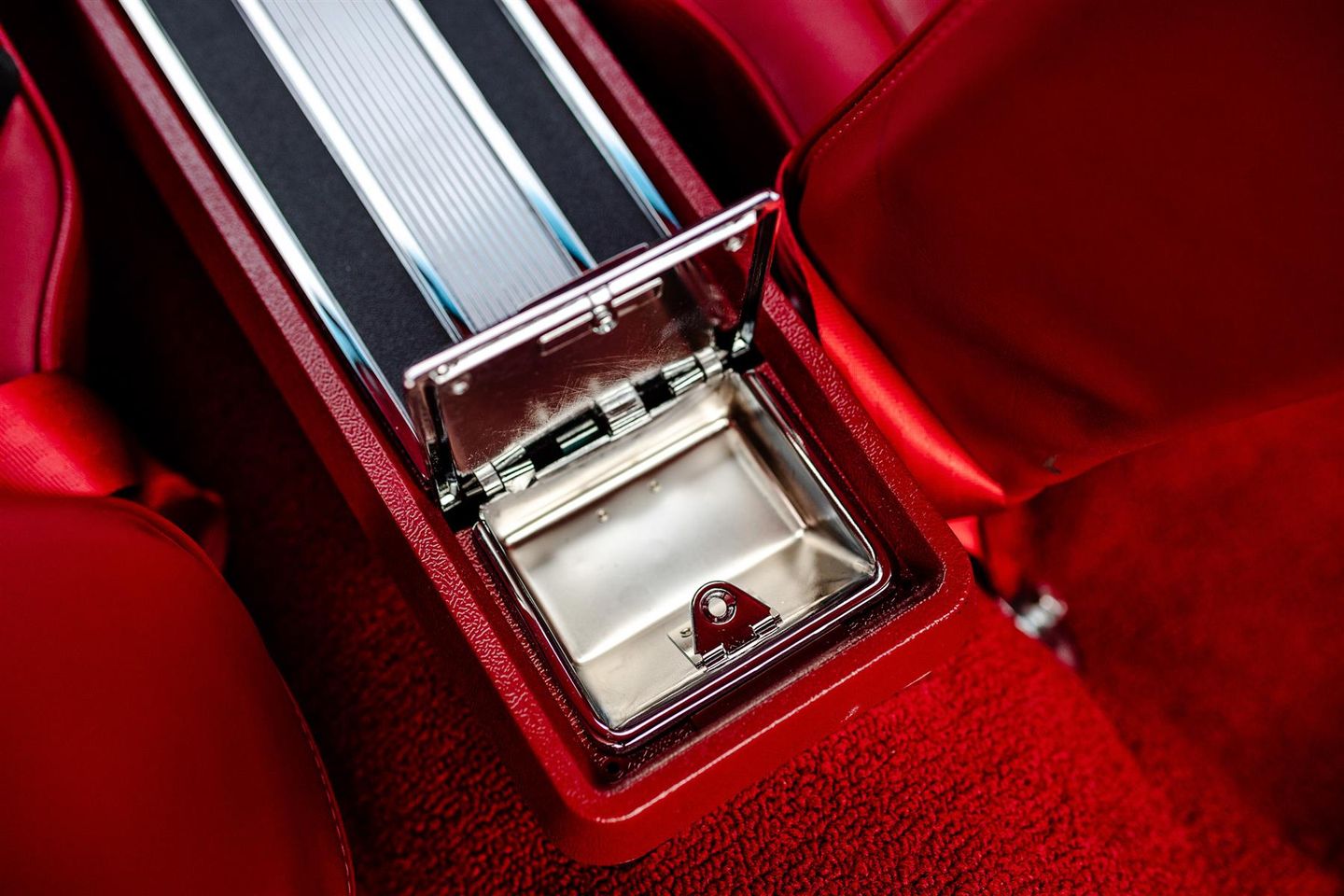

• Deluxe center console with armrest & storage

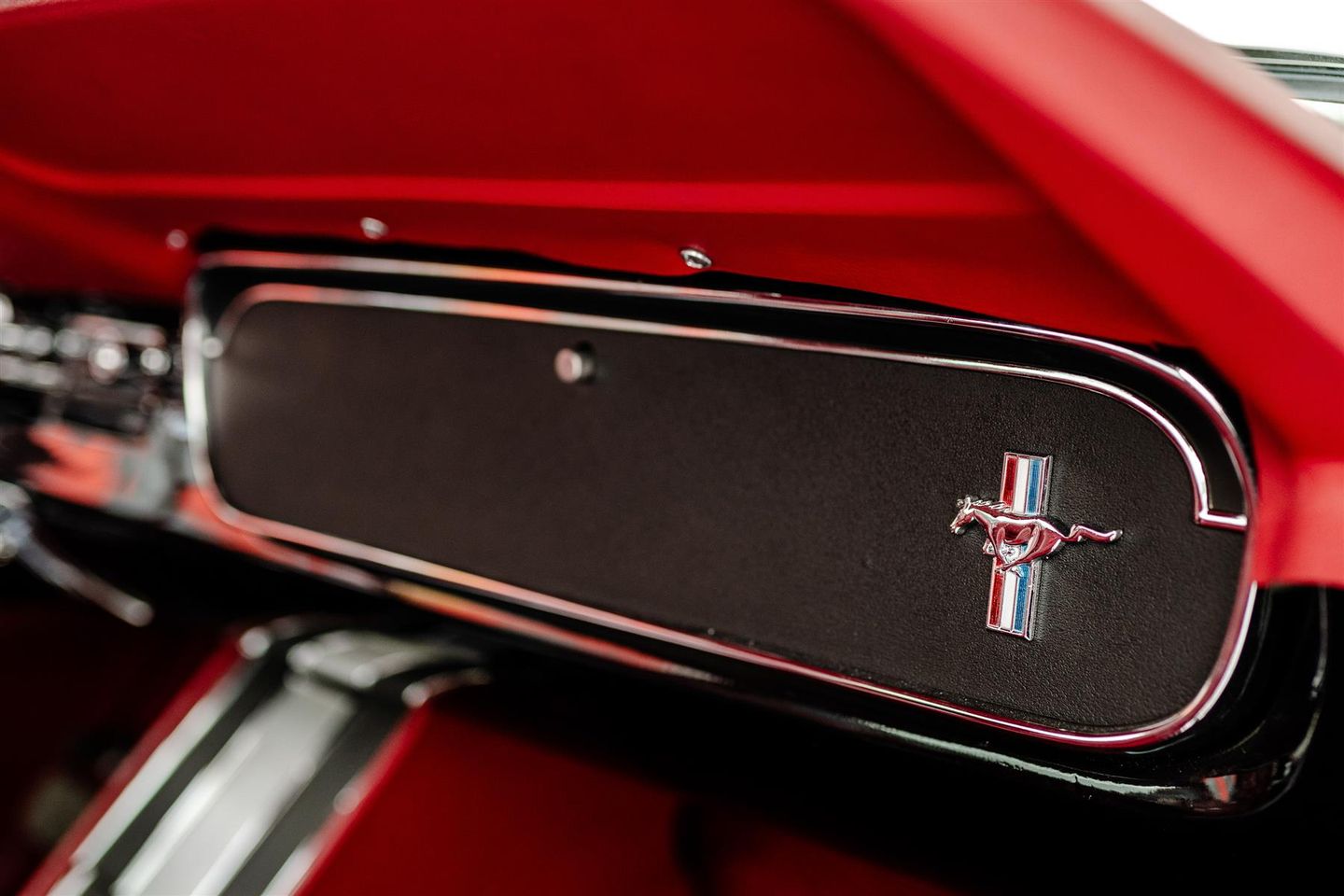

• Glovebox with emblem

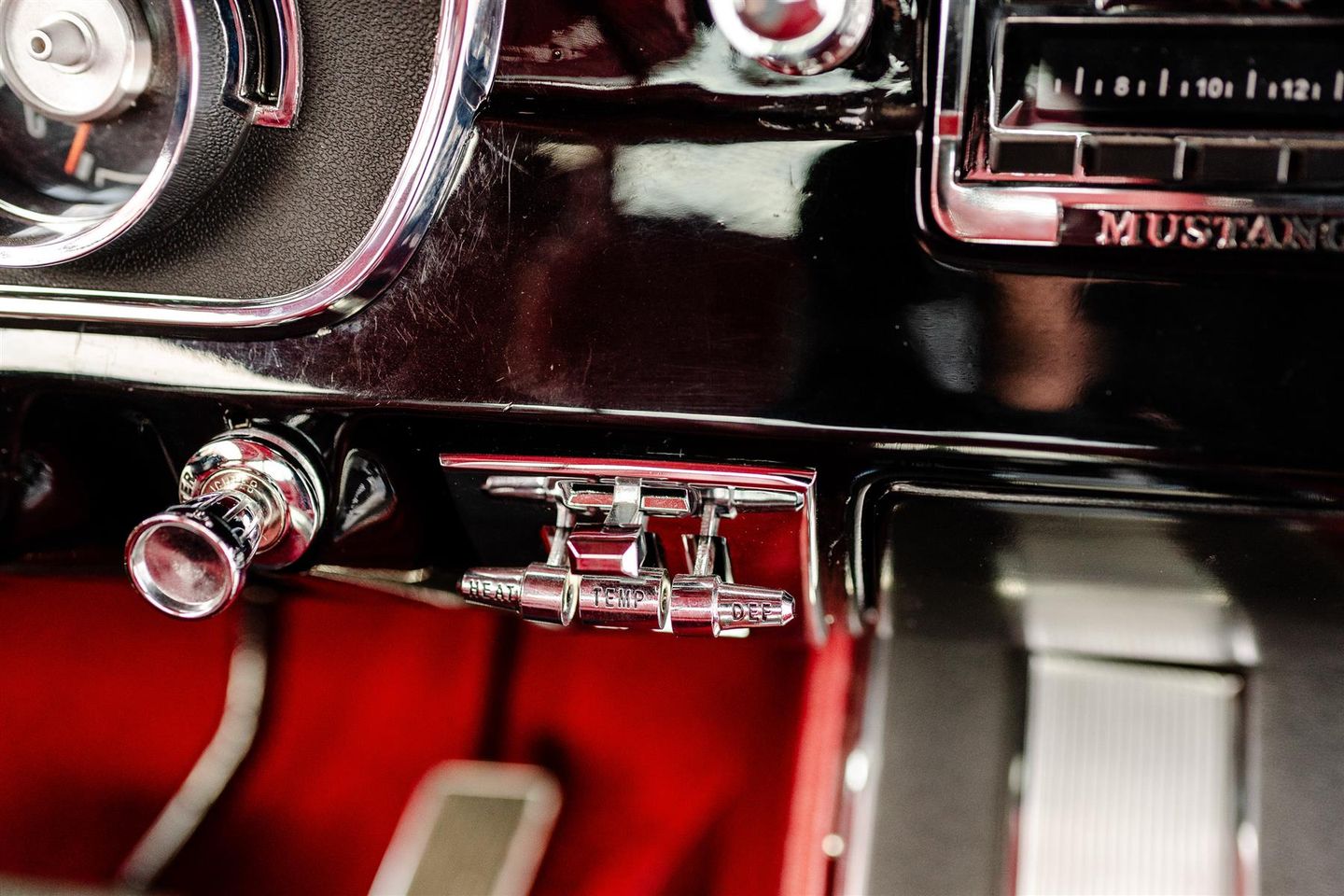

• Heater core + control cables

• Sun visors

• Interior mirror

• Washer system (pump, reservoir, nozzles, hoses)

• Chrome wiper arms & blades

• Driver’s side door lock

⸻

Exterior & Trim (all new):

• Chrome bumpers (front & rear) + brackets

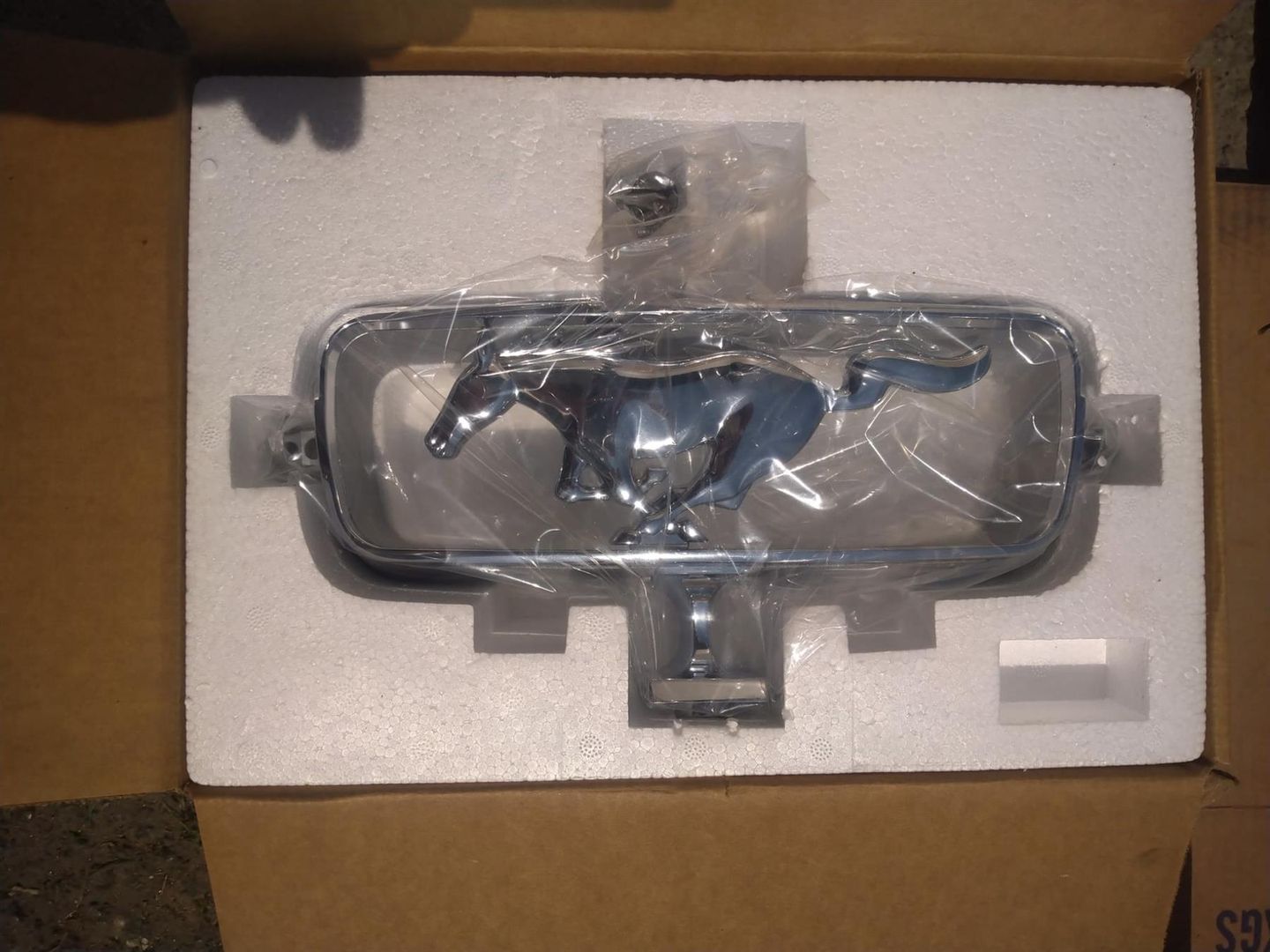

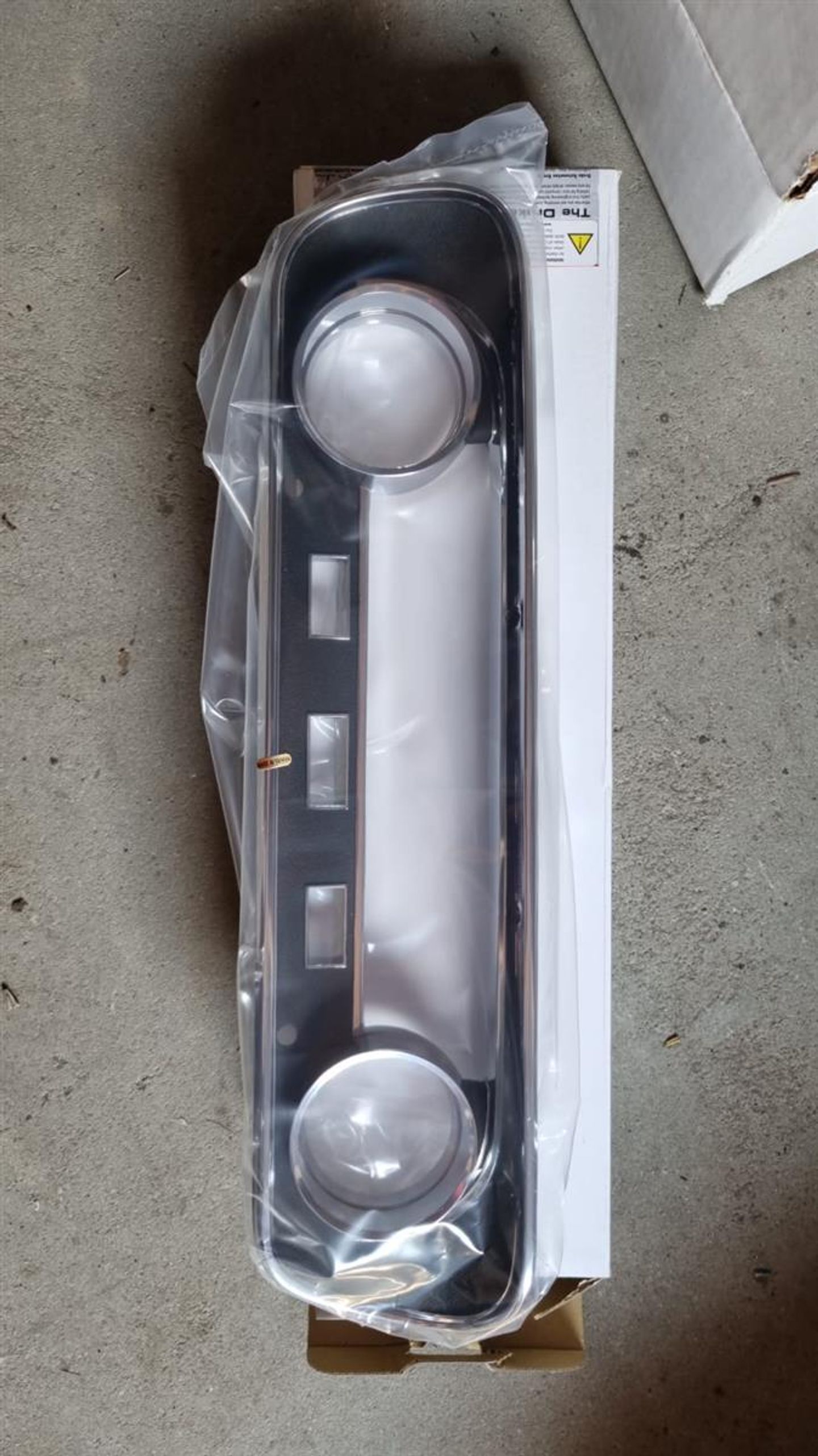

• GT grille with fog lights + emblem

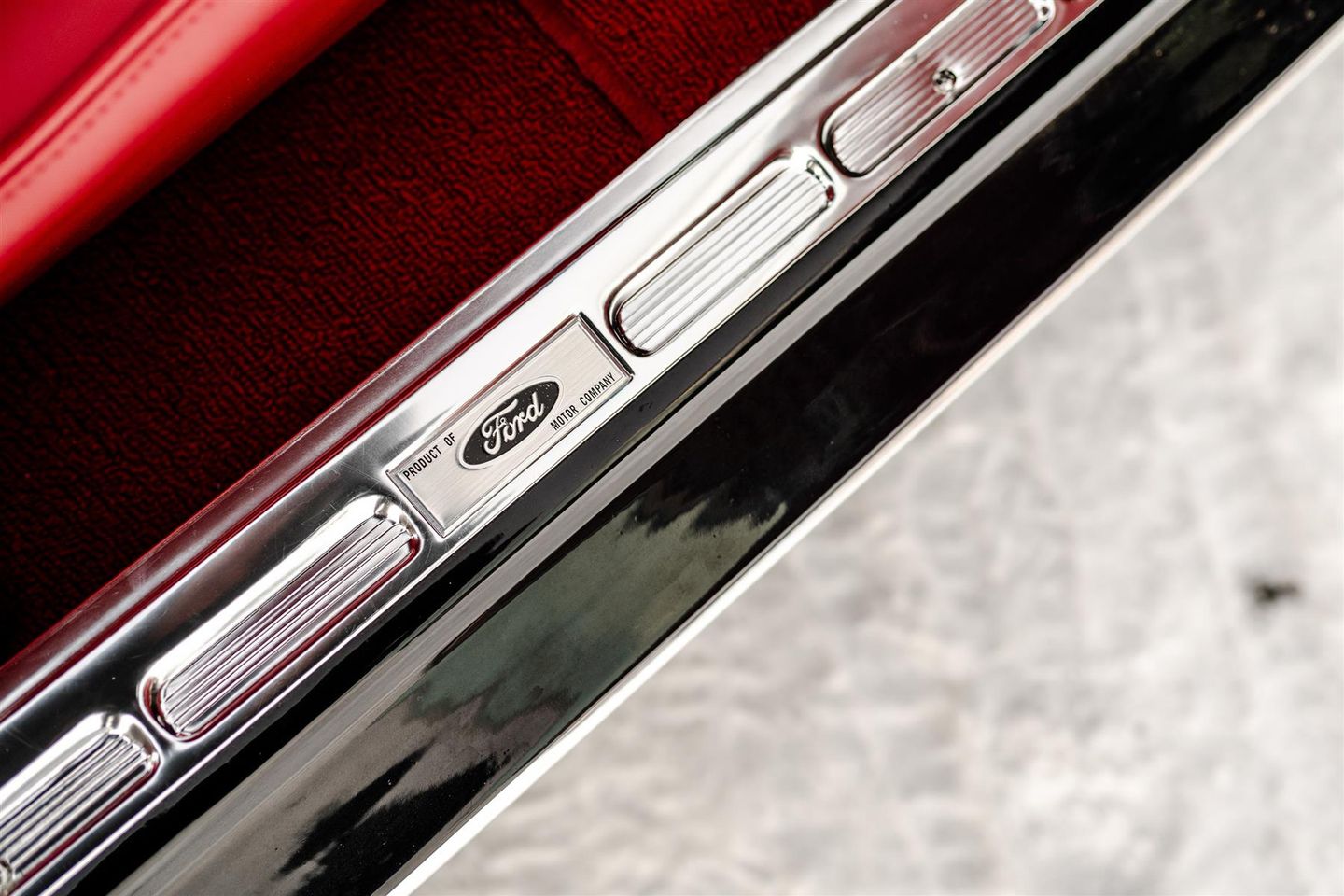

• Inner sill plates with Ford logo (aluminum)

• Outer sill covers (aluminum, chromed)

• Pedal covers

• Trunk lock & cylinder

• All mounting hardware (new)

⸻

Drivetrain:

• Differential input/output bearings

• Differential gaskets

• Custom driveshaft with new U-joints

⸻

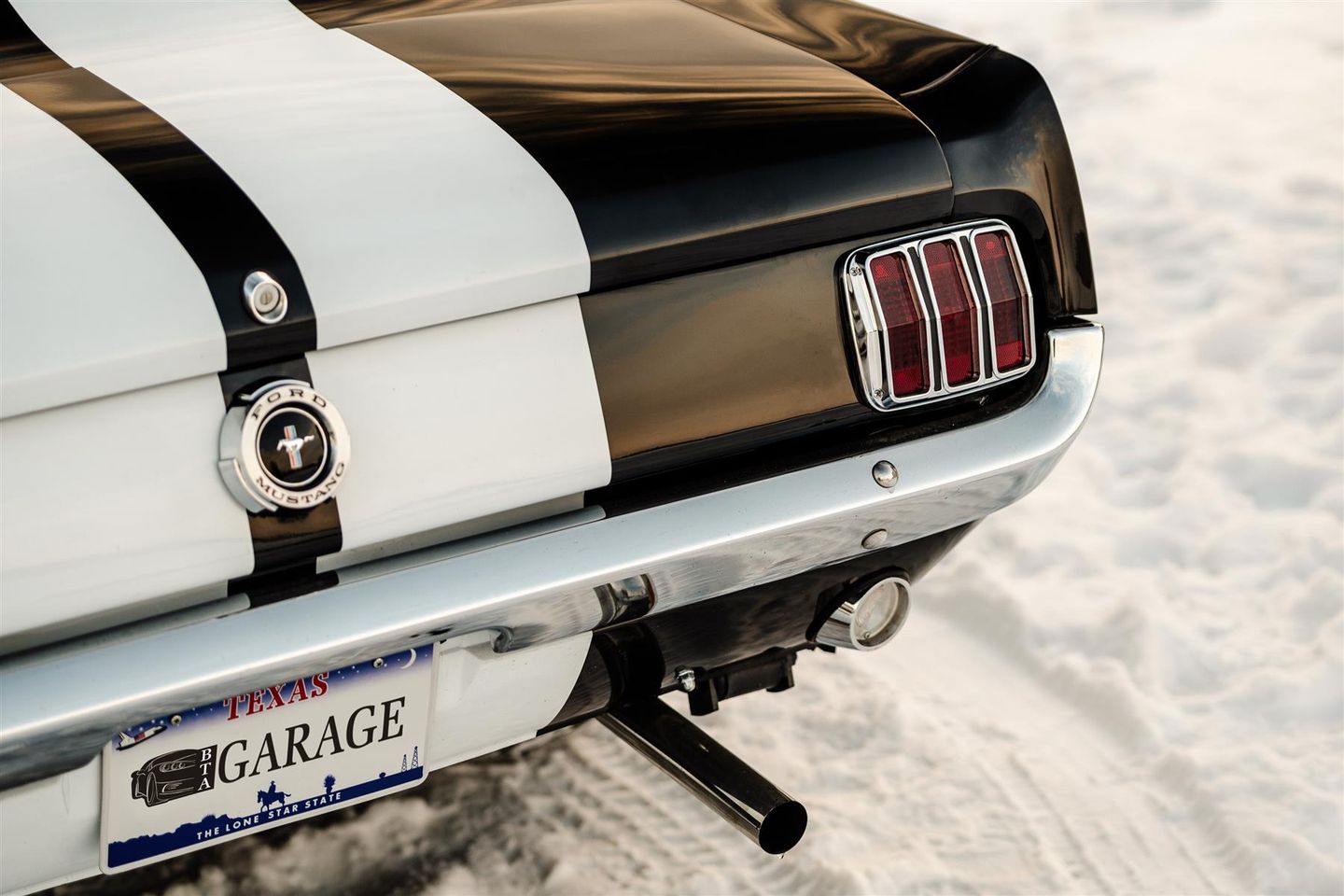

Exhaust (all new):

• Complete system from engine to tailpipes

• New gaskets & hangers

• Rear section in stainless steel

⸻

Wheels & Tires:

• New tires

• Restored original rims

• New lug nuts

⸻

Fluids (all fresh):

• Engine oil

• Transmission fluid

• Differential oil

• Brake fluid

• Coolant

• Power steering fluid

• Washer fluid
