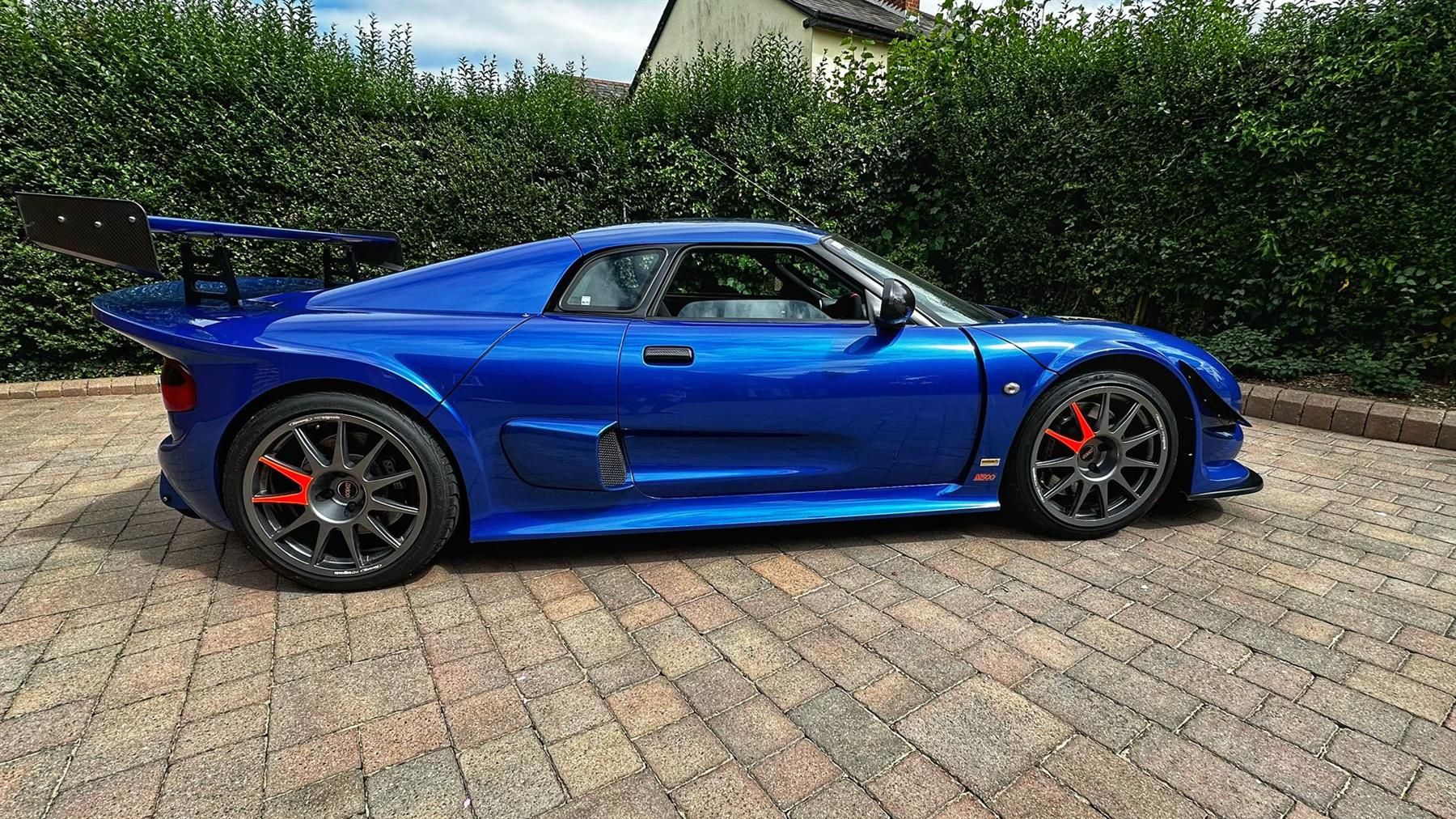

2004 NOBLE M400

This is not your normal Noble, almost every part has been developed and upgraded at a huge cost and time, approaching £200,000 has been spent on it (yes you read that right!)

I would describe it as a M400+ one friend called it a Caterham R500 with a windscreen, door and A/C.

It has power to weight ratio higher than a Mclaren F1.

The car has been flat floored and weight is 1020kg, but with fluids and fuel.

I can’t express how good this car is over a M400, it’s another level.

Let me be very clear this is not a race car, it’s road car, which will easily keep up with a GT3RS.

It starts every time, never over heats, air con keeps you cool, you can run the suspension soft on the road to soak up the terrible UK roads, or stiffen it right up.

It’s got pneumatic exhaust valves so your neighbours won’t hate you in the morning, repackable exhaust so you can actually go on track, it’s cheep to insure, cheep to service etc etc

I have put a walk round video on youtube if you search for “Mountune Noble for sale, walk round”

Engine

Fully Built by Mountune, full block strip & build, using all new parts

600+bhp 530 tq (you could push it up to 700/700, with a few extra’s)

Uprated big in Bearings

Lightened, balance and machine polished crank

Cosworth Forged pistons

Upgraded rods, pin’s and bolts

Lightweight and super strong Inconel inlet and exhaust valves

Inconel upgraded valve springs

Upgraded Cosworth Head gaskets

ARP bolts

Inconel exhaust Manifolds with 2 sensor plugs, per side

Mountune ported, gas flowed & polished Heads (apparently this took ages to do)

Stage 2 upgraded camshafts

Light weight alloy accessory pulleys

WeponX Ignition coils (better pulse range for advanced tuning)

Upgraded high pulse Bosch fuel injectors 800cc

Upgraded baffed oil sump pan – (Designed by Kevin and he’s Noble runs super soft slicks and 1000bhp)

Jetstream light weight engine mounts and brackets, the rubber mounts are all upgraded due to the extra torque

Garrett GT28 RS Hybrid ball bearing turbos

Billet Blow off valve

Meth Injection

Haywood and Scott

Fully repackable, stainless steel exhaust with pneumatic valves, electrically switchable on/off

Upgraded air conditioning wiring upgrade

Larger throttle body

Throttle body has been CNC machine and modified, to help with sealing and back pressure

M400 Timing mod

Front mounted engine oil cooler

Gearbox

6 speed H patten, quaife LSD, regular cut gears so it’s not noisy

Fully fresh rebuilt by DTB with less than 100miles

Fully upgraded, originally done a huge expense by gearboxman

Modified internals to better direct the oil on to the gears

Shot and Peaned harding of the main shaft and gears to make them stronger and then machined polished with steel cage bearings

Drilled and taped to take engine oil return line to the gearbox oil pump and front mounted gearbox cooler

Temperature sensor thermostat so the oil pump will kick in automatically if it gets to hot, with manual override on the dash

Alloy lighten flywheel

Balanced and lightweight AP organic clutch and modified clutch plate (it’s not a full race clutch, so it’s easy to use on the road and in traffic.)

Upgraded M400 Gear shift

Custom made upgraded cables using better components over the standard M400 with heat protection sleaving.

Custom design billet gear selector with extra adjustment points

Upgraded ST220 quick shift gear stick

Cabon Fibre gear nob

Car

M400 Side scoops

Tunnel cooling mod

M400+ gearshift

Jetstream upgraded rear wishbones with toe in/out adjustment

Alloy vaned, large diffuser

Upgraded mesh to Lamborghini Hex mesh black

Pro Alloy Large Alloy water radiator

Extra large alloy single core intercooler and custom alloy air pipes with K&N air filters moved the bulk head. Venturi effect inlet to increase air flow into the throttle.

Partial ceramic coated and PPF (it’s a hard shape to PPF apparently)

Larger rear wing mounts, to move the rear wing into the air improving downforce, but also improving rear visibility

Carbon fibre gurney flap on the rear wing

Carbon rear wing end plates

Front Carbon fibre wheel vents to remove front end lift at speed

Front Carbon fibre canards

Front Carbon fibre front gurney flap

Front splitter

Carbon fibre front floor spats, help to seal the bottom of the car

Carbon fibre door handles

Carbon mirror caps

Halogen Gas discharge lights

LED side lights

New alloy floor, treated and painted black

Brakes

Jetstream, big front break kit

Uses a bigger and much better quality Alcon break disk, so there is no break shudder

Pagid brake pads all round

Carbon fibre rear Nac-a ducts for rear break cooling

Speedline wheels

M400 Upgraded Hard Break lines

M400 upgraded brake master cylinder machined and rebuilt to give a better break feel than the M400

Interior

M400 seats, with custom foam, silver Bentley box stitching, Alcantara brushed grey, with Italian black leather inserts, Noble logo’s on the front and back of the head rests

M400 style tunnel top with Italian leather gearshift & hand break gators (the M400 has cloth and it rips)

Custom left hand arm rest on the tunnel top designed to be the perfect height and foam density.

Custom right hand arm rest, designed to slot on top of the door pocket perfect for the motorway

M400 door cards with, Italian leather inserts

Custom Steering wheel centre pad

Momo Leather steering wheel with yellow centre marker

M400 Carbon fibre center panel

All dials have upgraded blue LED lights, so you can actually see them in the dark…

SPA digital gauges Gearbox Oil temp / Fuel pressure

SPA digital gauges Engine Oil temp / Oil pressure

Convex Caterham rear view mirror

Upgraded Speakers

Upgraded Alpine Head unit.

Upgraded peddle box to improve heal and toe and driving feel

Fuel System

All connections are Aeroquip race spec blue and red JIC fittings

Braded, silver or black hoses

Modified fuel tank with welded threaded sections, baffles and cutouts, to stop and fuel starvation on low fuel

Twin return lines

Full twin 044 pump set up, with 2 alloy mesh filters

Billet alloy JIC fuel pressure regulator
