Copper washer?

[Riley26]

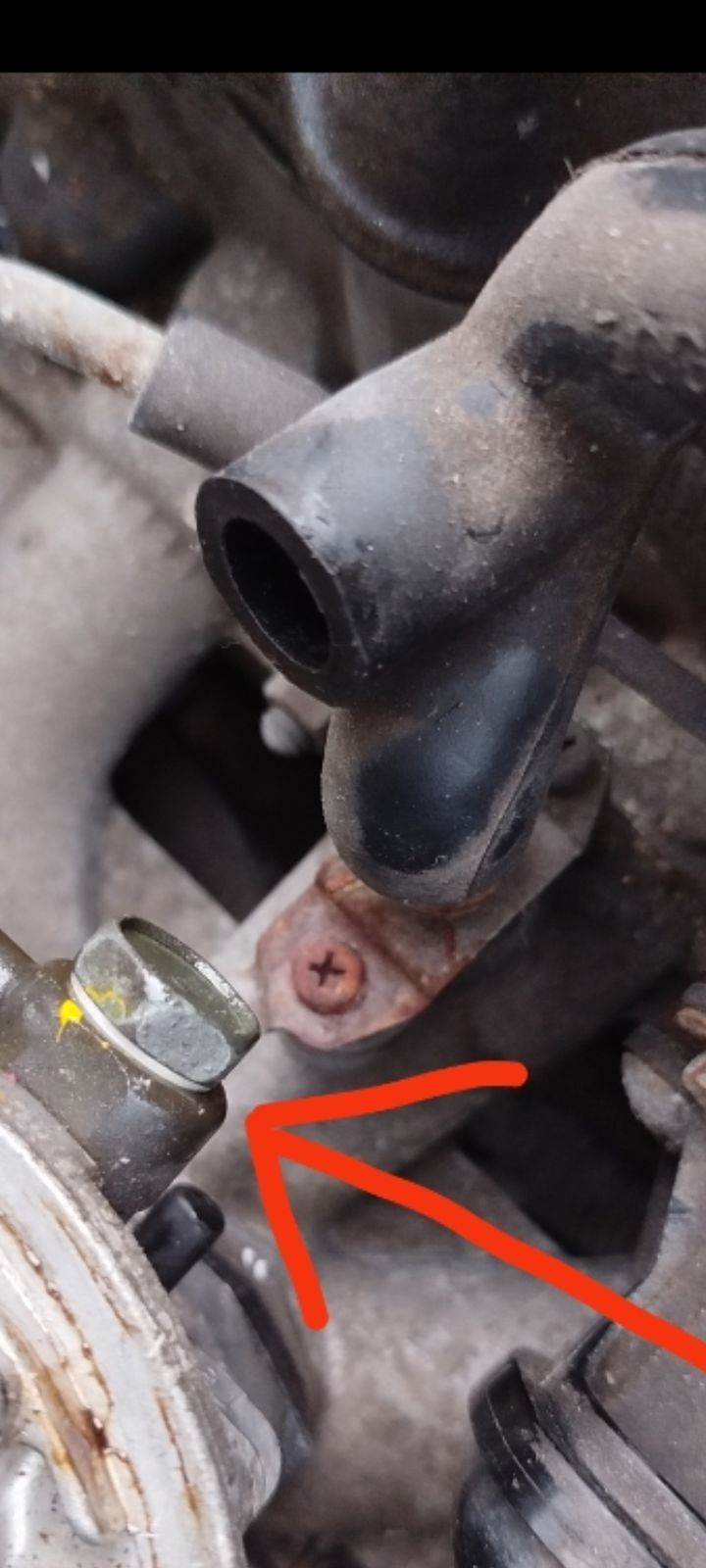

What size copper washer would I need for this? Has a slight leak.

[Riley26]

[MustangGT]

What bolt size is it?

[Riley26]

Thanks I'd need to take it out to measure the internal thread?

[RedWhiteMonkey]

Riley26 said:

Thanks I'd need to take it out to measure the internal thread?

so, are you expecting people to guess the size from a photo?

[parabolica]

Riley26 said:

Thanks I'd need to take it out to measure the internal thread?

Yeah? I'm not sure anyone is going to deduce this from one picture with no context. Is there a parts catalogue you can look up online? Or tell us what the vehicle is and what the bolt is for?

[LunarOne]

Re-use the same washer. If you remove it and heat it up until it's glowing orange, then when it cools it will be soft enough to be used again.

[paul_c123]

As above, re-anneal it and it will be fine. No need to buy new ones.

[Riley26]

Thanks is it a copper one? Sort of looks white. I could remove and heat up I have a blowtorch

[RedWhiteMonkey]

Any chance of any useful information, what engine is that?

[Clad-Hach]

That looks like an aluminium washer, if so its one use and replace, any motor factor will have these.

99% of the time you can get the thread diameter from the hex size of the bolt head.

10mm hex - 6mm thread

13mm hex - 8mm thread

[Riley26]

Thanks for the replies. It's on a 1 litre engine and the fuel line to the injectors

[hidetheelephants]

Clad-Hach said:

That looks like an aluminium washer, if so its one use and replace, any motor factor will have these.

99% of the time you can get the thread diameter from the hex size of the bolt head.

10mm hex - 6mm thread

13mm hex - 8mm thread

Aluminium can be annealed too, although it's a little trickier than with copper.

[Riley26]

Does it need to be allumumin not copper washer that I get?

[Dave.]

Riley26 said:

Thanks for the replies. It's on a 1 litre engine and the fuel line to the injectors

[thebraketester]

Let me dust off my crystal ball….

[Riley26]

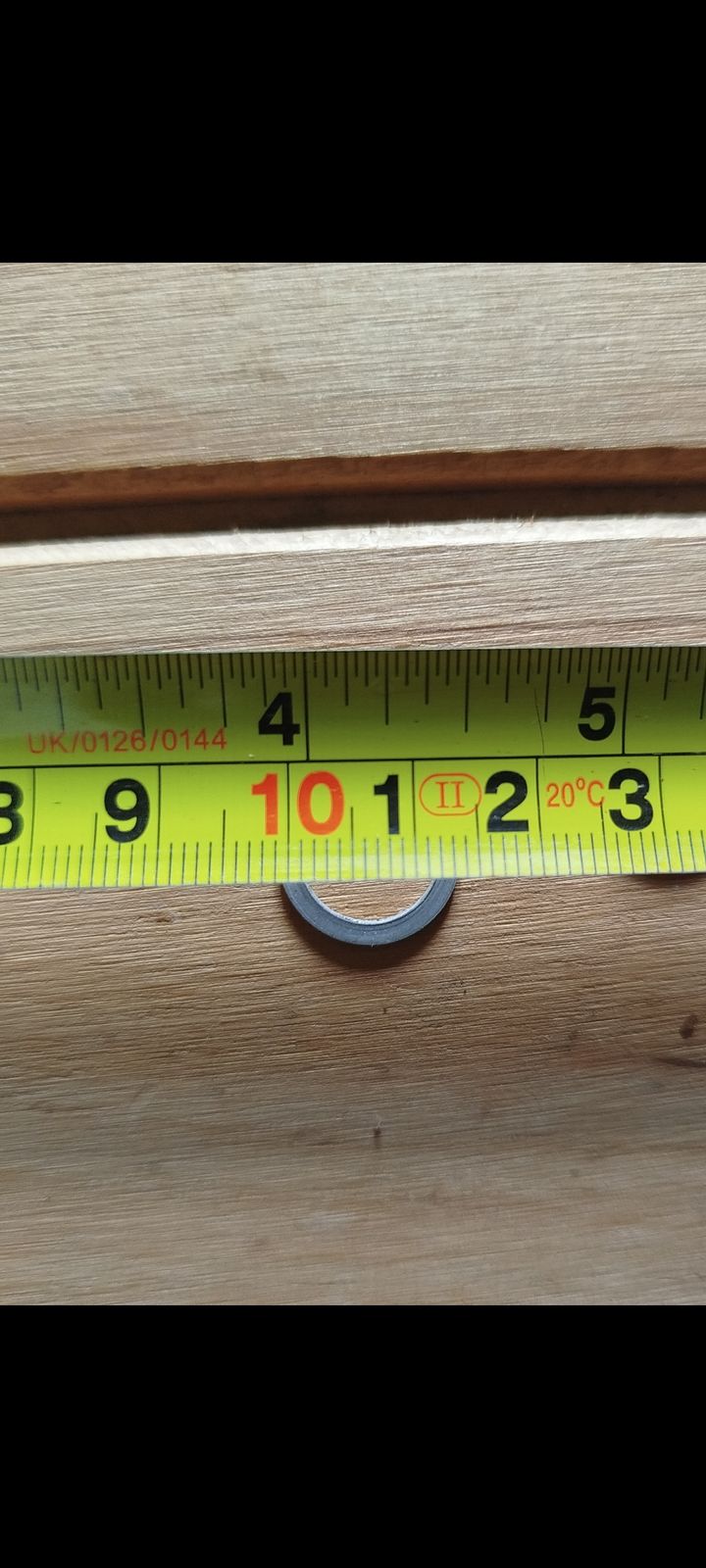

There these

[Dave.]

Riley26 said:

There these

Can you add a banana for scale?

[Riley26]

[InitialDave]

Put the washer on the metric marks of the tape measure and align it so you're certain you're at the full diameter of the bore.
