Porsche 997.2 lower arms and trailing arms

[Adrian-9iafn]

The initial message was deleted from this topic on 01 April 2025 at 16:16

[Crudeoink]

How many threads are you going to start on this issue ?

[Adrian-9iafn]

I decided to bite the bullet and just go for it

So Eibach are it is with rear adjustable toe links by elephant Racing

I am 1 degree 25 mins at the front, so will move to a bit more front camber and perhaps a tad more rear

[Slippydiff]

Good choice on the Eibach adjustable front coffin arms.

Bad choice on the rear toe arms. Cancel them if you can and go with these instead :

https://stringtheorygarage.com/products/string-the...

(they utilise the Porsche outer end, which you can replace cheaply should you ever need to)
I had pretty much the whole Elephant catalogue on my 996, I wasn’t overly impressed.

If you run the Eibach adjustable arms at max camber you may need a pair of these as well :

https://www.hardrace.co.uk/front-or-rear-caster-ar...

[Adrian-9iafn]

Thanks, I'll speak to them and cancel. They do RSS as well perhaps they are okay ?

[Adrian-9iafn]

BTW I am currently running 1 degree 45 mins at the rear so thinking of moving to

1 degree 50 at the front and 2 at the back for road use

[Ed.Neumann]

Can I ask why?

What toe are you running front and rear?

Why do you want that much camber for road use?

[Adrian-9iafn]

Iike the feel and turn in, I have a GT3 991.1 and run 2 degrees 25 mins front and 2 mins 10 degrees at the rear an haven't been on track for over 2 years

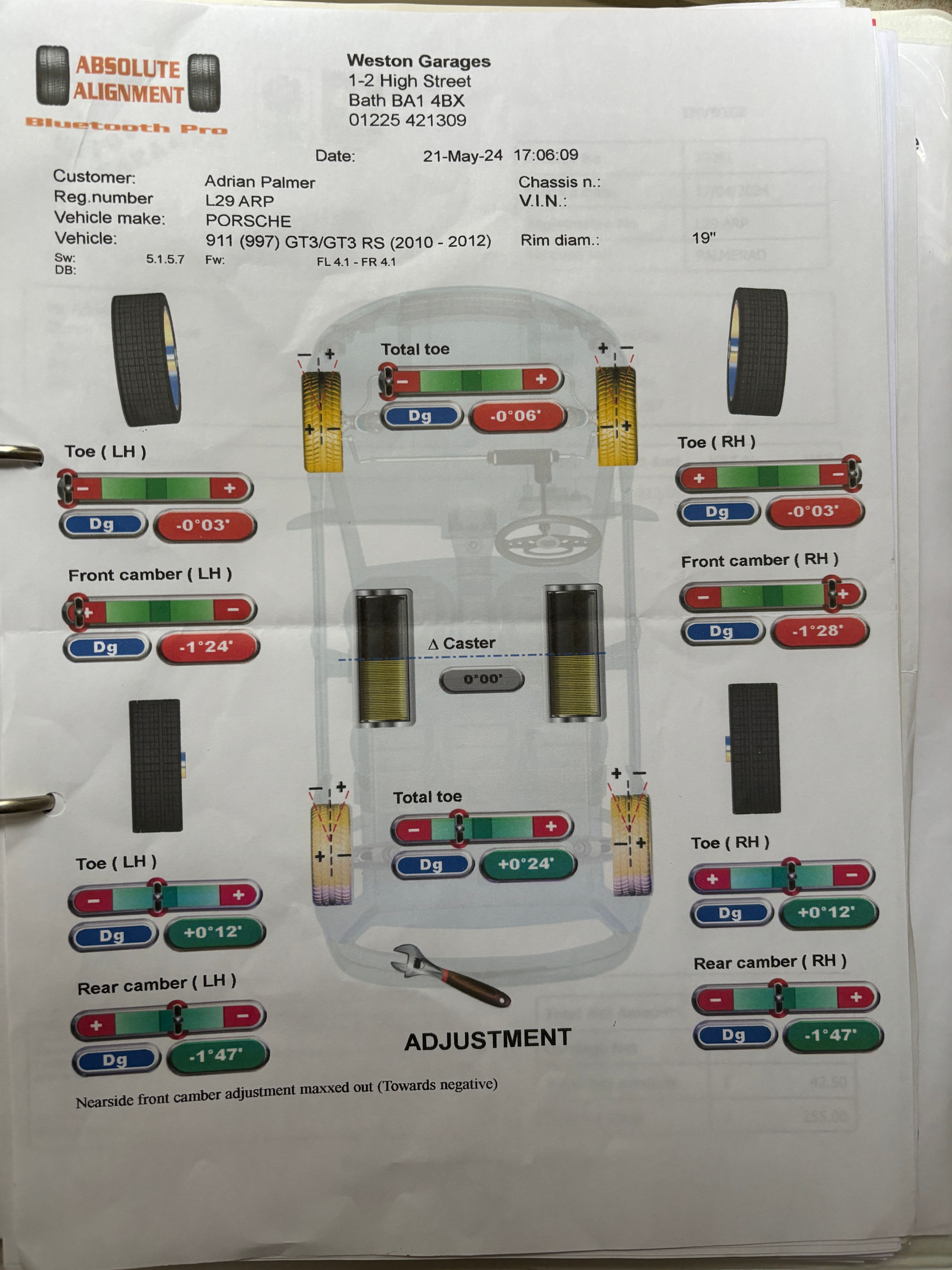

Here's my C2 set up

Edited by Adrian-9iafn on Friday 4th April 16:08

Edited by Adrian-9iafn on Friday 4th April 16:09

[scottos]

I run 2.5 rear and 2.0 front, it's mega and will never see the track. Rear toe arms I bought a set of Gravity Performance arms, nice proper ball joint and a sealed bearing inner, great for road use and the price of them is where a simple adjustable arm should be imo (about £160).

[Mutton]

I’m also looking at the Eibach lower control arms for my 997.2 S. Looking on the Design 911 site is says the following:

“For the vehicles fitted with Hydraulic bushes (987/981/997 front arms) the central bush can be replaced with a suitable Aftermarket item to accommodate this fitment.”

Suggests the central bush on the front arms will need updating before fitment?

[Slippydiff]

Mutton said:

I’m also looking at the Eibach lower control arms for my 997.2 S. Looking on the Design 911 site is says the following:

“For the vehicles fitted with Hydraulic bushes (987/981/997 front arms) the central bush can be replaced with a suitable Aftermarket item to accommodate this fitment.”

Suggests the central bush on the front arms will need updating before fitment?

See F6box’s and my comments in this thread :

https://www.pistonheads.com/gassing/topic.asp?h=0&...

[Adrian-9iafn]

The Eibach arms have arrived and although they talk about being able to grease them "• Fitted with a fully rebuildable balljoint which is greasable too. It can also be preloaded to your desired amount of torque at the balljoint." I am underhwelmed by the quality of the boots, also the two sets I have recieved one was open and has a boot that looks rather sad..

Edited by Adrian-9iafn on Saturday 5th April 07:55

[Slippydiff]

The boots don’t look great, but once installed they’re compressed and fit onto the trunnions better.

[Mutton]

Slippydiff said:

See F6box’s and my comments in this thread :

https://www.pistonheads.com/gassing/topic.asp?h=0&...

Thanks for that. I guess the question is which aftermarket bush is best suited for the Eibachs on the front LCAs?

[Ed.Neumann]

That is showing that you have got toe out front and rear and positive camber on the front?

[Adrian-9iafn]

Not quite

Negative camber front and rear minor toe out at the front ( to aid turn in and feel, not 'blunt' toe in) and circa normal toe in rear

[Ed.Neumann]

Yeah sorry, it does say +0.12 rear, just the graphic is also showing -0.12.

I was thinking with 0.12 toe out rear must feel very, ahem...."lively".

[Adrian-9iafn]

It feels pretty planted at the rear, I think 12 toe in is factory GT3 spec

Be interested to look through some GT3 set ups and see what people run on the road with occasional track use
