Unknown connector

[David Goodwin]

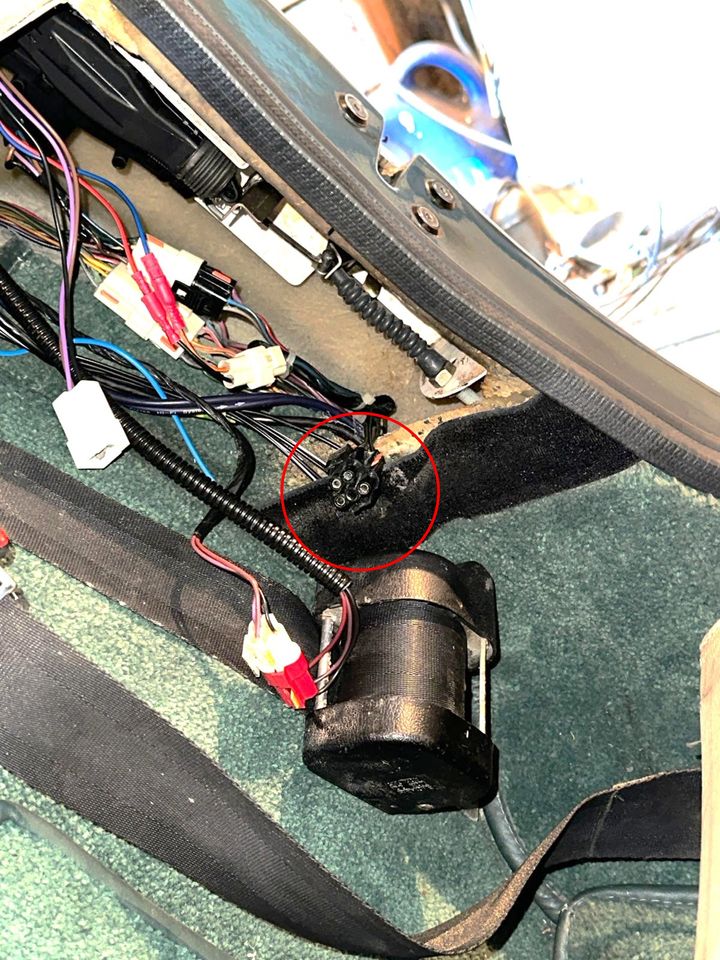

To save me spending hours with a torch and a meter, I am hoping someone can tell me what the unused black connector is, by the passenger lock on my 1999 Chimaera. Sorry it is not a great photo.

[miniman]

Do you have rear speakers fitted?

[David Goodwin]

I do have rear speakers but they are on separate speaker wire.

[Steve_D]

What colour wires are in the connector?

Steve

[phillpot]

David Goodwin said:

Sorry it is not a great photo.

Can you take a better one, ideally showing the colour of the wires connected to it?

[David Goodwin]

Sorry for the delay, my wife was away in the car. The colours look like

Green/Red
Black/White
Green/Black
Brown/Red

Although it is never that easy to see or to know which is the main and which is the trace colour.

Any ideas?

[miniman]

Looks like the wires disappear towards the boot?

My first port of call would be removing the carpeted panel that sits on top of the fuel tank and see if they emerge there.

[Hedgehopper]

A wild guess,,,heated seats?

[David Goodwin]

Sorry for the delay, my wife was away in the car. The colours look like

Green/Red
Black/White
Green/Black
Brown/Red

Although it is never that easy to see or to know which is the main and which is the trace colour.

Any ideas?

[David Goodwin]

I wondered about heated seats but surely that would be in the centre?. I was hoping someone might just know, but it looks like I shall have to start tracing. All part of the fun !

[citizen smith]

David Goodwin said:

Sorry for the delay, my wife was away in the car. The colours look like

Green/Red
Black/White
Green/Black
Brown/Red

Although it is never that easy to see or to know which is the main and which is the trace colour.

Any ideas?

Why bother about it.

[Belle427]

On the diagrams i have the only colours i can see that resemble them are:

Green/Red Left hand indicator positive
Black/White Door lock signal
Black/Green Something A/C related
Brown/Red Yet to find
