Air Conditioning Wiring Diagram (Chimaera 1997/98)

[andrew_r]

Hi all,

Does anyone have a wiring diagram for the Chimaera's air con system? Also, any details about which relays are needed?

In this thread, I can see that there are three relay bases, but unsure which relays are needed:
https://www.pistonheads.com/gassing/topic.asp?h=0&...


There also seems to be limited information on which wires connect to the trinary switch, and if any extra wiring is needed to trigger the cooling fans.

Any help would be greatly appreciated.

Thanks, Andrew.

[PabloGee]

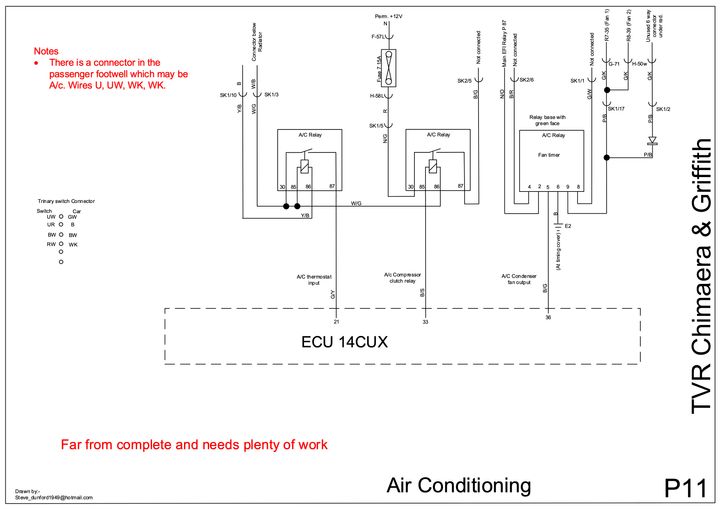

This is from Steve D's wiring diagrams.
I don't have A/C in my car, and I haven't had cause to find out, sorry
