Waterpipe diagram - Help with where everything goes

[G9RGE]

Hi there i have had my engine out along with all the water pipes to refurb the chassis and the pipes, i am putting it all back together now and although i took piccies it looks like i didnt take enough lol.
Does anyone have a diagram showing the plumbing of the water system please, i have tried searching but had no luck.

I think im right in saying that there are 2 heater pipes that come out of the passanger side wing, the top hole is where the pipe that connects to the expansion tank and down to the hard pipe that connects to the water pump and the bottom radiator pipe is.

Where do the water pipes that connect to the back of the water rails connect to?
where does the bottom heater pipe out of the passanger wing go?

I think im also right in saying that the other hard pipe with the water temp sensor in it connects to the thermostat, and to the front of both water rails.

Any help appreciated, cheers

[tvrgit]

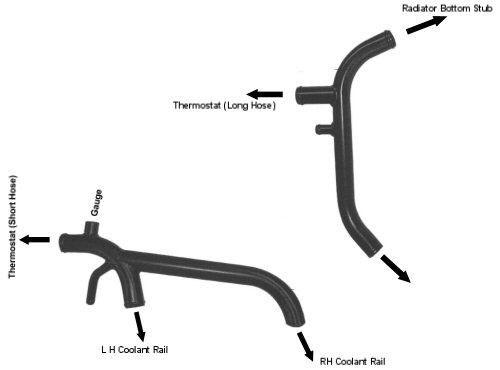

I made up this diagram from my own car a coiple of years ago - hope it helps.

[G9RGE]

Thank you that's helped, just need to find out what the back of the water rails connect to?

[Tanguero]

The back of the rails go to the 'Y' connector and from that to the to the header tank.
