Dimensions of the Sagaris door sill/kick plate

[alex_gray255]

Hi folks

I'm looking at doing a custom CAD for a Sagaris door sill/kick plate to incorporate some ideas I have "kicking" about (no pun intended), but as my Sagaris is currently with RP, I was wondering if some kind person would be able to provide me with the dimensions of the length, breathe and depth of the driver's door and passenger door sill/kick plate?

I've looked on line and can't find the information.

I want to make sure I have the dimensions correct when I generate the model.

Thanks!

[crimbo]

7CM-42CM looks 1-2mm thick can't really measure that one

[alex_gray255]

Great! Thanks! For what i was planning I'll need to see if the sill can be 4mm, but I'll do that when I get my Sagaris back.

[alex_gray255]

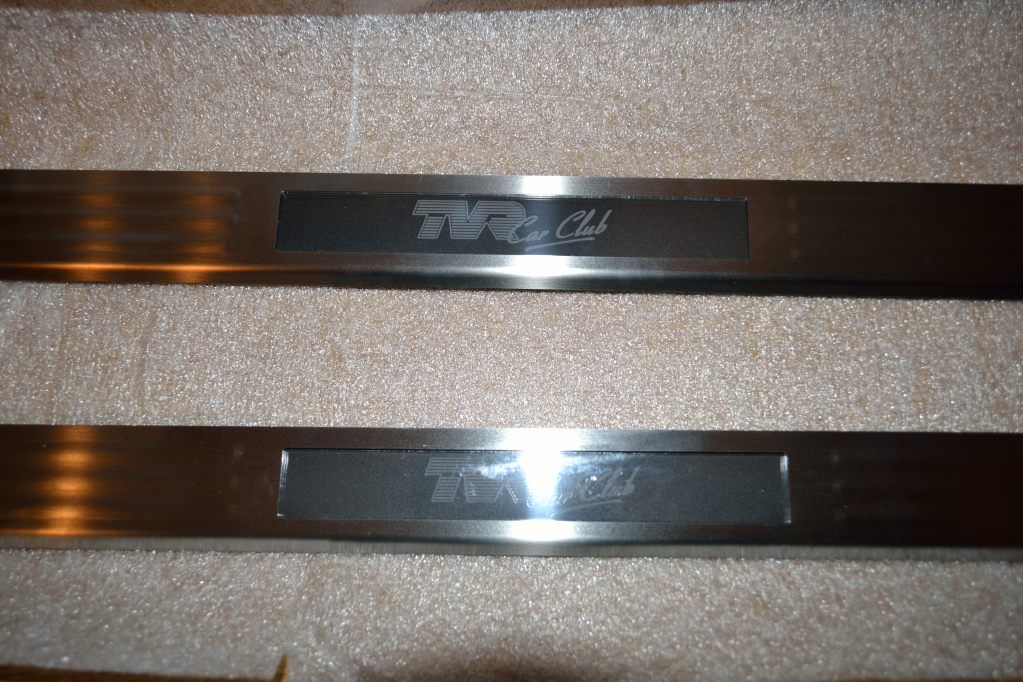

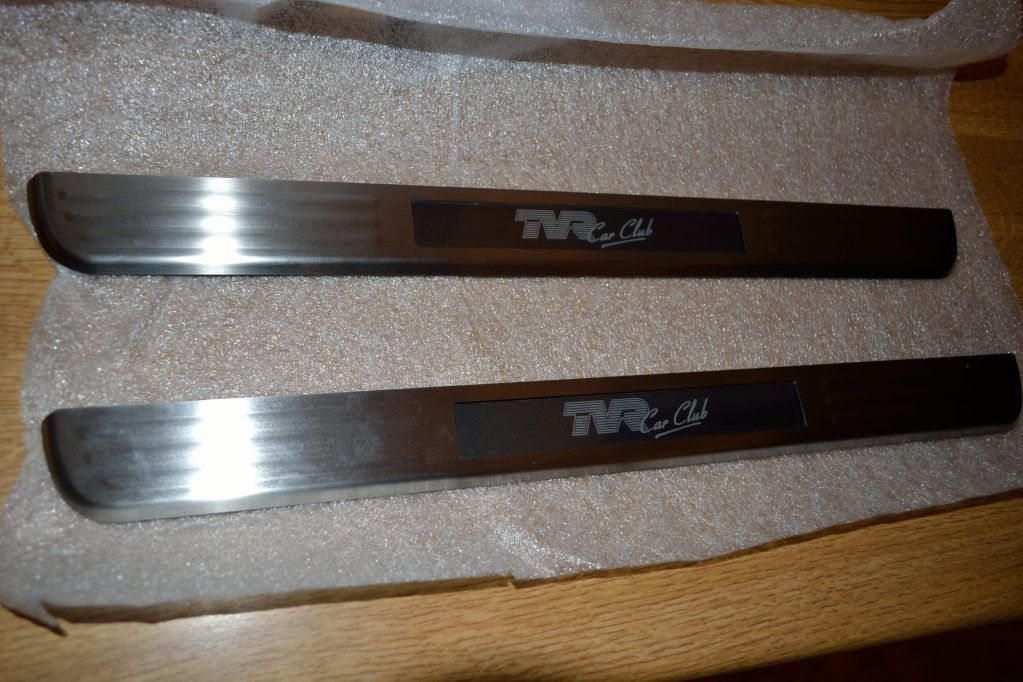

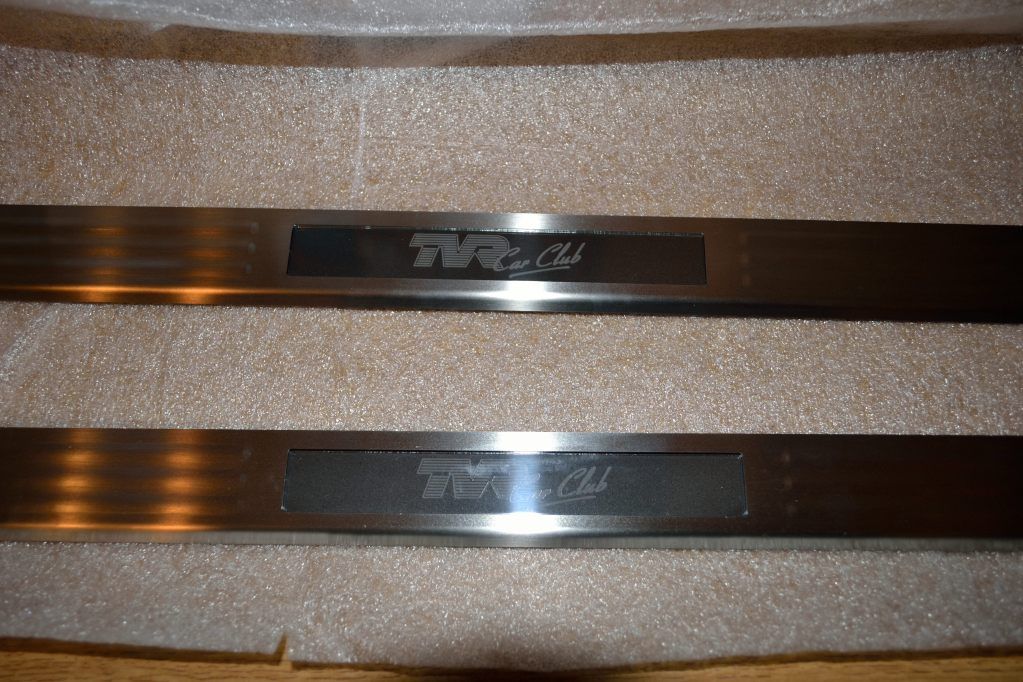

Just had delivered a set of new kickplates for the Sagaris which incorporate an illuminated TVR logo which comes on when the door opens.

The following is an EXAMPLE of what they were sort of modeled, but I won't know until I fit them on how good they look, so please don't ask for any pictures at this point in time as I don't have any.





If the idea works - i.e. if I like them - then I'll post the pics and details. If not, I'll just refit the old kick plates and move on

I liked them in the AMG I saw them in, but can't tell what they will be like in the Sagaris.

[Don1]

Having had them in a loan Jag.... not for me.

[RedSpike66]

Carbon Fibre kick plates would be good - dunno how one goes about getting 'Sagaris' embossed in C/F tho....

[YRRunner]

alex_gray255 said:

Just had delivered a set of new kickplates for the Sagaris which incorporate an illuminated TVR logo which comes on when the door opens.

The following is an EXAMPLE of what they were sort of modeled, but I won't know until I fit them on how good they look, so please don't ask for any pictures at this point in time as I don't have any.





If the idea works - i.e. if I like them - then I'll post the pics and details. If not, I'll just refit the old kick plates and move on

I liked them in the AMG I saw them in, but can't tell what they will be like in the Sagaris.

Lord, give me strength.... I swear you only do this st to wind me up sometimes. Why don't you get some blue light strobing LED's under the car and in the footwells whilst you're at it?

Edited by YRRunner on Friday 18th May 18:28

[alex_gray255]

YRRunner said:

Lord, give me strength.... I swear you only do this st to wind me up sometimes. Why don't you get some blue light strobing LED's under the car and in the footwells whilst you're at it?

Edited by YRRunner on Friday 18th May 18:28

Yes! Mission accomplished!!

They come with something called an off button. Which means you just have a set of nicely inscribed kick plates that don't do anything

Although, have you ever seen them for real in something like an AMG? They do look quite good. But just my taste I guess.

Edited by alex_gray255 on Friday 18th May 20:53

[geordieexpat]

Mine kick plates are in the back of the Saggy as just been resprayed so I can measure for you if needed

[alex_gray255]

Many thanks for the offer. I was able to get the dimensions ok and produced a set of sills.

Incidentally, I went over to Bespoke Performance over the weekend to see what it would look like on a Sagaris and Mark and I thought it was a vast improvement over the default door sills. This was without installing the batteries to light the sills up.

Edited by alex_gray255 on Tuesday 22 May 21:34

[paul1962]

I like the AMG style illuminated kick plates so, depending on whats been done, they should look good on a Sag.

Look forward to seeing the finished items together with all the other mods.

[alex_gray255]

I'll post the lighted ones when fitted

[alex_gray255]

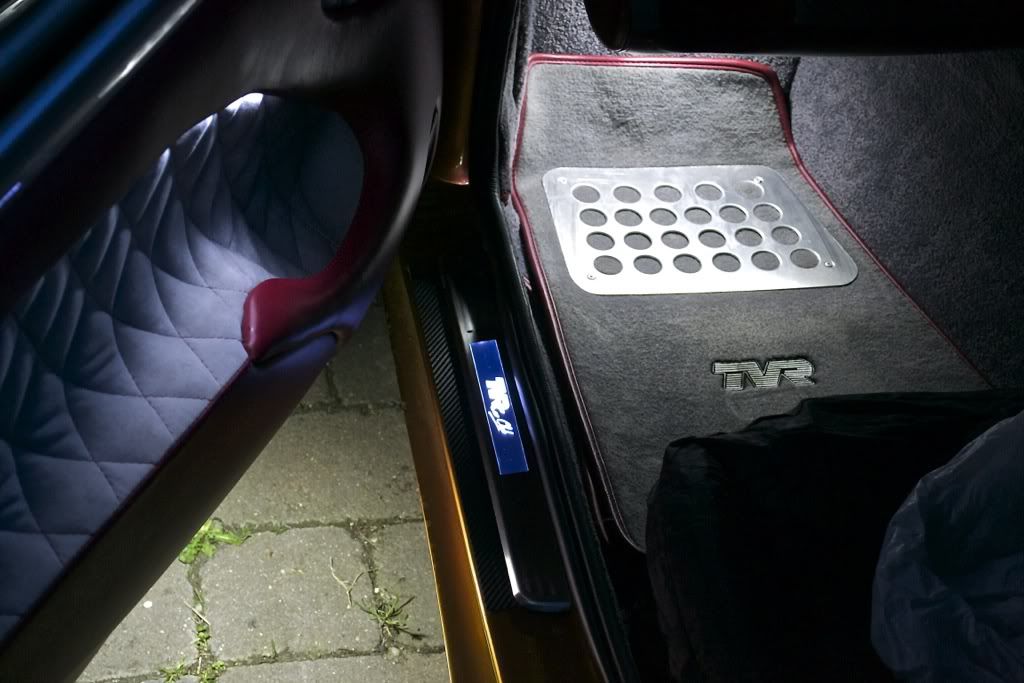

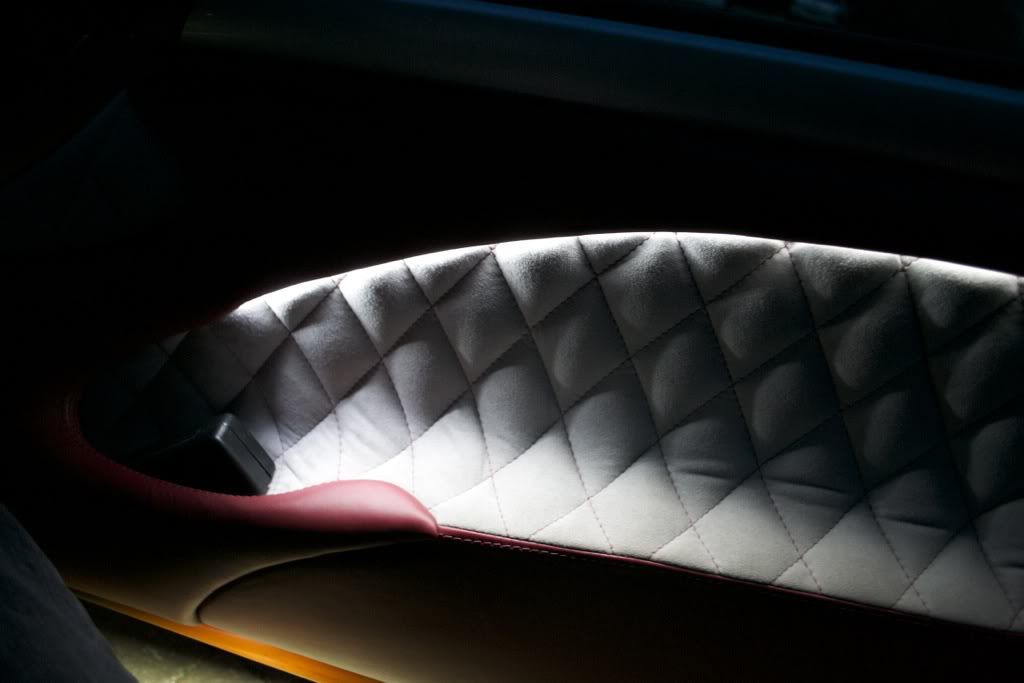

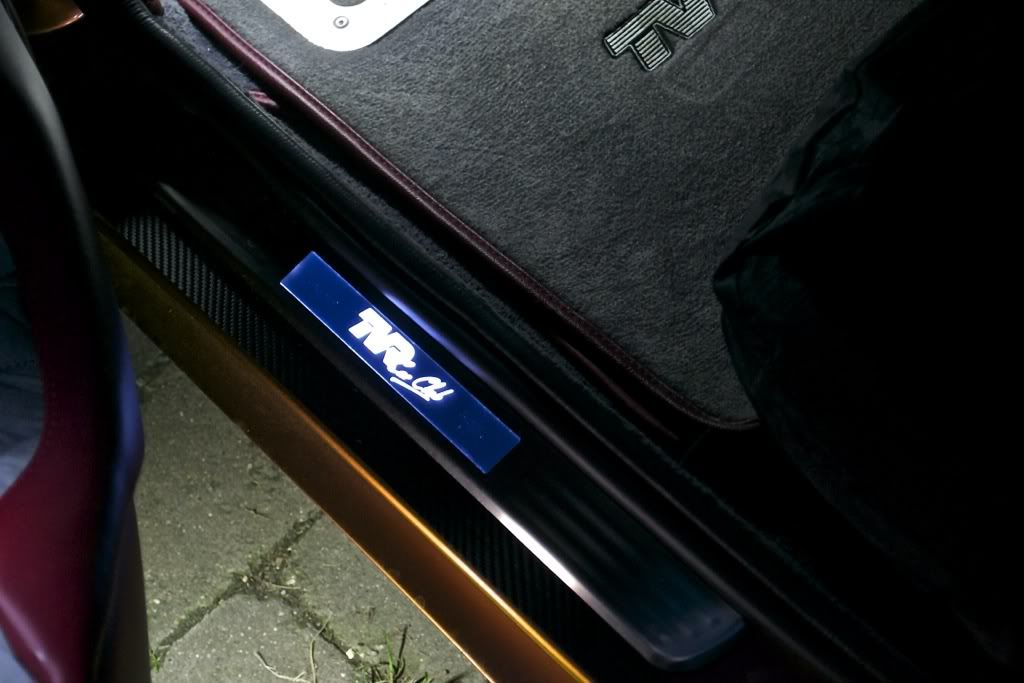

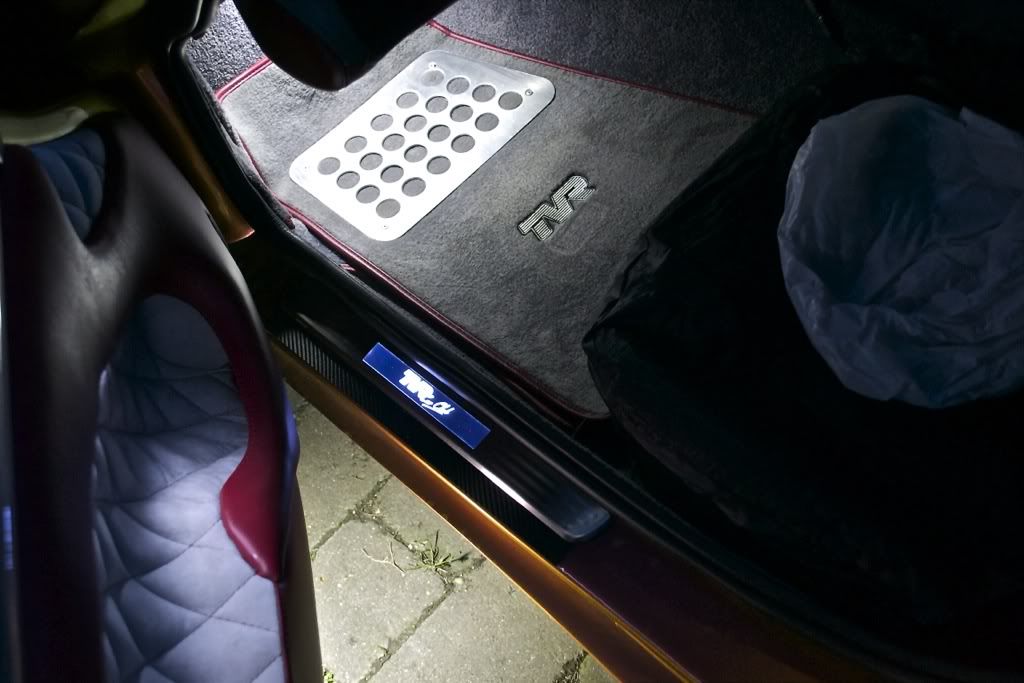

Just closing this thread down with the final pics of the project.









Cheers!

Edited by alex_gray255 on Friday 10th May 17:09
