Can anyone tell me what the three bottom bulbs are for in order as i haven't had my standard lights fitted for ages, now i can't remember how to wire them up.
Cheers Steve

[Steve57]

No im guessing and looking at a picture, is there anything in the centre? looks like a reflector.

Central would be Fog, outer stop/tail.

[Podie]

[andygtt]

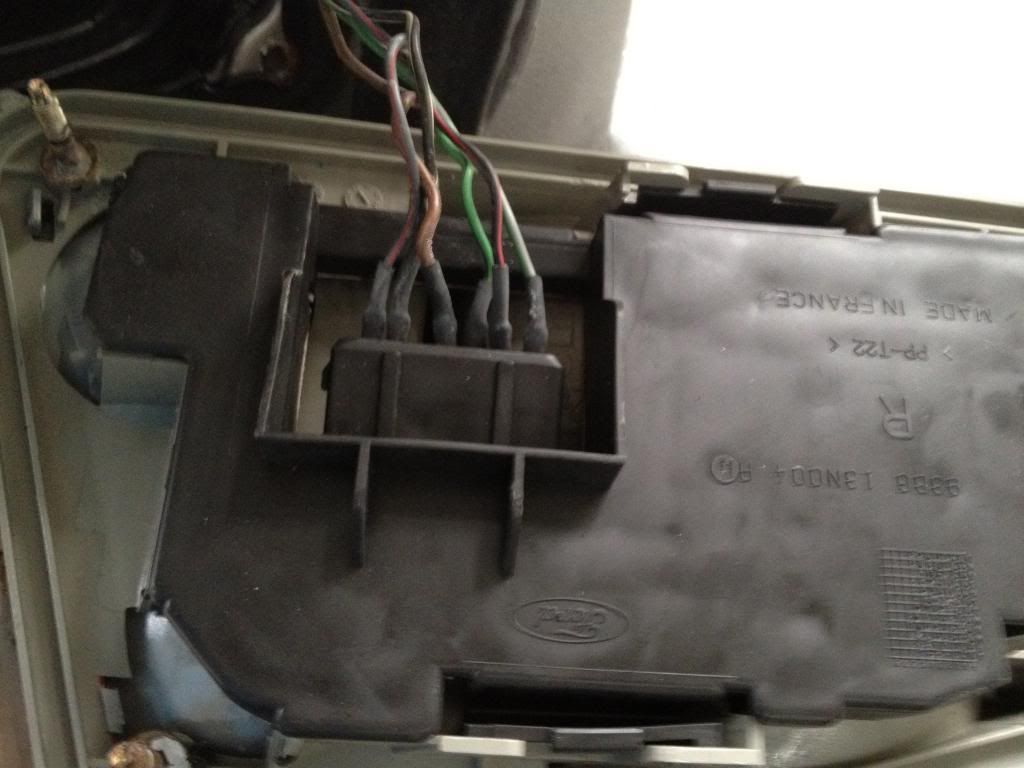

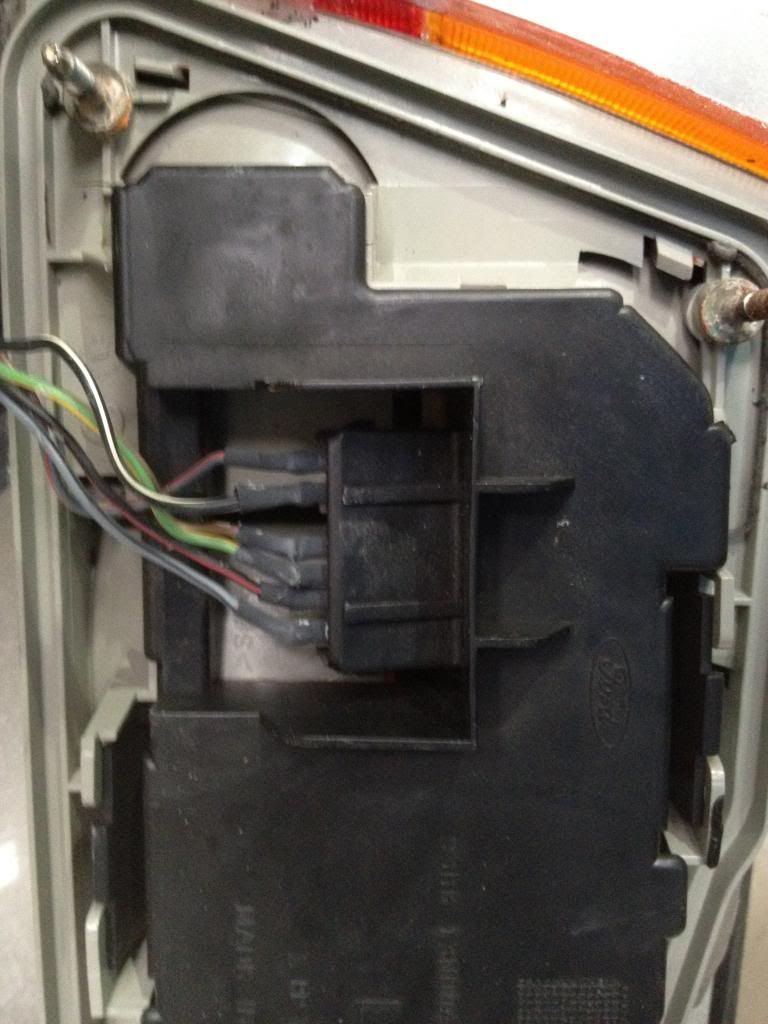

will a picture that I took to make sure I wired them up correctly on refit help?

[2.5bluenob]

Cool cheers andy.
have you got a pic of the speedo connections also?

steve

[andygtt]

sorry I found I have cut them from my loom when I tidied it up a few months back... I had the 5 speed and wired in the front sensor from scratch when I fitted one so I know its easy... going to be a matter of going through the manual and looking at the wiring to the clocks.
From memory its 3 wires, 1 ground, 1 key switched positive, 1 switching (i.e. info from the sensor)... you put the last on into the speedo input.

[kenloen]

2.5bluenob said:

Cool cheers andy.
have you got a pic of the speedo connections also?

steve

no picture but, the speedo sender shares the 12v+ with the reverse lights, should be together,

Black. 12v+
Red/black speed signal
Brown Earth
