Should this tube be connected?

[chris watton]

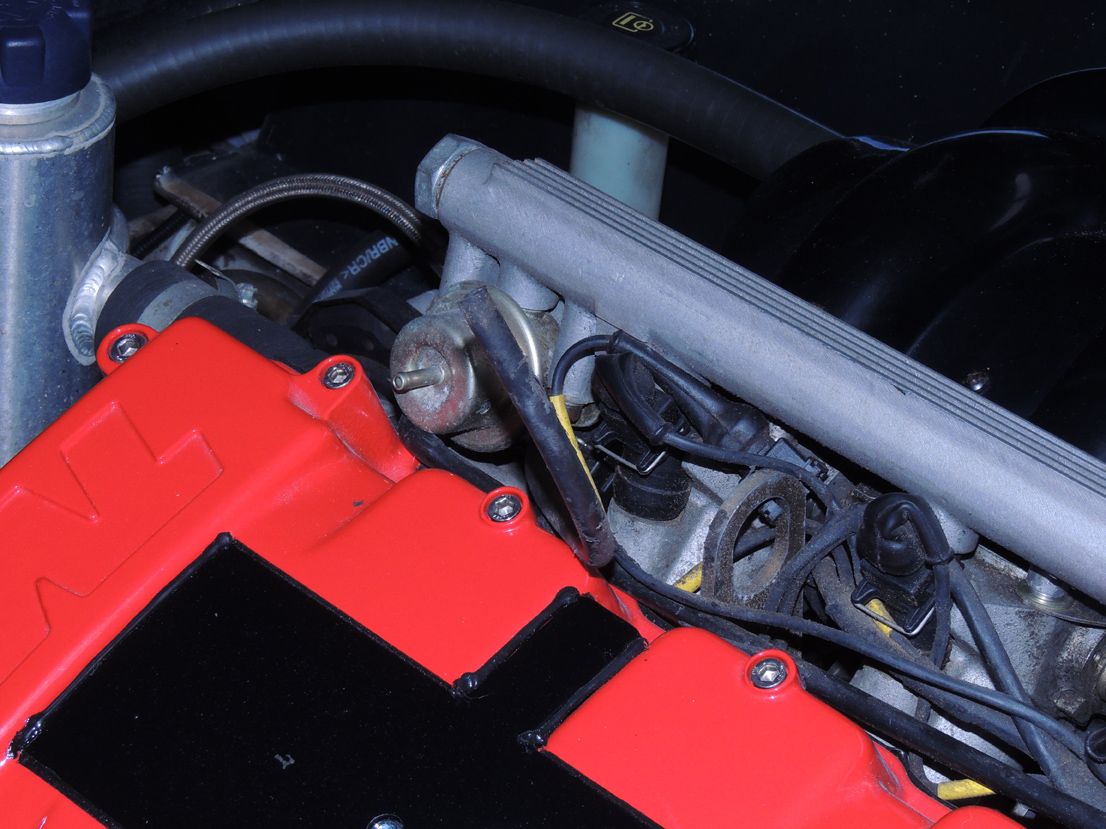

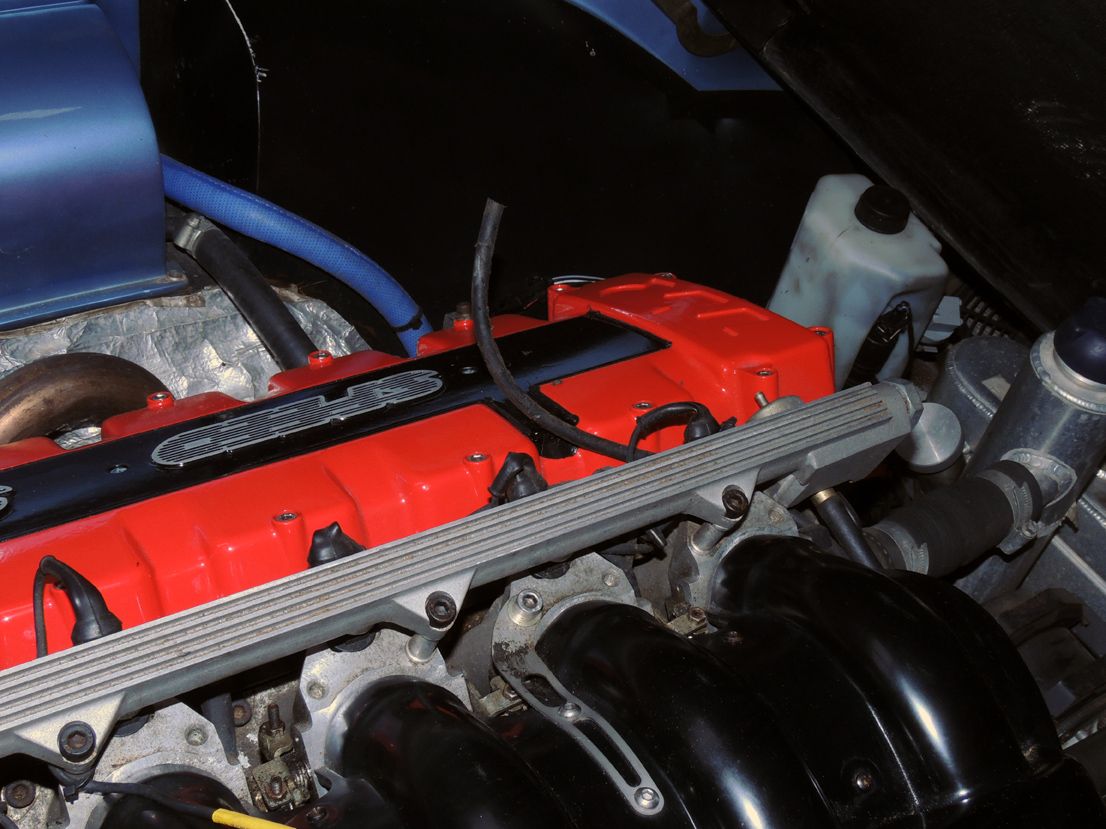

Just opened my bonnet for the first time since getting the car back, and found this stray tube! Should it be connected to that round thing at the end of the fuel rail?

[mk1fan]

Yes.

[ShiDevil]

Correct. It goes from there to your Airbox.

[T66ORA]

[chris watton]

FFS!

I have driven it like that!

What is it?

And thank you, I'll connect it back in place now....

Edited by chris watton on Thursday 12th June 19:02

[twinreal]

Fuel pressure regulator.
I guess you didn't even notice any difference.

[chris watton]

twinreal said:

Fuel pressure regulator.
I guess you didn't even notice any difference.

Cheers

Regarding feeling the difference, I don't really know, as I have driven it like Miss Daisy since getting it back...

[glow worm]

It doesn't make any difference, TVR never mapped it .... I've never had it connected since I replaced the Airbox with an ACT one.

Edited by glow worm on Thursday 12th June 21:31

[chris watton]

glow worm said:

It doesn't make any difference, TVR never mapped it .... I've never had it connected since I replaced the Airbox with an ACT one.

So it's the S6 version of an appendix!

[twinreal]

glow worm said:

It doesn't make any difference, TVR never mapped it .... I've never had it connected since I replaced the Airbox with an ACT one.

Edited by glow worm on Thursday 12th June 21:31

Is this a real full functional Speed Six engine ? Looks more like a 100% shiny and clean showroom

[Kernow67]

glow worm said:

It doesn't make any difference, TVR never mapped it .... I've never had it connected since I replaced the Airbox with an ACT one.

Isn't it a vacuum pipe to open up the regulator a bit to increase fuel pressure in the fuel rail during hard acceleration? The increased vacuum in the airbox pulls on a diaphragm in the regulator, and more fuel flows. As it has no electronic sensor and is purely mechanical, could it be included in the mapping?

[Basil Brush]

I thought it was more of a safety thing, in that if the diaghram fails in the FPR, the fuel goes into your airbox rather than being sprayed all over your engine?

[glow worm]

twinreal said:

Is this a real full functional Speed Six engine ? Looks more like a 100% shiny and clean showroom

22,000 miles and better than when TVR built it ... 4.5 Super Sport with uptodate MBE ECU Wideband Lambdas and anti-knock sensors... If I needed it , I'd have launch control and ABS on all 4 wheels ... but I drive like a pussy (cat) so what's the point
