New BMW 4 Series details confirmed

Hybrid 374hp M440i xDrive will top range, with all variants to be given a sportier setup than G20 3 Series equivalents

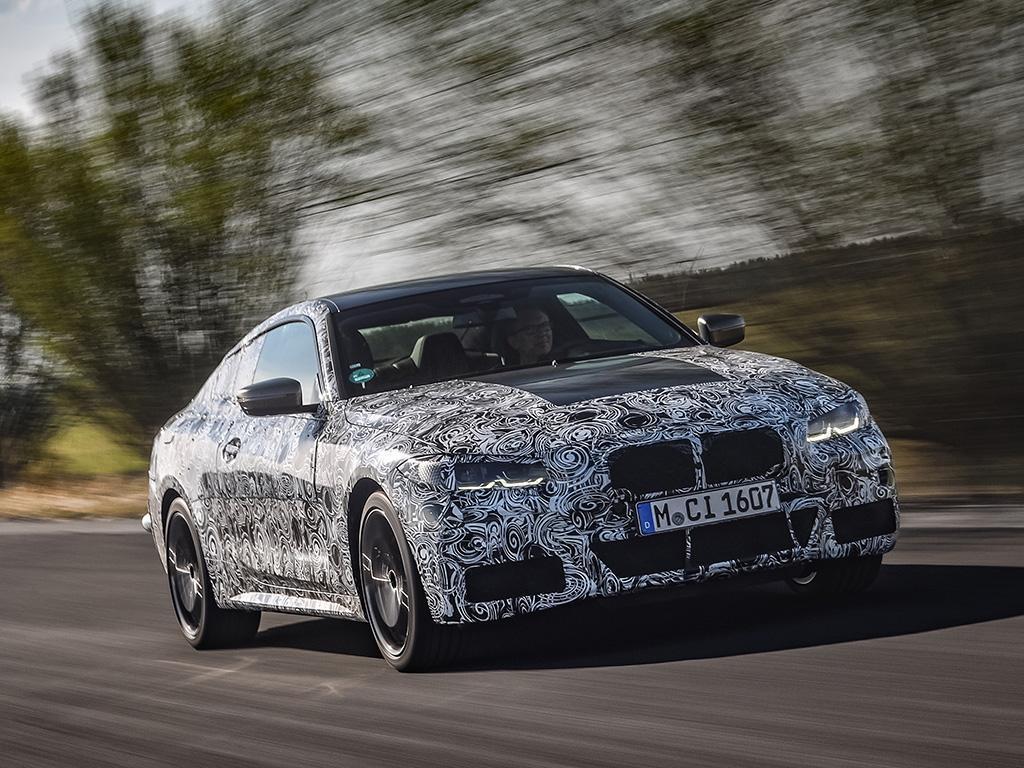

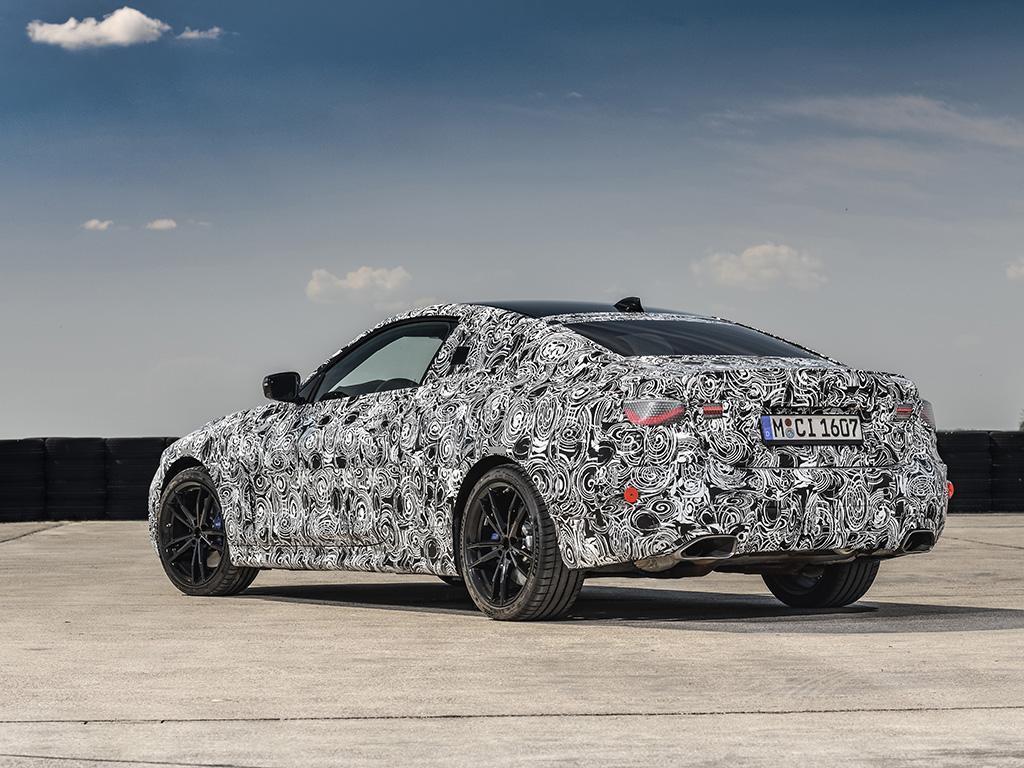

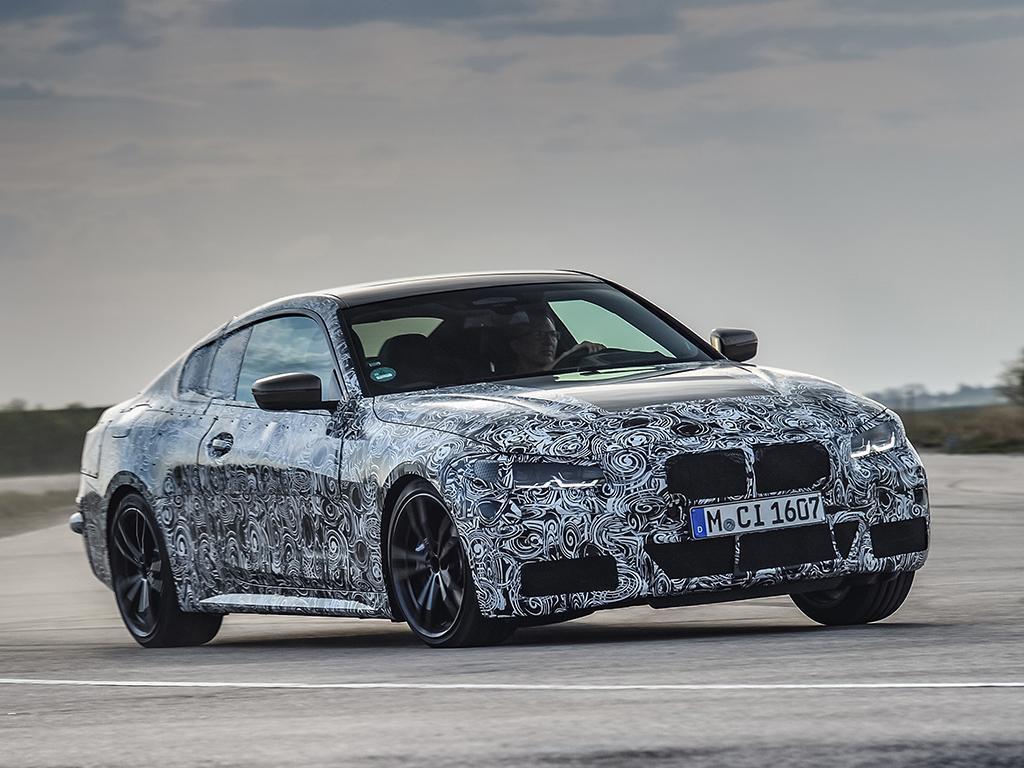

BMW is in the final stages of development stage for its all-new 4 Series, a car that the manufacturer has promised will take the dynamic merits of its G20-series platform to new heights - and be spearheaded by a 374hp M440i xDrive. Sharing much of its architecture with the four-door 3 Series, the G22 4 Series coupe will mix the advantages of a sleeker bodyshape with a dialling up of chassis performance, to provide the two-door with "a more individual composition than ever before" - which, given the talents of the 3 Series saloon, is music to our ears.

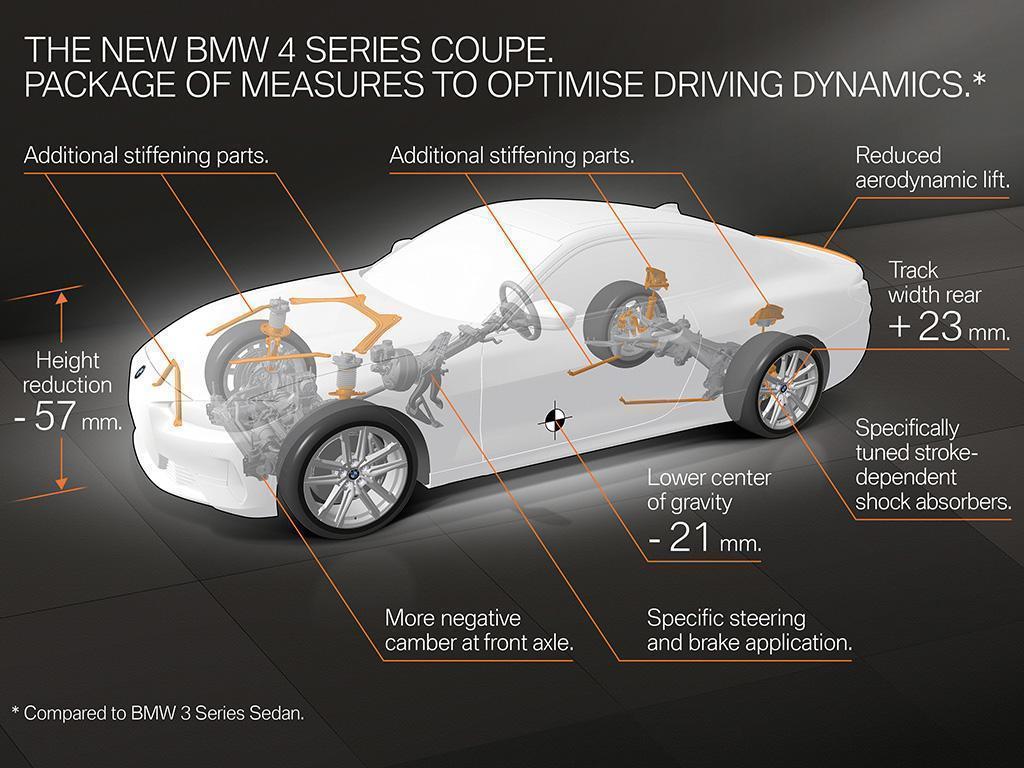

Even the humble 320d has impressed in the new range, so we need not explain the potential for a coupe version that has a 21mm lower centre of gravity and better weight distribution. BMW said that the 4 Series, which is 57mm lower than the 3 Series overall, is also slipperier through the air thanks to that coupe roofline and the addition of a lift-reducing boot spoiler.


Underneath its skin is BMW's latest aluminium and high strength steel CLAR structure, sporting double front wishbone and rear multi-line suspension but with bespoke tuning for the coupe. BMW understandably doesn't go into too much detail at this stage - it wants to keep the technical stuff secret until the actual launch - but there are no shortage of hints and clues that engineers have been tasked with increasing the sporting parameters of the base in the press release.

Dampers have been re-tuned, body-strengthening struts have been added and there's even an additional shear panel on the bulkhead to sharpen up front end handling - something that'll be enhanced by more negative front camber. At the back, the 4 Series gets bracing elements "to increase stiffness for improved straight-line stability and lateral acceleration" and a 23mm wider track for better traction. Not forgetting that the 'softer' setup beneath the 3 Series has proved to be a very good one indeed already, that all emphasises BMW's desire to establish the 4 Series not just as the sleeker version of the 3 Series - but as the driver's version, too.


Adding to that allure is the confirmation of an M440i range-topper, which will get the same 374hp/369lb ft turbocharged straight-six as the M340i, as well as its xDrive all-wheel drive hardware. The 4 Series will gain 48V mild-hybrid technology on top of that, with a 48V starter-generator and a second battery to provide boosts of 11hp under heavy load and also help trim CO2 overall, with drive channelled through BMW's eight-speed Steptronic Sport gearbox. There'll also be the usual M Sport additions, including the active torque-vectoring locking rear diff, adaptive dampers and 18-inch M light-alloy wheels.

While it's not been confirmed at this stage, we remain optimistic that BMW will produce a 430i variant with the 258hp 2.0-litre four-cylinder and rear-wheel drive, a combination that works so well in the saloon. Mixing decent punch with the merits of the 4 Series chassis into a two-wheel drive base might create an unexpected sweet spot - and potentially a way for CO2-limited company car drivers to receive something certified from the enthusiast's point of view. We remain hopeful, anyway.

That being said, the car that will cement the 4 Series' status most significantly will, of course, be the M4, a model that's expected in 2021 with 510hp. Better still, a manual gearbox is expected to remain a standard component. But that's next year. First up, we have what sounds like a very promising 4 Series to meet in the coming months. Lockdown can't lift soon enough.










Author
Discussion

David87

Original Poster:

7,033 posts

242 months

Wednesday 29th April 2020
quotequote all
Hopefully they’ll be able to use some of the unused Airbus A380s to help transport the front grilles.

scottygib553

718 posts

125 months

Wednesday 29th April 2020
quotequote all

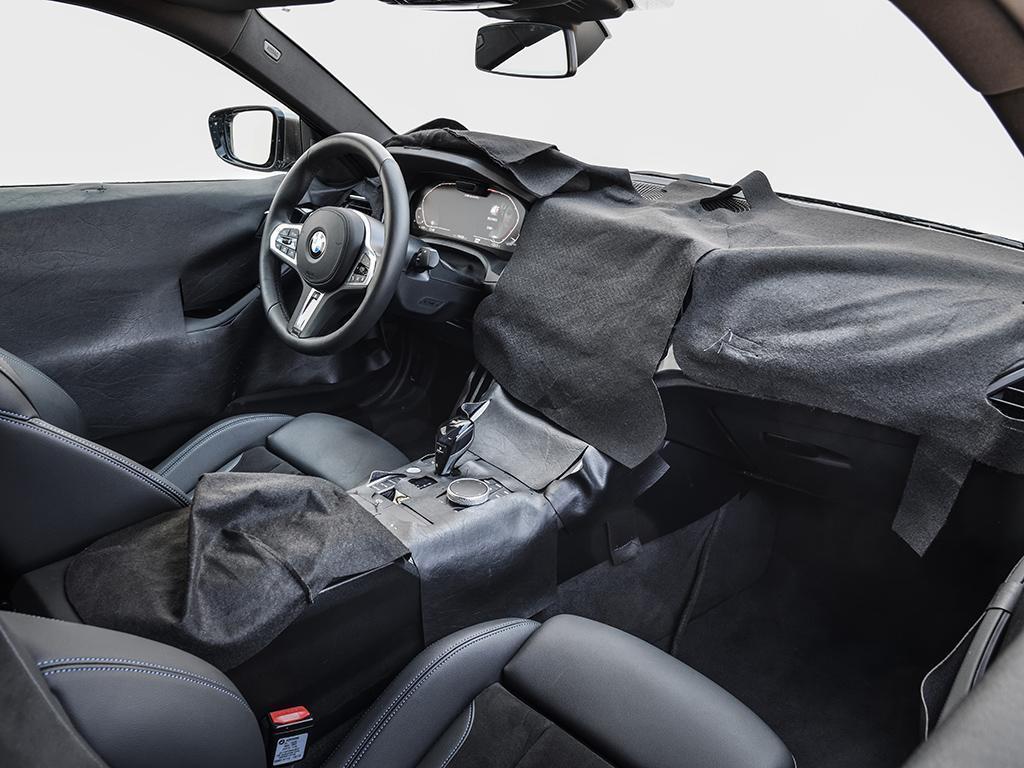

Is the cockpit expected to be that much different from the 3 series? Not why why they need to hide it.

Gitwhoismiserable

767 posts

153 months

Wednesday 29th April 2020
quotequote all
this car will have front grills

Triumph Man

9,623 posts

198 months

Wednesday 29th April 2020
quotequote all
BMW have still got a hard-on for those stupid dials then... I could almost forgive the grilles (almost) but not the weird backward dials.

daveco

4,413 posts

237 months

Wednesday 29th April 2020
quotequote all
anonymous said:
[redacted]
I would have thought it is going to be the opposite, considering how well resolved the 3 series saloon is- to my eyes anyway.



anonymous-user

84 months

Wednesday 29th April 2020
quotequote all
A near 6cm drop in height can only be a good thing!

GTEYE

2,503 posts

240 months

Wednesday 29th April 2020
quotequote all
Triumph Man said:
BMW have still got a hard-on for those stupid dials then... I could almost forgive the grilles (almost) but not the weird backward dials.
Especially when the latest versions of the old 4 Series has a fully digital dash which perfectly replicates 3 different variations of conventional dials depending on driving mode. It works brilliantly

Why with the new model couldn't at least one of the options been something like that?

I've tried a new 3 Series and really didn't gel with the instrument cluster.

GTEYE

2,503 posts

240 months

Wednesday 29th April 2020
quotequote all
anonymous said:
[redacted]
Bear in mind this was a concept car.

Once you've toned down the details, and put a number plate plinth across the grille, iId wager it'll look okay.

From the prototype, it's not going to look outlandish, if anything possibly a bit conservative.

abzmike

12,062 posts

136 months

Wednesday 29th April 2020
quotequote all
anonymous said:
[redacted]
If you're that bothered don't buy one.

VR6 Eug

832 posts

229 months

Wednesday 29th April 2020
quotequote all
The E46 M3 looked amazing and had menace & purpose about it and you could tell what it was from 100 paces.
The E90 series M3 car looked ok too but from a distance looked like a 320d with an M kit.
The 4 series dosent even come close to looking sporty to my eyes, even the M4 looked fat and enormously long and from a distance the 4 series all look the same.
This new one looks worse than the old one, almost American market only.
Here's looking forward to the new M3,hopefully she will look good 🤞🏼

MorganP104

2,605 posts

160 months

Wednesday 29th April 2020
quotequote all


Come on, someone had to do it! laugh

BFleming

3,918 posts

173 months

Wednesday 29th April 2020
quotequote all
Triumph Man said:
BMW have still got a hard-on for those stupid dials then... I could almost forgive the grilles (almost) but not the weird backward dials.
I don't hate them, but I don't overly like them either. There have been plenty of backward dials over the years... name these!



whp1983

1,396 posts

169 months

Wednesday 29th April 2020
quotequote all
Think it’ll look like a mini 8 series....... and I quite like that!

Just wish the M4 would have a more interesting engine, anyway those days have gone. No doubt it’ll be excellent.

Triumph Man

9,623 posts

198 months

Wednesday 29th April 2020
quotequote all
BFleming said:
Triumph Man said:
BMW have still got a hard-on for those stupid dials then... I could almost forgive the grilles (almost) but not the weird backward dials.
I don't hate them, but I don't overly like them either. There have been plenty of backward dials over the years... name these!


I don’t so much hate backwards dials - the Aston ones are quite nice - I hate the bmw backward dials. I don’t know why you can’t configure them in this day and age to show what you want - I.e. traditional bmw style dials. I don’t have a particular problem with digital dials, just not those...

drpep

1,761 posts

198 months

Wednesday 29th April 2020
quotequote all

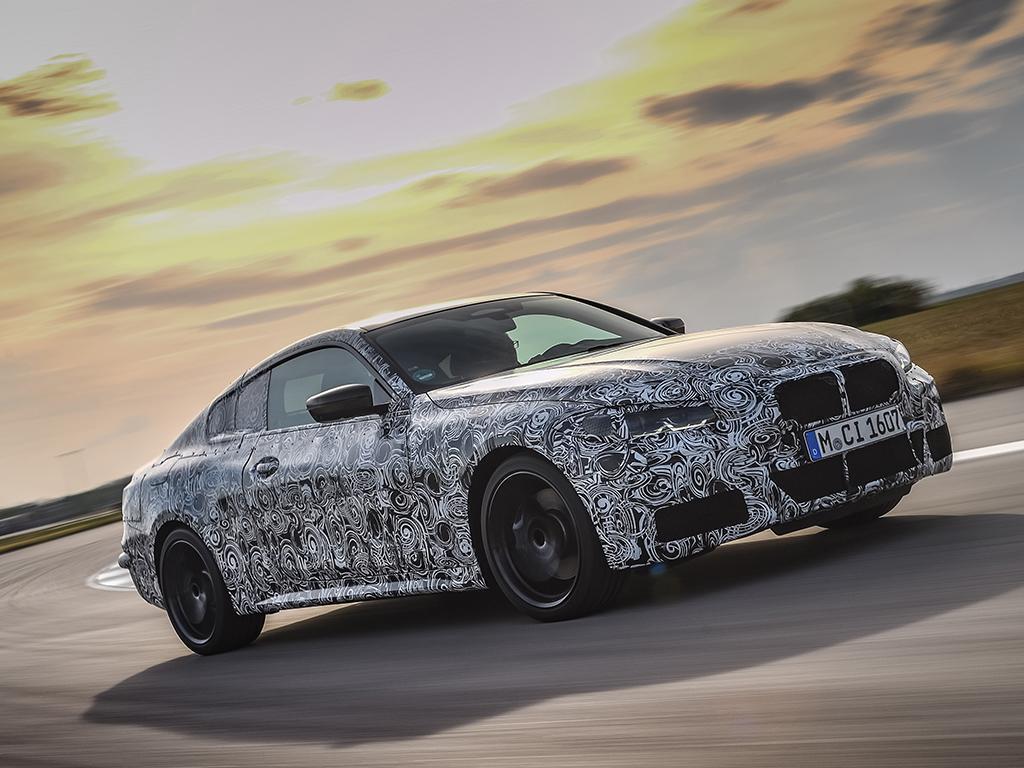

Lead image - body rooooooooooollllllllll!!!

"Hard to port, then full steam ahead; aye aye, Captain!"

Maxus

1,250 posts

211 months

Wednesday 29th April 2020
quotequote all
Re the dials - obviously a personal thing but I thought they looked wrong and preferred the classic looking dials. I then borrowed a 5 series which had them and I must say it was impressive to use. The info and sat nav on the screen worked well and the car I borrowed had HUD so speed was on that.
Let's see what that grille ends up looking like.

cerb4.5lee

44,972 posts

210 months

Wednesday 29th April 2020
quotequote all
GTEYE said:
Triumph Man said:
BMW have still got a hard-on for those stupid dials then... I could almost forgive the grilles (almost) but not the weird backward dials.
Especially when the latest versions of the old 4 Series has a fully digital dash which perfectly replicates 3 different variations of conventional dials depending on driving mode. It works brilliantly

Why with the new model couldn't at least one of the options been something like that?

I've tried a new 3 Series and really didn't gel with the instrument cluster.
I am another one that was disappointed to see those stupid dials again in this. I have always really liked the 4 series though.

Wooda80

1,743 posts

105 months

Wednesday 29th April 2020
quotequote all
BFleming said:
I don't hate them, but I don't overly like them either. There have been plenty of backward dials over the years... name these!
Peugeot 308
Fiat X1/9
Aston Vantage

g3org3y

22,505 posts

221 months

Wednesday 29th April 2020
quotequote all
Triumph Man said:
I don’t so much hate backwards dials - the Aston ones are quite nice - I hate the bmw backward dials. I don’t know why you can’t configure them in this day and age to show what you want - I.e. traditional bmw style dials. I don’t have a particular problem with digital dials, just not those...
yes

MightyBadger

4,705 posts

80 months

Wednesday 29th April 2020
quotequote all
Reminds me a bit of the s5 sport back thing.
