What do all the buttons do in my Chimera??
Discussion
Hello, I have just bought a “project” 1993 Chimera 400. I cannot figure out what some of the interior buttons and lights do. (Some I have determined.)
The buttons are:
- 3 buttons on the right hand side of the lower dashboard section (right of radio). There are 4 unknown lights above these buttons and 3 below.
- 3 small lights between the rev-counter and speedometer.
- 2 small switches and 1 large button next to the ignition key barrel.
- 1 button above drivers right knee (I have figured out this is the boot button)
- 1 button above drivers left knee
If anyone could shed some light on what any of these button/switches/lights do that would be very helpful!
Thanks!
The buttons are:
- 3 buttons on the right hand side of the lower dashboard section (right of radio). There are 4 unknown lights above these buttons and 3 below.
- 3 small lights between the rev-counter and speedometer.
- 2 small switches and 1 large button next to the ignition key barrel.
- 1 button above drivers right knee (I have figured out this is the boot button)
- 1 button above drivers left knee
If anyone could shed some light on what any of these button/switches/lights do that would be very helpful!
Thanks!
Jwelsh03 said:
Hello, I have just bought a “project” 1993 Chimera 400. I cannot figure out what some of the interior buttons and lights do. (Some I have determined.)
The buttons are:
- 3 buttons on the right hand side of the lower dashboard section (right of radio). There are 4 unknown lights above these buttons and 3 below.
- 3 small lights between the rev-counter and speedometer.
- 2 small switches and 1 large button next to the ignition key barrel.
- 1 button above drivers right knee (I have figured out this is the boot button)
- 1 button above drivers left knee
If anyone could shed some light on what any of these button/switches/lights do that would be very helpful!
Thanks!
- 3 buttons on the right hand side of the lower dashboard section (right of radio). There are 4 unknown lights above these buttons and 3 below. The buttons are:
- 3 buttons on the right hand side of the lower dashboard section (right of radio). There are 4 unknown lights above these buttons and 3 below.
- 3 small lights between the rev-counter and speedometer.
- 2 small switches and 1 large button next to the ignition key barrel.
- 1 button above drivers right knee (I have figured out this is the boot button)
- 1 button above drivers left knee
If anyone could shed some light on what any of these button/switches/lights do that would be very helpful!
Thanks!
Fog ligths, main beam and lights.
For the 4 lights, you should have the ECU error, the parking light, brake fluids, inertia switch.
For the 3 below, fog light, main beam, lights.

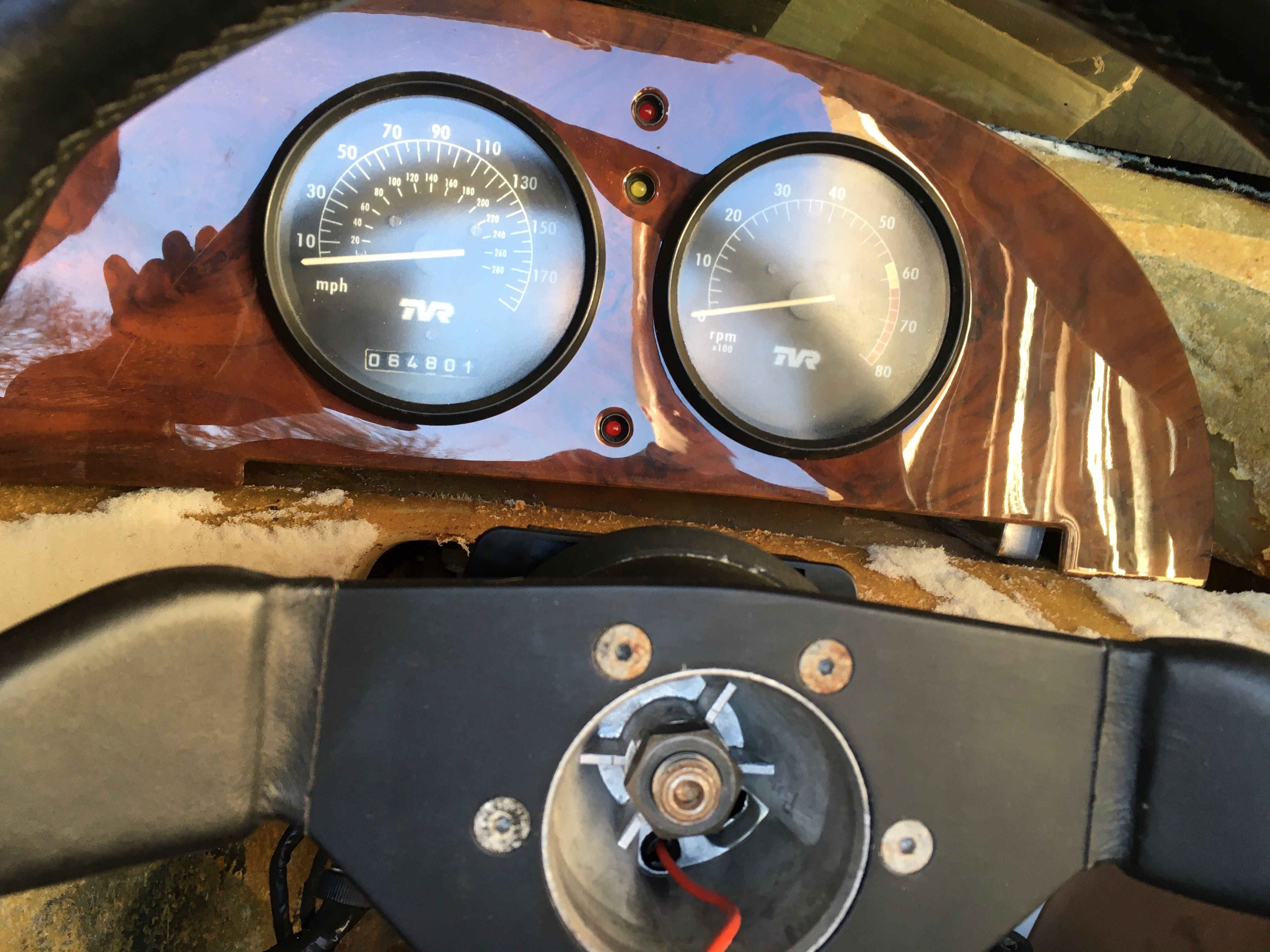

- 3 small lights between the rev-counter and speedometer.
It depends, if the top one is green, this are the indicators (in 96 you also have it near the 3 buttons mentioned above).
Then oil pressure could be one of them, or in the rev counter.
You could have the alarm too and the alternator (or in the rev counter).
This is really depending of the year.
- 2 small switches and 1 large button next to the ignition key barrel.
I don't see, a picture would be nice. Some have added a button to force the fans, this could be the case here.
- 1 button above drivers right knee (I have figured out this is the boot button)
correct
- 1 button above drivers left knee
Dashboard illumination (I know someone who dismantle the whole dashboard before following the wires and understanding that it was not illuminated because he accidently touched this button).
