Dimming an LED bulb
Author
Discussion

gotoPzero

Original Poster:

19,158 posts

205 months

Sunday 24th November 2024
quotequote all
At my front door I have an light with an LED bulb in it.

Its controlled by a single switch.

I have taken the switch off and behind is L and N.

I have a Fibaro dimmer module so I have wired this up as usual but the light just remains on all the time, no matter which was I turn the switch.

The dimmer module is doing nothing in the app, if I try and turn it on or off it does seem to respond in the app but the light just stays constantly on and dimming functions do nothing.

I have had a look online and it seems the bulb might need a bypass (think its just a big resistor?).

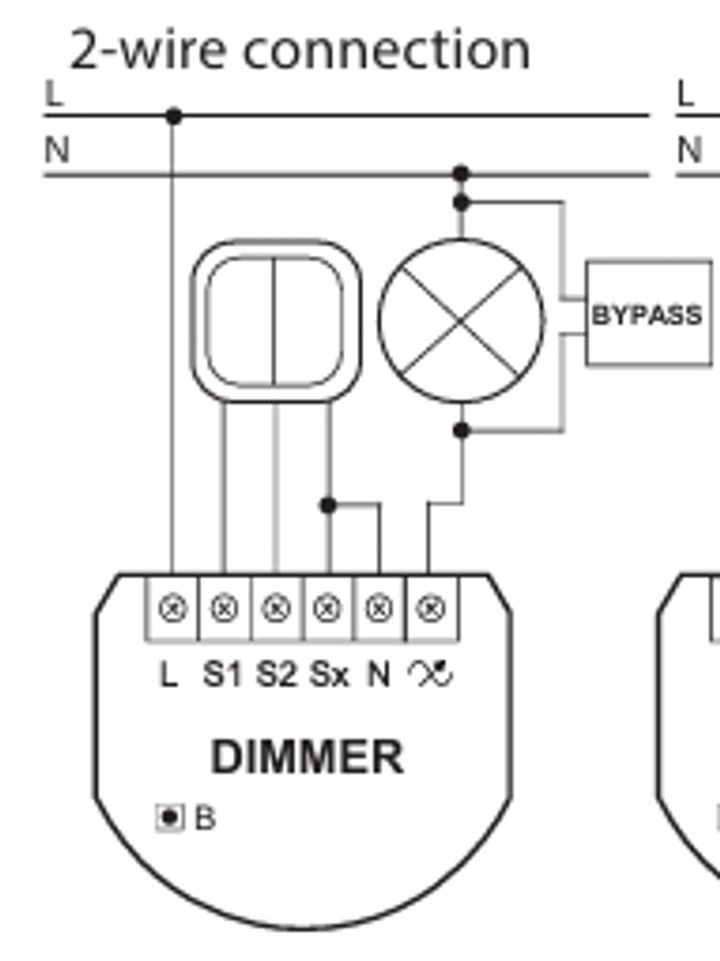

Fibaro make one called a bypass. The only issue is, in the wiring diagram it shows the bypass between the bulb.



The problem is the light fitting is a)4m+ above ground level and b) looks like if I touch it then I might well bring down a load of plaster / do damage to the ceiling. This I defo do not want to do.

So my question is, after all this ... can I put the load simply in series on the neutral at the switch or will this do nothing? I think it will do nothing..




No ideas for a name

2,701 posts

102 months

Sunday 24th November 2024
quotequote all
gotoPzero said:
Its controlled by a single switch.

I have taken the switch off and behind is L and N.
It is most likely not a L+N, more likely a L in and switched live back out to the lamp.

gotoPzero

Original Poster:

19,158 posts

205 months

Sunday 24th November 2024
quotequote all
So am I wiring the dimmer wrong? (I am not great at electrical stuff)

gotoPzero

Original Poster:

19,158 posts

205 months

Sunday 24th November 2024
quotequote all
My current wire set up is

Brown to L
Blue to squiggle with an arrow
s1 to s1 on switch
Sx to com
A link wire between N and Sx


toasty

8,030 posts

236 months

Sunday 24th November 2024
quotequote all
Have you checked the bulb itself is dimmable, not all are afaik.

21TonyK

12,475 posts

225 months

Sunday 24th November 2024
quotequote all
toasty said:
Have you checked the bulb itself is dimmable, not all are afaik.
This first.

gotoPzero

Original Poster:

19,158 posts

205 months

Sunday 24th November 2024
quotequote all
I think it is yes its a next bulb looking on their website it says its dimmable. I will have to get the ladders out and have a proper look I think

gotoPzero

Original Poster:

19,158 posts

205 months

Sunday 24th November 2024
quotequote all
21TonyK said:
toasty said:
Have you checked the bulb itself is dimmable, not all are afaik.
This first.
Well s***.


gotoPzero

Original Poster:

19,158 posts

205 months

Sunday 24th November 2024
quotequote all
To save any faffing about I have just ordered a Hue G125. Easier and quicker. I will use the dimmer somewhere else. Cheers guys.
