Any Monarch Midi techs in the house - lost ball...

[eliot]

My Monarch Midi water softener brine tank was filling with water and not flushing - so i took it to bits to give it a clean, but in the course of blowing it out a rubber ball flew out and i'm not sure where it came from.
I think the actual fault was a clogged screen on the drain pipe - but cant put it back together until i work out where the rubber ball goes.

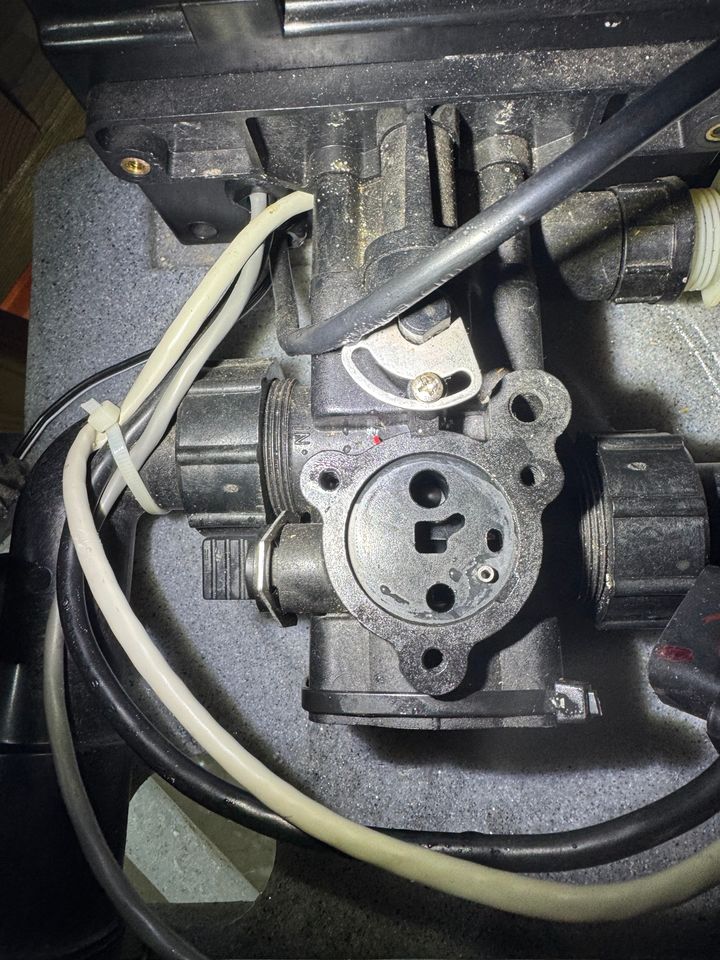

I removed the screen and blew air down the top:

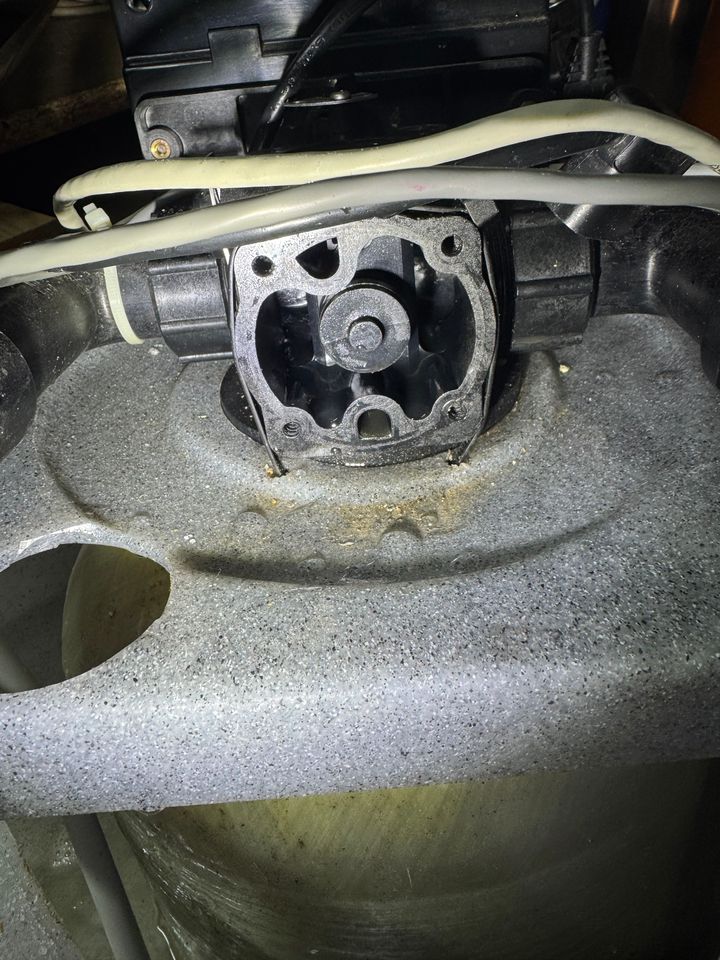

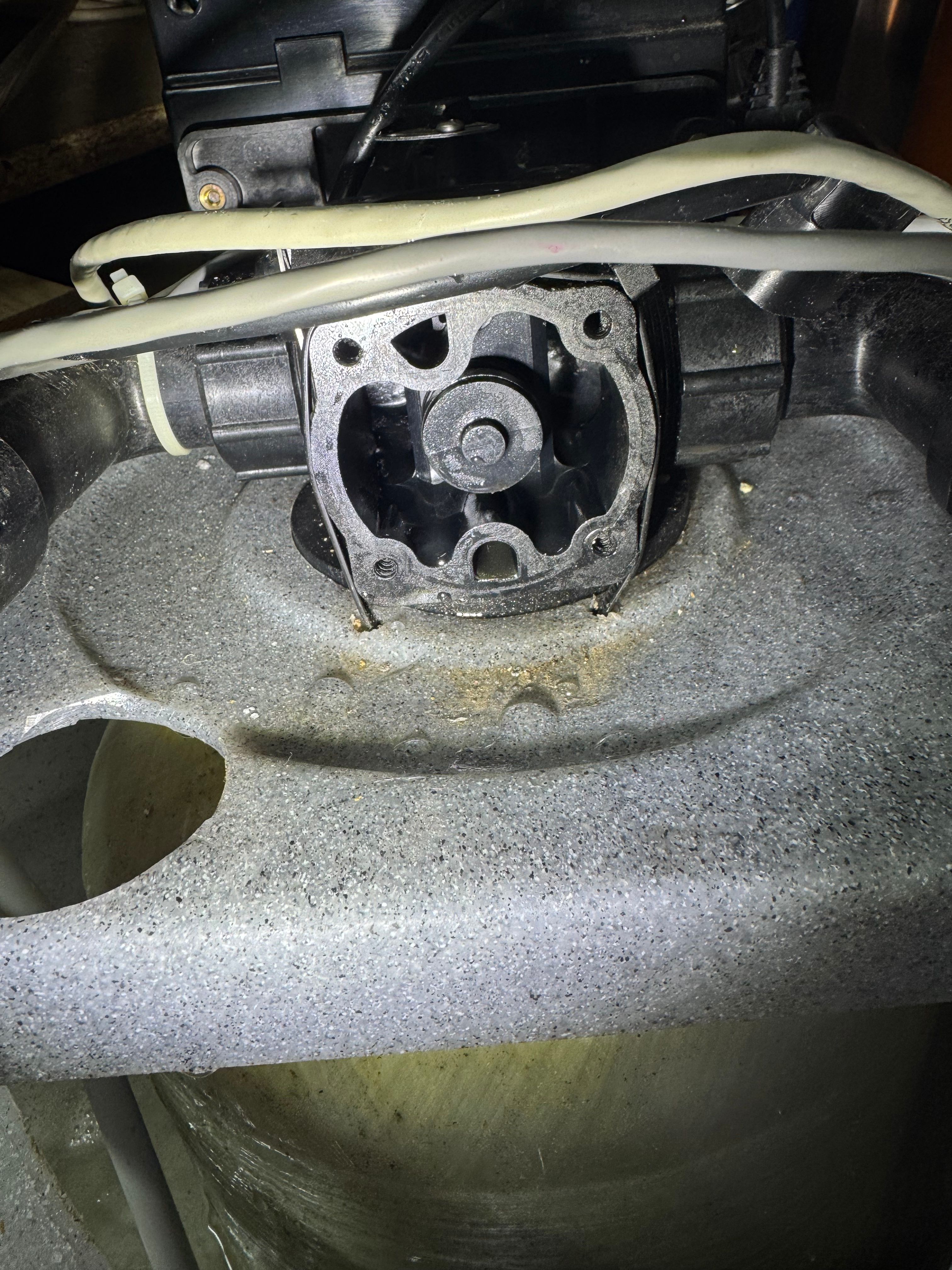

this is the rear:

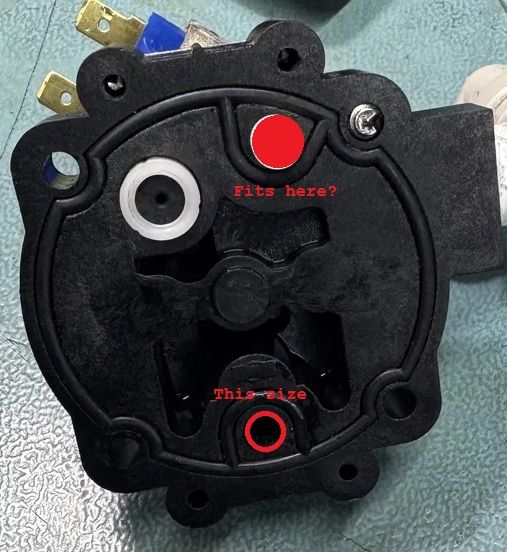

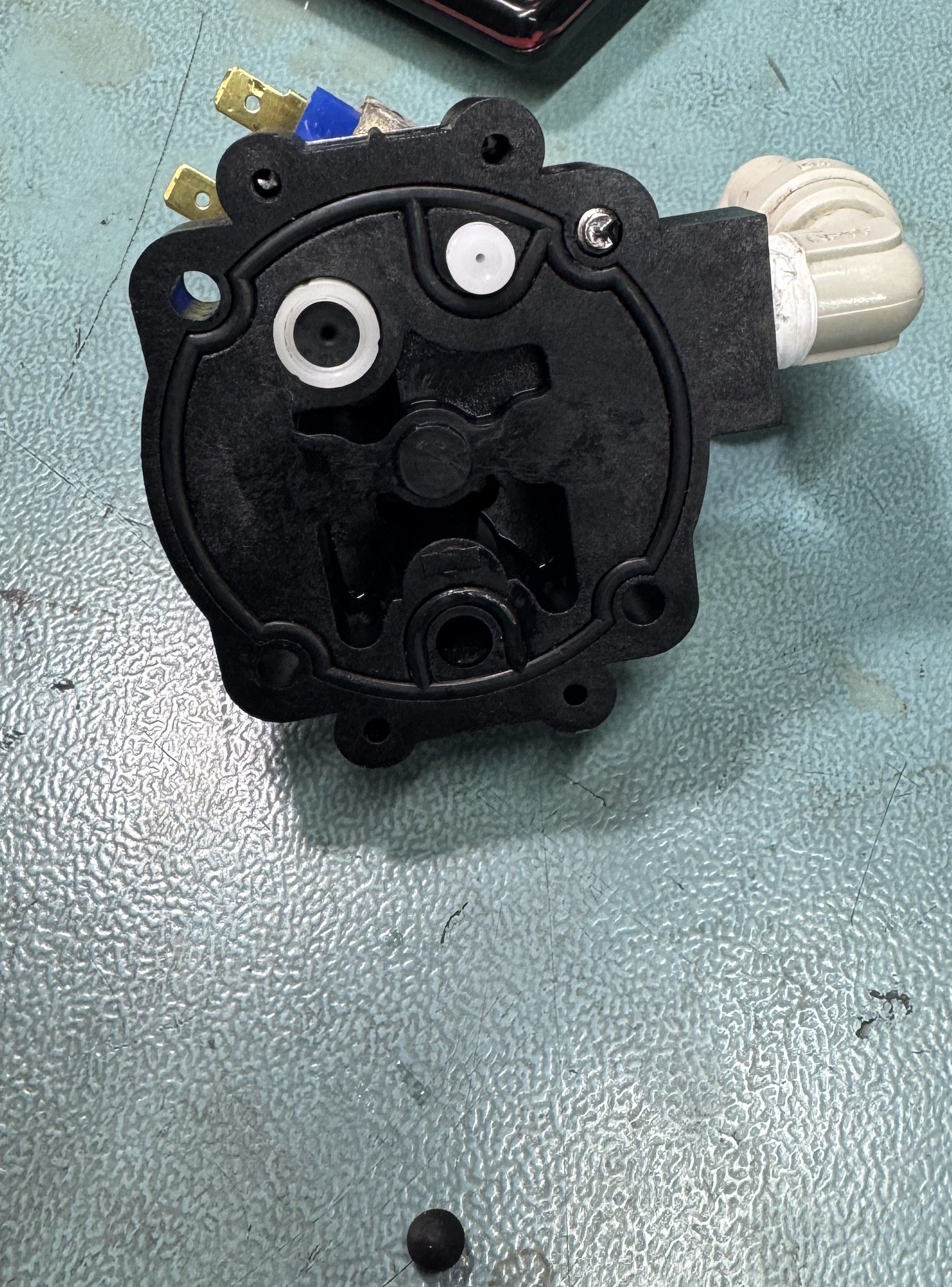

This is the fill solenoid i think and the rubber ball - it seems to fit the hole perfectly..

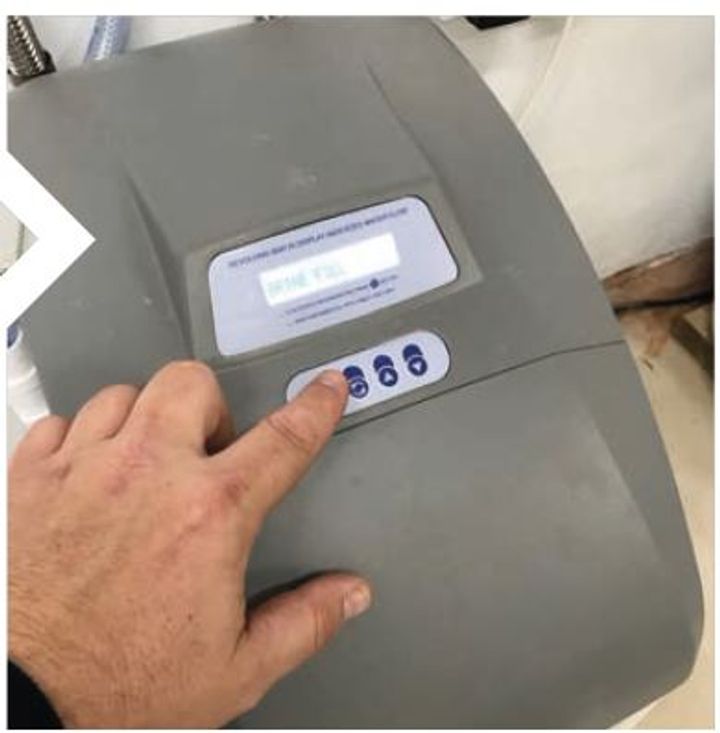

front for ref

[S6PNJ]

Sorry I can't help with your 'lost ball' but by any chance do you know how to get into the engineers menu? I used to know but have forgotten. Mine's a slightly different panel but same (within reason) 3 buttons.

[eliot]

Try:
Push the scroll button and hold it for 10 sec until the display shows: system check.


To close the thread - I emailed Monarch and they sent over the very comprehensive service manual with exploded diagrams etc - great customer service, well done Monarch.

[S6PNJ]

Top suggestion - many thanks for the info!
