special hose tool
Author
Discussion

Triumph Man

Original Poster:

9,202 posts

186 months

Thursday
quotequote all

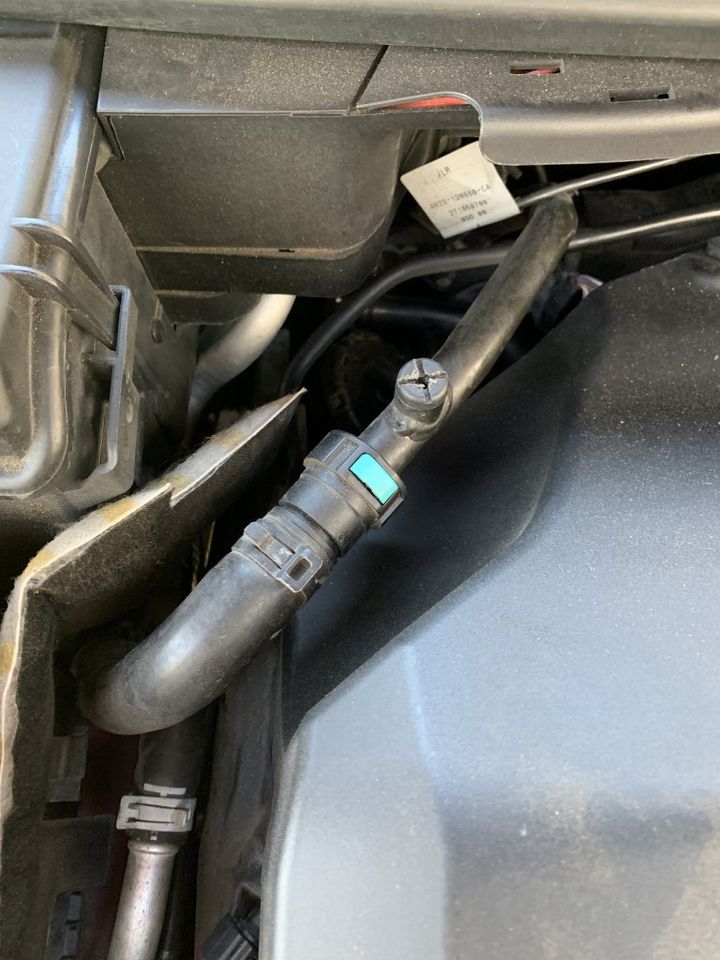

I've recently struggled with getting these clips undone (generic image shown [green clip] - not sure if they've got a name - that maybe also useful to know), and I was wondering if there's a specific tool for these? Pliers operate at the wrong geometry (if that makes sense) my fingers are too fat, and side cutters don't sit onto them.

I ended up destroying the hose clip in my case and replacing (I had a new pipe anyway)

Thank you!


EddieL85

28 posts

115 months

Thursday
quotequote all
IIRC it's a pair of these or similar you want, see also fuel line pliers

clicky

Pica-Pica

15,482 posts

102 months

Thursday
quotequote all
Quick connect. John Guest, maybe?

Triumph Man

Original Poster:

9,202 posts

186 months

Thursday
quotequote all
Thanks both, looks ideal

paul_c123

1,273 posts

11 months

Thursday
quotequote all

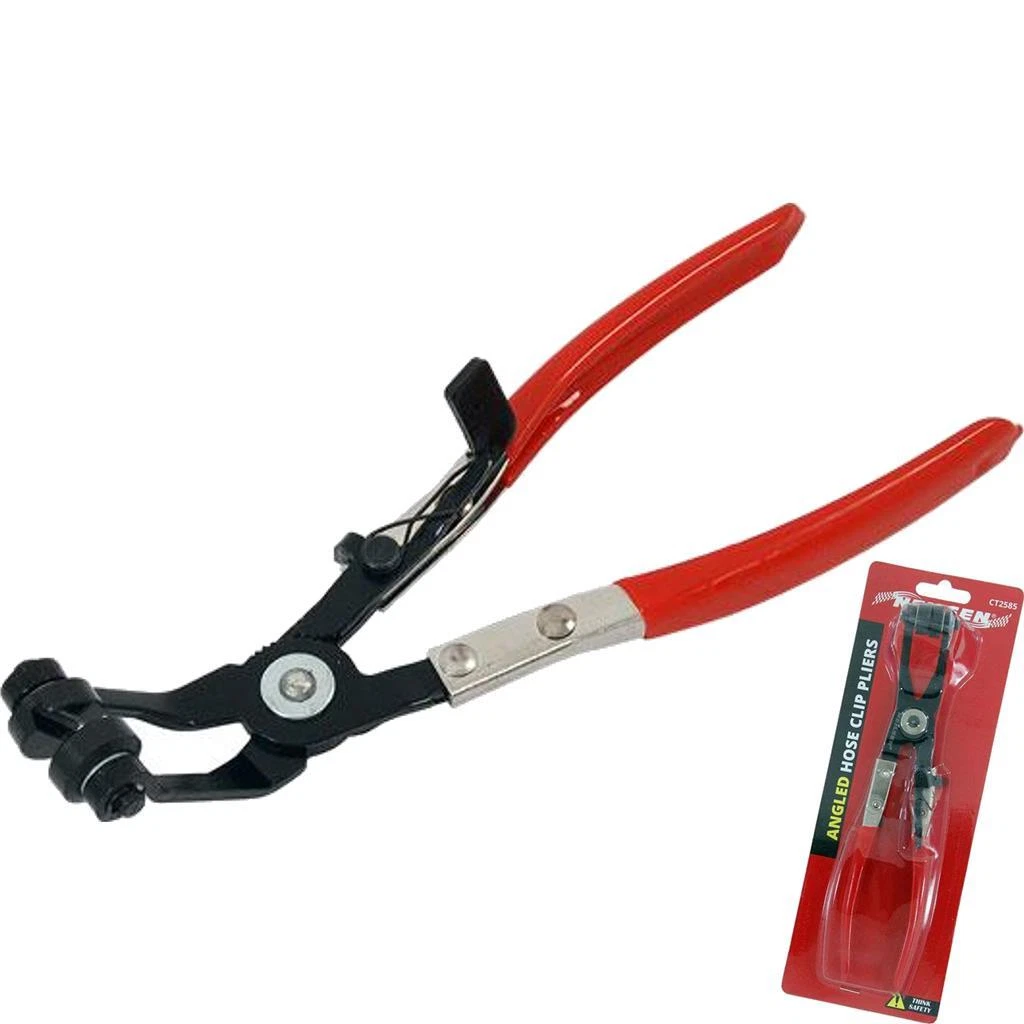

Firstly, in your original picture, there's actually 2 connections and a short adapter between. On the left is a "constant force" spring clip and on the right is a push fit fuel line style connector (push the 2 squares in). But for the metal clamp, I have a set of these:



(You can get straight ones as well as angled), eg: https://www.ebay.co.uk/itm/235243139029

90% of the time they are a complete godsend and are night and day compared to struggling with something else. 10% of the time, mole grips do the same or better.


droopsnoot

13,755 posts

260 months

Thursday
quotequote all
I bought this set: https://www.ebay.co.uk/itm/265214345447

I've fought with these things for ages, with pliers, plumbers pliers, all sorts, nothing is ever quite the right shape and when they slip, the clip always turns to be slightly less accessible. With that set of pliers, I recently had to do a job on the cooling system that involved removing lots of similar clips (my car isn't consistent, there are some like that, some with parallel "ears" and so on) and I didn't have a single problem. I expect the proper ones listed in other posts are better, but I don't do this all that often. I did use several of the tools in the kit, not just one. The one with a long cable came in handy for the ones that were difficult to access.

Triumph Man

Original Poster:

9,202 posts

186 months

paul_c123 said:
Firstly, in your original picture, there's actually 2 connections and a short adapter between. On the left is a "constant force" spring clip and on the right is a push fit fuel line style connector (push the 2 squares in). But for the metal clamp, I have a set of these:



(You can get straight ones as well as angled), eg: https://www.ebay.co.uk/itm/235243139029

90% of the time they are a complete godsend and are night and day compared to struggling with something else. 10% of the time, mole grips do the same or better.
Yeah I've got the metal clamp tool - I certainly agree they are a godsend - I'll have to get a pair of the angled ones to go with my straight ones! I also have a remote one (not quite as useful - although it might be because it was a cheap st one). The one I don't really have anything sensible for (without risk of breaking the clip is the push fit connector (as my original post I indicate the clip with the green on it). Especially awkward when they are about half way down in the depths of the engine bay - not easy to access from above and obscured by the chassis from beneath!

Triumph Man

Original Poster:

9,202 posts

186 months

droopsnoot said:
I bought this set: https://www.ebay.co.uk/itm/265214345447

I've fought with these things for ages, with pliers, plumbers pliers, all sorts, nothing is ever quite the right shape and when they slip, the clip always turns to be slightly less accessible. With that set of pliers, I recently had to do a job on the cooling system that involved removing lots of similar clips (my car isn't consistent, there are some like that, some with parallel "ears" and so on) and I didn't have a single problem. I expect the proper ones listed in other posts are better, but I don't do this all that often. I did use several of the tools in the kit, not just one. The one with a long cable came in handy for the ones that were difficult to access.
That looks a good set - annoyingly I've got about 75% of it through buying individually haha!
