Old boiler flue - likelihood of asbestos?
Old boiler flue - likelihood of asbestos?
Author
Discussion

Previous

Original Poster:

1,574 posts

172 months

Yesterday (14:10)
quotequote all
Chaps and chapessess, I'm kindly looking for some advice.

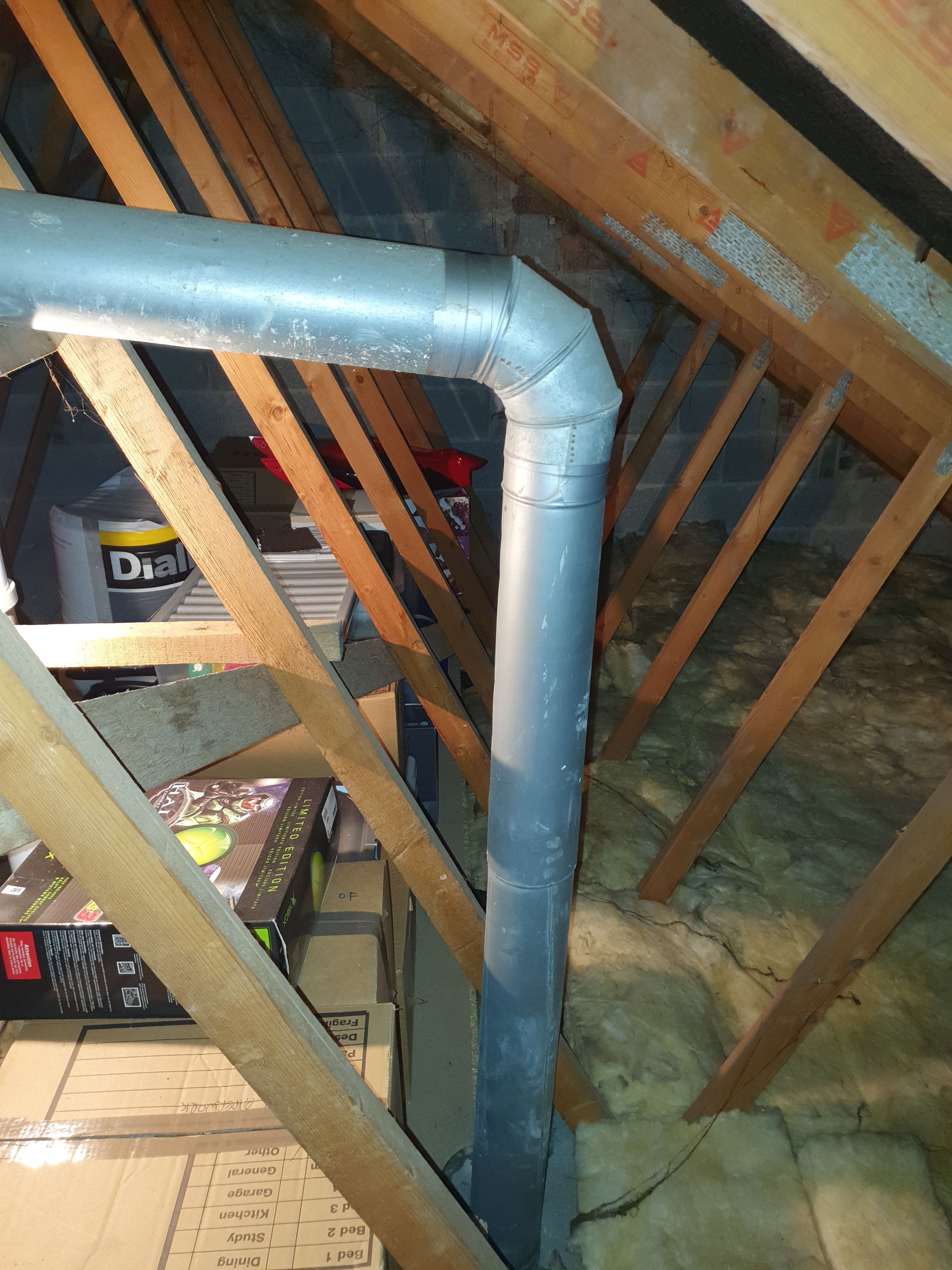

In our late 70s house we have an old, redundant boiler flue in the loft. I'm looking for advice from anyone who recognises the materials to understand if it's likely to contain asbestos insulation or lagging.

Apparently the house used to have a floor to ceiling boiler when new, in the kitchen. When we bought the house this had been long since replaced with a combi boiler relocated to an upstairs airing cupboard.

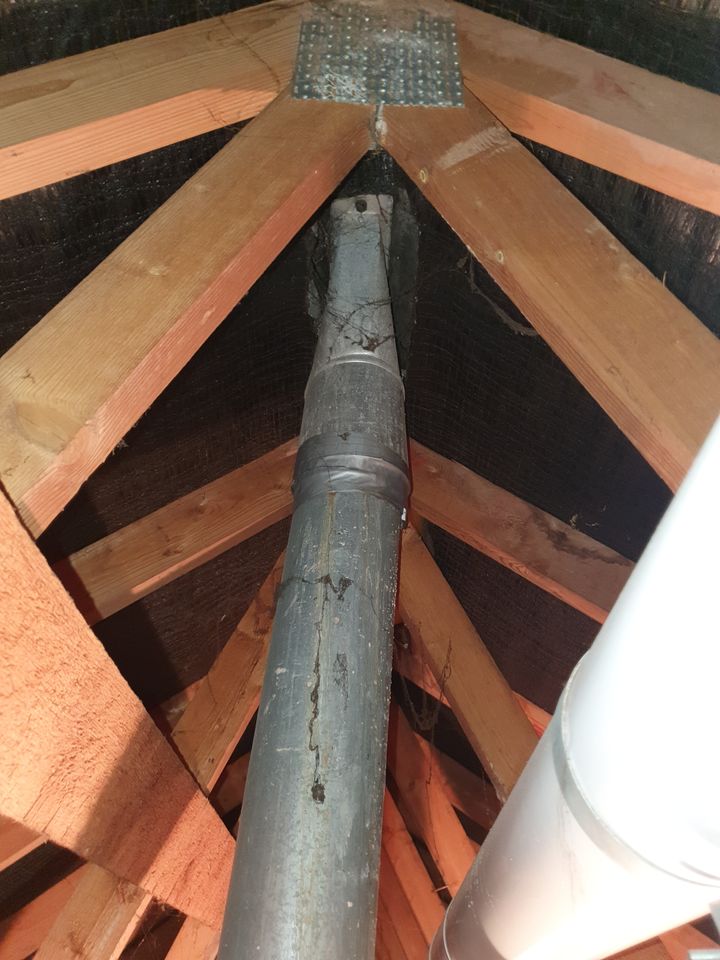

The old flue however is still present in the loft, and runs into a void on the first floor. I'm looking to remove it for 2 reasons 1) to reuse the ridge vent for a bathroom extractor (possibly a bad idea...) and 2) to remove the pipe from and repurpose the void, opening it up to our sons room and turn it into a bookcase.

Hopefully someone recognises the flue type?!

Many thanks!

P.






Edited by Previous on Sunday 19th October 14:20

119

14,598 posts

54 months

Yesterday (15:36)
quotequote all
Looks like the old metal type to me.

Tap it with your fingernail and see if it sounds metallic.

Vsix and Vtec

1,094 posts

36 months

Yesterday (15:41)
quotequote all
I agree with the above, this looks just to be a simple galvanised metal flue, I'd probably still suit up with a mask though for removal, simply because of the decades of crap building up inside. I do enjoy the gaffer taped section, that's a lot of faith in silver tape.

Inbox

633 posts

4 months

Yesterday (16:41)
quotequote all
I would guess that is double wall internally with insulation between the tubes, definitely need to suit up to remove or get a pro in. Doesn't seem to easy to get a sample for testing.

I would also either clear out the loft or put up sheeting to contain any insulation material or the internal rubbish in the flue, removing that lot will make a right old mess.

TA14

13,372 posts

276 months

Yesterday (20:37)
quotequote all
Inbox said:
I would guess that is double wall internally with insulation between the tubes, definitely need to suit up to remove or get a pro in. Doesn't seem to easy to get a sample for testing.
I was wondering about that and a mask is in order however either the first floor end or undoing the tape and gently separating the joint should allow you to do an investigation.

How difficult would it be to separate the other joints? Once you've undone the gaffer tape and sealed the ends, could you take the whole lot outside in one piece?

Previous

Original Poster:

1,574 posts

172 months

Yesterday (21:26)
quotequote all
Thanks!

Yes, it's metallic - I'm guessing twin wall. It's the first one I've seen (but assume they were pretty common) hence being ultra cautious!

The void isn't currently accessible in the house, at least not without making a mess and putting big holes in walls!

So, suit up... gently prise apart and go from there...

Having been up there messing around with insulation today I'm tempted to leave the whole thing until the spring!

hidetheelephants

31,518 posts

211 months

Yesterday (21:32)
quotequote all
It's a tiny diameter and the exit via the ridge seems odd, are you sure it was a boiler flue?

forest07

683 posts

223 months

Yesterday (21:36)
quotequote all
It looks like a gas fire flue probably drops on to pre cast flue.
The pipe is twin wall and no insulation in it and can be left out for the local scrap man. You may want to replace the ridge vent with a standard roof tile.

cliffords

2,933 posts

41 months

Yesterday (22:52)
quotequote all
That pipe loos like the one at my house . It's the vent for the soil stack at my house.
