Changing Halogen to LED downlights
Changing Halogen to LED downlights
Author
Discussion

Berocca

Original Poster:

28 posts

156 months

Thursday
quotequote all

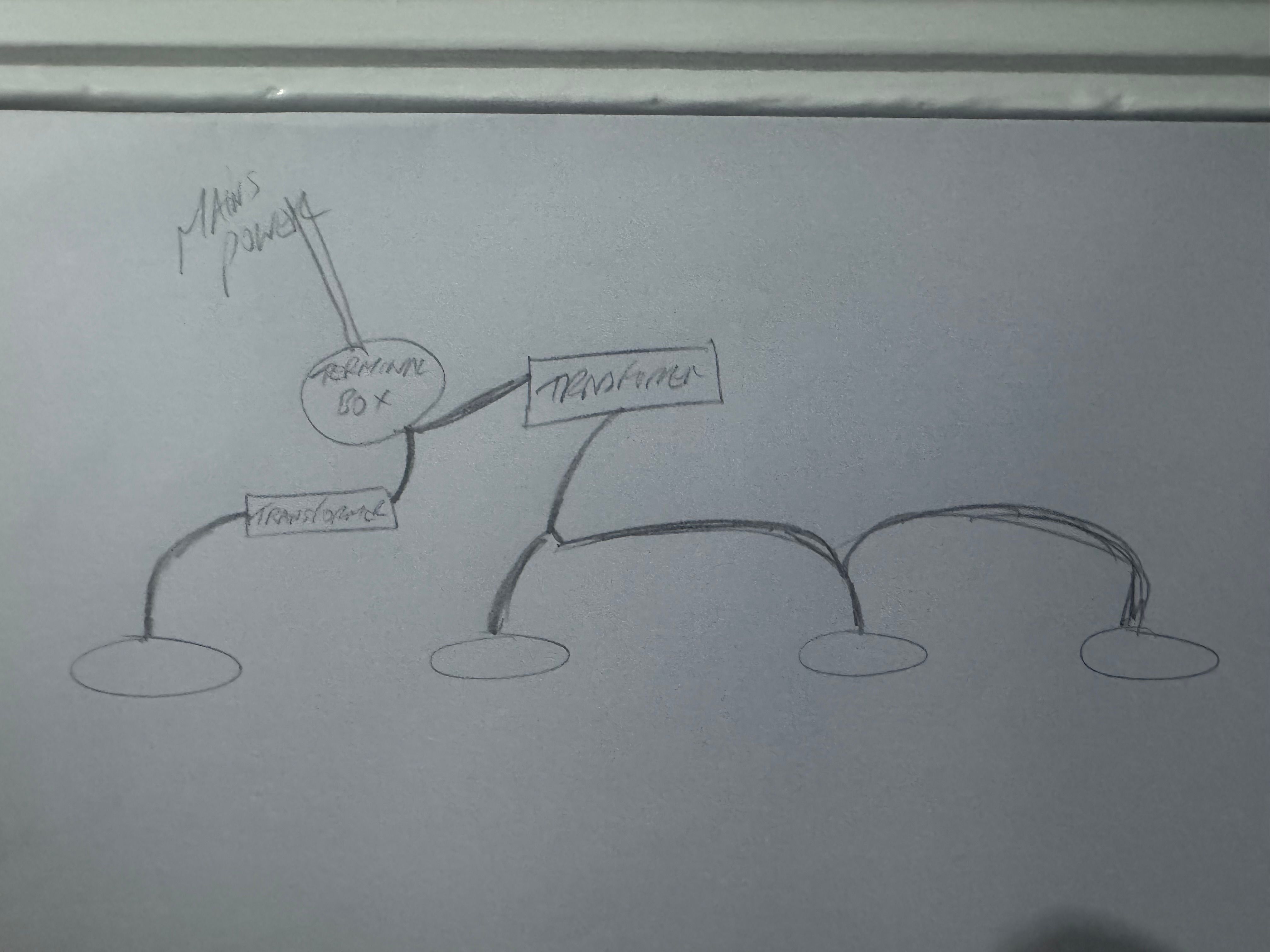

I have a set of 4 Halogen low-voltage downlights, that I'd like to change to the 240v direct mains LED (all built in unit) ones. My crude diagram shows how it is currently all connected. I have changed these a few times in the past in other rooms and just removed the transformers and plugged directly in,but want to check the same is true for this setup.

Can the daisy-chain setup still work, if I merely remove the transformers and wire directly?

Thanks


netherfield

2,977 posts

204 months

Thursday
quotequote all
I did but ran a wire from each lamp back to the junction box.

Then did some in the kitchen where the lamps had a loop in, loop out connector with different colour and brightness switches fitted.

Mr Pointy

12,707 posts

179 months

Thursday
quotequote all
Yes you can leave the daisy chain. These are brilliant devices:
https://www.quickwire.co.uk/product/qsp34/

lizardbrain

3,437 posts

57 months

Thursday
quotequote all
I recently swapped out some of these and some off the plastics were crumbling in my fingers like pastry, from the heat cycling. I think these things get up to 250 degrees C. Properly installed too it seems. I'm amazed they're ever legal really.

Berocca

Original Poster:

28 posts

156 months

Thursday
quotequote all
Thanks for confirming.
