Wedge brake servo clevis bushes

[Adrian@]

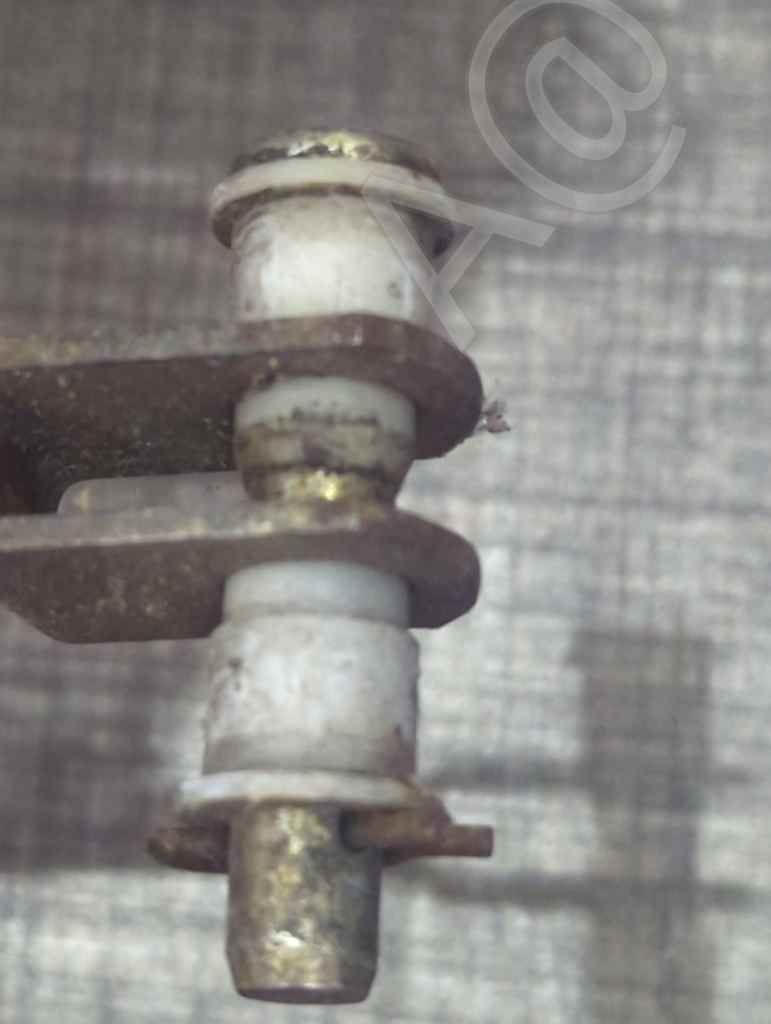

Mark, all, Here is a picture of what I have in the servo connection to the pedal on a spare servo I have, I have bought a new servo cannot be sure if the is the correct fitting and if the pedal is connected using this without modification, as I can see no reason for a chamfer on the inner edges of the bushes. (I will pop it in the new servo, cleaned and ready to go, as such). A@

Edited by Adrian@ on Sunday 15th February 13:01

[mrzigazaga]

Hi Adrian

Mine has a simple clevis pin with a sprung clamp that sits on the pedal, i will try to get to the garage Tuesday to take a pic.

Cheers

Mark.

[Adrian@]

Mark, the image is from salvage off an early Tasmin, (the new servo is for a MK5 Cortina and it has a welded on eyelet that I can see those parts will fit into it). There appears to be a later clevis pin version, with a screw on clevis (which will be an easy mod to run a thread down it, add the clevis fitting and a lock nut) which would give height adjustment to match the fluid M/C clutch too. A@
