Speedo

[Tuscan Wil]

My speedo only works for the first 30-40 miles then it stops, but it never goes eratic. I took the advice from here and got down underneath the car and clean the gap of the sensor. Still no joy, took her to a garage and the garage had a proper clean and even adjust the gap, and again only works for the first 30-40 miles. I noticed that the speedo sometimes gets back to live when there is a relay "tick" noise, but only sometimes!! Any clue from the experts here!?!?

[fuzzwig]

Wierd, have took mine in today for exactly the same problem, not eratic, just stops then re-starts. Picking it back up tomorrow so ill let you know the outcome

matt

[fuzzwig]

Turned out to be the sender unit mounted behind the fuel tank so ball ache of a job. Unit cost £120 so am expecting a bill of around 200 quid all in.

[Tuscan Wil]

Thanks Matt. At least now I know something I have to leave it to the expert. Cheers! I hope you get it fixed before the weekend.

[Tuscan Wil]

Just went out to get some milk and cheese. Ended up doing 40, 50 odd miles round trip!! My speedometer didn't work at the beginning which was not surprising according to my previous posts above. However, I have been playing around with the display pod and change it to the big rev count number, the needle suddenly come alive and keep on working. Does anyone know why!?!?

Many thanks!

[ec1 eex]

Does your digital speedo work when the needle packs up?

[Tuscan Wil]

yes!

[justyr]

My oddly behaving analogue speedo is due to wear on the small plastic gear, sits just behind the speedo itself. Being replaced as we speak.
J

[ec1 eex]

Tuscan Wil said:

yes!

It shouldn't be the sender unit then as I believe it gives both needle and digital speedo the same input.

My needle and digital speedo were acting up at the same time. Replacing the sender unit fixed both.

I'd suspect something is up with the electronics in the pod. Dry solder joints and loose connections could be the source of problem.

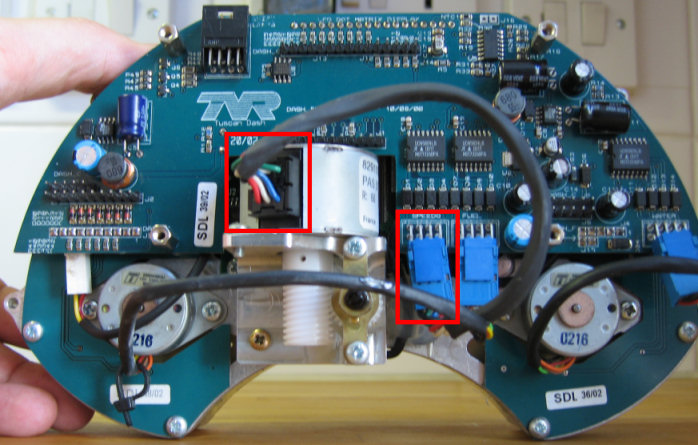

Cable connections for the needle speedo are here:


I found a dry joint in my pod that affected the backlight on the LCD:

[Tuscan Wil]

Brilliant. Thank you so much Phil. I will have a look. Hopefully i can put it back again!!

[Chewitt]

how much of a pig is the sender unit to get at? -I have dead speedo analogue and digital


ta in anticipation of more Tiv based fiddling!!

[lee02]

Chewitt said:

how much of a pig is the sender unit to get at? -I have dead speedo analogue and digital


ta in anticipation of more Tiv based fiddling!!

You can get to it by taking off the N/S rear wheel but it is on the diff. Easy enough to reach, but it has to be set up with feeler gauges and the wiring needs to be sorted. On a ramp easy 1/2 hours work but a bit fiddly on axle stands.

[Chewitt]

sorry I didn't mean the hall probe bit (the transducer) but the sender unit?

[ec1 eex]

Chewitt said:

how much of a pig is the sender unit to get at? -I have dead speedo analogue and digital


ta in anticipation of more Tiv based fiddling!!

Hopefully this will help you find it:




Photos from varleyHD's Sagaris site.

[Chewitt]

er not to get all difficult but

NOT the transducer (as shown in pics) but the

fuzzwig said:

Turned out to be the sender unit mounted behind the fuel tank so ball ache of a job. Unit cost £120 so am expecting a bill of around 200 quid all in.

anyone know how to get at this little baby and /or test it?

Chewitt earlier said:

sorry I didn't mean the hall probe bit (the transducer) but the sender unit?

[ec1 eex]

I thought the transducer was the sender unit. Can anyone tell me what the difference is?
