Discussion
I found the following on another board, i have always thought that leaf springs werent the best solution to suspension, but his guy provides a pretty compelling argument? also, if what he says is true, why are chevrolet the only manufacturer to have persisted with them:
Corvette and leaf springs. Many people are surprised to hear that the C6 Corvette uses leaf springs. This seams to conger up images of ox carts and old Ford pickups. I thought I would post my understanding of the technology with the hopes that other will post their insight.
Since 1984 the Corvette has used a transverse fiberglass composite leaf spring as part of the suspension. The C5 and C6 both have very similar double A-arm suspensions that wouldn't look out of place on any high end sports car. The only significant difference being instead of a coil over spring the Vette is using a single leaf spring. The suspension geometry and motion would be exactly the same if GM chose to use coil springs rather than the leaf. For those who might think the Corvette’s leaf spring is “outdated” technology, keep in mind that the composite leaf spring was introduced as an option in 1981 and in it’s current layout (acting as a partial anti-role bar) in 1984. It’s safe to say the coil spring is much older.
This is a picture of the C5's rear suspension.
www.corvettecavalry.com/exhaust/no-mufflers.jpg
The leaf is the black thing that runs from one side to the other just under the lower A arms.
A Brief History of Leaf Spring Suspension.
Excluding the Corvette I'm aware of 4 general types of leaf spring suspensions.
1. Model T style transverse leaf.
www.trainweb.org/toenailridge/vanradiator.jpg

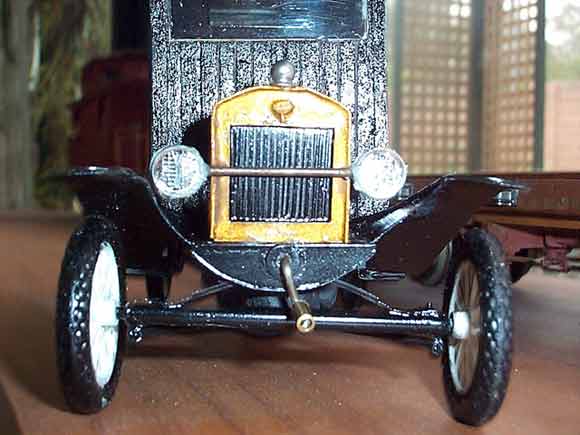

This model shows the transverse leaf used on a Ford Model-T. The suspension has two lateral arms that keep the front axle perpendicular with the chassis. Lateral axle movement is controlled by the spring. This system suffers from poor control of the axle’s movements among other flaws. I’m not aware of any production car that uses this suspension type.
2. Conventional truck type, longitudinal leaf springs:
www.chris-longhurst.com/carbibles/index.html?menu.html&suspension_bible.html (scan down)
This is the one we all love to hate. It’s also about the only type of leaf spring suspension still in use. It’s cheep, durable and handles badly. It suffers from friction between the leaves and from poor control of the axle’s location.
3. Golf cart style transverse leaf spring:
I couldn’t find any pictures of this but it basically looks like a double A-arm where the leaf spring is one of the A-arms. The geometry is probably OK under vertical loads but lateral loads would defect the spring and cause camber changes. Not an issue for golf carts but bad for sports cars.
4. Leaf with links. There are lots of variations on this suspension
Miller Indy Roadster
www.scaleautoworks.com/millerphoto.jpg
www.scaleautoworks.com/metalMillerFQ3.jpg (the black things on top of the front axle
Jaguar MkII rear suspension (can’t find a picture)
Like #3, these suspensions uses a combination of links and the leaf spring to support the axle. The Jaguar set up looks similar to a 4 bar solid axle rear suspension except the lower link is the end of an inverted leaf spring. The other end for the leaf is attached to the chassis under the passenger compartment. The middle of the upside down (frown rather than smile) spring presses against a rubber block. The end connects to the bottom of the axle. This system offers better handling and axle control than #2 but is still suffers from friction between the leaves of the springs and compared to multi-link live axles, poor control of the axle’s location.
What makes these all the same
All of the above have several things in common. First, multi-leaf springs that suffer from friction between the leaves as the leaf flexes. Second, the inherently flexible leaf spring is being asked to work as a spring AND a suspension arm. Springs (leaf, coil, torsion etc) are good at being springs. They are bad at being other things like rigid links. In those suspension designs the spring is being asked to hold the axle and be a spring. To it’s credit, the leaf spring does this much better than a coil spring. How well would a coil spring do that job? Think of a bobble head doll.
Why is the Vette different?
First, the Vette actually has double A-arm suspension like many other high end sports cars. The A-arms are used to fully control the movement of the wheels. The only difference between the Vette and other cars with A-arms is the Vette uses a leaf to pull the lower arm down rather than a coil spring to push it down. In both cases the spring is doing what it does best, being a spring ONLY.
The other problem was friction between the leaves of a leaf spring. Well the Vette uses a single piece leaf so there is no internal friction, just like a coil spring.
So what we have is double A-arm geometry just using a different type of spring.
So why does the Vette use it
To be honest, I have no idea how GM got started with the transverse leaf spring. The used to use coils in front but in 1984 they switched too leafs front and rear. I suspect it’s a tradition they maintain for the same reason Porsche keeps their engine out back even though the platform mate Boxster moved it to the middle.
What are the advantages for the Vette?
This is an article written around the time the C4 was released. It covers a lot of the reasons why GM retained the leaf suspension
http://web.telia.com/~u60113742/misc/suspension/fiberglass_spring.gif
The big advantages are:
-It weights A LOT LESS than coil springs. One leaf replaces two coils. The two coil springs weigh 3 times as much as the one leaf. Additionally the leaf is placed at the bottom of the car. In addition to removing weight you lower the CG.
-It acts as an anti role bar. The article above explains how this works so I won’t. The advantage is you can run lighter anti-role bars because the springs are taking care of part of the job for you.
-The leaf springs never wear out. The vendor of these springs has never had to replace one due to fatigue failure. Coil springs to were out but you typically don’t notice on smaller, lighter cars. You do see it more on old, heavy Caddies and such. The improved fatigue life was really evident compared to the C3’s steel leaf spring. Thus this is an advantage over coils but not a big one.
What are the drawbacks for the Vette?
-They are expensive. We normally don’t think of leaves as the expensive suspension but in the case of the Corvette, coils would be cheaper. The Vette already has all the parts a coil sprung double A arm suspension would use. Pull the leaf off, replace the shock with a coil over and you’ve converted the Vette. Since the rest of the system is the same, the cost comes down to the price of 2 coils or one spring. Well if it was a steal leaf spring it might be cheaper (remember truck suspension is cheaper because the leaves also act as links).
If it’s so good why don’t other people use it?
It’s legitimate to ask, does GM know something that Ferrari, Porsche etc don’t know or are the people at GM just being pig headed and sticking with “outdated” technology.
Street cars:
-You must design them into the car in the first place. This seams obvious but consider these springs span across the bottom of the car. In the front they have to clear the engine oil pan and in the back they have to stay out of the way of the differential. Basically, you can retro fit coils on the Vette because the mounts can be shared with the shock mounts. For the most part you can’t retrofit Corvette style leaves onto other cars because you would have to add mounts that don’t exist on the regular car.
-GM and their supplier spent a lot of time and money developing the Vette’s composite spring. Currently they are the only manufacture with the knowledge and understanding to make the springs work. On the other hand, coil springs are common and well understood. Lots of vendors can make them in a wide variety of configurations. It’s easier for the other manufactures to stick with what they know. Other manufactures would have to study the design and manufacture of composite leaf springs before they could pop them on the next Supra-NSX-Type-GT. GM did that work years ago. Toyota could certainly afford to develop their own composite springs if they wanted. The same may not be true for smaller companies like Ferrari and Porsche.
-Engineers like to stick with what they know. Lots of suspension engineers are familiar with using coil springs. They could experiment with leaves if they wanted or they could stick with coils and get the job done. See the point about undertaking a research project.
-Coils are cheaper. This automatically keeps them off lower cost cars (Miata, Civic) and cars that share platforms with lower cost siblings (Audi TT). Porsche isn’t worried about saving every last dollar but there suspension and chassis design may not allow packaging a Corvette type leaf. The same is probably true of Ferrari. Even if packaging isn’t a problem they still have to pay for tooling to make the springs. Unlike the GM who spreads that cost over 30,000 Vettes a year, Ferrari would spread that over maybe 2000 cars a year. Porsche would be somewhere in between. Conversely I can get coils made with relatively low setup cost and a cheaper per part cost. So not only would they have to spend more per car, they have to spend a lot more up front.
-Perception. Just like pushrods, the leaf spring as a stigma attached to it. The reasons for the stigma are legit (key component to heavy and typically poor handling suspension). However the reality is the sum of the older parts was the problem, not a specific part of it.
What about race cars? (this section is almost verbatim from another post of mine.
To start off, not all race cars use coil springs. Some F1 cars (Ferrari and others) use torsion springs instead. Years ago Indy and F1 cars DID use leaf springs but those days are long past.
The current design of open wheel racecars places great restrictions on suspension packaging. The Corvette’s transverse leaf spring must span from one side of the car to the other. Also, to be most effective the links between the spring and suspension arms should be under tension. This makes a bottom mount spring most effective. This packaging doesn’t work well on an open wheel car because the spring would have to pass though the gear box around the dif (or the gear box would have to be raised and hurt the car’s CG). At the front the driver’s legs would get in the way. Additionally the spring is wide and would have to extend past the body work where it would hurt the car’s aero package.
NASCAR rules dictate coil springs on the rear axle. They probably originally used leaves but given the option any car designer (modifier back in the day?) would have replaced the leaves with a multi-link set up. As I said before the multi-link offers better control of the rear suspension.
Another good reason is only a few companies understand the technology necessary to make the springs. Hypercoil is currently the top race spring manufacture. They can make very precise, matched spring pairs. The level of precise spring rate control and matching may not exist in the composite bow springs.
Coil race springs are not car specific. You select rates, diameters, length etc but you don’t have a specific spring for a specific car. If you want to order a custom spring Hypercoil will wind it to your specifications on the same machine they use for the next custom spring. A custom Porsche, Formula Ford and LMP car spring can all be made on the same machine. By the time the C6 evolves into a C6-R (they don’t start off with a production Corvette) the suspension geometry is so different that they couldn’t just mount a C6 leaf spring. It’s far too expensive to have a few custom leaf springs tooled up (you would have to buy the tooling as well as the springs) so they use readily available coil springs.
This type of universal tooling isn’t availible for the composite leaf spring. Only the Vette currently uses the spring so you are making a Vette only part. This seriously reduces the market for aftermarket composite leaf springs (still there are after market leaf springs available for the Vette). The business case for custom equipment to make Vette springs is harder to justify since it’s a smaller market.
Why don’t other cars retrofit leaf springs? Well they also don’t retrofit torsion springs despite the fact that F1 cars use them. Put simply it would be VERY difficult. The Vette was designed to have them. It has mount points under the car where the springs fit to the suspension sub frames. It’s not easy to just add that to a car that was designed to use a coil spring. All of the cars you mentioned would have to be re-engineered to add leaf springs. Replacing the factory spring with a racing is easy by comparison.
The other VERY significant reason is racers will use what they know. They will put effort into learning about new technology (torsion springs in F1) but ultimately it is too there advantage to stick with what they know.
Would the Vette be better with coil springs?
Well that depends. As I said before, there are a lot more options available in coil springs. If I want to substantially change the Vette’s spring rates then I will need to go to coils. Also, if I want to totally get rid of the Vette’s anti roll I need to dump the leaves because they provided some roll resistance.
BUT…
If for some reason I just lost my leaf spring (maybe someone stole it to make a very strong bow and arrow) and had to replace it with coils. I want the same ride quality, the same spring and roll rates etc. Basically I want the car to be the same as before but with coil springs. Assuming you didn’t change anything but the springs (same tires, shocks, ride height, same spring rate and effective roll rate, etc) the Vette would unquestionably be SLOWER with coils instead of the leaf setup. Basically if all else is equal, the coils are heavier and raise the CG of the car. One other small advantage is the shocks on the leaf sprung car will move more freely than the car with coilovers. When used as a coil over, coils impart a bending load on the shocks that cause them to bind a bit. On a street car you will never notice but on a race car it can cost a tenth of a second or so. (Hypercoil markets a pivoting spring perch to reduce the effects of side loading in coil over shocks).
Again, if I decide I really want to race I will likely dump the leaves because I have more options with coils. For a reasonable (in racing terms) price I can get custom coils made. The same isn’t true of the composite leaf spring.
Corvette and leaf springs. Many people are surprised to hear that the C6 Corvette uses leaf springs. This seams to conger up images of ox carts and old Ford pickups. I thought I would post my understanding of the technology with the hopes that other will post their insight.
Since 1984 the Corvette has used a transverse fiberglass composite leaf spring as part of the suspension. The C5 and C6 both have very similar double A-arm suspensions that wouldn't look out of place on any high end sports car. The only significant difference being instead of a coil over spring the Vette is using a single leaf spring. The suspension geometry and motion would be exactly the same if GM chose to use coil springs rather than the leaf. For those who might think the Corvette’s leaf spring is “outdated” technology, keep in mind that the composite leaf spring was introduced as an option in 1981 and in it’s current layout (acting as a partial anti-role bar) in 1984. It’s safe to say the coil spring is much older.
This is a picture of the C5's rear suspension.
www.corvettecavalry.com/exhaust/no-mufflers.jpg
The leaf is the black thing that runs from one side to the other just under the lower A arms.
A Brief History of Leaf Spring Suspension.
Excluding the Corvette I'm aware of 4 general types of leaf spring suspensions.
1. Model T style transverse leaf.
www.trainweb.org/toenailridge/vanradiator.jpg
This model shows the transverse leaf used on a Ford Model-T. The suspension has two lateral arms that keep the front axle perpendicular with the chassis. Lateral axle movement is controlled by the spring. This system suffers from poor control of the axle’s movements among other flaws. I’m not aware of any production car that uses this suspension type.
2. Conventional truck type, longitudinal leaf springs:
www.chris-longhurst.com/carbibles/index.html?menu.html&suspension_bible.html (scan down)
This is the one we all love to hate. It’s also about the only type of leaf spring suspension still in use. It’s cheep, durable and handles badly. It suffers from friction between the leaves and from poor control of the axle’s location.
3. Golf cart style transverse leaf spring:
I couldn’t find any pictures of this but it basically looks like a double A-arm where the leaf spring is one of the A-arms. The geometry is probably OK under vertical loads but lateral loads would defect the spring and cause camber changes. Not an issue for golf carts but bad for sports cars.
4. Leaf with links. There are lots of variations on this suspension
Miller Indy Roadster
www.scaleautoworks.com/millerphoto.jpg
www.scaleautoworks.com/metalMillerFQ3.jpg (the black things on top of the front axle
Jaguar MkII rear suspension (can’t find a picture)
Like #3, these suspensions uses a combination of links and the leaf spring to support the axle. The Jaguar set up looks similar to a 4 bar solid axle rear suspension except the lower link is the end of an inverted leaf spring. The other end for the leaf is attached to the chassis under the passenger compartment. The middle of the upside down (frown rather than smile) spring presses against a rubber block. The end connects to the bottom of the axle. This system offers better handling and axle control than #2 but is still suffers from friction between the leaves of the springs and compared to multi-link live axles, poor control of the axle’s location.
What makes these all the same
All of the above have several things in common. First, multi-leaf springs that suffer from friction between the leaves as the leaf flexes. Second, the inherently flexible leaf spring is being asked to work as a spring AND a suspension arm. Springs (leaf, coil, torsion etc) are good at being springs. They are bad at being other things like rigid links. In those suspension designs the spring is being asked to hold the axle and be a spring. To it’s credit, the leaf spring does this much better than a coil spring. How well would a coil spring do that job? Think of a bobble head doll.
Why is the Vette different?
First, the Vette actually has double A-arm suspension like many other high end sports cars. The A-arms are used to fully control the movement of the wheels. The only difference between the Vette and other cars with A-arms is the Vette uses a leaf to pull the lower arm down rather than a coil spring to push it down. In both cases the spring is doing what it does best, being a spring ONLY.
The other problem was friction between the leaves of a leaf spring. Well the Vette uses a single piece leaf so there is no internal friction, just like a coil spring.
So what we have is double A-arm geometry just using a different type of spring.
So why does the Vette use it
To be honest, I have no idea how GM got started with the transverse leaf spring. The used to use coils in front but in 1984 they switched too leafs front and rear. I suspect it’s a tradition they maintain for the same reason Porsche keeps their engine out back even though the platform mate Boxster moved it to the middle.
What are the advantages for the Vette?
This is an article written around the time the C4 was released. It covers a lot of the reasons why GM retained the leaf suspension
http://web.telia.com/~u60113742/misc/suspension/fiberglass_spring.gif
The big advantages are:
-It weights A LOT LESS than coil springs. One leaf replaces two coils. The two coil springs weigh 3 times as much as the one leaf. Additionally the leaf is placed at the bottom of the car. In addition to removing weight you lower the CG.
-It acts as an anti role bar. The article above explains how this works so I won’t. The advantage is you can run lighter anti-role bars because the springs are taking care of part of the job for you.
-The leaf springs never wear out. The vendor of these springs has never had to replace one due to fatigue failure. Coil springs to were out but you typically don’t notice on smaller, lighter cars. You do see it more on old, heavy Caddies and such. The improved fatigue life was really evident compared to the C3’s steel leaf spring. Thus this is an advantage over coils but not a big one.
What are the drawbacks for the Vette?
-They are expensive. We normally don’t think of leaves as the expensive suspension but in the case of the Corvette, coils would be cheaper. The Vette already has all the parts a coil sprung double A arm suspension would use. Pull the leaf off, replace the shock with a coil over and you’ve converted the Vette. Since the rest of the system is the same, the cost comes down to the price of 2 coils or one spring. Well if it was a steal leaf spring it might be cheaper (remember truck suspension is cheaper because the leaves also act as links).
If it’s so good why don’t other people use it?
It’s legitimate to ask, does GM know something that Ferrari, Porsche etc don’t know or are the people at GM just being pig headed and sticking with “outdated” technology.
Street cars:
-You must design them into the car in the first place. This seams obvious but consider these springs span across the bottom of the car. In the front they have to clear the engine oil pan and in the back they have to stay out of the way of the differential. Basically, you can retro fit coils on the Vette because the mounts can be shared with the shock mounts. For the most part you can’t retrofit Corvette style leaves onto other cars because you would have to add mounts that don’t exist on the regular car.
-GM and their supplier spent a lot of time and money developing the Vette’s composite spring. Currently they are the only manufacture with the knowledge and understanding to make the springs work. On the other hand, coil springs are common and well understood. Lots of vendors can make them in a wide variety of configurations. It’s easier for the other manufactures to stick with what they know. Other manufactures would have to study the design and manufacture of composite leaf springs before they could pop them on the next Supra-NSX-Type-GT. GM did that work years ago. Toyota could certainly afford to develop their own composite springs if they wanted. The same may not be true for smaller companies like Ferrari and Porsche.
-Engineers like to stick with what they know. Lots of suspension engineers are familiar with using coil springs. They could experiment with leaves if they wanted or they could stick with coils and get the job done. See the point about undertaking a research project.
-Coils are cheaper. This automatically keeps them off lower cost cars (Miata, Civic) and cars that share platforms with lower cost siblings (Audi TT). Porsche isn’t worried about saving every last dollar but there suspension and chassis design may not allow packaging a Corvette type leaf. The same is probably true of Ferrari. Even if packaging isn’t a problem they still have to pay for tooling to make the springs. Unlike the GM who spreads that cost over 30,000 Vettes a year, Ferrari would spread that over maybe 2000 cars a year. Porsche would be somewhere in between. Conversely I can get coils made with relatively low setup cost and a cheaper per part cost. So not only would they have to spend more per car, they have to spend a lot more up front.
-Perception. Just like pushrods, the leaf spring as a stigma attached to it. The reasons for the stigma are legit (key component to heavy and typically poor handling suspension). However the reality is the sum of the older parts was the problem, not a specific part of it.
What about race cars? (this section is almost verbatim from another post of mine.
To start off, not all race cars use coil springs. Some F1 cars (Ferrari and others) use torsion springs instead. Years ago Indy and F1 cars DID use leaf springs but those days are long past.
The current design of open wheel racecars places great restrictions on suspension packaging. The Corvette’s transverse leaf spring must span from one side of the car to the other. Also, to be most effective the links between the spring and suspension arms should be under tension. This makes a bottom mount spring most effective. This packaging doesn’t work well on an open wheel car because the spring would have to pass though the gear box around the dif (or the gear box would have to be raised and hurt the car’s CG). At the front the driver’s legs would get in the way. Additionally the spring is wide and would have to extend past the body work where it would hurt the car’s aero package.
NASCAR rules dictate coil springs on the rear axle. They probably originally used leaves but given the option any car designer (modifier back in the day?) would have replaced the leaves with a multi-link set up. As I said before the multi-link offers better control of the rear suspension.
Another good reason is only a few companies understand the technology necessary to make the springs. Hypercoil is currently the top race spring manufacture. They can make very precise, matched spring pairs. The level of precise spring rate control and matching may not exist in the composite bow springs.
Coil race springs are not car specific. You select rates, diameters, length etc but you don’t have a specific spring for a specific car. If you want to order a custom spring Hypercoil will wind it to your specifications on the same machine they use for the next custom spring. A custom Porsche, Formula Ford and LMP car spring can all be made on the same machine. By the time the C6 evolves into a C6-R (they don’t start off with a production Corvette) the suspension geometry is so different that they couldn’t just mount a C6 leaf spring. It’s far too expensive to have a few custom leaf springs tooled up (you would have to buy the tooling as well as the springs) so they use readily available coil springs.
This type of universal tooling isn’t availible for the composite leaf spring. Only the Vette currently uses the spring so you are making a Vette only part. This seriously reduces the market for aftermarket composite leaf springs (still there are after market leaf springs available for the Vette). The business case for custom equipment to make Vette springs is harder to justify since it’s a smaller market.
Why don’t other cars retrofit leaf springs? Well they also don’t retrofit torsion springs despite the fact that F1 cars use them. Put simply it would be VERY difficult. The Vette was designed to have them. It has mount points under the car where the springs fit to the suspension sub frames. It’s not easy to just add that to a car that was designed to use a coil spring. All of the cars you mentioned would have to be re-engineered to add leaf springs. Replacing the factory spring with a racing is easy by comparison.
The other VERY significant reason is racers will use what they know. They will put effort into learning about new technology (torsion springs in F1) but ultimately it is too there advantage to stick with what they know.
Would the Vette be better with coil springs?
Well that depends. As I said before, there are a lot more options available in coil springs. If I want to substantially change the Vette’s spring rates then I will need to go to coils. Also, if I want to totally get rid of the Vette’s anti roll I need to dump the leaves because they provided some roll resistance.
BUT…
If for some reason I just lost my leaf spring (maybe someone stole it to make a very strong bow and arrow) and had to replace it with coils. I want the same ride quality, the same spring and roll rates etc. Basically I want the car to be the same as before but with coil springs. Assuming you didn’t change anything but the springs (same tires, shocks, ride height, same spring rate and effective roll rate, etc) the Vette would unquestionably be SLOWER with coils instead of the leaf setup. Basically if all else is equal, the coils are heavier and raise the CG of the car. One other small advantage is the shocks on the leaf sprung car will move more freely than the car with coilovers. When used as a coil over, coils impart a bending load on the shocks that cause them to bind a bit. On a street car you will never notice but on a race car it can cost a tenth of a second or so. (Hypercoil markets a pivoting spring perch to reduce the effects of side loading in coil over shocks).
Again, if I decide I really want to race I will likely dump the leaves because I have more options with coils. For a reasonable (in racing terms) price I can get custom coils made. The same isn’t true of the composite leaf spring.
It is important to differentiate between the classic twin-leaf setup (as seen on trucks and large vans - the cart layout), and the transverse package.
The car layout is primitive. The springs are heavy, the beam axle cocept is pretty inefficient, and the springs also do most of the location work.
There is merit in a transverse leaf layout, if it suits the design requirements (obvious, but worth considering). The Corvette layout uses suspension arms to cotrl geometry. The spring acts purely to provide the springing medium and assist in roll control. Considerations include:
- Weight: The Corvette uses a plastic composite spring. I would be surprised is it really is lighter than a pair of coils, but I'll accept the guy's argument. In other designs, the leaf can replace or supplement a link.
- CoG: If you place it on the lower mountings, it could lower CoG.
- Packaging: Theoretically, you could lower the floor or widen the gap between wheelarches, but it does depend on the design layout you choose.
- Roll Control: One great feature of the transverse leaf is that roll stiffness of the spring is twice bump stiffness. Classic coils don't offer this - the rate is the same. In theory, you have less need for an anti-roll bar (though the one on the new Corvette looks a bit chunky). That could mean another weight saving, cost saving and better ride.
- Spring stiffness in different planes: One issue I have found with composite leafs is that you cannot maintain stiffness in all three dimensions (compared to steel), which can cause problems with wheel control. However, the Corvette layout only calls on stiffness in the one direction (bump/rebound) so this is not an issue.
- Adjustability: You don't have the same flexibility to adjust parameters (ride height, pre-load, variable stiffness) that you get with professional coil-over assemblies. You could design this in (at significant cost), but generally you are looking at swapping springs.
- Noise & Vibration: That long arm can cause problems with vibration transmission. However, the transverse leaf is exceptionally suited to a subframe mounting. Done professionally (e.g. McLaren F1, FWD Elan), you allow the spring to do the one job it's meant to (control wheel movement), then use the subframe mounting to do other jobs like control noise transmission.
So, in theory, there is merit in a transverse layout. However, like all suspension design, what you get in practice depends on how you apply it. For ultimate performance (ie race) I would always look to coils, or a pull/pushrod package (perhaps with torsion bars). But for good road performance, especially if packaging is an issue (e.g. 911 front, at the rear of most FWD cars), it would be an interesting idea.
Fiat used a transverse leaf for a long time. Way back to the Topolino, a leaf acted as the upper wishbone (this was stolen by Cooper for the early F3s). Camber control isn't great by modern standards, but it was pretty effective for its time.
Even in the '70s, the Fiat 128 was using a low mounted leaf on a MacPherson strut layout at the rear. It performed well (as the many 128 lovers on PH will tell you), was quuite simple and cheap, and allowed a slightly wider, lower bootspace.
The car layout is primitive. The springs are heavy, the beam axle cocept is pretty inefficient, and the springs also do most of the location work.
There is merit in a transverse leaf layout, if it suits the design requirements (obvious, but worth considering). The Corvette layout uses suspension arms to cotrl geometry. The spring acts purely to provide the springing medium and assist in roll control. Considerations include:
- Weight: The Corvette uses a plastic composite spring. I would be surprised is it really is lighter than a pair of coils, but I'll accept the guy's argument. In other designs, the leaf can replace or supplement a link.
- CoG: If you place it on the lower mountings, it could lower CoG.
- Packaging: Theoretically, you could lower the floor or widen the gap between wheelarches, but it does depend on the design layout you choose.
- Roll Control: One great feature of the transverse leaf is that roll stiffness of the spring is twice bump stiffness. Classic coils don't offer this - the rate is the same. In theory, you have less need for an anti-roll bar (though the one on the new Corvette looks a bit chunky). That could mean another weight saving, cost saving and better ride.
- Spring stiffness in different planes: One issue I have found with composite leafs is that you cannot maintain stiffness in all three dimensions (compared to steel), which can cause problems with wheel control. However, the Corvette layout only calls on stiffness in the one direction (bump/rebound) so this is not an issue.
- Adjustability: You don't have the same flexibility to adjust parameters (ride height, pre-load, variable stiffness) that you get with professional coil-over assemblies. You could design this in (at significant cost), but generally you are looking at swapping springs.
- Noise & Vibration: That long arm can cause problems with vibration transmission. However, the transverse leaf is exceptionally suited to a subframe mounting. Done professionally (e.g. McLaren F1, FWD Elan), you allow the spring to do the one job it's meant to (control wheel movement), then use the subframe mounting to do other jobs like control noise transmission.
So, in theory, there is merit in a transverse layout. However, like all suspension design, what you get in practice depends on how you apply it. For ultimate performance (ie race) I would always look to coils, or a pull/pushrod package (perhaps with torsion bars). But for good road performance, especially if packaging is an issue (e.g. 911 front, at the rear of most FWD cars), it would be an interesting idea.
Fiat used a transverse leaf for a long time. Way back to the Topolino, a leaf acted as the upper wishbone (this was stolen by Cooper for the early F3s). Camber control isn't great by modern standards, but it was pretty effective for its time.
Even in the '70s, the Fiat 128 was using a low mounted leaf on a MacPherson strut layout at the rear. It performed well (as the many 128 lovers on PH will tell you), was quuite simple and cheap, and allowed a slightly wider, lower bootspace.
