I thought I would start a thread about my EG civic build.

Had VTI about 25 years, loved it sold for a GTIR back in the day and fond memories of both so been on look out for a build of both.

Never built a car before but tinkered and did start a kit car many moons ago but was too busy at time working none stop. Now I am mid 40s and only work 2 days a week thought I would learn some new skills and have a project to keep me busy.

Managed to get a part built car with about £40k of bits from a chap who had started build and left country. And I’ve spent a fair bit on extra stuff. Theme is no cheap crap!

Have many parts installed and a few final on way.

The part installed Tefzel wiring is spinning me out but now just needs the 12v to plus, sensor grounds and wrapping. First ever go so taking my time!

A few pics and spec list (it’s massive first chap who started it and then me got a bit carried away).

Update pics to follow daily until built…

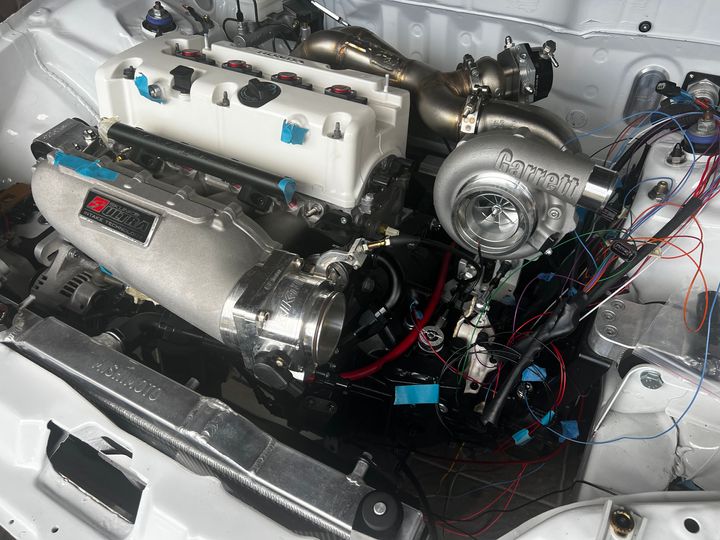

ENGINE:
Fully forged K20A2 engine.
Darton MID wet sleeves
88mm CP 9.5:1 forged pistons
Manley Turbo Tuff I-beam Conrods
Brand new OEM crankshaft
King Tri Metal race bearings
ARP L19 Headstuds
Fluidampyr harmonic crank pulley
Fully built head with ferrea comp 6000 vales, seats, springs,retainers, seals
Oem new LMA springs
Head fully polished with new valve seats
Golden Eagle head gasket
Drag cartel 3.2 cams
Toda Racing 35degee vtc gear
Skunk2 adjustable exhaust gear
Toda racing timing and oil pump chains
Brand new oem oil pump, hand ported
Drag cartel chain lower guide
Inline pro tensioner
Hybrid racing engine mounts
Skunk2 ultra race intake manifold
Ktuned billet 80mm throttle body
Skunk2 composite fuel rail + radium engineering fpr
grams 1150cc injectors
Osaka project coil packs
DW in tank 255lph fuel pump - 100
DW 400lph fuel pump inside a radium engineering surge tank
DW high flow fuel filter
LA-FAB wg priority sidewinder manifold
Garrett G-series G30-770 turb
Garret GVW 50mm watsegate
Speedfactory intercooler
Speedfactory 4 bar map sensor
Speedfactory 4 port boost controller
Acuity TPS
Mishimoto ep3 aluminium radiator
Exo racing twin spal fans with shroud
Ktuned electric water pump kit
Kpro v4
Moroso baffled sump
Radium competition catch can
140amp alternator
Brand new starter motor and engine sensors and various other t7design and k20 bolts and mating plates
Radium com

Gearbox:
Fully rebult with oem bearings and seals
Synchrotech carbon synchro kit
Mfactory LSD
Speedfactory detent and gear selector springs
Brand new bolts all around.
Competition clutch twin disk clutch + flywheel + ARP flywheel bolts
Acuity 2 way shifter
Ktuned race spec shifter cables
Insane shafts

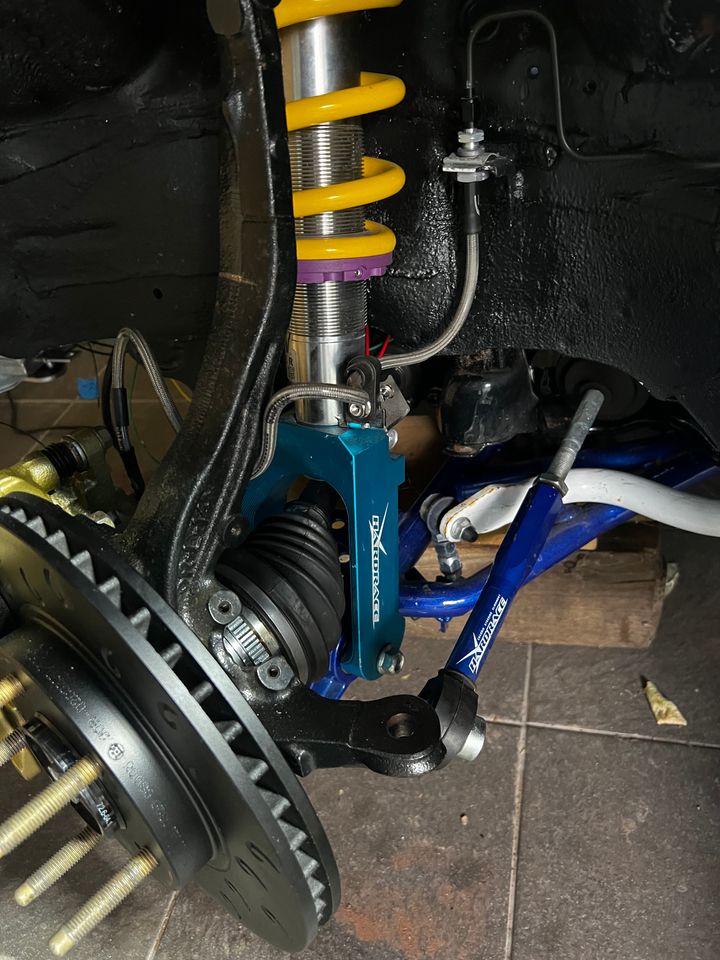

SUSPENSION/BRAKES:
Spoon rigid collar kit
DC2 ITR subframe powdercoated, with dc2 steering rack converted to manual
Dc2 ITR 5x114 282mm front and 262mm brakes with fully refurbished calipers and arms + new wheel hubs and bearings  -
Drilled grooved stop tech brake discs and pads
wildwood prop valve with brand new tucked brake lines
Honed developments booster delete kit
KW v2 coilovers
Hardrace front upper control arms
Hardrace tubular alu lower arms
Hardrace compliance bushes
Hardrace billet shock forks
Hardrace Tie rod end
Hardrace tie rod
Hardrace rear LCA
Hardrace rear ARB 25.4mm + brace
Ultra racing front ARB
Hardrace droppings front and rear
Hardrace rear toe arms
Hardrace rear trailing arm bushes

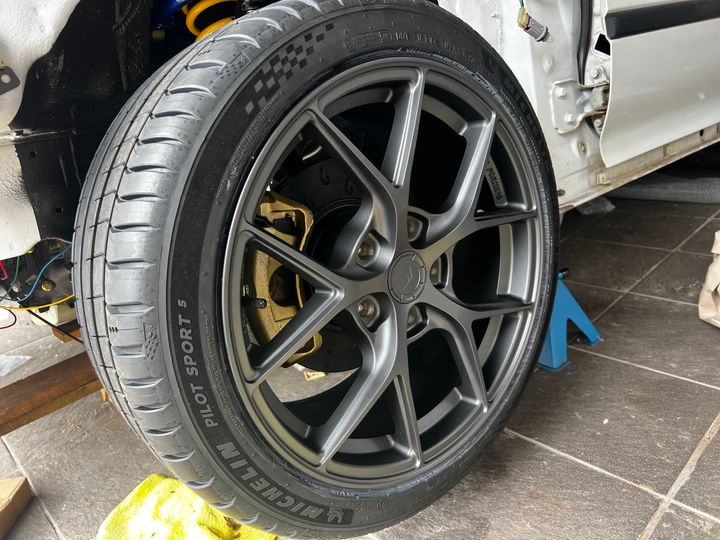

Japan racing flow formed allow wheels and nuts
Michelin pilot sport 5 tyres 245/40/17



INTERIOR:
Fully stripped and painted
Black dash with custom gauge pod made from factory trim
4x pro sport evolution gauges
Plx wideband gauge + sensor
S2000 speedo with qube engineering white led kit
Ktuned dash converter.
Carbon door panels
works bell rapfix II quick release
Custom engine start panel
JC Clubsport custom roll cage
SW motorsport custom seat brackets
Corbeau bucket seats
Momo wheel


EXTERIOR
Underneath undersealed as well as inner arches.
Genuine Pandem v1 bodykit
dark tint headlight
50/50 red/smoke taillights
APR GT3 side mirrors
Seibon TS style carbon bonnet


Edited by P155flaps on Thursday 12th September 00:44


Edited by P155flaps on Thursday 12th September 00:56

P155flaps

Original Poster:

560 posts

149 months

Thursday 12th September
quotequote all










aka_kerrly

12,488 posts

216 months

Thursday 12th September
quotequote all
That's a bit of a monster , a great Honda chassis with the benefit of a great modern Honda engine.

What is the plan in terms of it being road legal/ MOT'd or strictly a track car?

P155flaps

Original Poster:

560 posts

149 months

Thursday 12th September
quotequote all
aka_kerrly said:
That's a bit of a monster , a great Honda chassis with the benefit of a great modern Honda engine.

What is the plan in terms of it being road legal/ MOT'd or strictly a track car?
Yeah exactly my thoughts, always had a soft spot for eg great chassis and so many have been lost to rust etc worth saving and modding right.

Should be fairly pokey (I a told engine in that spec should be good for 1000 bhp with different injectors) any more than 650-700 in that is just crazy so will def have a safe tune.

Road legal yeah will just need to un hook the comp VTA catch can come mot time and plumb in a remote washer bottle as engine bay is getting cramped.
