Garage portable lift ?

Garage portable lift ?

Author
Discussion

cowesboy

Original Poster:

11 posts

25 months

Friday 23rd August 2019
quotequote all
What are people using in there garages to get there cars at a good height to work on?

Accelebrate

4,523 posts

173 months

Friday 23rd August 2019
quotequote all
I've got my eyes on a scissor lift, maybe something like this:

https://www.automotechservices.co.uk/products/as-7...

But I haven't yet felt like sparing the cash to actually purchase it. I don't have the height for a two-post lift and I'd like something I can move. I've looked at QuickJacks in CostCo but they don't appear to offer that much height.

As an interim budget solution, I bought some chunky 6T axle stands (much higher than the usual 2/3T) and a decent-sized jack. They'll go a little higher than this, but it was enough to remove the gearbox and wheel it out on a jack.


finishing touch

734 posts

125 months

Friday 23rd August 2019
quotequote all
Due to a low garage roof and wanting something that I could drag outside to use more height if needed I opted for one of these.


All lifts have their pluses an minuses. You just have to go for whats best for you.

Paul G



E-bmw

5,726 posts

110 months

Friday 23rd August 2019
quotequote all
I have looked at these scissor lifts before & ruled them out as there seems to be a lot of steel in the way of where you may well want to be working.

I too just use a set of 4 6t axle stands which you can position where you want to make sure they are out of the way.

SMB

1,481 posts

224 months

Friday 23rd August 2019
quotequote all
I use a 7530, had it a few years now. Unlike the scissor lift above it leaves wheels, suspension engine, and central tunnel area with open access, no cross beams. Car is very stable and secure.

The only area with limited access are the side sills.

kambites

60,126 posts

179 months

Friday 23rd August 2019
quotequote all
E-bmw said:
I have looked at these scissor lifts before & ruled them out as there seems to be a lot of steel in the way of where you may well want to be working.
Most cars have very little that you might want to work on between the jacking points unless you're replacing the exhaust or welding up the floor. Especially FWD cars which are the norm these days, but even with front-engined RWD cars all that's really obscured is the prop-shaft and maybe the gearbox housing.

finishing touch

734 posts

125 months

Friday 23rd August 2019
quotequote all
Huh ! If you have a so called mate like mine who buys ANYTHING thats cheap then often the sills are the very place that needs access. rolleyes (see pic)


Like I said, no lift is perfect. And don't be blinkered either. Jacking up and putting blocks under wheels, let the lift down and place axle stands on the lift,
then re-raising the lift. All sorts of combinations with a little thought.



pingu393

4,109 posts

163 months

Friday 23rd August 2019
quotequote all

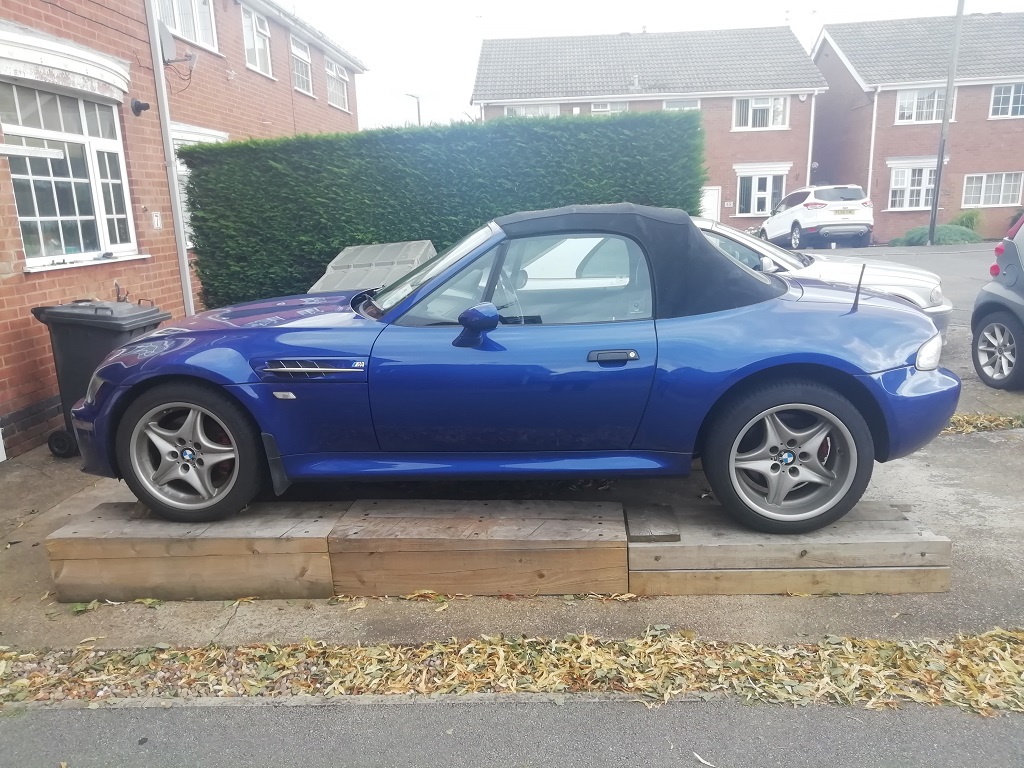

£250 of old sleepers. I thought about a scissor lift, but my drive is on a slope. The sleepers have been planed so the car sits flat. I use some reinforced motor cycle ramps to drive the car onto the sleepers.

My 330 is actually on them now, with the body resting on some blocks of wood under the rear jacking points, and the rear wheels are off.

geeman237

871 posts

143 months

Monday 26th August 2019
quotequote all
I’ve got a Max Jax. It’s a portable two post low height lift. I’m in the US but I think there may be a U.K. distributor. It cost me about $1600.

anonymous-user

12 months

Tuesday 27th August 2019
quotequote all

Catatafish

1,073 posts

103 months

Tuesday 27th August 2019
quotequote all
There's these as well:

Quickjack

Arnold Cunningham

1,127 posts

211 months

Thursday 29th August 2019
quotequote all
I like this, I've been thinking about similar and was caught looking suspiciously at my extra long ramps with a view to doing this at the weekend.
Have you made the centre piece removable? I was thinking making the "wheel" bits shortish (bit able to handle a range of wheelbases) and the filler inbetween them removable?

Also like the 7530 - thanks to everyone who's contributed on this thread, it's useful.

pingu393 said:
£250 of old sleepers. I thought about a scissor lift, but my drive is on a slope. The sleepers have been planed so the car sits flat. I use some reinforced motor cycle ramps to drive the car onto the sleepers.

My 330 is actually on them now, with the body resting on some blocks of wood under the rear jacking points, and the rear wheels are off.

pingu393

4,109 posts

163 months

Thursday 29th August 2019
quotequote all
Arnold Cunningham said:
I like this, I've been thinking about similar and was caught looking suspiciously at my extra long ramps with a view to doing this at the weekend.
Have you made the centre piece removable? I was thinking making the "wheel" bits shortish (bit able to handle a range of wheelbases) and the filler inbetween them removable?

Also like the 7530 - thanks to everyone who's contributed on this thread, it's useful.

pingu393 said:
£250 of old sleepers. I thought about a scissor lift, but my drive is on a slope. The sleepers have been planed so the car sits flat. I use some reinforced motor cycle ramps to drive the car onto the sleepers.

My 330 is actually on them now, with the body resting on some blocks of wood under the rear jacking points, and the rear wheels are off.
The front and centre sections are three sleepers on edge, with two laying flat on top (I my case, planed to the required angle).
The rear section is two flat sleepers with another two on top. The top pair are bolted together - this is to make sure the motorcycle ramps fit perfectly every time.

I'm incapacitated at the moment, but I may do a video at some time to show how to do it.

It was probably the cheapest way for me to get the car in the air - but if I'd had to buy the motorcyle ramps I might have gone down a different route.

Peter3442

285 posts

26 months

Thursday 29th August 2019
quotequote all
Not wishing to be an H&S anorak, but, especially for an old car, I feel uncomfortable about the consequences of unsupported wheels/suspension for aged rubber bushes and rubber sub-frame mounts. In particular, I wouldn't want the rear sub-frame of an old XJ to fall on my head.

Krikkit

19,547 posts

139 months

Thursday 29th August 2019
quotequote all
Peter3442 said:
Not wishing to be an H&S anorak, but, especially for an old car, I feel uncomfortable about the consequences of unsupported wheels/suspension for aged rubber bushes and rubber sub-frame mounts. In particular, I wouldn't want the rear sub-frame of an old XJ to fall on my head.
Is that a realistic worry? Never heard of that happening, never mind with someone under it.

Chris32345

1,073 posts

20 months

Thursday 29th August 2019
quotequote all
Peter3442 said:
Not wishing to be an H&S anorak, but, especially for an old car, I feel uncomfortable about the consequences of unsupported wheels/suspension for aged rubber bushes and rubber sub-frame mounts. In particular, I wouldn't want the rear sub-frame of an old XJ to fall on my head.
But the volts go through the rubber mount's so even if the rubber totally fell apart when lifted up the bolt would still be in the hole to hold the parts in place

Infernored

67 posts

210 months

Thursday 29th August 2019
quotequote all
I

Infernored

67 posts

210 months

Thursday 29th August 2019
quotequote all
I have this one. Bought second hand but unused from a lovely old boy that could not lift his e type with it. Works great with front and rear drive cars. I use wooden ramps to get my mx5 and other low cars over it. Good access as it is H shaped.

GreenV8S

28,422 posts

242 months

Thursday 29th August 2019
quotequote all
I like the look of that. It looks as if the power module doubles as a trolley to move it around.

Peter3442

285 posts

26 months

Thursday 29th August 2019
quotequote all
Krikkit and Chris,

My primary concern was for over-stressing rubber bushes in wishbones/control arms, especially when bump stops are missing. It's just something that I don't like to see.

As for sub-frames falling out, there are a several V-mount designs that rely solely on the bonding between rubber and steel to hold them together. Those on the rear sub-frame of the series XJs and the XJS are of that type. I've never heard of a sub-frame fall out on a lift, but I have seen a car going up and basically leaving the sub-frame behind. Prior to being lifted, gravity and the trailing arms were holding everything together.
